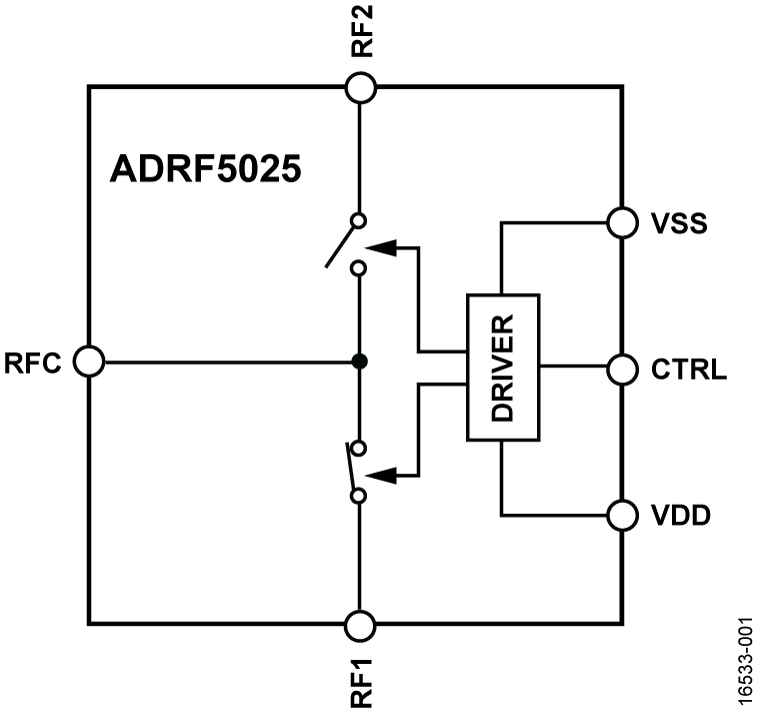

The ADRF5025 is a reflective single-pole double-throw (SPDT) switch, manufactured in silicon process.This switch operates from 9 kHz to 44 GHz with better than 1.6 dB of insertion loss and 35 dB of isolation. The ADRF5025 has a radio frequency (RF) input power handling capability of 27 dBm for both the through path and hot switching at the RFC pin.The ADRF5025 draws a low current of 14 µA on the positive supply of +3.3 V and 120 µA on negative supply of −3.3 V. The device employs complementary metal-oxide semiconductor (CMOS)-/low voltage transistor to transistor logic (LVTTL)-compatible controls.The ADRF5025 is pin compatible with theADRF5024, low frequency cutoff version, which operates from 100 MHz to 44 GHz.The ADRF5025 RF ports are designed to match a characteristic impedance of 50 Ω. For ultrawideband products, impedance matching on the RF transmission lines can further optimize high frequency insertion loss and return loss characteristics. Refer to the Electrical Specifications section, the Typical Performance Characteristics section, and the Applications Information section for more details.The ADRF5025 comes in a 2.25 mm × 2.25 mm, 12-terminal, RoHS-compliant, land grid array (LGA) package and can operate from −40°C to +105°C.ApplicationsIndustrial scannersTest and instrumentationCellular infrastructure: 5G mmWaveMilitary radios, radars, electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs)

The ADRF5027 is a nonreflective, single-pole, double-throw (SPDT) radio frequency (RF) switch manufactured in a silicon process.The ADRF5027 operates from 9 kHz to 44 GHz with better than 3.8 dB of insertion loss and 43 dB of isolation. The ADRF5027 features an all off control, where both RF ports are in an isolation state. The ADRF5027 has a nonreflective design and both of the RF ports are internally terminated to 50 Ω.The ADRF5027 requires a dual-supply voltage of +3.3 V and −3.3 V. The device employs complimentary metal-oxide semiconductor/low-voltage transistor-transistor logic (CMOS/LVTTL) logic-compatible controls.The ADRF5027 is pin compatible with theADRF5026fast switching version, which operates from 100 MHz to 44 GHz.The ADRF5027 RF ports are designed to match a characteristic impedance of 50 Ω. For ultrawideband products, impedance matching on the RF transmission lines can further optimize high frequency insertion loss and return loss characteristics. Refer to the Narrow-Band Impedance Matching section for an example of a matched circuit that achieves a low insertion loss response of 2.2 dB from 28 GHz to 43 GHz.The ADRF5027 comes in a 20-terminal, 3 mm × 3 mm, RoHS-compliant, land grid array (LGA) package and can operate from −40°C to +105°C.ApplicationsIndustrial scannersTest and instrumentationCellular infrastructure: 5G mmWaveMilitary radios, radars, electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs)

The ADRF5043 is a nonreflective, SP4T switch manufactured in the silicon on insulator (SOI) process.The ADRF5043 operates from 9 kHz to 44 GHz with an insertion loss of lower than 2.5 dB and an isolation of higher than 36 dB. The device has a RF input power handling capability of 24 dBm for both through and terminated paths.The ADRF5043 requires a dual-supply voltage of +3.3 V and −3.3 V. The device employs CMOS- and low voltage transistor to transistor logic (LVTTL)-compatible controls.The ADRF5043 has enable and logic select controls to feature all off state and port mirroring, respectively.The ADRF5043 is pin compatible with the ADRF5042 fast switching version, which operates from 100 MHz to 44 GHz.The ADRF5043 comes in a 24-terminal, 3 mm × 3 mm, RoHS compliant, land grid array (LGA) package and can operate from −40°C to +105°C.ApplicationsIndustrial ScannersTest instrumentationCellular infrastructure—millimeterwave (mmWave) 5GMilitary radios, radars, electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs)

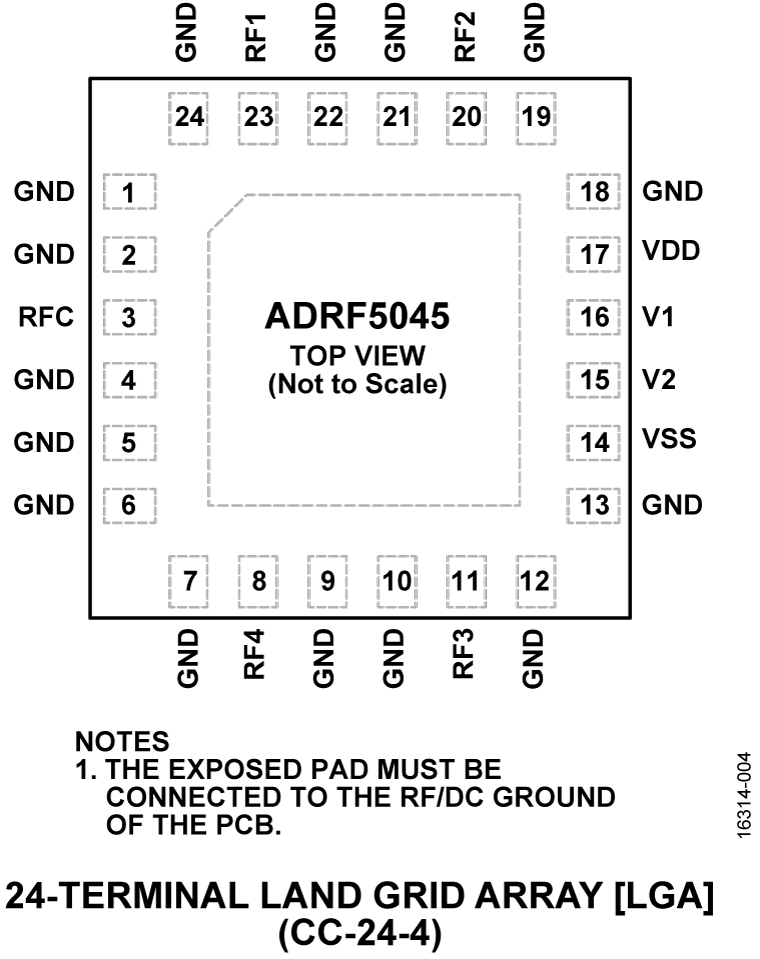

The ADRF5045 is a general-purpose, single-pole, four-throw (SP4T) switch manufactured using a silicon process. It comes in a 24-terminal land grid array (LGA) package and provides high isolation and low insertion loss from 9 kHz to 30 GHz.This broadband switch requires dual supply voltages, +3.3 V and −3.3 V, and provides complementary metal-oxide semiconductor (CMOS)/low voltage transistor-transistor logic (LVTTL) logiccompatible control.ApplicationsTest instrumentationMicrowave radios and very small aperture terminals (VSATs)Military radios, radars, and electronic counter measures (ECMs)Broadband telecommunications systems

The ADRF5047 is a reflective, single-pole, four-throw (SP4T) switch manufactured in the silicon process.The ADRF5047 operates from 9 kHz to 44 GHz with an insertion loss of lower than 2.7 dB and isolation of higher than 31 dB. The device has a radio frequency (RF) input power handling capability of 26 dBm for both through path and hot switching at RFC.The ADRF5047 draws a low current of 3 μA on the positive supply of +3.3 V, and −110 μA on the negative supply of −3.3 V. The device provides complementary metal-oxide semiconductor (CMOS)-/low voltage transistor-transistor logic (LVTTL)-compatible controls.The ADRF5047 is pin-compatible with the ADRF5046, fast switching version, which operates from 100 MHz to 44 GHz.The ADRF5047 comes in a 20-terminal, 3 mm × 3 mm, RoHS-compliant, land grid array (LGA) package and can operate from −40°C to +105°C.ApplicationsIndustrial scannerTest instrumentationCellular infrastructure—mmWave 5GMilitary radios, radars, and electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs)

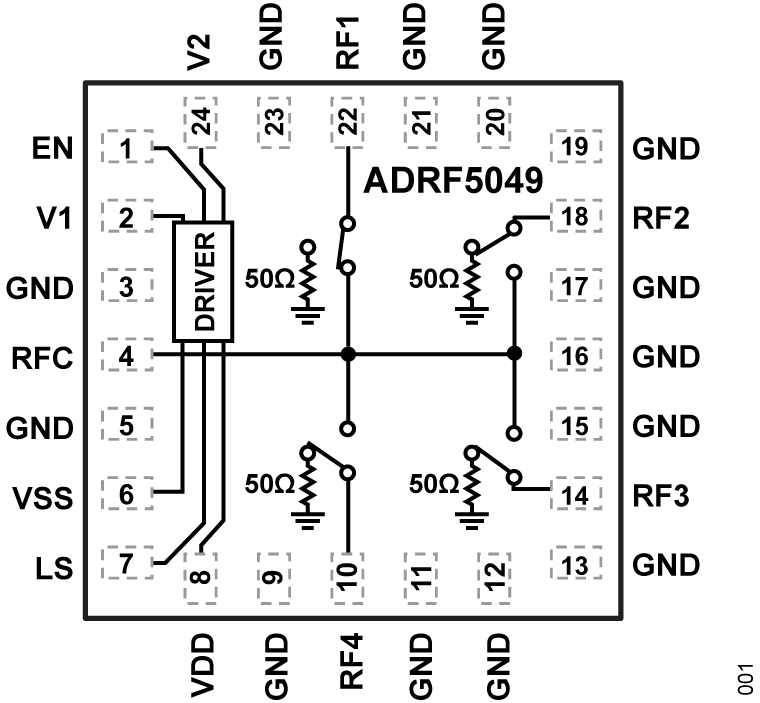

The ADRF5049 is a nonreflective SP4T switch manufactured in the silicon on insulator (SOI) process.This device operates from 9 kHz to 45 GHz with an insertion loss of lower than 3.3 dB and isolation of higher than 35 dB. The ADRF5049 has an RF input power handling capability of 30 dBm through path, 18 dBm terminated path, and 30 dBm hot switching at the RF common port.The ADRF5049 requires a dual-supply voltage of +3.3 V and −3.3 V. The device employs complimentary metal-oxide semiconductor (CMOS)-/low-voltage transistor to transistor logic (LVTTL) logic-compatible controls.The ADRF5049 has enable and logic select controls to feature all off state and mirror port selection, respectively.The ADRF5049 is pin compatible with the ADRF5042 and ADRF5043.The ADRF5049 comes in a 24-terminal, 3 mm × 3 mm, RoHS compliant, land grid array (LGA) package and can operate from −40°C to +105°C.APPLICATIONSIndustrial scannersTest instrumentationCellular infrastructure—mmWave 5GMilitary radios, radars, and electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs)

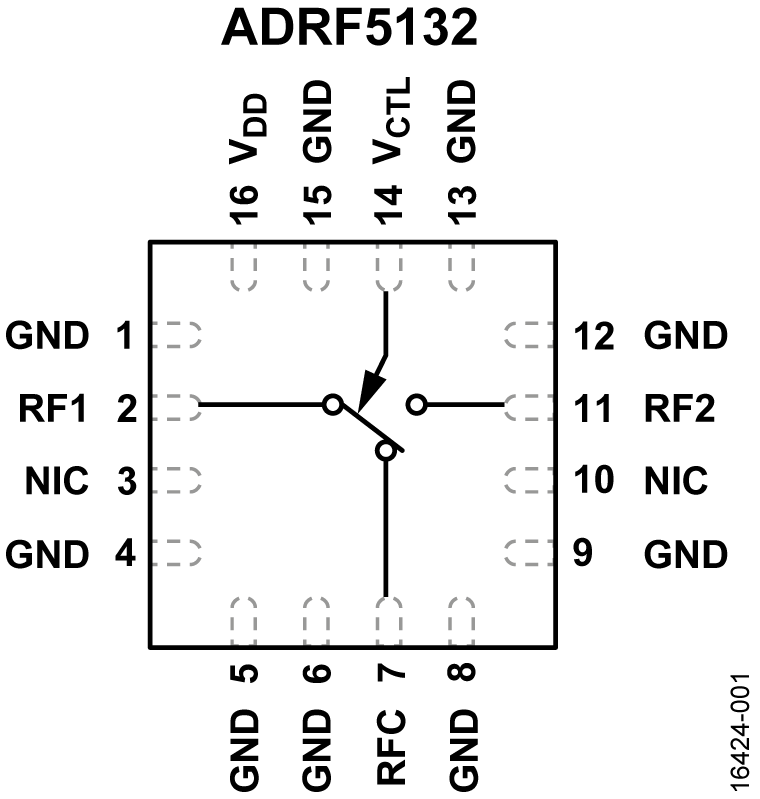

The ADRF5132 is a high power, reflective, 0.7 GHz to 5.0 GHz, silicon, single-pole, double-throw (SPDT) reflective switch in a leadless, surface-mount package. The switch is ideal for high power and cellular infrastructure applications, like long-term evolution (LTE) base stations. The ADRF5132 has high power handling of 35 dBm LTE (average typical at 105°C), a low insertion loss of 0.6 dB at 2.7 GHz, input third-order intercept of 65 dBm (typical), and 0.1 dB compression (P0.1dB) of 42.5 dBm.The on-chip circuitry operates at a single, positive supply voltage of 5 V and a typical supply current of 1.1 mA typical, making the ADRF5132 an ideal alternative to pin diode-based switches.The device is in a RoHS compliant, compact, 16-lead, 3 mm × 3 mm LFCSP package.ApplicationsCellular/4G infrastructureWireless infrastructureMilitary and high reliability applicationsTest equipmentPin diode replacement
