ADRF5047 Series

Silicon SP4T Switch, Reflective, 9 kHz to 44 GHz

Catalog

Silicon SP4T Switch, Reflective, 9 kHz to 44 GHz

Part	Type	Frequency [Max]	Frequency [Min]	Supplied Contents	For Use With/Related Products	Mounting Type	IIP3	Topology	Isolation	Frequency Range [Min]	Frequency Range [Max]	Impedance	Insertion Loss	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	RF Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Test Frequency

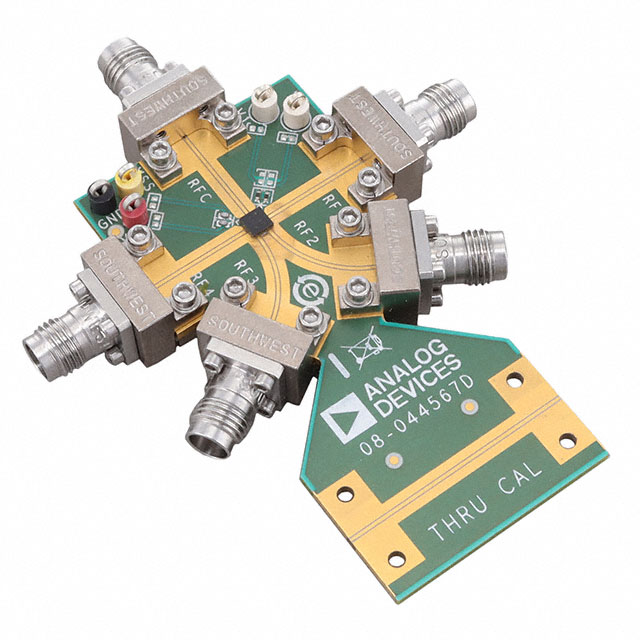

Analog Devices ADRF5047-EVALZ	Switch SP4T	44 GHz	9 kHz	Board(s)	ADRF5047
Analog Devices ADRF5047BCCZN-R7						Surface Mount	50 dBm	Reflective	31 dB	9 kHz	44 GHz	50 Ohms	2.7 dB	20-VFLGA Exposed Pad	105 °C	-40 °C	VSAT	20-LGA (3x3)	3.45 V	3.15 V	44 GHz
Analog Devices ADRF5047BCCZN						Surface Mount	50 dBm	Reflective	31 dB	9 kHz	44 GHz	50 Ohms	2.7 dB	20-VFLGA Exposed Pad	105 °C	-40 °C	VSAT	20-LGA (3x3)	3.45 V	3.15 V	44 GHz

Catalog

Silicon SP4T Switch, Reflective, 9 kHz to 44 GHz

Key Features

• Ultrawideband frequency range: 9 kHz to 44 GHz

• Reflective design

• Low insertion loss1.5 dB to 18 GHz2.4 dB to 40 GHz2.7 dB to 44 GHz

• 1.5 dB to 18 GHz

• 2.4 dB to 40 GHz

• 2.7 dB to 44 GHz

• High isolation47 dB to 18 GHz33 dB to 40 GHz31 dB to 44 GHz

• 47 dB to 18 GHz

• 33 dB to 40 GHz

• 31 dB to 44 GHz

• High input linearityP0.1dB: 26.5 dBm typicalIP3: 50 dBm typical

• P0.1dB: 26.5 dBm typical

• IP3: 50 dBm typical

• High RF input power handlingThrough path: 26 dBmHot switching: 26 dBm

• Through path: 26 dBm

• Hot switching: 26 dBm

• No low frequency spurious

• 0.1 dB RF settling time: 5.2 μs

• 20-terminal, 3 mm × 3 mm, RoHS-compliant, LGA package

• Pin compatible with ADRF5046, fast switching version

Description

The ADRF5047 is a reflective, single-pole, four-throw (SP4T) switch manufactured in the silicon process.The ADRF5047 operates from 9 kHz to 44 GHz with an insertion loss of lower than 2.7 dB and isolation of higher than 31 dB. The device has a radio frequency (RF) input power handling capability of 26 dBm for both through path and hot switching at RFC.The ADRF5047 draws a low current of 3 μA on the positive supply of +3.3 V, and −110 μA on the negative supply of −3.3 V. The device provides complementary metal-oxide semiconductor (CMOS)-/low voltage transistor-transistor logic (LVTTL)-compatible controls.The ADRF5047 is pin-compatible with the ADRF5046, fast switching version, which operates from 100 MHz to 44 GHz.The ADRF5047 comes in a 20-terminal, 3 mm × 3 mm, RoHS-compliant, land grid array (LGA) package and can operate from −40°C to +105°C.ApplicationsIndustrial scannerTest instrumentationCellular infrastructure—mmWave 5GMilitary radios, radars, and electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs)
