ADRF5026 Series
Manufacturer: Analog Devices
Beta
⌘K

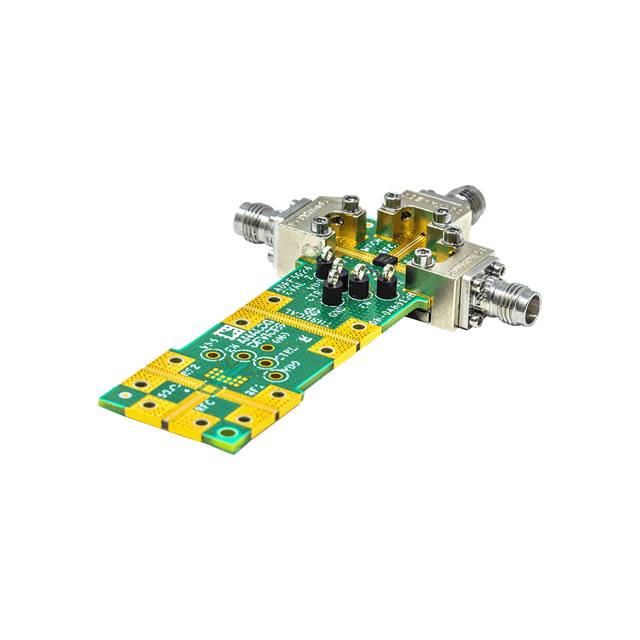

EVAL BOARD
| Part | For Use With/Related Products | Type | Supplied Contents | Frequency [Min] | Frequency [Max] | Contents | Test Frequency | Circuit | Package / Case | RF Type | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] | Insertion Loss | Mounting Type | IIP3 | P1dB | Isolation | Topology | Frequency Range [Min] | Frequency Range [Max] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | ADRF5026 | Switch SPDT | Board(s) | 100 MHz | 44 GHz | |||||||||||||||||||
Analog Devices | ADRF5026 | Switch SPDT | Board(s) | 100 MHz | 44 GHz | Board(s) | ||||||||||||||||||
 Analog Devices | 44 GHz | SPDT | 20-WFLGA Exposed Pad | VSAT | -40 °C | 105 ░C | 20-LGA (3x3) | 3.45 V | 3.15 V | 3.8 dB | Surface Mount | 53 dBm | 27 dB | 45 dB | Absorptive | 100 MHz | 44 GHz | 50 Ohms |
