The ADG751 is a low voltage SPST (single pole, single throw) switch. It is constructed in a T-switch configuration, which results in excellent Off Isolation while maintaining good frequency response in the ON condition.High off isolation and wide signal bandwidth make this part suitable for switching RF and video signals. Low power consumption and operating supply range of +1.8 V to +5.5 V make it ideal for battery powered, portable instruments.The ADG751 is designed on a submicron process that provides low power dissipation yet gives high switching speed and low on resistance. This part is a fully bidirectional switch and can handle signals up to and including the supply rails.The ADG751 is available in 6-lead SOT-23 and 8-lead µSOIC packages.PRODUCT HIGHLIGHTSHigh Off Isolation –75 dB at 100 MHz.–3 dB Signal Bandwidth 300 MHz.Low On-Resistance (15 Ω).Low Power Consumption, typically <0.01 µW.Tiny 6-lead SOT-23 and 8-lead µSOIC packages.APPLICATIONSAudio and Video SwitchingRF SwitchingNetworking ApplicationsBattery Powered SystemsCommunication SystemsRelay ReplacementSample-and-Hold Systems

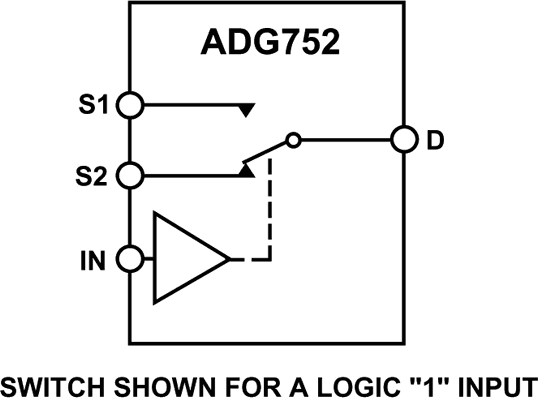

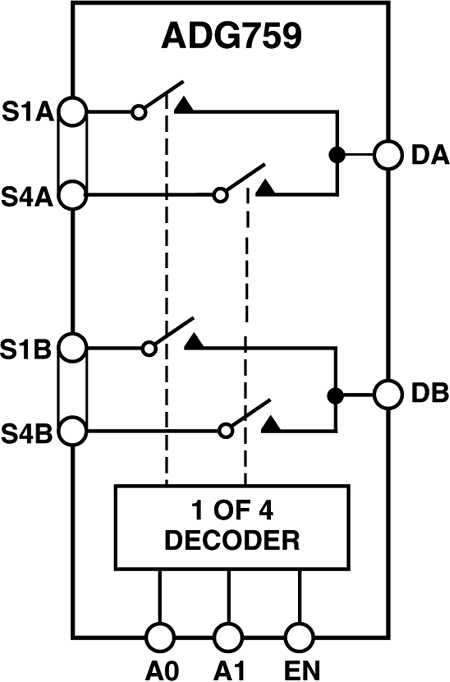

The ADG759 is a low voltage, CMOS analog multiplexer comprising four differential channels. The ADG759 switches one of four differential inputs to a common differential output as determined by the 2-bit binary address lines A0 and A1. An EN input is used to enable or disable the device. When disabled, all channels are switched OFF.Low power consumption and operating supply range of 1.8 V to 5.5 V make the ADG759 ideal for battery-powered, portable instruments. All channels exhibit break-before-make switching action preventing momentary shorting when switching channels.The ADG759 is available in a 16-lead TSSOP package.APPLICATIONSData Acquisition SystemsCommunication SystemsRelay ReplacementAudio and Video SwitchingBattery-Powered SystemsPRODUCT HIGHLIGHTSSmall 20-Lead 4 mm × 4 mm Chip Scale Packages (CSP).Single/Dual Supply Operation. The ADG758 and ADG759 are fully specified and guaranteed with 3 V and 5 V single-supply and ±2.5 V dual-supply rails.Low RON (3 Ω Typical).Low Power Consumption (<0.01 µW).Guaranteed Break-Before-Make Switching Action.

The ADG772 is a low voltage CMOS device that contains two independently selectable single-pole, double throw (SPDT) switches. It is designed as a general-purpose switch and can be used for routing both USB 1.1 and USB 2.0 signals.This device offers a data rate of 1260 Mbps, making the part suitable for high frequency data switching. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. The ADG772 exhibits break-before-make switching action.The ADG772 is available in a 12-lead LFCSP and a 10-lead mini LFCSP. These packages make the ADG772 the ideal solution for space-constrained applications.Product Highlights1.6 mm × 1.3 mm mini LFCSP package.USB 1.1 (12 Mbps) and USB 2.0 (480 Mbps) compliant.Single 2.7 V to 3.6 V operation.1.8 V logic compatible.RoHS compliant.ApplicationsUSB 2.0 signal switching circuitsCellular phonesPDAsMP3 playersBattery-powered systemsHeadphone switchingAudio and video signal routingCommunications systems

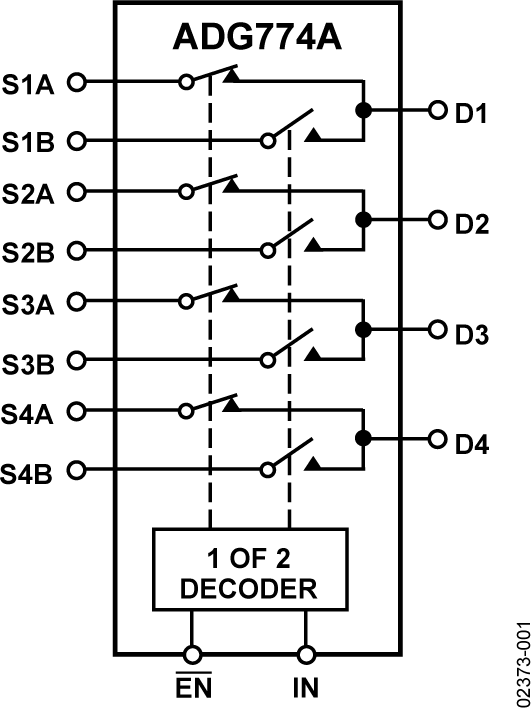

TThe ADG774A is a monolithic CMOS device comprising four 2:1 multiplexer/demultiplexers with high impedance outputs. The CMOS process provides low power dissipation yet offers high switching speed and low on resistance. The on resistance variation is typically less than 0.5 Ω over the input signal range.The bandwidth of the ADG774A is typically 400 MHz and this, coupled with low distortion (typically 0.3%), makes the part suitable for switching of high speed data signals.The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion. CMOS construction ensures ultralow power dissipation.The ADG774A operates from a single 3.3 V/5 V supply and is TTL logic-compatible. The control logic for each switch is shown in the truth table.These switches conduct equally well in both directions when on. In the off condition, signal levels up to the supplies are blocked. The ADG774A switches exhibit break-before-make switching action.Product HighlightsWide bandwidth data rates of >400 MHz.Ultralow power dissipation.Low leakage over temperature.Break-before-make switching prevents channel shorting when the switches are configured as a multiplexer.Crosstalk is typically −70 dB @ 10 MHz.Off isolation is typically −65 dB @ 10 MHz.Available in compact 3 mm × 3 mm LFCSP.

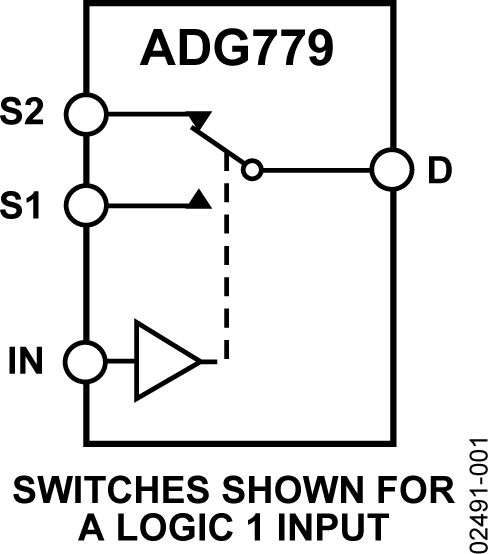

The ADG779 is a monolithic CMOS SPDT switch. This switch is designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and -3 dB bandwidths of greater than 200 MHz can be achieved.The ADG779 can operate from a single supply range of 1.8 V to 5.5 V, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices.

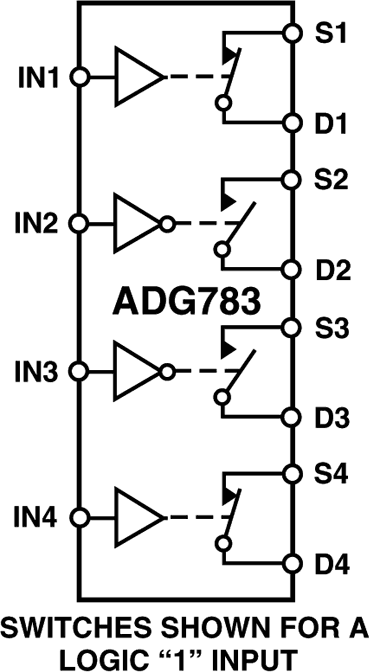

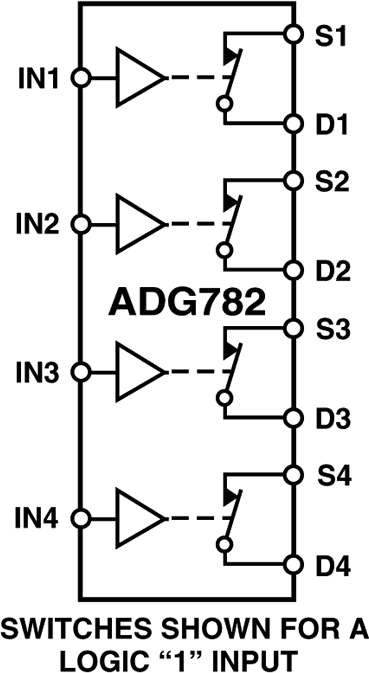

TheADG781,ADG782, and ADG783 are monolithic CMOS devices containing four independently selectable switches. These switches are designed on an advanced submicron process that provides low power dissipation and high switching speed, low on resistance, low leakage currents and high bandwidth.They are designed to operate from a single 1.8 V to 5.5 V supply, making them ideal for use in battery powered instruments and with the new generation of DACs and ADCs from Analog Devices. Fast switching times and high bandwidth make the part suitable for video signal switching.The ADG781, ADG782, and ADG783 contain four independent single-pole/single throw (SPST) switches. The ADG781 and ADG782 differ only in that the digital control logic is inverted. The ADG781 switches are turned on with a logic low on the appropriate control input, while a logic high is required to turn on the switches of the ADG782. The ADG783 contains two switches whose digital control logic is similar to the ADG781, while the logic is inverted on the other two switches.Each switch conducts equally well in both directions when ON. The ADG783 exhibits break-before-make switching action. The ADG781 / ADG782 / ADG783 are available in 20-lead chip scale packages.PRODUCT HIGHLIGHTS20-Lead 4 mm × 4 mm Chip Scale Package (CSP).1.8 V to 5.5 V Single Supply Operation. The ADG781, ADG782, and ADG783 offer high performance and are fully specified and guaranteed with 3 V and 5 V supply rails.Very Low RON(4.5 Ω max at 5 V, 8 Ω max at 3 V). At supply voltage of 1.8 V, RONis typically 35 Ω over the temperature range.Low On-Resistance Flatness.–3 dB Bandwidth >200 MHz.Low Power Dissipation. CMOS construction ensures low power dissipation.Fast tON/tOFF.Break-Before-Make Switching. This prevents channel shorting when the switches are configured as a multiplexer (ADG783 only).APPLICATIONSBattery Powered SystemsCommunication SystemsSample Hold SystemsAudio Signal RoutingVideo SwitchingMechanical Reed Relay Replacement
