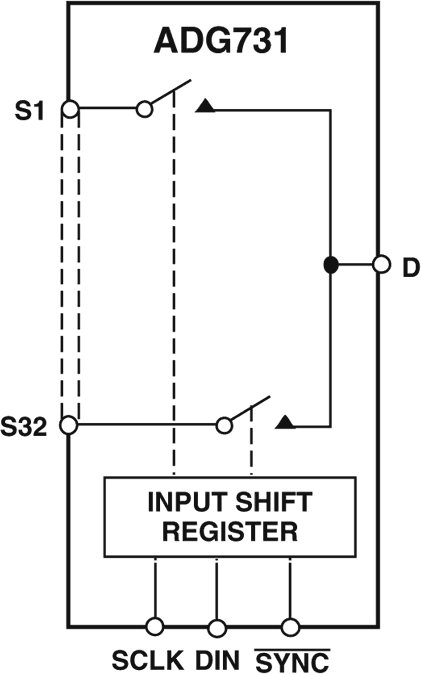

The ADG731 /ADG725are monolithic, CMOS, 32-channel/dual 16-channel analog multiplexers with a serially controlled 3-wire interface. The ADG731 switches one of 32 inputs (S1–S32) to a common output, D. The ADG725 can be configured as a dual mux switching one of 16 inputs to one output, or a differential mux switching one of 16 inputs to a differential output.These mulitplexers utilize a 3-wire serial interface that is compatible with SPI®, QSPI™, MICROWIRE™, and some DSP interface standards. On power-up, the Internal Shift Register contains all zeros and all switches are in the OFF state.These multiplexers are designed on an enhanced submicron process that provides low power dissipation yet gives high switching speed with very low on resistance and leakage currents. They operate from a single supply of 1.8 V to 5.5 V or a ±2.5 V dual supply, making them ideally suited to a variety of applications. On resistance is in the region of a few ohms, is closely matched between switches, and is very flat over the full signal range.These parts can operate equally well as either multiplexers or demultiplexers and have an input signal range that extends to the supplies. In the OFF condition, signal levels up to the supplies are blocked. All channels exhibit break-before-make switching action, preventing momentary shorting when switching channels.The ADG731 and ADG725 are serially controlled 32-channel, and dual/differential 16-channel multiplexers, respectively. They are available in either a 48-lead LFCSP or TQFP package.PRODUCT HIGHLIGHTS3-Wire Serial Interface.1.8 V to 5.5 V Single-Supply or ±2.5 V Dual-Supply Operation. These parts are specified and guaranteed with 5 V ± 10%, 3 V ± 10% single-supply, and ± 2.5 V ±10% dual-supply rails.On Resistance of 4 W.Guaranteed Break-Before-Make Switching Action.7 mm × 7 mm 48-Lead Chip Scale Package (LFCSP) or48-Lead TQFP Package.APPLICATIONSOptical ApplicationsData Acquisition SystemsCommunication SystemsRelay ReplacementAudio and Video SwitchingBattery-Powered SystemsMedical InstrumentationAutomatic Test Equipment

TheADG726/ADG732 are monolithic, complementary metal oxide semiconductor (CMOS) 32-channel and dual 16-channel analog multiplexers. The ADG732 switches one of 32 inputs (S1 to S32) to a common output, D, as determined by the 5-bit binary address lines A0, A1, A2, A3, and A4. The ADG726 switches one of 16 inputs as determined by the 4-bit binary address lines A0, A1, A2, and A3.On-chip latches facilitate microprocessor interfacing. The ADG726 may also be configured for differential operation by tyingCSAandCSBtogether. AnENinput is used to enable or disable the devices. When disabled, all channels are switched off.These multiplexers are designed on an enhanced submicron process that provides low power dissipation yet gives high switching speed, very low on resistance, and leakage currents. They operate from a single supply of +1.8 V to +5.5 V and a ±2.5 V dual supply, making them ideally suited to a variety of applications. On resistance is in the region of a few ohms and is closely matched between switches and very flat over the full signal range. These devices can operate equally well as either multiplexers or demultiplexers and have an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. All channels exhibit break-before-make switching action, preventing momentary shorting when switching channels.The ADG726/ADG732 are available in a 48-lead LFCSP or a 48-lead TQFP. For functionally equivalent devices with serial interface, see theADG725/ADG731.PRODUCT HIGHLIGHTS+1.8 V to +5.5 V single- or ±2.5 V dual-supply operation.These devices are specified and guaranteed with +5 V ± 10%, +3 V ± 10% single-supply, and ±2.5 V ± 10% dual-supply rails.An on resistance of 4 Ω.Guaranteed break-before-make switching action.48-lead LFCSP package or 48-lead TQFP package.APPLICATIONSOptical applicationsData acquisition systemsCommunication systemsRelay replacementAudio and video switchingBattery-powered systemsMedical instrumentationAutomatic test equipment (ATE)

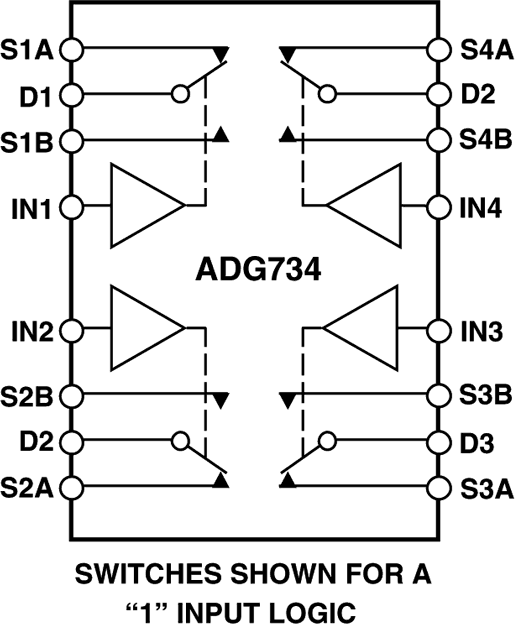

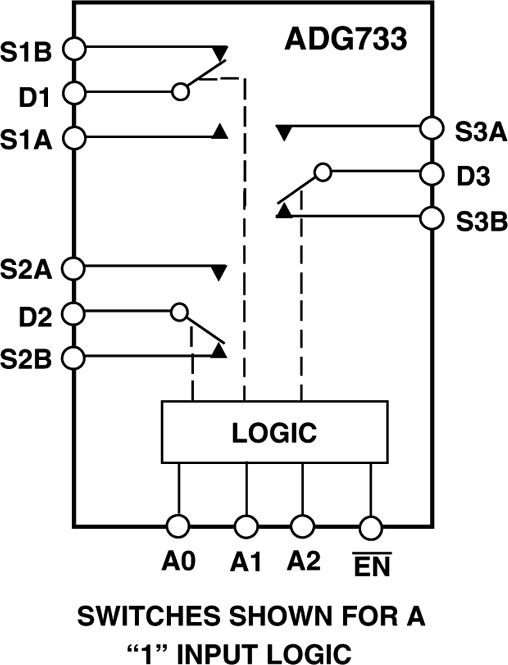

TheADG733and ADG734 are low voltage, CMOS devices comprising three independently selectable SPDT (single pole, double throw) switches and four independently selectable SPDT switches respectively.Low power consumption and operating supply range of 1.8 V to 5.5 V and dual ±2.5 V make the ADG733 and ADG734 ideal for battery powered, portable instruments. All channels exhibit break-before-make switching action preventing momentary shorting when switching channels. AnENinput on the ADG733 is used to enable or disable the device. When disabled, all channels are switched OFF.These 2–1 multiplexers/SPDT switches are designed on an enhanced submicron process that provides low power dissipation yet gives high switching speed, very low on resistance, high signal bandwidths, and low leakage currents. On resistance is in the region of a few ohms, is closely matched between switches, and is very flat over the full signal range. These parts can operate equally well in either direction and have an input signal range that extends to the supplies.The ADG733 is available in small TSSOP and QSOP packages, while the ADG734 is available in a small TSSOP package.PRODUCT HIGHLIGHTSSingle/Dual Supply Operation. The ADG733 and ADG734 are fully specified and guaranteed with 3 V and 5 V single supply rails and ±2.5 V dual supply rails.Low On Resistance (2.5 Ω typical)Low Power Consumption (<0.01 µW)Guaranteed Break-Before-Make Switching ActionAPPLICATIONSData Acquisition SystemsCommunication SystemsRelay ReplacementAudio and Video SwitchingBattery Powered Systems

The ADG736 is a monolithic device comprising two independently selectable CMOS single pole, double throw (SPDT) switches. These switches are designed using a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents, and wide input signal bandwidth.The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed also makes the part suitable for video signal switching.The ADG736 operates from a single 1.8 V to 5.5 V supply, making it ideally suited to portable and battery-powered instruments.Each switch conducts equally well in both directions when on, and each has an input signal range that extends to the power supplies. The ADG736 exhibits break-before-make switching action.The ADG736 is available in a 10-lead MSOP package.PRODUCT HIGHLIGHTS1.8 V to 5.5 V Single-Supply Operation. The ADG736 offers high performance, including low on resistance and fast switching times. It is fully specified and guaranteed with 3 V and 5 V supply rails.Very Low RON(4.5 Ω Maximum at 5 V, 8 Ω Maximum at 3 V). At a supply voltage of 1.8 V, RONis typically 35 Ω over the temperature range.Low On Resistance Flatness.−3 dB Bandwidth > 200 MHz.Low Power Dissipation. CMOS construction ensures low power dissipation.Fast tON/tOFF.Break-Before-Make Switching Action.10-Lead MSOP Package.APPLICATIONSUSB 1.1 signal switching circuitsCell phonesPDAsBattery-powered systemsCommunications systemsSample-and-hold systemsAudio signal routingAudio and video switchingMechanical reed relay replacement

The ADG738 is a CMOS analog matrix switch with a serially-controlled 3-wire interface. The ADG738 is an 8-channel matrix switch. On resistance is closely matched between switches and very flat over the full signal range.The ADG738 utilize a 3-wire serial interface that is compatible with SPI™, QSPI™, MICROWIRE®, and some DSP interface standards. The output of the input shift register, DOUT, enables a number of these parts to be daisy-chained. On power-up, the internal input shift register contains all zeros and all switches are in the off state.Each switch conducts equally well in both directions when on, making these parts suitable for both multiplexing and demulti-plexing applications. As each switch is turned on or off by a separate bit, these parts can also be configured as a type of switch array, where any, all, or none of the eight switches may be closed at any time. The input signal range extends to the supply rails.All channels exhibit break-before-make switching action, preventing momentary shorting when switching channels.The ADG738 is available in 16-lead TSSOP packages.Product Highlights3-Wire Serial Interface.Single Supply Operation. The ADG738 is fully specified and guaranteed with 3 V and 5 V supply rails.Low On Resistance, 2.5 Ω typical.Any configuration of switches may be on or off at any one time.Guaranteed Break-Before-Make Switching Action.Small 16-lead TSSOP Package.ApplicationsData Acquisition SystemsCommunication SystemsRelay ReplacementAudio and Video Switching

The ADG739 is a CMOS analog matrix switch with a serially-controlled 3-wire interface. The ADG739 is a dual 4-channel matrix switch. On resistance is closely matched between switches and very flat over the full signal range.The ADG739 utilize a 3-wire serial interface that is compatible with SPI™, QSPI™, MICROWIRE®, and some DSP interface standards. The output of the input shift register, DOUT, enables a number of these parts to be daisy-chained. On power-up, the internal input shift register contains all zeros and all switches are in the off state.Each switch conducts equally well in both directions when on, making these parts suitable for both multiplexing and demultiplexing applications. As each switch is turned on or off by a separate bit, these parts can also be configured as a type of switch array, where any, all, or none of the eight switches may be closed at any time. The input signal range extends to the supply rails.All channels exhibit break-before-make switching action, preventing momentary shorting when switching channels. The ADG739 is available in 16-lead TSSOP packages.PRODUCT HIGHLIGHTS3-Wire Serial Interface.Single Supply Operation. The ADG739 is fully specified and guaranteed with 3 V and 5 V supply rails.Low On Resistance, 2.5 Ω typical.Any configuration of switches may be on or off at any one time.Guaranteed Break-Before-Make Switching Action.Small 16-lead TSSOP Package.APPLICATIONSData acquisition systemsCommunication systemsRelay replacementAudio and video switching

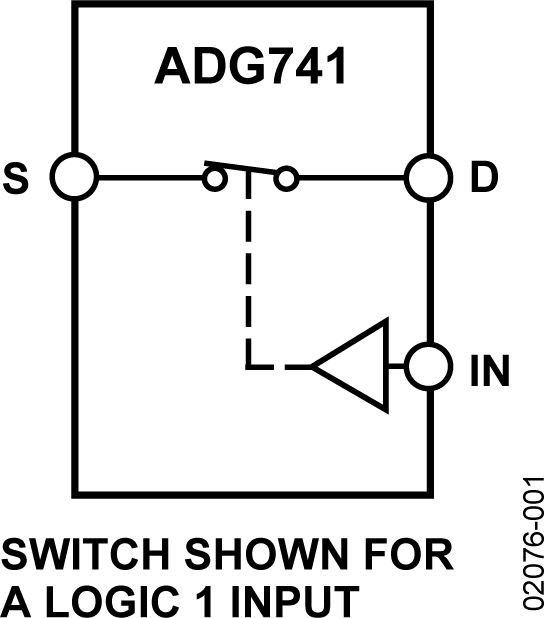

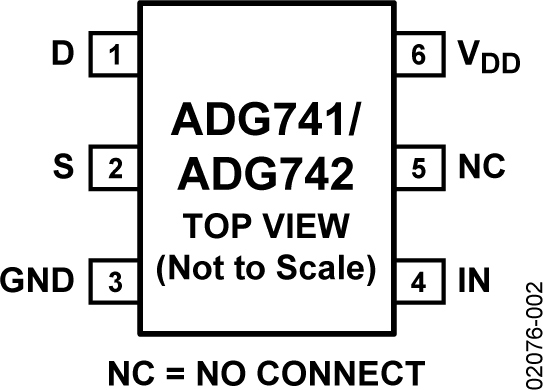

TheADG741/ ADG742 are monolithic CMOS SPST switches. These switches are designed using an advanced submicron process that provides low power dissipation, yet offers high switching speed, low on resistance, and low leakage currents. In addition, −3 dB bandwidths of greater than 200 MHz can be achieved.The ADG741 / ADG742 can operate from a single 1.8 V to 5.5 V supply, making them ideal for use in battery-powered instruments and with Analog Devices’ new generation of DACs and ADCs.As shown in the Functional Block Diagrams, with a logic input of 1 the switch of the ADG741 is closed, while that of the ADG742 is open. Each switch conducts equally well in both directions when on.The ADG741 / ADG742 are available in 6-lead and 5-lead SC70 packages.PRODUCT HIGHLIGHTS1.8 V to 5.5 V Single-Supply Operation. The ADG741 / ADG742 offer high performance, including low on resistance and fast switching times. They are fully specified and guaranteed with 3 V and 5 V supply rails.Very Low RON(3 Ω max at 5 V, 5 Ω max at 3 V). At 1.8 V operation, RONis typically 40 Ω over the temperature range.On Resistance Flatness RFLAT(ON)(1 Ω max).−3 dB Bandwidth >200 MHz.Low Power Dissipation. CMOS construction ensures low power dissipation.Fast tON/tOFF.Tiny 6-Lead and 5-Lead SC70 Packages.APPLICATIONSBattery-powered systemsCommunication systemsSample-and-hold systemsAudio signal routingVideo switchingMechanical reed relay replacement

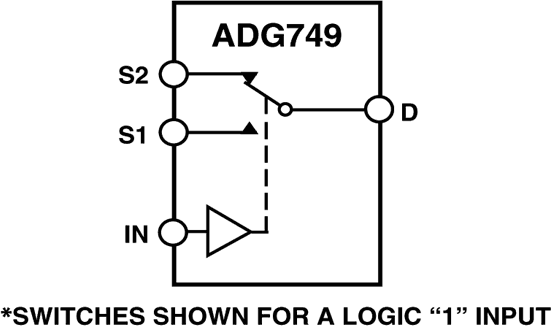

The ADG749 is a monolithic CMOS SPDT switch. This switch is designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currentsThe ADG749 can operate from a single-supply range of 1.8 V to 5.5 V, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc.Each switch of the ADG749 conducts equally well in both directions when on. The ADG749 exhibits break-before-make switching action.Because of the advanced submicron process, −3 dB bandwidths of greater than 200 MHz can be achieved.The ADG749 is available in a 6-lead SC70 package.PRODUCT HIGHLIGHTS1.8 V to 5.5 V Single-Supply Operation. The ADG749 offers high performance, including low on resistance and fast switching times, and is fully specified and guaranteed with 3 V and 5 V supply rails.Very Low RON(5 Ω Maximum at 5 V and 10 Ω Maximum at 3 V). At 1.8 V operation, RONis typically 40 Ω over the temperature range.Automotive Temperature Range: −40°C to +125°C.On Resistance Flatness (RFLAT(ON)) (0.75 Ω typical).−3 dB Bandwidth > 200 MHz.Low Power Dissipation. CMOS construction ensures low power dissipation.Fast tON/tOFF.Tiny, 6-lead SC70 Package.APPLICATIONSBattery-powered systemsCommunication systemsSample-and-hold systemsAudio signal routingVideo switchingMechanical reed relay replacement
