ADG784 Series
Manufacturer: Analog Devices
Beta
⌘K

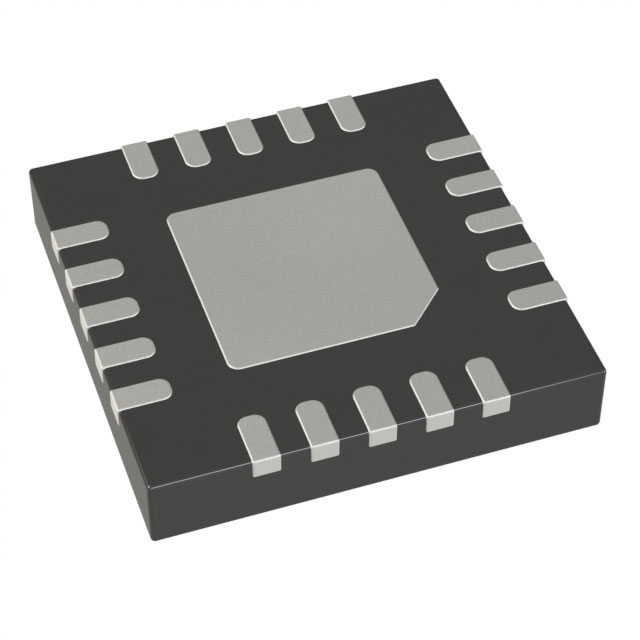

IC MUX/DEMUX QUAD 2X1 20LFCSP
| Part | Package / Case | Supplier Device Package | Mounting Type | Switch Circuit | Voltage - Supply, Single (V+) | Multiplexer/Demultiplexer Circuit | Crosstalk | Current - Leakage (IS(off)) (Max) | Channel-to-Channel Matching (ΔRon) | -3db Bandwidth | Number of Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Charge Injection | On-State Resistance (Max) [Max] | Channel Capacitance (CS(off), CD(off)) [custom] | Channel Capacitance (CS(off), CD(off)) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 20-WFQFN Exposed Pad CSP | 20-LFCSP (4x4) | Surface Mount | ||||||||||||||
Analog Devices | 20-WFQFN Exposed Pad CSP | 20-LFCSP (4x4) | Surface Mount | SPDT | 3.3 V 5 V | 2:1 | -75 dB | 500 pA | 150 mOhm | 240 MHz | 4 | 85 °C | -40 °C | 10 pC | 2.2 Ohm | 10 pF | 20 pF |
 Analog Devices | 20-WFQFN Exposed Pad CSP | 20-LFCSP (4x4) | Surface Mount |
