The MAX9939 is a general-purpose, differential-input programmable-gain amplifier (PGA) that is ideal for conditioning a variety of wide dynamic range signals such as those found in motor current-sense, medical instrumentation, and sonar data acquisition applications. It features SPI-programmable differential gains from 0.2V/V to 157V/V, input offset-voltage compensation, and an output amplifier that can be configured either as a high-order active filter or to provide a differential output.The PGA is optimized for high-signal bandwidth and its gain can be programmed to be 0.2V/V, 1V/V, 10V/V, 20V/V, 30V/V, 40V/V, 60V/V, 80V/V, 119V/V, and 157V/V. Precision resistor matching provides extremely low gain tempco and high CMRR. Although the MAX9939 operates from a single supply VCCbetween 2.9V to 5.5V, it can process signals both above and below ground due to the use of an input level-shifting amplifier stage. Furthermore, its inputs are protected to ±16V, allowing it to withstand fault conditions and signal overranges.The output amplifier is designed for high bandwidth and low-bias currents, making it ideal for use in multiple-feedback active filter topologies that offer much higher Qs and stopband attenuation than Sallen-Key architectures.The MAX9939 draws 3.4mA of quiescent supply current at 5V, and includes a software-programmable shutdown mode that reduces its supply current to only 13µA. The MAX9939 is available in a 10-pin µMAX® package and operates over the -40°C to +125°C automotive temperature range.ApplicationsAmplificationDifferential to Single-Ended ConversionDifferential-Input, Differential-Output SignalMedical Signal ConditioningSensor Interface and Signal ProcessingSensorless Motor ControlSonar and General Purpose Data Acquisition

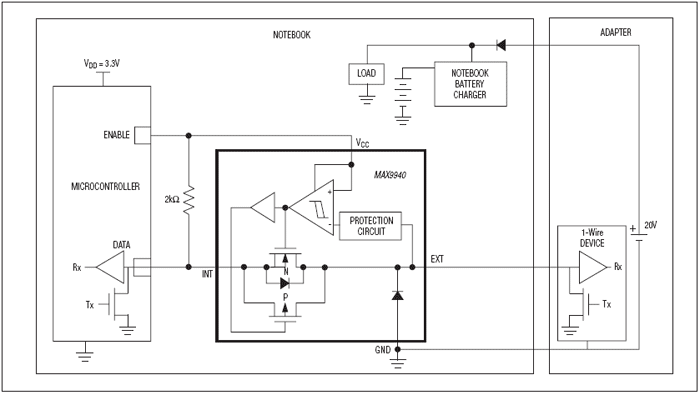

The MAX9940 signal-line overvoltage protector for low-voltage digital communication ports provides protection against high-voltage faults and ESD strikes. The MAX9940 is especially useful for sensitive communication protocols such as Maxim 1-Wire® that cannot afford standard means of fault protection, such as large series resistors or large line capacitances.The MAX9940 operates from a single supply voltage of +2.2V to +5.5V and consumes only 13µA of quiescent supply current. The EXT port is protected up to 28V. The device features a reaction time of 60ns for fast action during fault conditions and operates over the -40°C to +125°C automotive temperature range.ApplicationsIndustrial EquipmentNotebook ComputersPortable Devices

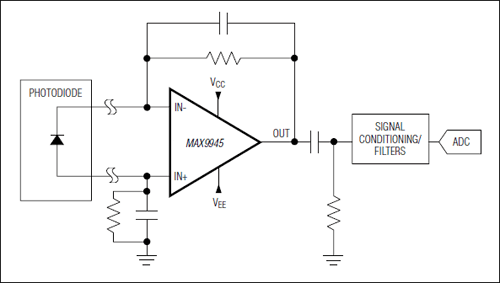

The MAX9945 operational amplifier features an excellent combination of low operating power and low input voltage noise. In addition, MOS inputs enable the MAX9945 to feature low input bias currents and low input current noise. The device accepts a wide supply voltage range from 4.75V to 38V and draws a low 400µA quiescent current. The MAX9945 is unity-gain stable and is capable of rail-to-rail output voltage swing.The MAX9945 is ideal for portable medical and industrial applications that require low noise analog front-ends for performance applications such as photodiode transimpedance and chemical sensor interface circuits.The MAX9945 is available in both an 8-pin µMAX® and a space-saving, 6-pin TDFN package, and is specified over the automotive operating temperature range (-40°C to +125°C).ApplicationsActive Filters and Signal ProcessingAutomatic Test Equipment (ATE)Chemical Sensor InterfaceDisplays: Industrial, Front Panel, and InstrumentationHigh-Performance Audio Line OutIndustrial Sensors and InstrumentationIndustrial: Process Measurement and ControlMedical Pulse OximetryPanel MetersPhotodiode Sensor InterfacePower MetersProgrammable Logic Controllers (PLCs)

The MAX9947 is an AISG-compliant, fully integrated transceiver.The MAX9947 receiver offers a typical dynamic range of 20dB and integrates a bandpass filter that operates in the 2.176MHz frequency with a narrow 200kHz bandwidth.The MAX9947 transmitter integrates a bandpass filter that is compliant with the AISG spectrum emission profile. It can modulate OOK signals up to 115.2kbps. The output power can be varied with external resistors from +7dBm to +12dBm to compensate for loss in the external circuitry and cabling.The MAX9947 also features a direction output to facilitate the RS-485 bus arbitration in tower-mounted equipment.The MAX9947 is available in a small, 3mm x 3mm 16-pin TQFN and is rated for operation in the -40°C to +105°C temperature range.ApplicationsBase StationsTower Equipment
