MAX9943 Series

Catalog

OP AMP SINGLE HIGH VOLTAGE AMPLIFIER R-R O/P ±19V/38V 6-PIN TDFN EP T/R

Part	Mounting Type	Supplier Device Package	Current - Supply	Voltage - Supply Span (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Input Offset	Amplifier Type	Current - Input Bias	Gain Bandwidth Product	Number of Circuits	Current - Output / Channel [custom]	Voltage - Supply Span (Min) [Min]	Package / Case	Package / Case	Current - Output / Channel	Board Type	Supplied Contents	Current - Supply (Main IC)	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Contents	Channels per IC	Utilized IC / Part

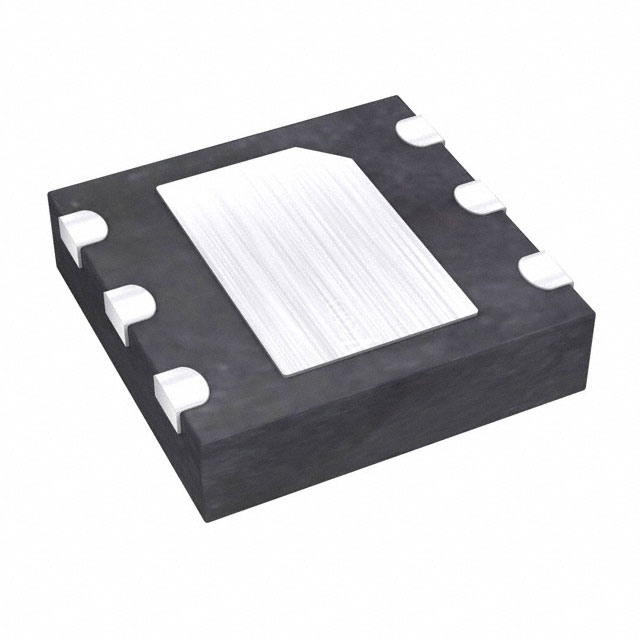

Analog Devices Inc./Maxim Integrated MAX9943ATT+T	Surface Mount	6-TDFN (3x3)	550 µA	38 V	125 °C	-40 C	Rail-to-Rail	20 çV	General Purpose	4 nA	2.4 MHz	1	60 mA	6 V
Analog Devices Inc./Maxim Integrated MAX9943AUA+T	Surface Mount	8-uMAX/uSOP	550 µA	38 V	125 °C	-40 C	Rail-to-Rail	20 çV	General Purpose	4 nA	2.4 MHz	1		6 V	8-MSOP 8-TSSOP	0.118 in 3 mm Width	20 mA

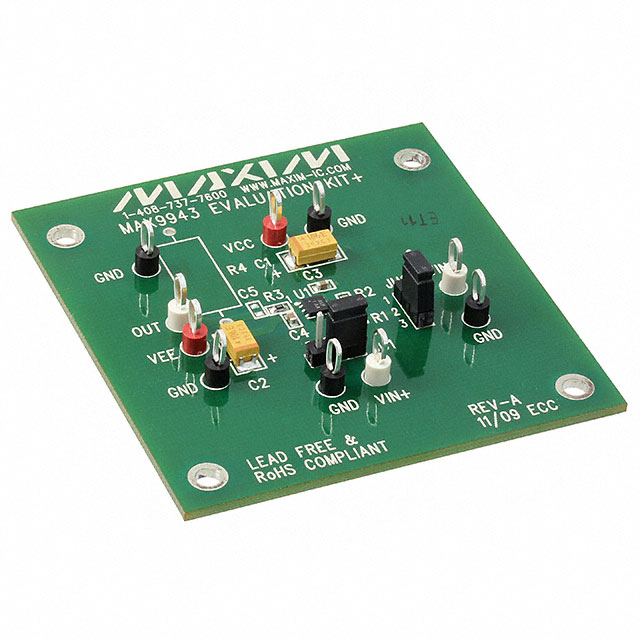

Analog Devices Inc./Maxim Integrated MAX9943EVKIT+							Rail-to-Rail Single-Ended		General Purpose		2.4 MHz						20 mA	Fully Populated	Board(s)	550 µA	19 V 38 V	-3 V 6 V	Board(s)	1	MAX9943
Analog Devices Inc./Maxim Integrated MAX9943AUA+	Surface Mount	8-uMAX/uSOP	550 µA	38 V	125 °C	-40 C	Rail-to-Rail	20 çV	General Purpose	4 nA	2.4 MHz	1		6 V	8-MSOP 8-TSSOP	0.118 in 3 mm Width	20 mA
