MAX8606USB/AC Adapter, Li+ Linear Battery Charger with Integrated 50m Ohm Battery Switch in TDFN | Development Boards, Kits, Programmers | 2 | Active | The MAX8606 complete 1-cell Li+ battery charge-management IC operates from either a USB port or AC adapter. It integrates a battery disconnect switch, current-sense circuit, PMOS pass element, and thermal-regulation circuitry, while eliminating the external reverse-blocking Schottky diode, to create a simple and small charging solution. The charging sequence initiates from power-OK indication, through prequalification, fast-charge, top-off charge, and finally charging-complete indication for single-cell Li+ batteries. Charging is controlled using constant current, constant voltage, or constant die-temperature (CCCVCTJ) regulation for safe operation in handhelds.Two logic inputs (active-low EN1 and active-low EN2) select suspend mode, 100mA, 500mA, or ≤ 1A input current limits to suit USB requirements. Proprietary thermal-regulation circuitry limits the die temperature to +100°C to prevent excessive heat on the system PC board. Additional safety features include an NTC thermistor input (THM) and internal timers to protect the battery. A 3.5V to 4.2V SYS output, in conjunction with the low-RDSONbattery switch, powers the system even when the battery is deeply discharged or not installed. The IC also offers a +3.3V/500µA output (VL), a charging status flag (active-low CHG), and an input-supply detection flag (active-low POK). The MAX8606 operates from a +4.25V to +5.5V supply and includes undervoltage lockout below +3.4V and overvoltage protection up to +14V.ApplicationsCellular Phones, Smartphones, PDAsDigital Cameras, MP3 PlayersUSB Appliances, Charging Cradles, and Docks |
| Integrated Circuits (ICs) | 1 | Active | |
| LED Drivers | 3 | Active | |

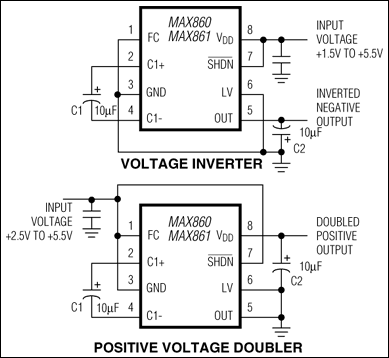

MAX86150mA, Frequency-Selectable, Switched-Capacitor Voltage Converters | Development Boards, Kits, Programmers | 20 | Active | The MAX860/MAX861 charge-pump voltage converters invert input voltages ranging from +1.5V to +5.5V, or double input voltages ranging from +2.5V to +5.5V. Because of their high switching frequencies, these devices use only two small, low-cost capacitors. Their 50mA output makes switching regulators unnecessary, eliminating inductors and their associated cost, size, and EMI. Greater than 90% efficiency over most of the load-current range, combined with a typical operating current of only 200µA (MAX860), provides ideal performance for both battery-powered and board-level voltage-conversion applications.A frequency-control (FC) pin provides three switching-frequencies to optimize capacitor size and quiescent current and to prevent interference with sensitive circuitry. Each device has a unique set of three available frequencies. A shutdown (active-low SHDN) pin reduces current consumption to less than 1µA. The MAX860/MAX861 are suitable for use in applications where the ICL7660 and MAX660's switching frequencies are too low. The MAX860/MAX861 are available in 8-pin µMAX®and SO packages.ApplicationsHandheld Instruments (PDAs, Palmtops)Interface Power SuppliesMedical InstrumentsOperational Amplifier Power SuppliesPortable Computing |
| Integrated Circuits (ICs) | 1 | Active | |
| Power Management - Specialized | 1 | Active | |
| Integrated Circuits (ICs) | 1 | Active | |

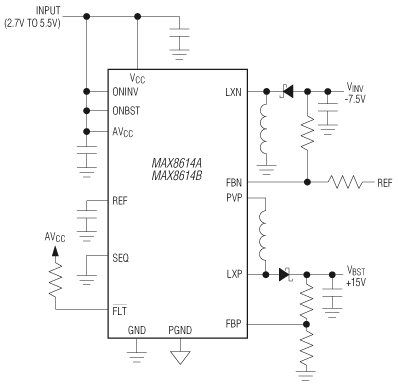

MAX8614Dual-Output (+ and -) DC-DC Converters for CCD | Specialized Sensors | 11 | Active | The MAX8614A/MAX8614B dual-output step-up DC-DC converters generate both a positive and negative supply voltage that are each independently regulated. The positive output delivers up to 50mA while the inverter supplies up to 100mA with input voltages between 2.7V and 5.5V. The MAX8614A/MAX8614B are ideal for powering CCD imaging devices and displays in digital cameras and other portable equipment.The MAX8614A/MAX8614B generate an adjustable positive output voltage up to +24V and a negative output down to 16V below the input voltage. The MAX8614B has a higher current limit than the MAX8614A. Both devices operate at a fixed 1MHz frequency to ease noise filtering in sensitive applications and to reduce external component size.Additional features include pin-selectable power-on sequencing for use with a wide variety of CCDs, True Shutdown™, overload protection, fault flag, and internal soft-start with controlled inrush current.The MAX8614A/MAX8614B are available in a spacesaving 3mm x 3mm 14-pin TDFN package and are specified over the -40°C to +85°C extended temperature range.ApplicationsCamcorders and Portable MultimediaCCD Bias Supplies and OLED DisplaysDigital CamerasPDAs and Smartphones |

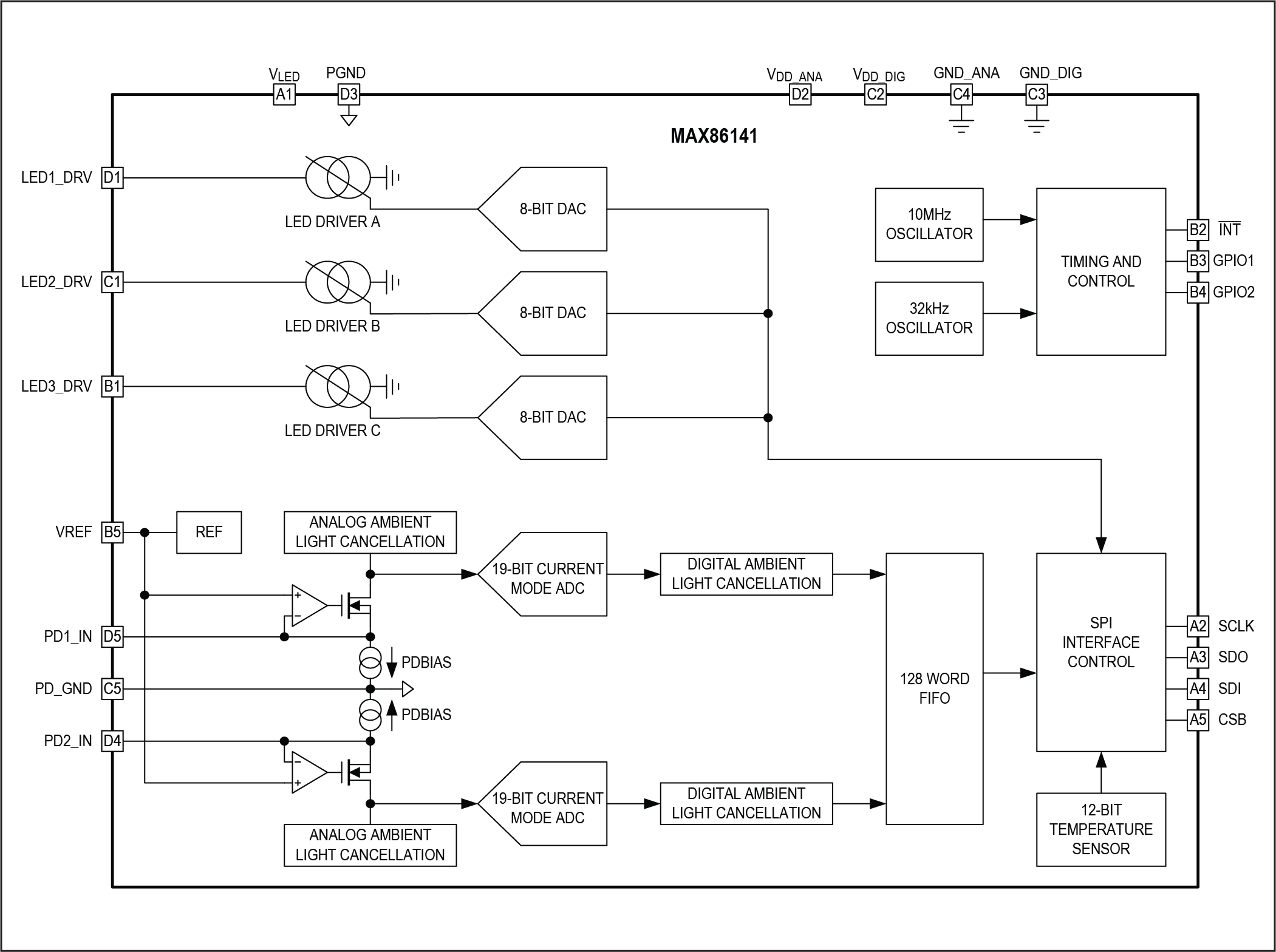

MAX86140Best-in-Class Optical Pulse Oximeter and Heart-Rate Sensor for Wearable Health | Sensors, Transducers | 2 | Active | The MAX86140/MAX86141are ultra-low-power, completely integrated, optical data acquisition systems. On the transmitter side, the MAX86140/MAX86141 have three programmable high-current LED drivers that can be configured to drive up to six LEDs using an external 3x2:1 mux. With two MAX86140/MAX86141 devices working in master-slave mode, the LED drivers can drive up to twelve LEDs using an external 3x2:1 mux. On the receiver side, MAX86140 consists of a single optical readout channel, while the MAX86141 has two optical readout channels that can operate simultaneously. The devices have low-noise signal conditioning analog front-end (AFE) including 19-bit ADC, an industry-lead ambient light cancellation (ALC) circuit, and a picket fence detect and replace function. Due to the low power consumption, compact size, ease of use, and industry-lead ambient light rejection capability of MAX86140/MAX86141, the devices are ideal for a wide variety of optical-sensing applications, such as pulse oximetry and heart rate detection.The MAX86140/MAX86141 operate on a 1.8V main supply voltage and a 3.1V to 5.5V LED driver supply voltage. Both devices support a standard SPI compatible interface and fully autonomous operation. Each device has a large 128-word built-in FIFO. The MAX86140/MAX86141 is available in compact wafer-level package (WLP) (2.048 x 1.848mm) with 0.4mm ball pitch.ApplicationsMuscle Oxygen Saturation (SmO2and StO2)Optical Heart RateOptimized for Wrist, Finger, Ear, and Other LocationsOptimized Performance for High Quality PPG Signal to DetectOxygen Saturation (SpO2)Wearable Devices for Fitness, Wellness, and Medical Applications |
