MAX8601 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
IC BATT CHG DUAL INP 1CELL LI+
| Part | Number of Cells | Fault Protection | Charge Current - Max [Max] | Battery Pack Voltage | Voltage - Supply (Max) [Max] | Current - Charging | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Programmable Features | Battery Chemistry [custom] | Supplier Device Package | Supplied Contents | Type | Function | Primary Attributes | Contents | Utilized IC / Part | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 1 | Over Temperature Over Voltage | 1 A | 4.2 V | 14 V | Constant - Programmable | 14-WFDFN Exposed Pad | 85 C | -40 ¯C | Surface Mount | Current Timer Voltage | Lithium Ion | 14-TDFN-EP (3x3) | |||||||

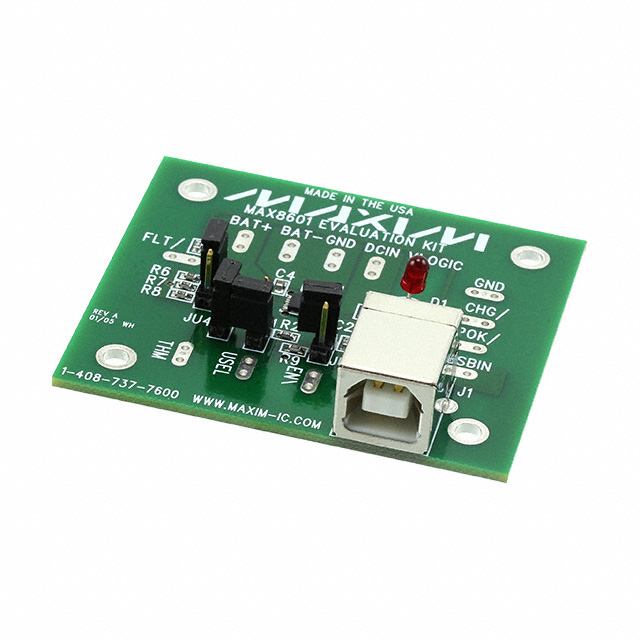

 Analog Devices Inc./Maxim Integrated | Board(s) | Power Management | Battery Charger | Li-Ion (1 Cell) | Board(s) | MAX8600 MAX8601 | ||||||||||||||
 Analog Devices Inc./Maxim Integrated | 1 | Over Temperature Over Voltage | 1 A | 4.2 V | 14 V | Constant - Programmable | 14-WFDFN Exposed Pad | 85 C | -40 ¯C | Surface Mount | Timer | Lithium Ion | 14-TDFN (3x3) | USB |
