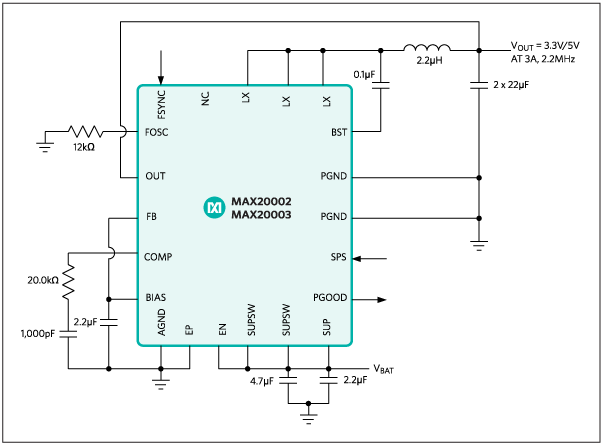

The MAX20002/MAX20003 are small, synchronous buck converters with integrated high-side and low-side MOSFETs. Each device is designed to deliver up to 2A/3A with input voltages from 3.5V to 36V, while using only 15µA quiescent current at no load. Voltage quality can be monitored by observing the PGOOD signal. The devices can operate in dropout by running at 98% duty cycle, making them ideal for automotive applications.The devices offer fixed output voltages of 5V/3.3V, along with the ability to program the output voltage between 1V to 10V. Frequency can be programmed using a resistor to ground on the FOSC pin from 220kHz to 2.2MHz. The devices offer a forced fixed-frequency mode and skip mode with ultra-low quiescent current of 15µA. They have a pin that can be programmed to turn on/off the spread spectrum, further helping systems designers with better EMC management.The MAX20002/MAX20003 are available in a small 5mm x 5mm 20-pin TQFN package with exposed pad and use very few external components.ApplicationsDistributed DC Power SystemsNavigation and Radio Head UnitsPoint-of-Load Applications in Automotive

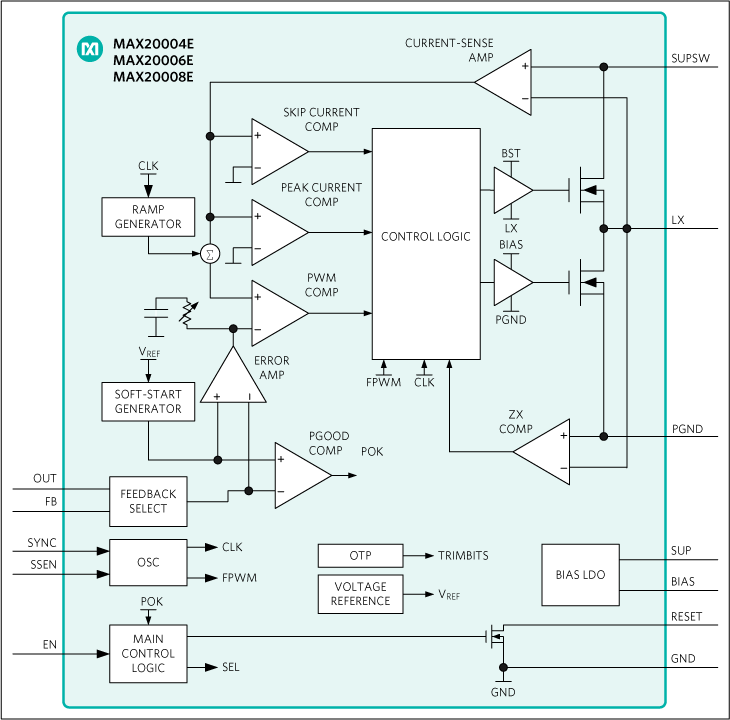

The MAX20004E/MAX20006E/MAX20008E are small, synchronous buck converters with integrated high-side and low-side MOSFETs. The device family can deliver up to 8A with input voltages from 3V to 36V, while using only 15µA quiescent current at no load (except for MAX20006EAFOD/VY+ which has FPWM mode only). Voltage quality can be monitored by observing the active-low RESET signal. The devices can operate in dropout by running at 98% duty cycle, making them ideal for automotive applications.The devices offer fixed output voltages of 5V, 3.9V, or 3.3V. Compensation is internal to the device, providing excellent transient response. Frequency can be 400kHz or 2.1MHz. The devices offer a forced fixed-frequency mode and skip mode with ultra-low quiescent current of 15µA. The device has a pin-selectable (SSEN) spread-spectrum enable to further assist systems designers with better EMC management.The MAX20004E/MAX20006E/MAX20008E are available in a small, 3.5mm x 3.75mm, 17-pin FC2QFN package and use very few external components.ApplicationsADASDistributed DC Power SystemsNavigation and Radio Head UnitsPoint-of-Load Applications in Automotive

The MAX20004E/MAX20006E/MAX20008E are small, synchronous buck converters with integrated high-side and low-side MOSFETs. The device family can deliver up to 8A with input voltages from 3V to 36V, while using only 15µA quiescent current at no load (except for MAX20006EAFOD/VY+ which has FPWM mode only). Voltage quality can be monitored by observing the active-low RESET signal. The devices can operate in dropout by running at 98% duty cycle, making them ideal for automotive applications.The devices offer fixed output voltages of 5V, 3.9V, or 3.3V. Compensation is internal to the device, providing excellent transient response. Frequency can be 400kHz or 2.1MHz. The devices offer a forced fixed-frequency mode and skip mode with ultra-low quiescent current of 15µA. The device has a pin-selectable (SSEN) spread-spectrum enable to further assist systems designers with better EMC management.The MAX20004E/MAX20006E/MAX20008E are available in a small, 3.5mm x 3.75mm, 17-pin FC2QFN package and use very few external components.ApplicationsADASDistributed DC Power SystemsNavigation and Radio Head UnitsPoint-of-Load Applications in Automotive

The MAX20004E/MAX20006E/MAX20008E are small, synchronous buck converters with integrated high-side and low-side MOSFETs. The device family can deliver up to 8A with input voltages from 3V to 36V, while using only 15µA quiescent current at no load (except for MAX20006EAFOD/VY+ which has FPWM mode only). Voltage quality can be monitored by observing the active-low RESET signal. The devices can operate in dropout by running at 98% duty cycle, making them ideal for automotive applications.The devices offer fixed output voltages of 5V, 3.9V, or 3.3V. Compensation is internal to the device, providing excellent transient response. Frequency can be 400kHz or 2.1MHz. The devices offer a forced fixed-frequency mode and skip mode with ultra-low quiescent current of 15µA. The device has a pin-selectable (SSEN) spread-spectrum enable to further assist systems designers with better EMC management.The MAX20004E/MAX20006E/MAX20008E are available in a small, 3.5mm x 3.75mm, 17-pin FC2QFN package and use very few external components.ApplicationsADASDistributed DC Power SystemsNavigation and Radio Head UnitsPoint-of-Load Applications in Automotive

The MAX20004/MAX20006/MAX20008 are small, synchronous, automotive buck converter devices with integrated high-side and low-side MOSFETs. The device family can deliver up to 8A with input voltages from 3.5V to 36V, while using only 25µA quiescent current at no load. Voltage quality can be monitored by observing the active-low RESET signal. The devices can operate in dropout by running at 98% duty cycle, making them ideal for automotive applications.The devices offer fixed output voltages of 5V and 3.3V, along with the ability to program the output voltage between 1V and 10V. Frequency is resistor programmable from 220kHz to 2.2MHz. The devices offer a forced fixed-frequency PWM mode (FPWM) and skip mode with ultra-low quiescent current. The devices can be factory programmed to enable spread-spectrum switching to reduce EMI.The MAX20004/MAX20006/MAX20008 are available in a small, 3.5mm x 3.75mm, 17-pin FC2QFN package and use very few external components.ApplicationsDistributed DC Power SystemsNavigation and Radio Head UnitsPoint-of-Load Applications in Automotive

The MAX20004E/MAX20006E/MAX20008E are small, synchronous buck converters with integrated high-side and low-side MOSFETs. The device family can deliver up to 8A with input voltages from 3V to 36V, while using only 15µA quiescent current at no load (except for MAX20006EAFOD/VY+ which has FPWM mode only). Voltage quality can be monitored by observing the active-low RESET signal. The devices can operate in dropout by running at 98% duty cycle, making them ideal for automotive applications.The devices offer fixed output voltages of 5V, 3.9V, or 3.3V. Compensation is internal to the device, providing excellent transient response. Frequency can be 400kHz or 2.1MHz. The devices offer a forced fixed-frequency mode and skip mode with ultra-low quiescent current of 15µA. The device has a pin-selectable (SSEN) spread-spectrum enable to further assist systems designers with better EMC management.The MAX20004E/MAX20006E/MAX20008E are available in a small, 3.5mm x 3.75mm, 17-pin FC2QFN package and use very few external components.ApplicationsADASDistributed DC Power SystemsNavigation and Radio Head UnitsPoint-of-Load Applications in Automotive

The MAX20010C/MAX20010D/MAX20010E ICs are high-efficiency, synchronous step-down converters that operate with a 3.0V to 5.5V input voltage range and provide a 0.5V to 1.5875V output voltage range. The wide input/output voltage range and the ability to provide up to 6A load current make these ICs ideal for on-board point-of-load and post-regulation applications. The ICs achieve ±2% output error over load, line, and temperature ranges. The MAX20010D/MAX20010E offers improved transient response.The ICs feature a 2.2MHz fixed-frequency PWM mode for better noise immunity and load-transient response, and a pulse-frequency modulation mode (skip) for increased efficiency during light-load operation. The 2.2MHz frequency operation allows the use of all-ceramic capacitors and minimizes the solution footprint. The programmable spread-spectrum frequency modulation minimizes radiated electromagnetic emissions. Integrated low RDS(ON)switches improve efficiency at heavy loads and make the layout a much simpler task with respect to discrete solutions.The ICs are offered with factory-preset output voltages (see theOrdering Informationfor options). The I2C interface supports dynamic voltage adjustment with programmable slew rates. Other features include programmable soft-start, overcurrent, and overtemperature protections.

The MAX20010C/MAX20010D/MAX20010E ICs are high-efficiency, synchronous step-down converters that operate with a 3.0V to 5.5V input voltage range and provide a 0.5V to 1.5875V output voltage range. The wide input/output voltage range and the ability to provide up to 6A load current make these ICs ideal for on-board point-of-load and post-regulation applications. The ICs achieve ±2% output error over load, line, and temperature ranges. The MAX20010D/MAX20010E offers improved transient response.The ICs feature a 2.2MHz fixed-frequency PWM mode for better noise immunity and load-transient response, and a pulse-frequency modulation mode (skip) for increased efficiency during light-load operation. The 2.2MHz frequency operation allows the use of all-ceramic capacitors and minimizes the solution footprint. The programmable spread-spectrum frequency modulation minimizes radiated electromagnetic emissions. Integrated low RDS(ON)switches improve efficiency at heavy loads and make the layout a much simpler task with respect to discrete solutions.The ICs are offered with factory-preset output voltages (see theOrdering Informationfor options). The I2C interface supports dynamic voltage adjustment with programmable slew rates. Other features include programmable soft-start, overcurrent, and overtemperature protections.
