MAX20006 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

EVAL STEP DOWN MAX20006

Part	Regulator Topology	Utilized IC / Part	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Output	Board Type	Main Purpose	Current - Output	Frequency - Switching	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Topology	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Qualification	Output Type	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Number of Outputs	Function	Voltage - Input (Min) [Min]	Mounting Type	Output Configuration	Frequency - Switching [Max]	Frequency - Switching [Min]
Analog Devices Inc./Maxim Integrated MAX20006EVKIT#	Buck	MAX20006	Non-Isolated	1	Board(s)	5 V	Fully Populated	DC/DC Step Down	6 A	2.2 MHz	3.5 V	36 V
Analog Devices Inc./Maxim Integrated MAX20006EAFOA/VY+T									6 A	2.1 MHz			17-PowerWFQFN	Buck	36 V	5 V	125 °C	-40 °C	Automotive	AEC-Q100	1.81 mOhm	3.75	3.5	17-FC2QFN	1	Step-Down	3.5 V	Surface Mount Wettable Flank	Positive
Analog Devices Inc./Maxim Integrated MAX20006AFOD/VY+T									6 A				17-PowerWFQFN	Buck	36 V	3.3 V	125 °C	-40 °C	Automotive	AEC-Q100	1.81 mOhm	3.75	3.5	17-FC2QFN	1	Step-Down	3.5 V	Surface Mount Wettable Flank	Positive	2.2 MHz	220 kHz

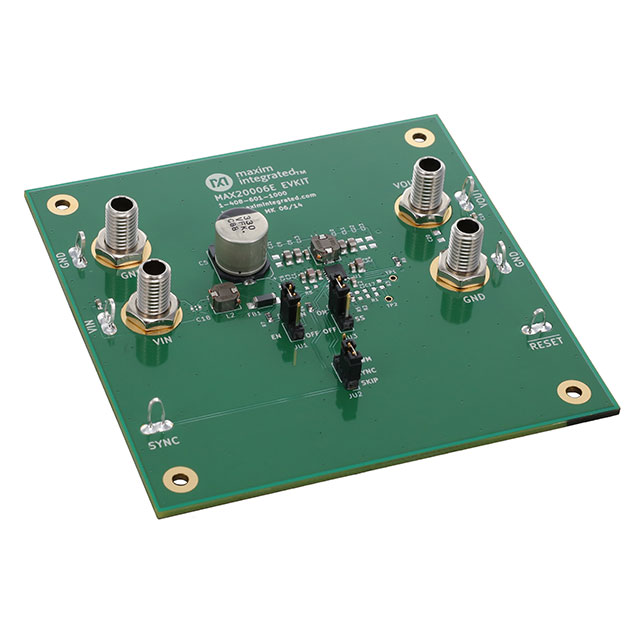

Analog Devices Inc./Maxim Integrated MAX20006EEVKIT#	Buck	MAX20006E	Non-Isolated	1	Board(s)	5 V	Fully Populated	DC/DC Step Down	6 A	2.2 MHz	3.5 V	36 V
Analog Devices Inc./Maxim Integrated MAX20006AFOA/VY+T									6 A				17-PowerWFQFN	Buck	36 V	5 V	125 °C	-40 °C	Automotive	AEC-Q100	1.81 mOhm	3.75	3.5	17-FC2QFN	1	Step-Down	3.5 V	Surface Mount Wettable Flank	Positive	2.2 MHz	220 kHz
Analog Devices Inc./Maxim Integrated MAX20006AFOC/VY+									6 A				17-PowerWFQFN	Buck	36 V	5 V	125 °C	-40 °C	Automotive	AEC-Q100	1.81 mOhm	3.75	3.5	17-FC2QFN	1	Step-Down	3.5 V	Surface Mount Wettable Flank	Positive	2.2 MHz	220 kHz
Analog Devices Inc./Maxim Integrated MAX20006AFDBB/V+T
Analog Devices Inc./Maxim Integrated MAX20006EAFOB/VY+									6 A	2.1 MHz			17-PowerWFQFN	Buck	36 V	3.3 V	125 °C	-40 °C	Automotive	AEC-Q100	1.81 mOhm	3.75	3.5	17-FC2QFN	1	Step-Down	3.5 V	Surface Mount Wettable Flank	Positive
Analog Devices Inc./Maxim Integrated MAX20006AFOB/VY+									6 A				17-PowerWFQFN	Buck	36 V	3.3 V	125 °C	-40 °C	Automotive	AEC-Q100	1.81 mOhm	3.75	3.5	17-FC2QFN	1	Step-Down	3.5 V	Surface Mount Wettable Flank	Positive	2.2 MHz	220 kHz
Analog Devices Inc./Maxim Integrated MAX20006EAFOB/VY+T									6 A	2.1 MHz			17-PowerWFQFN	Buck	36 V	3.3 V	125 °C	-40 °C	Automotive	AEC-Q100	1.81 mOhm	3.75	3.5	17-FC2QFN	1	Step-Down	3.5 V	Surface Mount Wettable Flank	Positive
