MAX173111-Cell ModelGauge m5 EZ Fuel Gauge with Protector, Internal Self-Discharge Detection and SHA-256 Authentication | Integrated Circuits (ICs) | 5 | Active | The MAX17300–MAX17303/MAX17310–MAX17313 is a 24μA IQstand-alone pack-side fuel gauge IC with protector and optional SHA-256 authentication for 1-cell lithium-ion/polymer batteries.The IC monitors the voltage, current, temperature, and state of the battery to provide against over/undervoltage, overcurrent, short-circuit, over/undertemperature and overcharge conditions protection using external high-side N-FETs, and provides charging prescription to ensure that the lithium-ion/polymer battery operates under safe conditions prolonging the life of the battery.To prevent battery pack cloning, the IC integrates SHA-256 authentication with a 160-bit secret key. Each IC incorporates a unique 64-bit ID.The fuel gauge uses ModelGauge m5 algorithm that combines the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge to provide industry-leading fuel-gauge accuracy.The IC automatically compensates for cell aging, temperature, and discharge rate, and provides accurate state-of-charge (SOC) in milliampere-hours (mAh) or percentage (%) over a wide range of operating conditions.Dynamic power functionality provides the instantaneous maximum battery output power which can be delivered to the system without violating the minimum system input voltage.A Maxim 1-Wire®or 2-wire I2C interface provides access to data and control registers. The IC is available in a lead-free, 3mm x 3mm 14-pin TDFN and 1.7mm x 2.5mm 15-bump 0.5mm pitch WLP packages.ApplicationsSmartphones, Tablets, and 2-in-1 LaptopsSmartwatches and WearablesMedical Devices, Health and Fitness MonitorsDigital Still, Video, and Action CamerasHandheld Computers and TerminalsHandheld RadiosHome and Building Automation, SensorsSmart Batteries |
MAX173121-Cell ModelGauge m5 EZ Fuel Gauge with Protector, Internal Self-Discharge Detection and SHA-256 Authentication | Evaluation and Demonstration Boards and Kits | 5 | Active | The MAX17300–MAX17303/MAX17310–MAX17313 is a 24μA IQstand-alone pack-side fuel gauge IC with protector and optional SHA-256 authentication for 1-cell lithium-ion/polymer batteries.The IC monitors the voltage, current, temperature, and state of the battery to provide against over/undervoltage, overcurrent, short-circuit, over/undertemperature and overcharge conditions protection using external high-side N-FETs, and provides charging prescription to ensure that the lithium-ion/polymer battery operates under safe conditions prolonging the life of the battery.To prevent battery pack cloning, the IC integrates SHA-256 authentication with a 160-bit secret key. Each IC incorporates a unique 64-bit ID.The fuel gauge uses ModelGauge m5 algorithm that combines the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge to provide industry-leading fuel-gauge accuracy.The IC automatically compensates for cell aging, temperature, and discharge rate, and provides accurate state-of-charge (SOC) in milliampere-hours (mAh) or percentage (%) over a wide range of operating conditions.Dynamic power functionality provides the instantaneous maximum battery output power which can be delivered to the system without violating the minimum system input voltage.A Maxim 1-Wire®or 2-wire I2C interface provides access to data and control registers. The IC is available in a lead-free, 3mm x 3mm 14-pin TDFN and 1.7mm x 2.5mm 15-bump 0.5mm pitch WLP packages.ApplicationsSmartphones, Tablets, and 2-in-1 LaptopsSmartwatches and WearablesMedical Devices, Health and Fitness MonitorsDigital Still, Video, and Action CamerasHandheld Computers and TerminalsHandheld RadiosHome and Building Automation, SensorsSmart Batteries |
MAX173131-Cell ModelGauge m5 EZ Fuel Gauge with Protector, Internal Self-Discharge Detection and SHA-256 Authentication | Integrated Circuits (ICs) | 5 | Active | The MAX17300–MAX17303/MAX17310–MAX17313 is a 24μA IQstand-alone pack-side fuel gauge IC with protector and optional SHA-256 authentication for 1-cell lithium-ion/polymer batteries.The IC monitors the voltage, current, temperature, and state of the battery to provide against over/undervoltage, overcurrent, short-circuit, over/undertemperature and overcharge conditions protection using external high-side N-FETs, and provides charging prescription to ensure that the lithium-ion/polymer battery operates under safe conditions prolonging the life of the battery.To prevent battery pack cloning, the IC integrates SHA-256 authentication with a 160-bit secret key. Each IC incorporates a unique 64-bit ID.The fuel gauge uses ModelGauge m5 algorithm that combines the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge to provide industry-leading fuel-gauge accuracy.The IC automatically compensates for cell aging, temperature, and discharge rate, and provides accurate state-of-charge (SOC) in milliampere-hours (mAh) or percentage (%) over a wide range of operating conditions.Dynamic power functionality provides the instantaneous maximum battery output power which can be delivered to the system without violating the minimum system input voltage.A Maxim 1-Wire®or 2-wire I2C interface provides access to data and control registers. The IC is available in a lead-free, 3mm x 3mm 14-pin TDFN and 1.7mm x 2.5mm 15-bump 0.5mm pitch WLP packages.ApplicationsSmartphones, Tablets, and 2-in-1 LaptopsSmartwatches and WearablesMedical Devices, Health and Fitness MonitorsDigital Still, Video, and Action CamerasHandheld Computers and TerminalsHandheld RadiosHome and Building Automation, SensorsSmart Batteries |
| Development Boards, Kits, Programmers | 15 | Active | |
MAX1733Low-Voltage, Step-Down DC-DC Converters in SOT23 | Integrated Circuits (ICs) | 3 | Active | The MAX1733/MAX1734 step-down DC-DC converters deliver over 250mA to outputs as low as 1.25V. These converters use a unique proprietary current-limited control scheme that achieves over 90% efficiency. These devices maintain extremely low quiescent supply current (40µA), and their high 1.2MHz (max) operating frequency permits small, low-cost external components. This combination of features makes the MAX1733/ MAX1734 excellent high-efficiency alternatives to linear regulators in space-constrained applications.Internal synchronous rectification greatly improves efficiency and eliminates the external Schottky diode required in conventional step-down converters. Both devices also include internal digital soft-start to limit input current upon startup and reduce input capacitor requirements.The MAX1733 provides an adjustable output voltage (1.25V to 2.0V). The MAX1734 provides factory-preset output voltages (see Selector Guide). Both are available in space-saving 5-pin SOT23 packages.ApplicationsCell PhonesComputers: Desktop, Workstation, ServerConsumer AudioDigital Still CamerasGlobal Positioning Systems (GPS)Palmtop ComputersPOS TerminalsWireless DataWireless Local Area Networks (WLANs) |

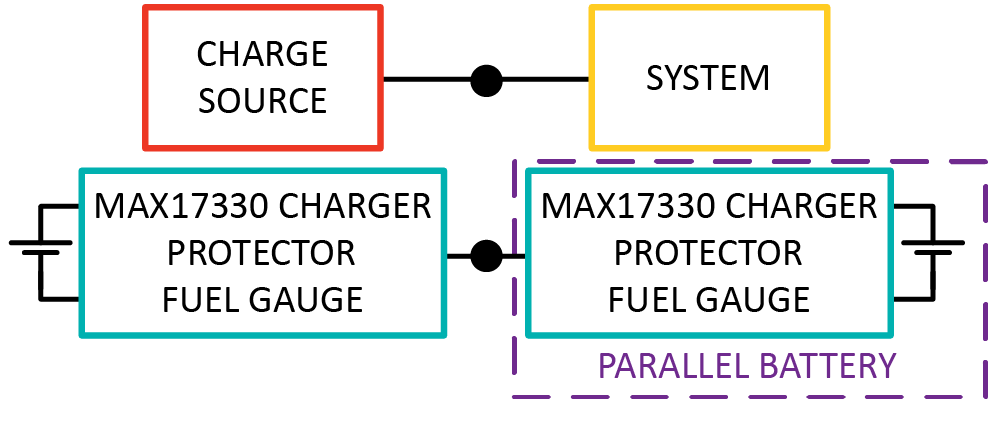

MAX17330AccuCharge + ModelGauge 1-Cell Charger, Fuel Gauge, and Protector | Integrated Circuits (ICs) | 2 | Active | The MAX17330 is not recommended for new designs. The replacement part is theMAX17332.The MAX17330 is a 28μA IQstand-alone charger, fuel gauge, protector, and battery internal self-discharge detection IC for 1-cell lithium-ion/polymer batteries. When a voltage source is present, the MAX17330 regulates charging by modulating the charge N-FET, using AccuCharge™ charger technology. The MAX17330 regulates charge voltage, current, and FET temperature. Stand-alone charging is supported by flexible configuration in nonvolatile memory. The IC supports the following:Low-Power Charging1mA to 500mA directly from universal 5V USBNo USB identification/coordination neededHigh-Power Parallel Packs (>1000mA)Independently charges parallel packsPrevents cross-charging for parallel batteriesCoordinates external DC-DC with alertsMinimizes dropout and heatProtection and Charging Control —pack or host sideThe MAX17330 ideal diode circuit supports a quick response to system transients and adapter removal with low voltage drop across the CHG FET.The IC uses the ModelGauge™ m5 EZ algorithm that combines the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge to provide industry-leading accuracy. The IC automatically compensates for cell aging, temperature, and discharge rate while providing accurate state-of-charge (SOC) in milliampere-hours (mAh) or percentage (%) over a wide range of operating conditions.The IC monitors the voltage, current, temperature, and state of the battery to provide protection against over/undervoltage, overcurrent, short-circuit, over/undertemperature and overcharge conditions, and internal self-discharge protection using external high-side N-FETs to ensure that the lithium-ion/polymer battery operates under safe conditions which prolongs the life of the battery.ApplicationsDual Screen Smartphones, TabletsHandheld Radios, Computers, AccessoriesHearables, Wearables, SmartwatchesHome/Building Automation, Sensors, CamerasMedical Devices, Health, Fitness MonitorsParallel Battery AR/VR SystemsSmart Batteries and Hybrid Supercap BatteriesUSB PPS and Direct Charging |
| Evaluation and Demonstration Boards and Kits | 3 | Active | |

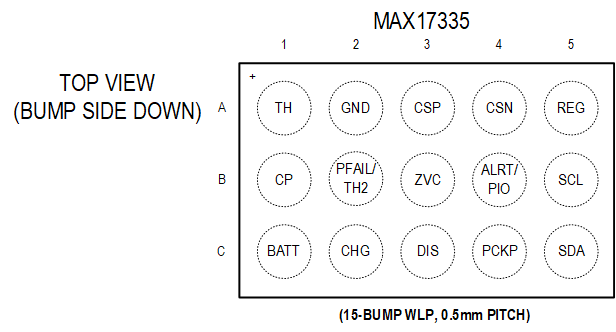

MAX17335AccuCharge + ModelGauge m5 EZ 1-Cell Charger, Fuel Gauge, and Protector | Integrated Circuits (ICs) | 2 | Active | The MAX17335 is a 35μA IQstand-alone charger, fuel gauge, protector, and battery internal self-discharge detection IC for 1-cell lithium-ion/polymer batteries. When a voltage source is present, the IC regulates charging by modulating the charge N-FET, using AccuCharge™charger technology. The IC regulates charge voltage, current, and FET temperature. Stand-alone charging is supported by flexible configuration in nonvolatile memory. The IC supports the following applications:Low-Power Charging1mA to 500mA directly from universal 5V USBNo USB identification/coordination neededHigh-Power Parallel Packs (>1000mA)Independently charges parallel packsPrevents cross-charging for parallel batteriesCoordinates external DC-DC with alertsMinimizes dropout and heatProtection and Charging Control—pack or host sideThe IC ideal diode circuit supports a quick response to system transients and adapter removal with low voltage drop across the CHG FET.The IC uses the ModelGauge™ m5 EZ algorithm that combines the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge to provide industry-leading accuracy. The IC automatically compensates for cell aging, temperature, and discharge rate while providing accurate state-of-charge (SOC) in milliampere-hours (mAh) or percentage (%) over a wide range of operating conditions.The IC monitors the voltage, current, temperature, and state of the battery to provide protection against over/undervoltage, overcurrent, short-circuit, over/undertemperature and overcharge conditions, and internal self-discharge protection using external high-side N-FETs to ensure that the lithium-ion/polymer battery operates under safe conditions which prolongs the life of the battery.APPLICATIONSUSB PPS and Direct ChargingSmart Batteries and Hybrid Supercap BatteriesDual Screen Smartphones, TabletsHearables, Wearables, SmartwatchesMedical Devices, Health, Fitness MonitorsHandheld Radios, Computers, AccessoriesHome/Building Automation, Sensors, CamerasParallel Battery AR/VR Systems |
MAX1734Low-Voltage, Step-Down DC-DC Converters in SOT23 | Voltage Regulators - DC DC Switching Regulators | 6 | Active | The MAX1733/MAX1734 step-down DC-DC converters deliver over 250mA to outputs as low as 1.25V. These converters use a unique proprietary current-limited control scheme that achieves over 90% efficiency. These devices maintain extremely low quiescent supply current (40µA), and their high 1.2MHz (max) operating frequency permits small, low-cost external components. This combination of features makes the MAX1733/ MAX1734 excellent high-efficiency alternatives to linear regulators in space-constrained applications.Internal synchronous rectification greatly improves efficiency and eliminates the external Schottky diode required in conventional step-down converters. Both devices also include internal digital soft-start to limit input current upon startup and reduce input capacitor requirements.The MAX1733 provides an adjustable output voltage (1.25V to 2.0V). The MAX1734 provides factory-preset output voltages (see Selector Guide). Both are available in space-saving 5-pin SOT23 packages.ApplicationsCell PhonesComputers: Desktop, Workstation, ServerConsumer AudioDigital Still CamerasGlobal Positioning Systems (GPS)Palmtop ComputersPOS TerminalsWireless DataWireless Local Area Networks (WLANs) |
| Integrated Circuits (ICs) | 8 | Active | |
