MAX17313 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
MODEL GAUGE M5 1S TDFN
| Part | Mounting Type | Supplier Device Package | Package / Case | Battery Chemistry | Interface | Operating Temperature [Max] | Operating Temperature [Min] | Number of Cells | Fault Protection | Function |
|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated | Surface Mount | 14-TDFN (3x3) | 14-WFDFN Exposed Pad | Lithium Ion/Polymer | 1-Wire | 85 °C | -40 °C | 1 | Over Current Over Temperature Over/Under Voltage Short Circuit | Fuel Gauge |

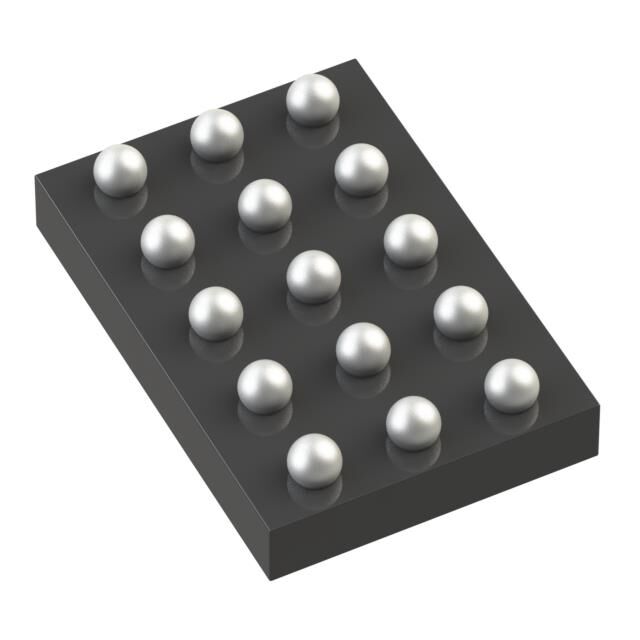

 Analog Devices Inc./Maxim Integrated | Surface Mount | 15-WLP (1.68x2.45) | 15-WFBGA WLBGA | Lithium Ion/Polymer | 1-Wire | 85 °C | -40 °C | 1 | Over Current Over Temperature Over Voltage Short Circuit | Fuel Gauge |
 Analog Devices Inc./Maxim Integrated | Surface Mount | 15-WLP (1.68x2.45) | 15-WFBGA WLBGA | Lithium Ion/Polymer | 1-Wire | 85 °C | -40 °C | 1 | Over Current Over Temperature Over Voltage Short Circuit | Fuel Gauge |
