PL133-47 Series

Catalog

PL133 SERIES, LOW SKEW CLOCK DRIVER, 6 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO16

Part	Supplier Device Package	Output	Input	Package / Case [x]	Package / Case	Package / Case [y]	Ratio - Input:Output [custom]	Type	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency - Max [Max]	Ratio - Input:Output	Voltage - Supply
Microchip Technology PL133-67OC	16-TSSOP	LVCMOS	LVCMOS	0.173 in	16-TSSOP	4.4 mm	1:6	Fanout Buffer (Distribution)	1	70 °C	0 °C	Surface Mount	3.63 V	2.25 V	150 MHz

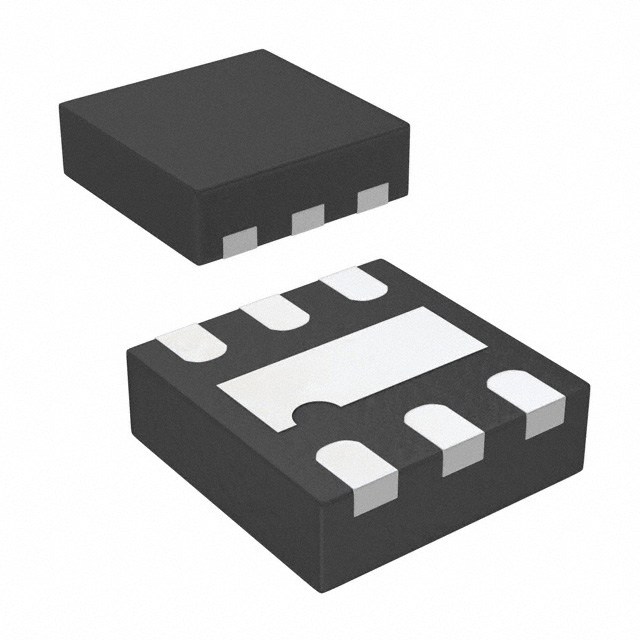

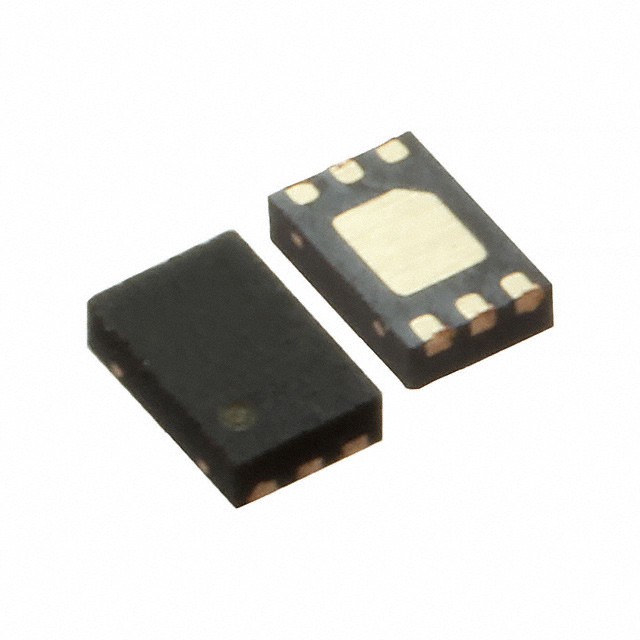

Microchip Technology PL133-27GI	6-DFN (2x1.3)	LVCMOS			6-UFDFN Exposed Pad		1:2	Fanout Buffer (Distribution)	1	85 °C	-40 °C	Surface Mount	3.63 V	1.62 V	150 MHz
Microchip Technology PL133-27GC-R	6-DFN (2x1.3)	LVCMOS			6-UFDFN Exposed Pad		1:2	Fanout Buffer (Distribution)	1	70 °C	0 °C	Surface Mount	3.63 V	1.62 V	150 MHz
Microchip Technology PL133-27GC	6-DFN (2x1.3)	LVCMOS			6-UFDFN Exposed Pad		1:2	Fanout Buffer (Distribution)	1	70 °C	0 °C	Surface Mount	3.63 V	1.62 V	150 MHz
Microchip Technology PL133-67OI-R	16-TSSOP	LVCMOS	LVCMOS	0.173 in	16-TSSOP	4.4 mm	1:6	Fanout Buffer (Distribution)	1	85 °C	-40 °C	Surface Mount	3.63 V	2.25 V	150 MHz
Microchip Technology PL133-97QI-R	16-QFN (3x3)	LVCMOS	LVCMOS		16-WFQFN Exposed Pad			Fanout Buffer (Distribution)	1	85 °C	-40 °C	Surface Mount	3.63 V	2.25 V	150 MHz	1:9
Microchip Technology PL133-47SC-R	8-SOP	LVCMOS	LVCMOS	0.154 in	8-SOIC	3.9 mm		Fanout Buffer (Distribution)	1	70 °C	0 °C	Surface Mount	3.63 V	2.25 V	150 MHz	1:4
Microchip Technology PL133-97QI	16-QFN (3x3)	LVCMOS	LVCMOS		16-WFQFN Exposed Pad			Fanout Buffer (Distribution)	1	85 °C	-40 °C	Surface Mount	3.63 V	2.25 V	150 MHz	1:9
Microchip Technology PL133-47SI	8-SOP	LVCMOS	LVCMOS	0.154 in	8-SOIC	3.9 mm		Fanout Buffer (Distribution)	1	85 °C	-40 °C	Surface Mount	3.63 V	2.25 V	150 MHz	1:4
Microchip Technology PL133-21GC	6-DFN (2x1.3)	LVCMOS	LVCMOS		6-UFDFN Exposed Pad		1:2	Fanout Buffer (Distribution)	1	70 °C	0 °C	Surface Mount			150 MHz		1.8 V 2.5 V 3.3 V

Catalog

Key Features

• * 2 LVCMOS Outputs

• * Input/Output Frequency: 1MHz to 150MHz

• * Supports LVCMOS or Sine Wave Input Clock

• * Output Enable (OE) only controls CLK0

• * CLK1 is always on

• * Extremely low additive Jitter

• * 8 mA Output Drive Strength

• * Low Current Consumption

• * Single 1.8V, 2.5V, or 3.3V, ±10% Power Supply

• * Operating Temperature Range: 0°C to 70°C (Commercial), 0 -40°C to 85°C (Industrial)

• * Available in DFN-6L GREEN/RoHS Compliant

• Packages

Description

The PL133-97 is an advanced fanout buffer design for high performance, low-power, small form factor applications. The PL133-97 accepts a reference clock input from DC to 150 MHz and provides 9 outputs of the same frequency.The PL133-97 is offered in a QFN-16L 3mm x 3mm package and it offers the best phase noise, additive jitter performance, and lowest power consumption of any comparable IC. The PL133-97 outputs can be disabled to a high impedance (tri-state) by pulling low the OE pin. When the OE pin is high, the outputs are enabled and follow the REF input signal. When the OE pin is left open, a pull-up resistor on the chip will default the OE pin to logic 1 so the outputs are enabled.
