STL7 Series

N-channel 600 V, 0.92 Ohm typ., 5 A MDmesh M2 Power MOSFET in a PowerFLAT 5x5 HV package

Catalog

N-channel 600 V, 0.92 Ohm typ., 5 A MDmesh M2 Power MOSFET in a PowerFLAT 5x5 HV package

Part	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Max]	Operating Temperature [Min]	Power Dissipation (Max)	Supplier Device Package	Vgs (Max)	Drain to Source Voltage (Vdss)	Package / Case	Qualification	Current - Continuous Drain (Id) @ 25°C	Grade	Mounting Type	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Technology	Operating Temperature	Input Capacitance (Ciss) (Max) @ Vds [Max]	Rds On (Max) @ Id, Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Power Dissipation (Max) [Max]

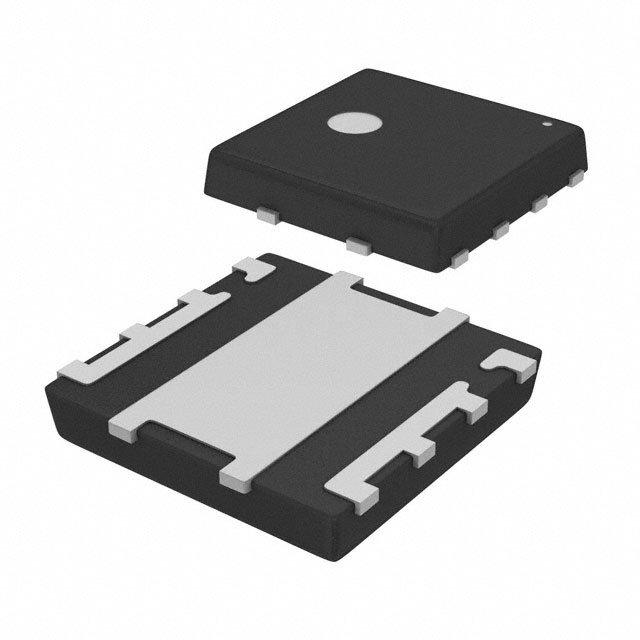

STMicroelectronics STL7N6LF3	8.7 nC	432 pF	175 °C	-55 °C	4.3 W 52 W	PowerFlat™ (5x6)	20 V	60 V	8-PowerVDFN	AEC-Q101	20 A	Automotive	Surface Mount	N-Channel	5 V 10 V	2.5 V	43 mOhm	MOSFET (Metal Oxide)
STMicroelectronics STL7N60M2	8.8 nC				4 W 67 W	PowerFLAT™ (5x5)	25 V	600 V	8-PowerVDFN		5 A		Surface Mount	N-Channel	10 V	4 V	1.05 Ohm	MOSFET (Metal Oxide)	150 °C	271 pF

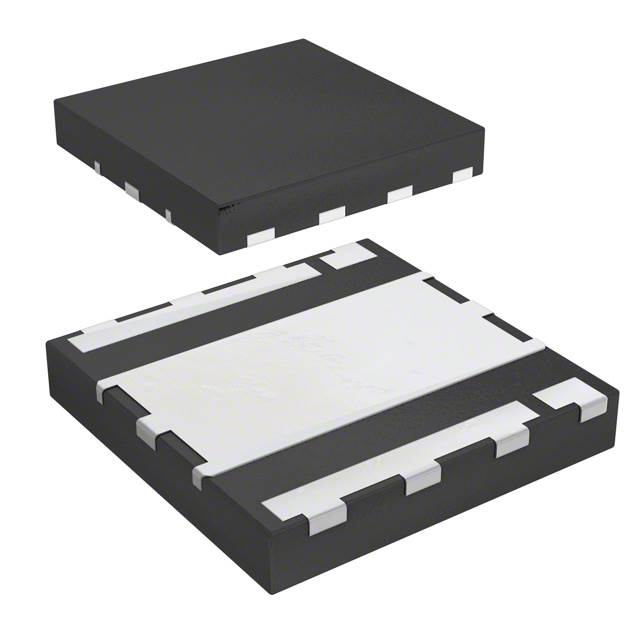

STMicroelectronics STL7NM60N	14 nC	363 pF	150 °C	-55 °C	68 W	14-PowerFLAT™ (5x5)	25 V	600 V	14-PowerVQFN		5.8 A		Surface Mount	N-Channel	10 V	4 V		MOSFET (Metal Oxide)			900 mOhm

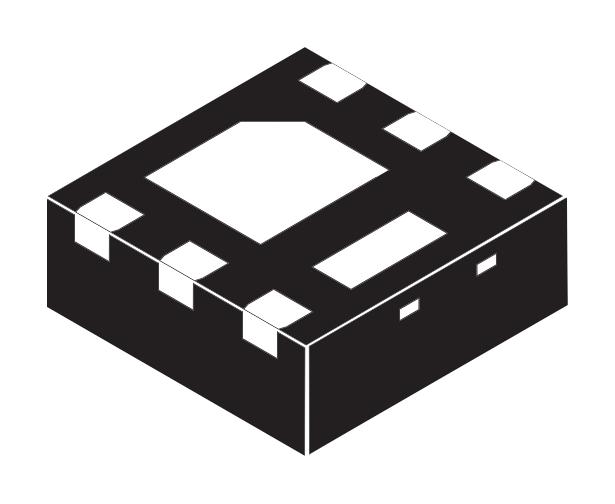

STMicroelectronics STL7N6F7			150 °C	-55 °C		PowerFlat™ (2x2)	20 V	60 V	6-PowerWDFN		7 A		Surface Mount	N-Channel	10 V	4 V	25 mOhm	MOSFET (Metal Oxide)		450 pF		8 nC	2.4 W

Catalog

N-channel 600 V, 0.92 Ohm typ., 5 A MDmesh M2 Power MOSFET in a PowerFLAT 5x5 HV package

Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.
