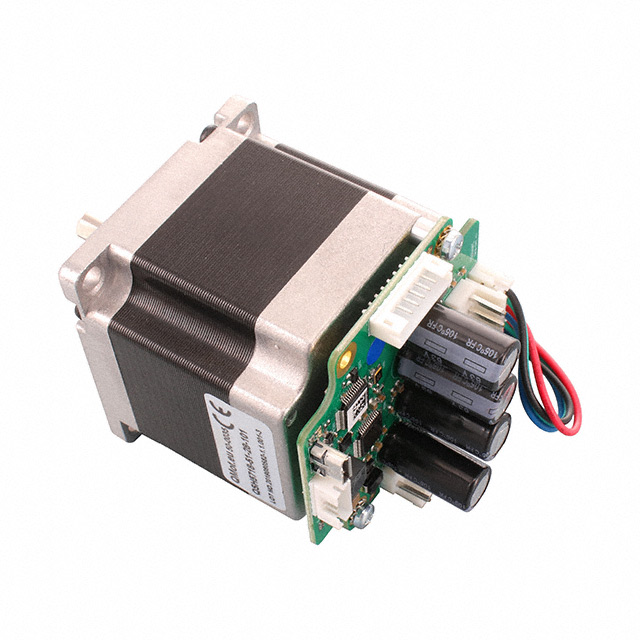

Analog Devices-PD57-2-1260-CANOPEN Stepper Motors Stepper Motors Hybrid Bipolar Square 2.3V 2.8A 0.83Ohm 275g.cm² 1.01 1.8° 1Shaft
Motors, Actuators, Solenoids and Drivers

PD57-2-1260-CANOPEN

Active
Analog Devices Inc./Maxim Integrated

NEMA 23 SMART STEPPER MOTOR 12 TO 52V, 55NCM, 256 ΜSTEPS, SIXPOINT RAMP CONTROLLER WITH USB, S/D RS485 AND CAN INTERFACE, SENSOSTEP, STALLGUARD2 AND COOLSTEP, STEALTHCHOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPD57-2-1260-CANOPEN | DatasheetPd 1260 Canopen Firmware Manual Fw3.23 (Rev.1.02)+4
Analog Devices-PD57-2-1260-CANOPEN Stepper Motors Stepper Motors Hybrid Bipolar Square 2.3V 2.8A 0.83Ohm 275g.cm² 1.01 1.8° 1Shaft
Motors, Actuators, Solenoids and Drivers

PD57-2-1260-CANOPEN

Active
Analog Devices Inc./Maxim Integrated

NEMA 23 SMART STEPPER MOTOR 12 TO 52V, 55NCM, 256 ΜSTEPS, SIXPOINT RAMP CONTROLLER WITH USB, S/D RS485 AND CAN INTERFACE, SENSOSTEP, STALLGUARD2 AND COOLSTEP, STEALTHCHOP

Deep-Dive with AI

DocumentsPD57-2-1260-CANOPEN | DatasheetPd 1260 Canopen Firmware Manual Fw3.23 (Rev.1.02)+4

Technical Specifications

Parameters and characteristics for this part

SpecificationPD57-2-1260-CANOPEN
Coil TypeBipolar
Current Rating (Amps)2.8 A
Diameter - Shaft [diameter]0.25 in
Diameter - Shaft [diameter]6.35 mm
FeaturesIntegrated Controller, Flatted Shaft
Length - Shaft and Bearing [x]24 mm
Length - Shaft and Bearing [x]0.945 "
Mounting Hole Spacing [custom]1.856 in
Mounting Hole Spacing [custom]47.14 mm
NEMA Frame Size24
Operating Temperature [Max]50 °C
Operating Temperature [Min]-20 ░C
Rotor Inertia275 gcm˛
Size / Dimension [x]2.362 in
Size / Dimension [x]60 mm
Size / Dimension [y]60 mm
Size / Dimension [y]2.362 in
Step Angle1.8 °
Steps per Revolution200
Torque - Holding (oz-in / mNm)143.03 oz-in
Torque - Holding (oz-in / mNm)1010 mNm
TypeHybrid
Voltage - Rated2.3 V

PD-1260 Series

PartCoil ResistanceDiameter - Shaft [diameter]Diameter - Shaft [diameter]Step AngleSteps per RevolutionCurrent Rating (Amps)FeaturesSize / Dimension [y]Size / Dimension [x]Size / Dimension [y]Size / Dimension [x]Voltage - RatedTypeTorque - Holding (oz-in / mNm)Torque - Holding (oz-in / mNm)Coil TypeMounting Hole Spacing [custom]Mounting Hole Spacing [custom]NEMA Frame SizeLength - Shaft and BearingLength - Shaft and Bearing [x]Rotor InertiaSize / Dimension [x]Size / Dimension [y]Operating Temperature [Min]Operating Temperature [Max]Length - Shaft and Bearing [x]Length - Shaft and Bearing [x]NEMA Frame Size
PD86-3-1260-CANOPEN
Analog Devices Inc./Maxim Integrated
PD86-3-1260-CANOPEN
0.45 Ohms
12.7 mm
0.5 in
1.8 °
200
5.5 Amps
Flatted Shaft
Integrated Controller
3.382 "
85.9 mm
85.9 mm
3.382 "
48 VDC
Hybrid
7000 mNm
991.28 oz-in
Bipolar
69.6 mm
2.74 in
34
33.27 mm
1.31 in
PD57-2-1260-TMCL
Analog Devices Inc./Maxim Integrated
PD57-2-1260-TMCL
6.35 mm
0.25 in
1.8 °
200
2.8 A
Flatted Shaft
Integrated Controller
60 mm
60 mm
2.3 V
Hybrid
1010 mNm
143.03 oz-in
Bipolar
47.14 mm
1.856 in
23
275 gcm˛
2.362 in
2.362 in
-20 ░C
50 °C
24 mm
0.945 "
Analog Devices-PD57-1-1260-TMCL Stepper Motors Stepper Motors Hybrid Bipolar Square 2V 2.8A 0.7Ohm 120g.cm² 0.55 1.8° 1Shaft
Analog Devices Inc./Maxim Integrated
PD57-1-1260-CANOPEN
6.35 mm
0.25 in
1.8 °
200
2.8 A
Flatted Shaft
Integrated Controller
60 mm
60 mm
2 VDC
Hybrid
550 mNm
77.89 oz-in
Bipolar
47.14 mm
1.856 in
120 gcm˛
2.362 in
2.362 in
-20 ░C
50 °C
24 mm
0.945 "
24
Analog Devices-PD57-2-1260-CANOPEN Stepper Motors Stepper Motors Hybrid Bipolar Square 2.3V 2.8A 0.83Ohm 275g.cm² 1.01 1.8° 1Shaft
Analog Devices Inc./Maxim Integrated
PD57-2-1260-CANOPEN
6.35 mm
0.25 in
1.8 °
200
2.8 A
Flatted Shaft
Integrated Controller
60 mm
60 mm
2.3 V
Hybrid
1010 mNm
143.03 oz-in
Bipolar
47.14 mm
1.856 in
275 gcm˛
2.362 in
2.362 in
-20 ░C
50 °C
24 mm
0.945 "
24
Analog Devices-PD86-3-1260-TMCL Stepper Motors Stepper Motors Hybrid Bipolar Square 2.57V 5.5A 0.45Ohm 2700g.cm² 7 1.8° 1Shaft
Analog Devices Inc./Maxim Integrated
PD86-3-1260-TMCL
0.45 Ohms
12.7 mm
0.5 in
1.8 °
200
5.5 Amps
Flatted Shaft
Integrated Controller
3.382 "
85.9 mm
85.9 mm
3.382 "
48 VDC
Hybrid
7000 mNm
991.28 oz-in
Bipolar
69.6 mm
2.74 in
34
33.27 mm
1.31 in
PD57-1-1260-TMCL
Analog Devices Inc./Maxim Integrated
PD57-1-1260-TMCL
6.35 mm
0.25 in
1.8
1.8 °
200
2.8 A
Flatted Shaft
Integrated Controller
60 mm
60 mm
2 VDC
Hybrid
550 mNm
77.89 oz-in
Bipolar
47.14 mm
1.856 in
120 gcm˛
2.362 in
2.362 in
-20 ░C
50 °C
24 mm
0.945 "
24
PD60-3-1260-TMCL
Analog Devices Inc./Maxim Integrated
PD60-3-1260-TMCL
8 mm
0.315 in
1.8 °
200
2.8 A
Flatted Shaft
Integrated Controller
60 mm
60 mm
4.6 VDC
Hybrid
2100 mNm
297.38 oz-in
Bipolar
47.14 mm
1.856 in
570 gcm˛
2.362 in
2.362 in
-20 ░C
50 °C
24 mm
0.945 "
24
PD60-3-1260-CANOPEN
Analog Devices Inc./Maxim Integrated
PD60-3-1260-CANOPEN
8 mm
0.315 in
1.8 °
200
2.8 A
Flatted Shaft
Integrated Controller
60 mm
60 mm
4.6 VDC
Hybrid
2100 mNm
297.38 oz-in
Bipolar
47.14 mm
1.856 in
570 gcm˛
2.362 in
2.362 in
-20 ░C
50 °C
24 mm
0.945 "
24

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 330.29
5$ 303.55
10$ 298.94
N/A 3$ 327.32

Description

General part information

PD-1260 Series

The PD57/60/86-1260 is a powerful and compact full mechatronic solution, made up of a TMCM-1260 stepper control module and a NEMA 23, NEMA 24 or NEMA 34 (57mm, 60mm or 86mm flange size) motor. Dynamic current control and quiet, smooth and efficient operation are combined with StealthChop™, DcStep™, StallGuard™and CoolStep™features.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSLaboratory AutomationManufacturingSemiconductor HandlingRoboticsFactory AutomationTest & MeasurementLife ScienceBiotechnologyLiquid Handling
