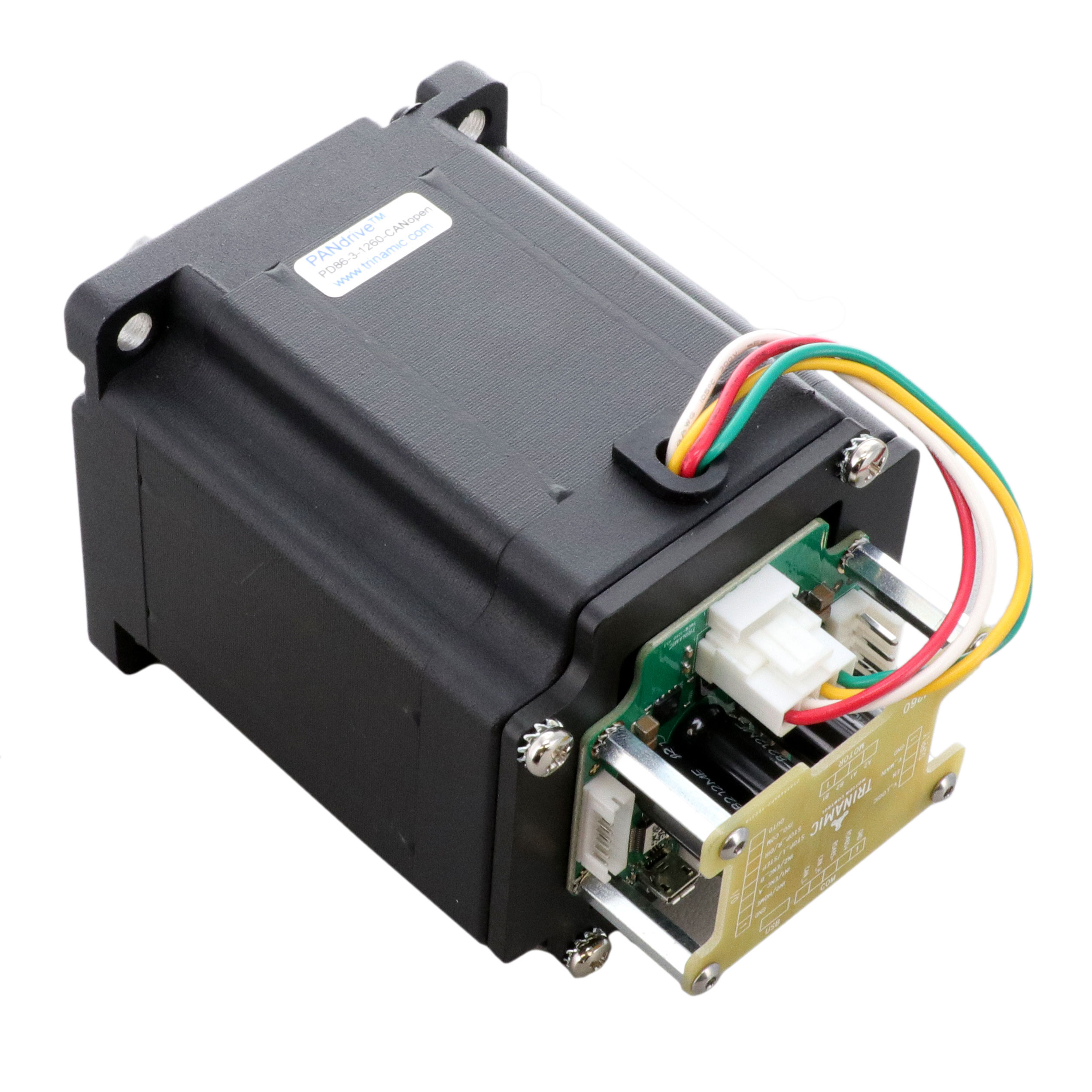

PD86-3-1260-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

PANDRIVE NEMA34, 48V, 7.0NM

Deep-Dive with AI

Search across all available documentation for this part.

Motors, Actuators, Solenoids and Drivers

PD86-3-1260-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

PANDRIVE NEMA34, 48V, 7.0NM

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PD86-3-1260-CANOPEN

Coil Resistance	0.45 Ohms
Coil Type	Bipolar
Current Rating (Amps)	5.5 Amps
Diameter - Shaft [diameter]	12.7 mm
Diameter - Shaft [diameter]	0.5 in
Features	Flatted Shaft, Integrated Controller
Length - Shaft and Bearing [x]	33.27 mm
Length - Shaft and Bearing [x]	1.31 in
Mounting Hole Spacing	2.74 in
Mounting Hole Spacing	69.6 mm
NEMA Frame Size	34
Size / Dimension [x]	3.382 "
Size / Dimension [x]	85.9 mm
Size / Dimension [y]	85.9 mm
Size / Dimension [y]	3.382 "
Step Angle	1.8 °
Steps per Revolution	200
Torque - Holding (oz-in / mNm)	991.28 oz-in
Torque - Holding (oz-in / mNm)	7000 mNm
Type	Hybrid
Voltage - Rated [custom]	48 VDC

PD86-3 Series

Part	Type	Coil Resistance	Current Rating (Amps)	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Steps per Revolution	Mounting Hole Spacing	Mounting Hole Spacing	Step Angle	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	NEMA Frame Size	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Voltage - Rated [custom]	Features	Coil Type	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Rotor Inertia	NEMA Frame Size	Weight	Weight
Analog Devices Inc./Maxim Integrated PD86-3-1260-CANOPEN	Hybrid	0.45 Ohms	5.5 Amps	991.28 oz-in	7000 mNm	33.27 mm	1.31 in	200	2.74 in	69.6 mm	1.8 °	85.9 mm	3.382 "	85.9 mm	3.382 "	34	12.7 mm	0.5 in	48 VDC	Flatted Shaft Integrated Controller	Bipolar
Analog Devices Inc./Maxim Integrated PD86-3-1278-CANOPEN	Hybrid	0.45 Ohms	5.5 Amps	991.28 oz-in	7000 mNm			200			1.8 °	86 mm	3.386 in	86 mm	3.386 in	34				Flatted Shaft Integrated Controller	Bipolar	2.56 VDC	50 °C	-20 C	2700 gcm²
Analog Devices Inc./Maxim Integrated PD86-3-1378-CANOPEN	Hybrid	0.45 Ohms	5.5 Amps	991.28 oz-in	7000 mNm			200			1.8 °	60 mm	2.362 in	60 mm	2.362 in					Flatted Shaft Integrated Controller	Bipolar	2.56 VDC	50 °C	-20 C	2700 gcm²	24
Analog Devices Inc./Maxim Integrated PD86-3-1180-CANOPEN	Hybrid	0.45 Ohms	5.5 Amps	991.28 oz-in	7000 mNm	33.27 mm	1.31 in	200	2.74 in	69.6 mm	1.8 °	85.9 mm	3.382 "	85.9 mm	3.382 "	34	12.7 mm	0.5 in	48 VDC	Flatted Shaft Integrated Controller	Bipolar						6.2 lbs	2.8 kg
Analog Devices Inc./Maxim Integrated PD86-3-1260-TMCL	Hybrid	0.45 Ohms	5.5 Amps	991.28 oz-in	7000 mNm	33.27 mm	1.31 in	200	2.74 in	69.6 mm	1.8 °	85.9 mm	3.382 "	85.9 mm	3.382 "	34	12.7 mm	0.5 in	48 VDC	Flatted Shaft Integrated Controller	Bipolar
Analog Devices Inc./Maxim Integrated PD86-3-1180-TMCL	Hybrid	0.45 Ohms	5.5 Amps	991.28 oz-in	7000 mNm	33.27 mm	1.31 in	200	2.74 in	69.6 mm	1.8 °	85.9 mm	3.382 "	85.9 mm	3.382 "	34	12.7 mm	0.5 in	48 VDC	Flatted Shaft Integrated Controller	Bipolar						6.2 lbs	2.8 kg

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 533.17
		10	$ 501.30

Description

General part information

PD86-3 Series

Bipolar Stepper Motor Hybrid Frame Size 34 200.0 Step 5.5 A 48VDC

Documents

Technical documentation and resources

No documents available
