PD-1260 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

NEMA 23 SMART STEPPER MOTOR 12 TO 52V, 55NCM, 256 ΜSTEPS, SIXPOINT RAMP CONTROLLER WITH USB, S/D RS485 AND CAN INTERFACE, SENSOSTEP, STALLGUARD2 AND COOLSTEP, STEALTHCHOP

Part	Coil Resistance	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Step Angle	Steps per Revolution	Current Rating (Amps)	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Type	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Coil Type	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	NEMA Frame Size	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	Rotor Inertia	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	NEMA Frame Size

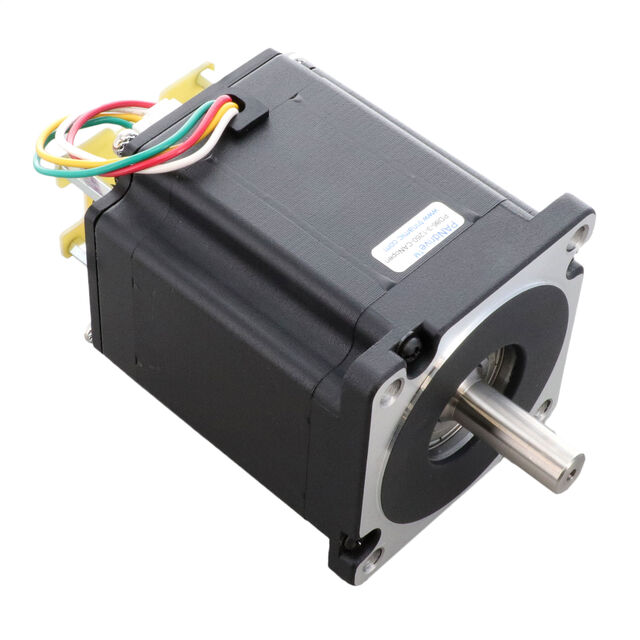

Analog Devices Inc./Maxim Integrated PD86-3-1260-CANOPEN	0.45 Ohms	12.7 mm	0.5 in	1.8 °	200	5.5 Amps	Flatted Shaft Integrated Controller	3.382 "	85.9 mm	85.9 mm	3.382 "	48 VDC	Hybrid	7000 mNm	991.28 oz-in	Bipolar	69.6 mm	2.74 in	34	33.27 mm	1.31 in

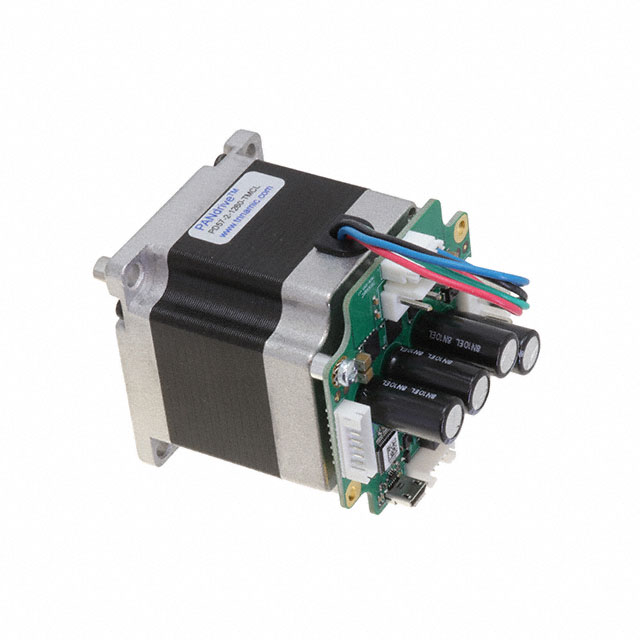

Analog Devices Inc./Maxim Integrated PD57-2-1260-TMCL		6.35 mm	0.25 in	1.8 °	200	2.8 A	Flatted Shaft Integrated Controller		60 mm	60 mm		2.3 V	Hybrid	1010 mNm	143.03 oz-in	Bipolar	47.14 mm	1.856 in	23			275 gcm˛	2.362 in	2.362 in	-20 ░C	50 °C	24 mm	0.945 "
Analog Devices Inc./Maxim Integrated PD57-1-1260-CANOPEN		6.35 mm	0.25 in	1.8 °	200	2.8 A	Flatted Shaft Integrated Controller		60 mm	60 mm		2 VDC	Hybrid	550 mNm	77.89 oz-in	Bipolar	47.14 mm	1.856 in				120 gcm˛	2.362 in	2.362 in	-20 ░C	50 °C	24 mm	0.945 "	24
Analog Devices Inc./Maxim Integrated PD57-2-1260-CANOPEN		6.35 mm	0.25 in	1.8 °	200	2.8 A	Flatted Shaft Integrated Controller		60 mm	60 mm		2.3 V	Hybrid	1010 mNm	143.03 oz-in	Bipolar	47.14 mm	1.856 in				275 gcm˛	2.362 in	2.362 in	-20 ░C	50 °C	24 mm	0.945 "	24
Analog Devices Inc./Maxim Integrated PD86-3-1260-TMCL	0.45 Ohms	12.7 mm	0.5 in	1.8 °	200	5.5 Amps	Flatted Shaft Integrated Controller	3.382 "	85.9 mm	85.9 mm	3.382 "	48 VDC	Hybrid	7000 mNm	991.28 oz-in	Bipolar	69.6 mm	2.74 in	34	33.27 mm	1.31 in
Analog Devices Inc./Maxim Integrated PD57-1-1260-TMCL		6.35 mm	0.25 in	1.8 1.8 °	200	2.8 A	Flatted Shaft Integrated Controller		60 mm	60 mm		2 VDC	Hybrid	550 mNm	77.89 oz-in	Bipolar	47.14 mm	1.856 in				120 gcm˛	2.362 in	2.362 in	-20 ░C	50 °C	24 mm	0.945 "	24
Analog Devices Inc./Maxim Integrated PD60-3-1260-TMCL		8 mm	0.315 in	1.8 °	200	2.8 A	Flatted Shaft Integrated Controller		60 mm	60 mm		4.6 VDC	Hybrid	2100 mNm	297.38 oz-in	Bipolar	47.14 mm	1.856 in				570 gcm˛	2.362 in	2.362 in	-20 ░C	50 °C	24 mm	0.945 "	24
Analog Devices Inc./Maxim Integrated PD60-3-1260-CANOPEN		8 mm	0.315 in	1.8 °	200	2.8 A	Flatted Shaft Integrated Controller		60 mm	60 mm		4.6 VDC	Hybrid	2100 mNm	297.38 oz-in	Bipolar	47.14 mm	1.856 in				570 gcm˛	2.362 in	2.362 in	-20 ░C	50 °C	24 mm	0.945 "	24
