The LP38852-ADJ is a high-current, fast-response regulator which can maintain output voltage regulation with extremely low input-to-output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIASprovides voltage to drive the gate of the N-MOS power transistor, while VINis the input voltage which supplies power to the load. The use of an external bias rail allows the part to operate from ultralow VINvoltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an N-MOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability. The fast transient response of this device makes it suitable for use in powering DSP, microcontroller core voltages, and switch-mode power supply post-regulators. 130 mV (typical) at 1.5-A load current. 10 mA (typical) at 1.5-A load current. Programmable soft-start time. The LP38852-ADJ is a high-current, fast-response regulator which can maintain output voltage regulation with extremely low input-to-output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIASprovides voltage to drive the gate of the N-MOS power transistor, while VINis the input voltage which supplies power to the load. The use of an external bias rail allows the part to operate from ultralow VINvoltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an N-MOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability. The fast transient response of this device makes it suitable for use in powering DSP, microcontroller core voltages, and switch-mode power supply post-regulators. 130 mV (typical) at 1.5-A load current. 10 mA (typical) at 1.5-A load current. Programmable soft-start time.

The LP38853 is a high-current, fast-response regulator that can maintain output voltage regulation with extremely low input-to-output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIASprovides voltage to drive the gate of the NMOS power transistor; VINis the input voltage which supplies power to the load. The use of an external bias rail allows the device to operate from ultra-low VINvoltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an NMOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability. The fast transient response of this device makes it suitable for use in powering DSP and microcontroller core voltages, and switch-mode power-supply post regulators. Dropout Voltage: 240 mV (typical) at 3-A load current Low Ground Pin Current: 10 mA (typical) at 3-A load currentSoft Start: Programmable soft-start time The LP38853 is a high-current, fast-response regulator that can maintain output voltage regulation with extremely low input-to-output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIASprovides voltage to drive the gate of the NMOS power transistor; VINis the input voltage which supplies power to the load. The use of an external bias rail allows the device to operate from ultra-low VINvoltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an NMOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability. The fast transient response of this device makes it suitable for use in powering DSP and microcontroller core voltages, and switch-mode power-supply post regulators. Dropout Voltage: 240 mV (typical) at 3-A load current Low Ground Pin Current: 10 mA (typical) at 3-A load currentSoft Start: Programmable soft-start time

The LP38855 is a high-current, fast-response regulator which can maintain output voltage regulation with an extremely low input to output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIASprovides power for the internal bias and control circuits, as well as drive for the gate of the N-MOS power transistor, while VINsupplies power to the load. The use of an external bias rail allows the part to operate from ultra low VINvoltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an N-MOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability. The fast transient response of this device makes it suitable for use in powering DSP, Microcontroller Core voltages and Switch Mode Power Supply post regulators. The LP38855 is available in TO-220 and DDPAK/TO-263 5-Lead packages. Dropout Voltage:130 mV (typical) at 1.5A load current. Low Ground Pin Current:10 mA (typical) at 1.5A load current. Shutdown Current:1 µA (typical) IIN(GND)when EN pin is low. Precision Output Voltage:±1.0% for TJ= 25°C and ±2.0% for 0°C ≤ TJ≤ +125°C, across all line and load conditions The LP38855 is a high-current, fast-response regulator which can maintain output voltage regulation with an extremely low input to output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIASprovides power for the internal bias and control circuits, as well as drive for the gate of the N-MOS power transistor, while VINsupplies power to the load. The use of an external bias rail allows the part to operate from ultra low VINvoltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an N-MOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability. The fast transient response of this device makes it suitable for use in powering DSP, Microcontroller Core voltages and Switch Mode Power Supply post regulators. The LP38855 is available in TO-220 and DDPAK/TO-263 5-Lead packages. Dropout Voltage:130 mV (typical) at 1.5A load current. Low Ground Pin Current:10 mA (typical) at 1.5A load current. Shutdown Current:1 µA (typical) IIN(GND)when EN pin is low. Precision Output Voltage:±1.0% for TJ= 25°C and ±2.0% for 0°C ≤ TJ≤ +125°C, across all line and load conditions

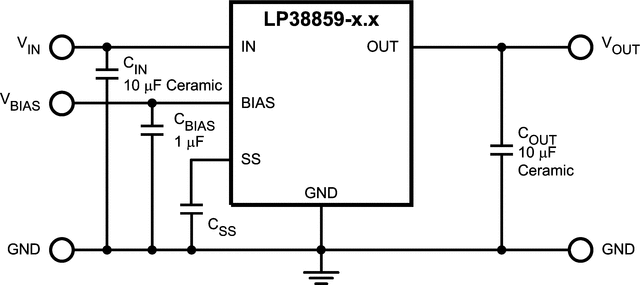

The LP38859 is a high-current, fast-response regulator which can maintain output voltage regulation with extremely low input to output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIASprovides voltage to drive the gate of the N-MOS power transistor, while VINis the input voltage which supplies power to the load. The use of an external bias rail allows the part to operate from ultra-low VINvoltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an N-MOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability. The fast transient response of this device makes it suitable for use in powering DSP microcontroller core voltages and switch-mode power-supply post-regulators. The LP38859 is available in 5-pin TO-220 and DDPAK/TO-263 packages. The LP38859 is a high-current, fast-response regulator which can maintain output voltage regulation with extremely low input to output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIASprovides voltage to drive the gate of the N-MOS power transistor, while VINis the input voltage which supplies power to the load. The use of an external bias rail allows the part to operate from ultra-low VINvoltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an N-MOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability. The fast transient response of this device makes it suitable for use in powering DSP microcontroller core voltages and switch-mode power-supply post-regulators. The LP38859 is available in 5-pin TO-220 and DDPAK/TO-263 packages.
