LP38869 Series
Manufacturer: Texas Instruments
Beta
⌘K

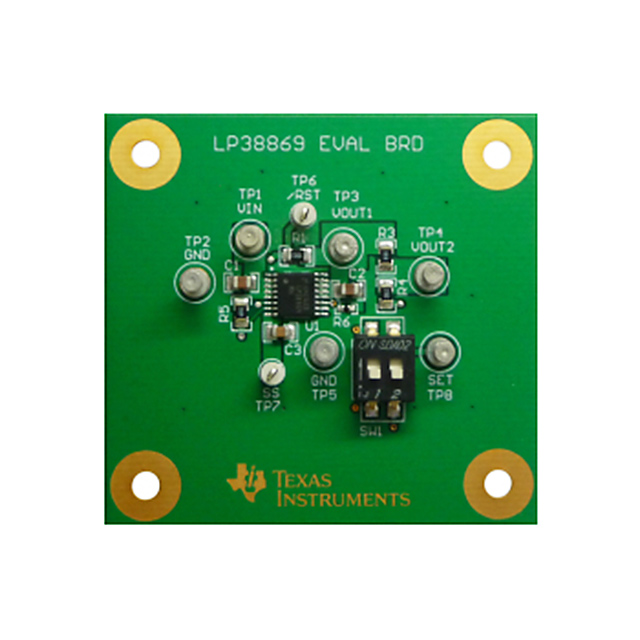

LP38869 LINEAR REGULATOR 2.5V/3.3V OUTPUT EVALUATION BOARD
| Part | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Channels per IC | Board Type | Supplied Contents | Current - Output | Voltage - Output | Regulator Type | Number of Regulators | Voltage - Output (Min/Fixed) [Min] | Voltage - Output (Min/Fixed) | Voltage Dropout (Max) [Max] | Current - Quiescent (Iq) | Supplier Device Package | Control Features | Mounting Type | Output Configuration | PSRR | Output Type | Voltage - Output (Max) | Package / Case | Package / Case | Protection Features | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | LP38869 | 2.7 V | 5.5 V | 1 - Single | Fully Populated | Board(s) | 1 A | 2.5 V 3.3 V | Positive Fixed and Adjustable | |||||||||||||||||||
 Texas Instruments | 1 A | 1 | 0.8 V | 2.5 V | 0.33 V | 8.5 mA | 16-HTSSOP | Enable Soft Start | Surface Mount | Positive | 54 dB | Adjustable (Fixed) | 5 V | 16-PowerTSSOP | 0.173 in 4.4 mm Width | Over Temperature Short Circuit Under Voltage Lockout (UVLO) | 5.5 V | 125 °C | -40 °C | 15 mA | ||||||||
Texas Instruments | 1 A | 1 | 0.8 V | 2.5 V | 0.33 V | 8.5 mA | 16-HTSSOP | Enable Soft Start | Surface Mount | Positive | 54 dB | Adjustable (Fixed) | 5 V | 16-PowerTSSOP | 0.173 in 4.4 mm Width | Over Temperature Short Circuit Under Voltage Lockout (UVLO) | 5.5 V | 125 °C | -40 °C | 15 mA | ||||||||
Texas Instruments | 1 A | 1 | 0.8 V | 2.5 V | 0.33 V | 8.5 mA | 16-HTSSOP | Enable Soft Start | Surface Mount | Positive | 54 dB | Adjustable (Fixed) | 5 V | 16-PowerTSSOP | 0.173 in 4.4 mm Width | Over Temperature Short Circuit Under Voltage Lockout (UVLO) | 5.5 V | 125 °C | -40 °C | 15 mA |
