| Adapter Cards | 1 | Active | |
| Interface | 1 | Obsolete | |
| RFID, RF Access, Monitoring ICs | 1 | Obsolete | |
| Clock Buffers, Drivers | 3 | Obsolete | |
| Accessories | 1 | Obsolete | |
CLC0013.3-V ground reference SEMPTE 259M cable driver | Interface | 2 | Active | The CLC001 is a monolithic, high-speed cable driver designed for use in SMPTE 259M serial digital video and ITU-T G.703 serial digital data transmission applications. The CLC001 drives 75transmission lines (Belden 8281 or equivalent) at data rates up to 622 Mbps. Controlled output rise and fall times (400 ps typical) minimize transition-induced jitter. The output voltage swing is adjustable from 800 mVp-pto 1.0 Vp-pusing an external resistor.
The CLC001's output stage consumes less power than other designs. The differential inputs accept LVDS signal levels, LVPECL levels directly or PECL with attenuation networks.
All these make the CLC001 an excellent general purpose high speed driver for high-speed, long distance data transmission applications.
The CLC001 is powered from a single +3.3V supply and comes in a small 8-pin SOIC package.
The CLC001 is a monolithic, high-speed cable driver designed for use in SMPTE 259M serial digital video and ITU-T G.703 serial digital data transmission applications. The CLC001 drives 75transmission lines (Belden 8281 or equivalent) at data rates up to 622 Mbps. Controlled output rise and fall times (400 ps typical) minimize transition-induced jitter. The output voltage swing is adjustable from 800 mVp-pto 1.0 Vp-pusing an external resistor.
The CLC001's output stage consumes less power than other designs. The differential inputs accept LVDS signal levels, LVPECL levels directly or PECL with attenuation networks.
All these make the CLC001 an excellent general purpose high speed driver for high-speed, long distance data transmission applications.
The CLC001 is powered from a single +3.3V supply and comes in a small 8-pin SOIC package. |

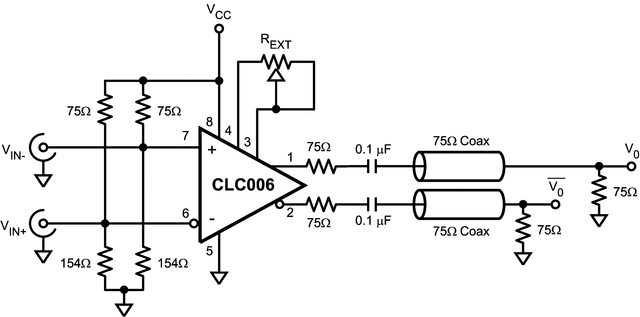

| Drivers, Receivers, Transceivers | 4 | Obsolete | |
| Drivers, Receivers, Transceivers | 4 | Active | |
CLC007Serial Digital Cable Driver with Dual Complementary Outputs | Drivers, Receivers, Transceivers | 4 | Active | The Texas Instruments Comlinear CLC007 is a monolithic, high-speed cable driver designed for the SMPTE 259M serial digital video data transmission standard. The CLC007 drives 75Ω transmission lines (Belden 8281 or equivalent) at data rates up to 400 Mbps. Controlled output rise and fall times (750 ps typical) minimize transition-induced jitter. The output voltage swing, typically 1.65V, set by an accurate, low-drift internal bandgap reference, delivers an 800 mV swing to back-matched and terminated 75Ω cable.
The CLC007’s class AB output stage consumes less power than other designs, 195 mW with all outputs terminated, and requires no external bias resistors. The differential inputs accept a wide range of digital signals from 200 mVP-Pto ECL levels within the specified common-mode limits. All this make the CLC007 an excellent general purpose high speed driver for digital applications.
The CLC007 is powered from a single +5V or −5.2V supply and comes in an 8-pin SOIC package.
The Texas Instruments Comlinear CLC007 is a monolithic, high-speed cable driver designed for the SMPTE 259M serial digital video data transmission standard. The CLC007 drives 75Ω transmission lines (Belden 8281 or equivalent) at data rates up to 400 Mbps. Controlled output rise and fall times (750 ps typical) minimize transition-induced jitter. The output voltage swing, typically 1.65V, set by an accurate, low-drift internal bandgap reference, delivers an 800 mV swing to back-matched and terminated 75Ω cable.
The CLC007’s class AB output stage consumes less power than other designs, 195 mW with all outputs terminated, and requires no external bias resistors. The differential inputs accept a wide range of digital signals from 200 mVP-Pto ECL levels within the specified common-mode limits. All this make the CLC007 an excellent general purpose high speed driver for digital applications.
The CLC007 is powered from a single +5V or −5.2V supply and comes in an 8-pin SOIC package. |
| Interface | 1 | Obsolete | |
