TPS3803Automotive, single-channel voltage detectors | Development Boards, Kits, Programmers | 9 | Active | The TPS3803-Q1 and TPS3805-Q1 families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSPs and processor-based systems.

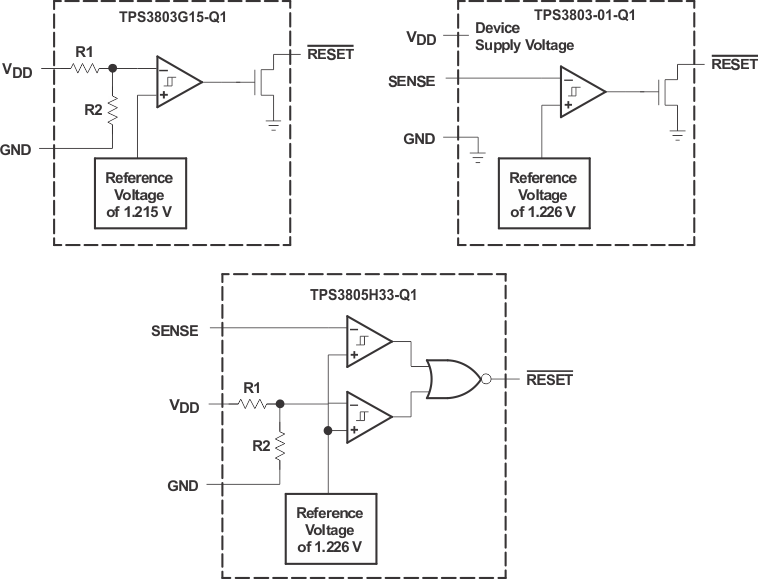

The TPS3803G15-Q1 device has a fixed-sense threshold voltage VITset by an internal voltage divider, whereas the TPS3803-01-Q1 has an adjustable SENSE input that can be configured by two external resistors. In addition to the fixed sense threshold monitored at VDD, the TPS3805-Q1 devices provide a second adjustable SENSE input.RESETis asserted in case either of the two voltages drops below VIT.
During power on,RESETis asserted when supply voltage VDDbecomes higher than 0.8 V. Thereafter, the supervisory circuit monitors VDD(and/or SENSE) and keepsRESETactive as long as VDDor SENSE remains below the threshold voltage VIT. As soon as VDD(SENSE) rises above the threshold voltage VIT,RESETis deasserted again. The product spectrum is designed for 1.5-V, 3.3-V, and adjustable supply voltages.
The devices are available in a 5-pin SC-70 package. The TPS3803-Q1 and TPS3805-Q1 devices are characterized for operation over a temperature range of –40°C to 125°C.
The TPS3803-Q1 and TPS3805-Q1 families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSPs and processor-based systems.
The TPS3803G15-Q1 device has a fixed-sense threshold voltage VITset by an internal voltage divider, whereas the TPS3803-01-Q1 has an adjustable SENSE input that can be configured by two external resistors. In addition to the fixed sense threshold monitored at VDD, the TPS3805-Q1 devices provide a second adjustable SENSE input.RESETis asserted in case either of the two voltages drops below VIT.
During power on,RESETis asserted when supply voltage VDDbecomes higher than 0.8 V. Thereafter, the supervisory circuit monitors VDD(and/or SENSE) and keepsRESETactive as long as VDDor SENSE remains below the threshold voltage VIT. As soon as VDD(SENSE) rises above the threshold voltage VIT,RESETis deasserted again. The product spectrum is designed for 1.5-V, 3.3-V, and adjustable supply voltages.
The devices are available in a 5-pin SC-70 package. The TPS3803-Q1 and TPS3805-Q1 devices are characterized for operation over a temperature range of –40°C to 125°C. |
| Power Management (PMIC) | 1 | Active | The TPS3803 and TPS3805 families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSPs and processor-based systems.
The TPS3803G15 device has a fixed-sense threshold voltage VITset by an internal voltage divider, whereas the TPS3803–01 has an adjustable SENSE input that can be configured by two external resistors. In addition to the fixed sense threshold monitored at VDD, the TPS3805 devices provide a second adjustable SENSE input.RESETis asserted in case any of the two voltages drops below VIT.
During power on,RESETis asserted when supply voltage VDDbecomes higher than 0.8 V. Thereafter, the supervisory circuit monitors VDD(and/or SENSE) and keepsRESETactive as long as VDDor SENSE remains below the threshold voltage VIT. As soon as VDD(SENSE) rises above the threshold voltage VIT,RESETis deasserted again. The product spectrum is designed for 1.5 V, 3.3 V, and adjustable supply voltages. The devices are available in a 5-pin SC-70 package.
The TPS3803 and TPS3805 families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSPs and processor-based systems.
The TPS3803G15 device has a fixed-sense threshold voltage VITset by an internal voltage divider, whereas the TPS3803–01 has an adjustable SENSE input that can be configured by two external resistors. In addition to the fixed sense threshold monitored at VDD, the TPS3805 devices provide a second adjustable SENSE input.RESETis asserted in case any of the two voltages drops below VIT.
During power on,RESETis asserted when supply voltage VDDbecomes higher than 0.8 V. Thereafter, the supervisory circuit monitors VDD(and/or SENSE) and keepsRESETactive as long as VDDor SENSE remains below the threshold voltage VIT. As soon as VDD(SENSE) rises above the threshold voltage VIT,RESETis deasserted again. The product spectrum is designed for 1.5 V, 3.3 V, and adjustable supply voltages. The devices are available in a 5-pin SC-70 package. |
| Integrated Circuits (ICs) | 2 | Active | |
| Power Management (PMIC) | 4 | Active | |
| Power Management (PMIC) | 2 | Active | |
TPS3806Automotive, dual-voltage detector with adjustable hysteresis | Power Management (PMIC) | 6 | Active | The TPS3806I33-Q1 integrates two independent voltage detectors for battery voltage monitoring. During power on, the device assertsRESETandRSTSENSEwhen supply voltage VDDor the voltage at the LSENSE input becomes higher than 0.8 V. Thereafter, the supervisory circuit monitors VDDand LSENSE, keepingRESETandRSTSENSEactive as long as VDDand LSENSE remain below the threshold voltage, VIT. As soon as VDDor LSENSE rises above the threshold voltage VIT, the device deassertsRESETorRSTSENSE, respectively. The TPS3806I33-Q1 device has a fixed-sense threshold voltage VITset by an internal voltage divider at VDDand an adjustable second-LSENSE input. In addition, one can set an upper voltage threshold at HSENSE to allow a wide adjustablehysteresis window.
The devices are available in a 6-pin SOT-23 package. Characterization of the TPS3806I33-Q1 device is for operation over a temperature range of –40°C to 125°C.
The TPS3806I33-Q1 integrates two independent voltage detectors for battery voltage monitoring. During power on, the device assertsRESETandRSTSENSEwhen supply voltage VDDor the voltage at the LSENSE input becomes higher than 0.8 V. Thereafter, the supervisory circuit monitors VDDand LSENSE, keepingRESETandRSTSENSEactive as long as VDDand LSENSE remain below the threshold voltage, VIT. As soon as VDDor LSENSE rises above the threshold voltage VIT, the device deassertsRESETorRSTSENSE, respectively. The TPS3806I33-Q1 device has a fixed-sense threshold voltage VITset by an internal voltage divider at VDDand an adjustable second-LSENSE input. In addition, one can set an upper voltage threshold at HSENSE to allow a wide adjustablehysteresis window.
The devices are available in a 6-pin SOT-23 package. Characterization of the TPS3806I33-Q1 device is for operation over a temperature range of –40°C to 125°C. |
TPS3807A30Low-quiescent current, dual-channel supervisor | Supervisors | 2 | Active | The TPS3807 family microprocessor supervisory circuits monitor system voltages as low as 1.225V. These devices assert an open-drainRSTVDDsignal when the VDDvoltage drops below a preset threshold. TheRSTVDDoutput remains asserted until the VDDvoltage returns above its threshold. The device also provides an additionalRSTSENSEoutput for a SENSE input with adjustable thresholds and hysteresis.
The TPS3807 uses a precision reference to achieve 1% threshold accuracy. The TPS3807 has a very low typical quiescent current of 3.5µA, so it is well-suited to battery-powered applications. It is available in a small SC70-5 package, which is half the size of a SOT-23 package, and is fully specified over a temperature range of -40°C to +85°C.
The TPS3807 family microprocessor supervisory circuits monitor system voltages as low as 1.225V. These devices assert an open-drainRSTVDDsignal when the VDDvoltage drops below a preset threshold. TheRSTVDDoutput remains asserted until the VDDvoltage returns above its threshold. The device also provides an additionalRSTSENSEoutput for a SENSE input with adjustable thresholds and hysteresis.
The TPS3807 uses a precision reference to achieve 1% threshold accuracy. The TPS3807 has a very low typical quiescent current of 3.5µA, so it is well-suited to battery-powered applications. It is available in a small SC70-5 package, which is half the size of a SOT-23 package, and is fully specified over a temperature range of -40°C to +85°C. |
TPS3808Low-quiescent current supervisor with programmable delay & manual reset | Evaluation and Demonstration Boards and Kits | 66 | Active | The TPS3808 family of microprocessor supervisory circuits monitors system voltages from 0.4 V to 5 V, asserting an open-drainRESETsignal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. TheRESEToutput remains low for the user-adjustable delay time after the SENSE voltage and manual reset (MR) return above the respective thresholds.
The TPS3808 device uses a precision reference to achieve 0.5% threshold accuracy for VIT≤ 3.3 V. The reset delay time can be set to 20 ms by disconnecting the CTpin, 300 ms by connecting the CTpin to VDDusing a resistor, or can be user-adjusted between 1.25 ms and 10 s by connecting the CTpin to an external capacitor. The TPS3808 device has a very low typical quiescent current of 2.4 µA, so it is well-suited to battery-powered applications. It is available in the SOT-23 and 2-mm × 2-mm WSON packages, and is fully specified over a temperature range of –40°C to 125°C (TJ).
The TPS3808 family of microprocessor supervisory circuits monitors system voltages from 0.4 V to 5 V, asserting an open-drainRESETsignal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. TheRESEToutput remains low for the user-adjustable delay time after the SENSE voltage and manual reset (MR) return above the respective thresholds.
The TPS3808 device uses a precision reference to achieve 0.5% threshold accuracy for VIT≤ 3.3 V. The reset delay time can be set to 20 ms by disconnecting the CTpin, 300 ms by connecting the CTpin to VDDusing a resistor, or can be user-adjusted between 1.25 ms and 10 s by connecting the CTpin to an external capacitor. The TPS3808 device has a very low typical quiescent current of 2.4 µA, so it is well-suited to battery-powered applications. It is available in the SOT-23 and 2-mm × 2-mm WSON packages, and is fully specified over a temperature range of –40°C to 125°C (TJ). |
TPS3808-Q1Automotive, low-quiescent current programmable-delay supervisor | Supervisors | 2 | Active | The TPS3808Gxx-Q1 microprocessor supervisory circuits monitor system voltages from 0.4 V to 5 V, asserting an open-drainRESETsignal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. TheRESEToutput remains low for the user-adjustable delay time after the SENSE voltage andMRreturn above their thresholds.
The TPS3808Gxx-Q1 device uses a precision reference to achieve 0.5% threshold accuracy for VIT≤ 3.3 V. The reset delay time can be set to 20 ms by disconnecting the CTpin, 300 ms by connecting the CTpin to VDDusing a resistor, or can be user-adjusted from 1.25 ms to 10 s by connecting the CTpin to an external capacitor. The TPS3808Gxx-Q1 has a very low typical quiescent current of 2.4 µA, so it is well suited for battery-powered applications. The device is available in a small SOT-23 package (one option available in WSON) and is fully specified over a temperature range of –40°C to +125°C (TJ).
For more information about TI’s voltage supervisor portfolio, visit theSupervisor and Reset IC Overview Pagepage.
The TPS3808Gxx-Q1 microprocessor supervisory circuits monitor system voltages from 0.4 V to 5 V, asserting an open-drainRESETsignal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. TheRESEToutput remains low for the user-adjustable delay time after the SENSE voltage andMRreturn above their thresholds.
The TPS3808Gxx-Q1 device uses a precision reference to achieve 0.5% threshold accuracy for VIT≤ 3.3 V. The reset delay time can be set to 20 ms by disconnecting the CTpin, 300 ms by connecting the CTpin to VDDusing a resistor, or can be user-adjusted from 1.25 ms to 10 s by connecting the CTpin to an external capacitor. The TPS3808Gxx-Q1 has a very low typical quiescent current of 2.4 µA, so it is well suited for battery-powered applications. The device is available in a small SOT-23 package (one option available in WSON) and is fully specified over a temperature range of –40°C to +125°C (TJ).
For more information about TI’s voltage supervisor portfolio, visit theSupervisor and Reset IC Overview Pagepage. |
TPS3808E600nA ultra-low quiescent current supervisor with programmable delay and manual reset | Power Management (PMIC) | 11 | Active | The TPS3808E family of microprocessor supervisory circuits monitors system voltages from 0.4V to 5V, asserting an open-drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. The RESET output remains low for the user-adjustable delay time after the SENSE voltage and manual reset (MR) return above the respective thresholds.
The TPS3808E device uses a precision reference to achieve 0.5% threshold accuracy. The reset delay time can be set to 20ms by disconnecting the CT pin, 300ms by connecting the CT pin to VDD using a resistor, or can be user-adjusted between 1.25ms and 10s by connecting the CT pin to an external capacitor. The TPS3808E device has a very low typical quiescent current of 0.6µA, and is designed for battery-powered applications. The TPS3808E is available in the SOT-23 (6) , and is fully specified over a temperature range of –40°C to 125°C (TJ).
The TPS3808E family of microprocessor supervisory circuits monitors system voltages from 0.4V to 5V, asserting an open-drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. The RESET output remains low for the user-adjustable delay time after the SENSE voltage and manual reset (MR) return above the respective thresholds.
The TPS3808E device uses a precision reference to achieve 0.5% threshold accuracy. The reset delay time can be set to 20ms by disconnecting the CT pin, 300ms by connecting the CT pin to VDD using a resistor, or can be user-adjusted between 1.25ms and 10s by connecting the CT pin to an external capacitor. The TPS3808E device has a very low typical quiescent current of 0.6µA, and is designed for battery-powered applications. The TPS3808E is available in the SOT-23 (6) , and is fully specified over a temperature range of –40°C to 125°C (TJ). |
