VIPER06VIPerPlus family: Energy saving high voltage converter for direct feedback | Integrated Circuits (ICs) | 4 | Active | The VIPER06 is an offline converter with an 800 V avalanche rugged power section, a PWM controller, a user-defined overcurrent limit, open-loop failure protection, hysteretic thermal protection, soft startup and safe auto-restart after any fault condition. The device is able to power itself directly from the rectified mains, eliminating the need for an auxiliary bias winding. Advanced frequency jittering reduces EMI filter cost. Burst mode operation and the device’s very low power consumption both help to meet the standards set by energy-saving regulations. |
| PMIC | 4 | Obsolete | |
| Integrated Circuits (ICs) | 2 | Active | |
VIPER114Energy saving off-line high voltage converter | AC DC Converters, Offline Switches | 2 | Active | The device is a high voltage converter smartly integrating an 800 V avalanche-rugged power MOSFET with PWM current mode control. The power MOSFET with 800 V breakdown voltage allows the extended input voltage range to be applied, as well as the size of the DRAIN snubber circuit to be reduced. This IC meets the most stringent energy-saving standards as it has very low consumption and operates in pulse frequency modulation under light load. The design of flyback, buck and buck boost converters is supported. The integrated HV startup, sense- FET, error amplifier and oscillator with jitter allow a complete application to be designed with the minimum number of components. |
| Evaluation Boards | 2 | Obsolete | |
| Integrated Circuits (ICs) | 1 | Active | The device is a high performance high voltage converter that combines a 730 V rugged power MOSFET with PWM control. The device embeds high voltage startup and current sense circuitry, which helps reduce the number of components in a BoM. Frequency jittering spreads the EMI and allows the use of a smaller filter. The burst mode feature provides very low input power consumption at light loads. |
| Power Management (PMIC) | 2 | Obsolete | |

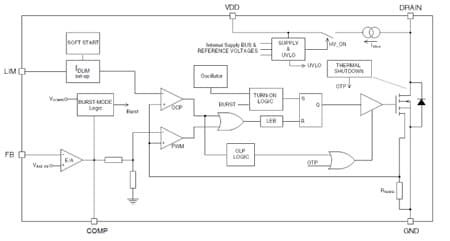

VIPER16VIPerPlus family: Energy saving 6W high voltage converter with direct feedback | Power Management (PMIC) | 3 | Active | The device is an off-line converter with an 800 V avalanche ruggedness power section, a PWM controller, user defined overcurrent limit, protection against feedback network disconnection, hysteretic thermal protection, soft start up and safe auto restart after any fault condition. It is able to power itself directly from the rectified mains, eliminating the need for an auxiliary bias winding. Advance frequency jittering reduces EMI filter cost. Burst mode operation and the devices very low consumption both help to meet the standard set by energy saving regulations. |
VIPER17VIPerPlus family: Fixed frequency 6W high performance off line high voltage converter | AC DC Converters, Offline Switches | 2 | Active | The device is an off-line converter with an 800 V rugged power section, a PWM control, two levels of overcurrent protection, overvoltage and overload protections, hysteresis thermal protection, soft-start and safe auto-restart after any fault condition removal. The burst mode operation and the device’s very low consumption meet the standby energy saving regulations.
Advance frequency jittering reduces EMI filter cost. Brown-out function protects the switch mode power supply when the rectified input voltage level is below the normal minimum level specified for the system. The high voltage startup circuit is embedded in the device. |
| AC DC Converters, Offline Switchers | 3 | Obsolete | |
