Product families from GaNPower
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Power Management (PMIC) | 1 | Active |
Parts from GaNPower that are not part of a series
| Part Information | Pricing (lowest) | Gate Type | Package Length | Package Width | Package Name | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Channel Type | Number of Drivers | Fall Time (Typ) | Rise Time (Typ) | Driven Configuration | Mounting Type | Input Type | Package / Case | Input Capacitance (Ciss) (Max) | Vgs (Max) Negative | Vgs (Max) Positive | Vgs(th) (Max) | Gate Charge (Max) | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Technology | Current - Continuous Drain (Id) | Drain to Source Voltage (Vdss) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

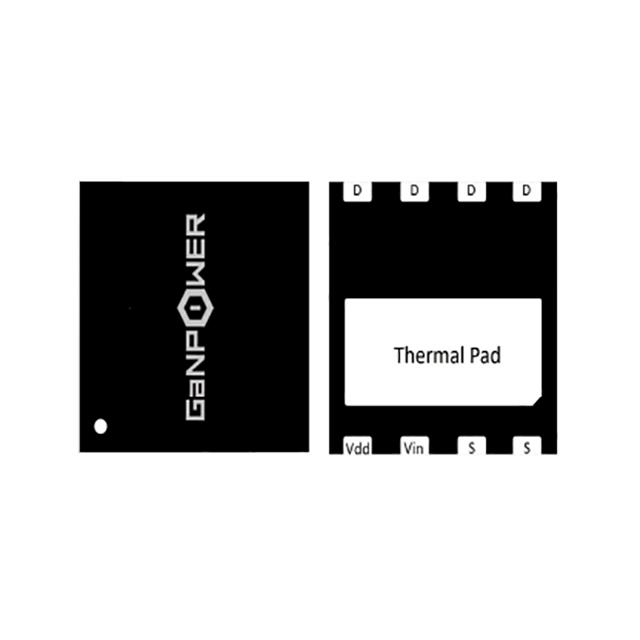

 GaNPower IC GAN POWER 650V 10A DFN6X8 | Sign in to see pricing | Enhanced Mode GaN FET, GaN FET | 6 mm | 8 mm | 8-DFN | -55 °C | 150 °C | 8 V | 3 V | Single | 1 | 16 ns | 10 ns | Low-Side | Surface Mount | Non-Inverting | 8-WDFN Exposed Pad | — | — | — | — | — | — | — | — | — | — |
 GaNPower RF MOSFET 6.5V 8DFN | Sign in to see pricing | GaN FET | 8 mm | 8 mm | 8-DFN | -55 °C | 150 °C | 8 V | 5 V | Single | 1 | 70 ns | 30 ns | Low-Side | Surface Mount | Non-Inverting | 8-WDFN Exposed Pad | — | — | — | — | — | — | — | — | — | — |
 GaNPower IC GAN POWER 650V 8A DFN6X8 | Sign in to see pricing | Enhanced Mode GaN FET, GaN FET | 6 mm | 8 mm | 8-DFN | -55 °C | 150 °C | 8 V | 3 V | Single | 1 | 15 ns | 8 ns | Low-Side | Surface Mount | Non-Inverting | 8-WDFN Exposed Pad | — | — | — | — | — | — | — | — | — | — |

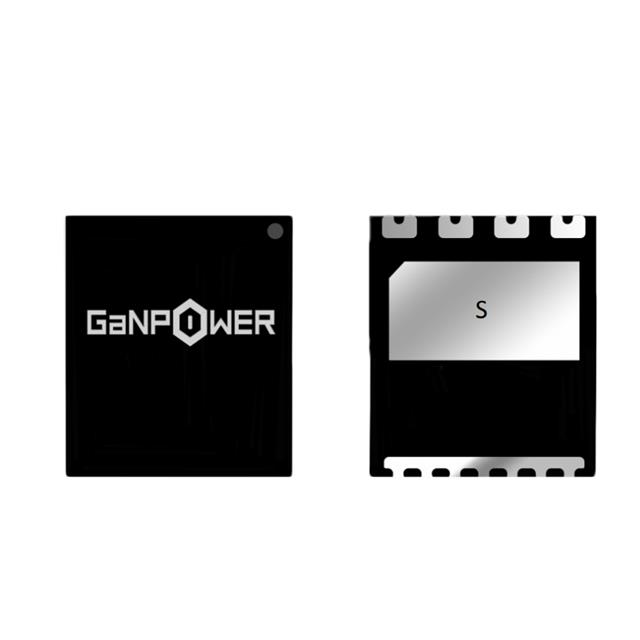

 GaNPower GANFET N-CH 650V 5A DFN 5X6 | Sign in to see pricing | — | 5 mm | 6 mm | DFN, Die | -55 °C | 150 °C | — | — | — | — | — | — | — | Surface Mount | — | 6-PowerTDFN, Die | 45 pF | -12 V | 7.5 V | 1.4 V | 2.6 nC | N-Channel | 6 V | GaNFET (Gallium Nitride) | 5 A | 650 V |

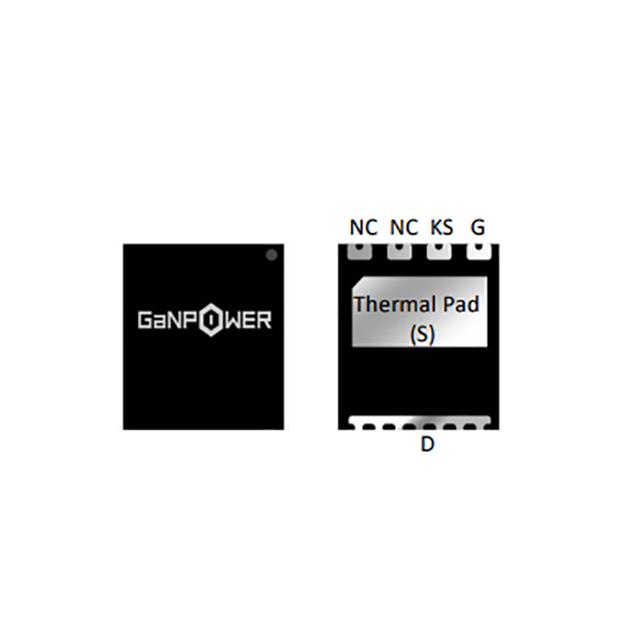

 GaNPower GANFET N-CH 650V 5A DFN6X8 | Sign in to see pricing | — | — | — | — | -55 °C | 150 °C | — | — | — | — | — | — | — | Surface Mount | — | — | 39 pF, 39 pF | -12 V | 7.5 V | 1.7 V | 1.6 nC | N-Channel | 6 V | GaNFET (Gallium Nitride) | 5 A | 650 V |

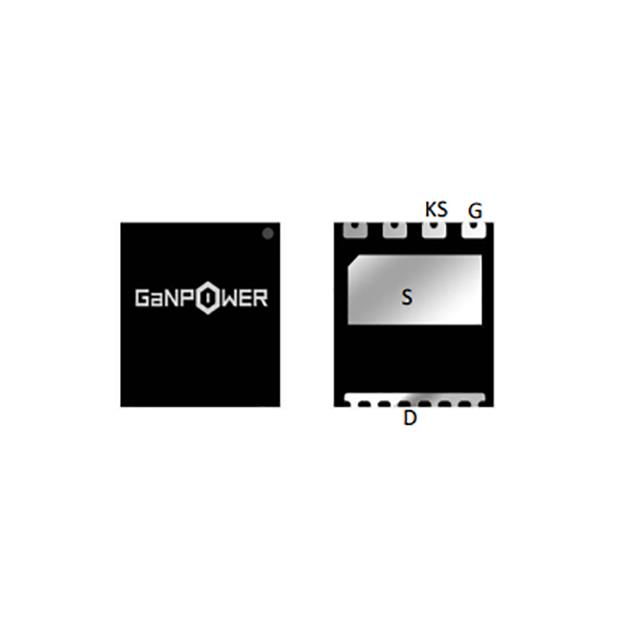

 GaNPower GANFET N-CH 650V 7A DFN5X6 | Sign in to see pricing | — | — | — | — | -55 °C | 150 °C | — | — | — | — | — | — | — | Surface Mount | — | — | 76.1 pF | -12 V | 7.5 V | 1.5 V | 2.1 nC | N-Channel | 6 V | GaNFET (Gallium Nitride) | — | 650 V |

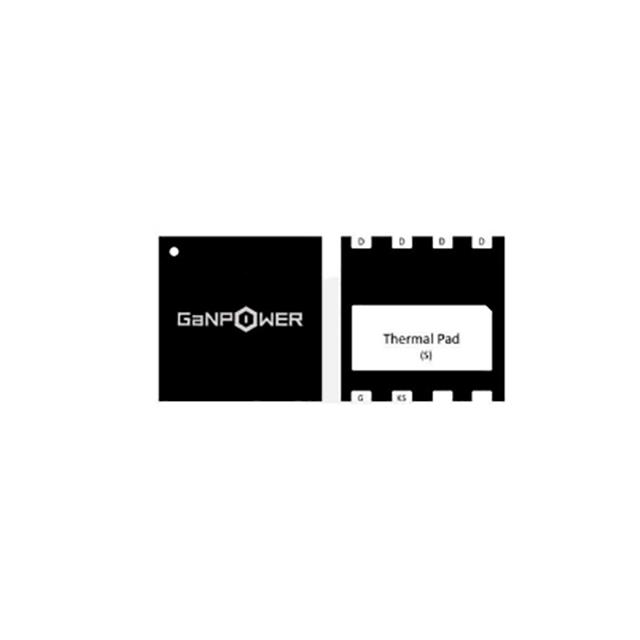

 GaNPower GANFET N-CH 650V 7A DFN8X8 | Sign in to see pricing | — | — | — | — | -55 °C | 150 °C | — | — | — | — | — | — | — | Surface Mount | — | — | 60 pF | -12 V | 7.5 V | 1.5 V | 2.1 nC | N-Channel | 6 V | GaNFET (Gallium Nitride) | — | 650 V |
GaNPower GANFET N-CH 650V 8A DFN5X6 | Sign in to see pricing | — | — | — | Die | -55 °C | 150 °C | — | — | — | — | — | — | — | Surface Mount | — | Die | 63 pF | -12 V | 7.5 V | 1.4 V | 2.1 nC | N-Channel | 6 V | GaNFET (Gallium Nitride) | 8 A | 650 V |

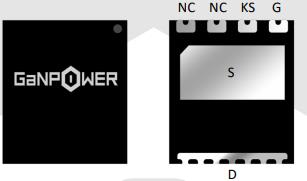

 GaNPower GANFET N-CH 650V 8A DFN6X8 | Sign in to see pricing | — | — | — | — | -55 °C | 150 °C | — | — | — | — | — | — | — | Surface Mount | — | — | 63 pF | -12 V | 7.5 V | 1.7 V | 2.1 nC | N-Channel | 6 V | GaNFET (Gallium Nitride) | 8 A | 650 V |
GaNPower GANFET N-CH 650V 10A DFN 5X6 | Sign in to see pricing | — | — | — | Die | -55 °C | 150 °C | — | — | — | — | — | — | — | Surface Mount | — | Die | 90 pF | -12 V | 7.5 V | 1.4 V | 2.6 nC | N-Channel | 6 V | GaNFET (Gallium Nitride) | 10 A | 650 V |
