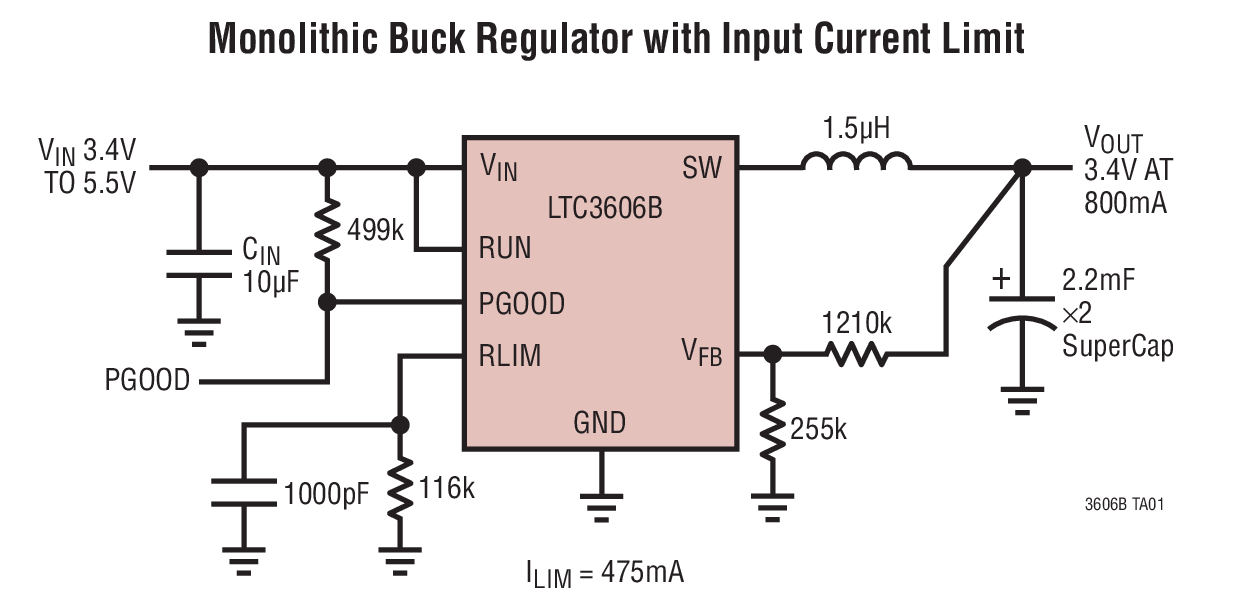

LTC3606B800mA Synchronous Step-Down DC/DC with Average Input Current Limit | Power Management (PMIC) | 3 | Active | The LTC3606B is an 800mA monolithic synchronous buck regulator using a constant frequency current mode architecture.The input supply voltage range is 2.5V to 5.5V, making it ideal for Li-Ion and USB powered applications. 100% duty cycle capability provides low dropout operation, extending the run time in battery-operated systems. Low output voltages are supported with the 0.6V feedback reference voltage. The LTC3606B can supply 800mA output current.The LTC3606B’s programmable average input current limit is ideal for USB applications and for point-of-load power supplies because the LTC3606B’s limited input current will still allow its output to deliver high peak load currents without collapsing the input supply. The operating frequency is internally set at 2.25MHz allowing the use of small surface mount inductors. Internal soft-start reduces in-rush current during start-up. The LTC3606B is available in an 8-Lead 3mm × 3mm DFN package.ApplicationsHigh Peak Load Current ApplicationsUSB Powered DevicesSupercapacitor ChargingRadio Transmitters and Other Handheld Devices |

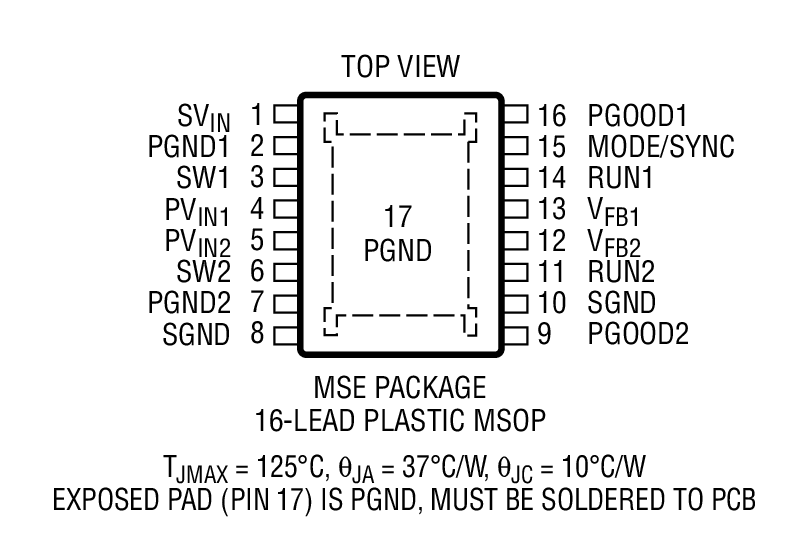

LTC3607Dual 600mA 15V Monolithic Synchronous Step-Down DC/DC Regulator | Power Management (PMIC) | 4 | Active | The LTC3607 is a 15V dual 600mA monolithic synchronous step-down regulator which has only 55μA quiescent current. Intended for a variety of applications, including dual lithium-ion battery products, it operates from a wide 4.5V to 15V input voltage range. It features a constant 2.25MHz switching frequency, enabling the use of tiny, low cost capacitors and inductors 1mm or less in height. Each output voltage is adjustable from 0.6V to VIN. The internal synchronous power switches provide high efficiency without the need for external Schottky diodes.A user selectable mode input is provided to allow the user to trade off ripple noise for light load efficiency; Burst Mode operation provides the highest efficiency at light loads, while pulse-skipping mode provides the lowest ripple noise.To further the maximize battery run time, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle). In shutdown, the device draws <1μA.ApplicationsDual Lithium-Ion Battery SuppliesAutomotive ApplicationsServers |

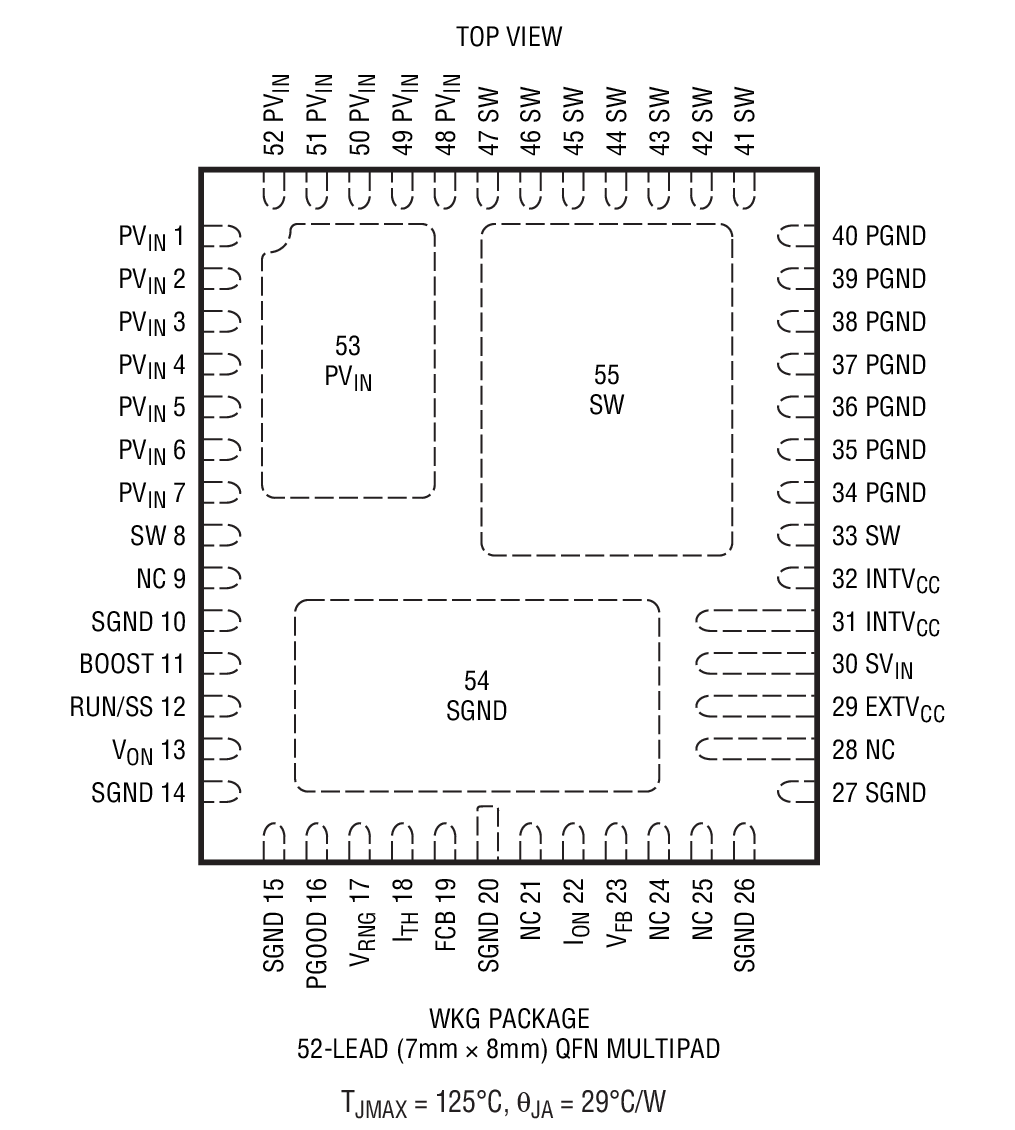

LTC360818V, 8A Monolithic Synchronous Step-Down DC/DC Converter | Power Management (PMIC) | 4 | Active | The LTC3608 is a high efficiency, monolithic synchronous step-down DC/DC converter that can deliver up to 8A output current from a 4V to 18V (20V maximum) input supply. It uses a valley current control architecture to deliver very low duty cycle operation at high frequency with excellent transient response. The operating frequency is selected by an external resistor and is compensated for variations in VINand VOUT.The LTC3608 can be configured for discontinuous or forced continuous operation at light load. Forced continuous operation reduces noise and RF interference while discontinuous mode provides high efficiency by reducing switching losses at light loads.Fault protection is provided by internal foldback current limiting, an output overvoltage comparator and an optional short-circuit shutdown timer. Soft-start capability for supply sequencing is accomplished using an external timing capacitor. The regulator current limit is user programmable. A power good output voltage monitor indicates when the output is in regulation. The LTC3608 is available in a compact 7mm × 8mm QFN package.ApplicationsPoint of Load RegulationDistributed Power Systems |
| PMIC | 3 | Active | |
| PMIC | 5 | Active | |
| Integrated Circuits (ICs) | 2 | Active | |

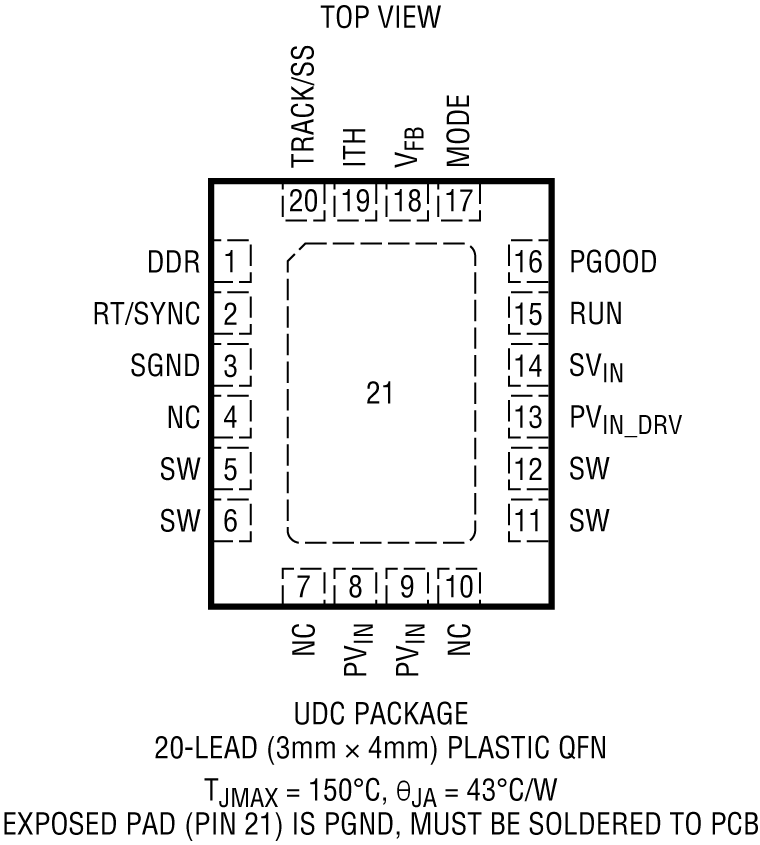

LTC36123A, 4MHz Monolithic Synchronous Step-Down DC/DC Converter | PMIC | 13 | Active | The LTC3612 is a low quiescent current monolithic synchronous buck regulator using a current mode, constant frequency architecture. The no-load DC supply current in sleep mode is only 70μA while maintaining the output voltage (Burst Mode operation) at no load, dropping to zero current in shutdown. The 2.25V to 5.5V input supply voltage range makes the LTC3612 ideally suited for single Li-Ion as well as fixed low voltage input applications. 100% duty cycle capability provides low dropout operation, extending the operating time in battery-powered systems.The operating frequency is externally programmable up to 4MHz, allowing the use of small surface mount inductors. For switching noise-sensitive applications, the LTC3612 can be synchronized to an external clock at up to 4MHz.Forced continuous mode operation in the LTC3612 reduces noise and RF interference. Adjustable compensation allows the transient response to be optimized over a wide range of loads and output capacitors.The internal synchronous switch increases efficiency and eliminates the need for an external catch diode, saving external components and board space. The LTC3612 is offered in a leadless 20-pin 3mm × 4mm QFN or a thermally enhanced 20-pin TSSOP package.APPLICATIONSPoint-of-Load SuppliesDistributed Power SuppliesPortable Computer SystemsDDR Memory TerminationHandheld Devices |

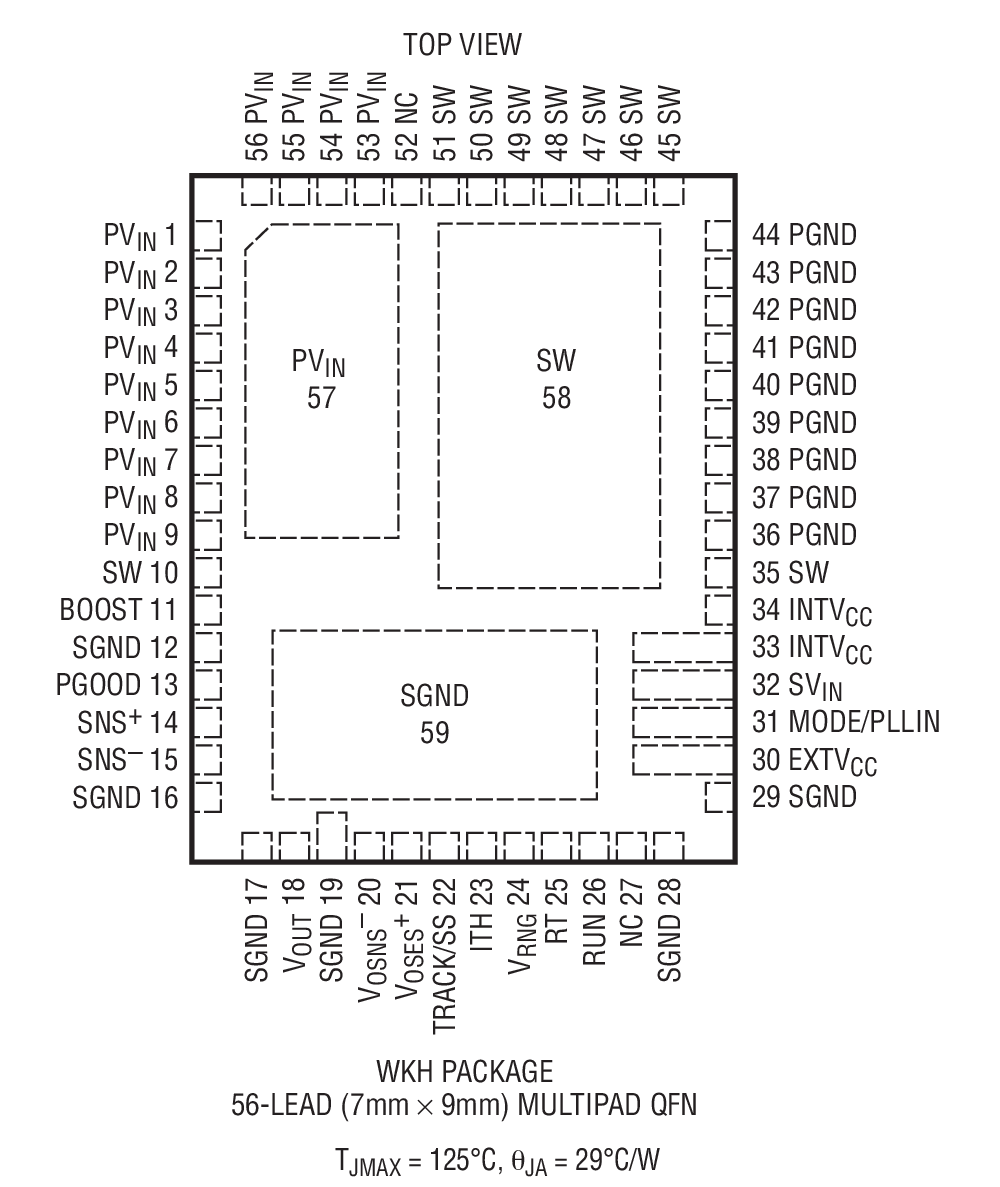

LTC361324V, 15A Monolithic Step Down Regulator with Differential Output Sensing | Power Management (PMIC) | 2 | Active | The LTC3613 is a monolithic synchronous step-down switching regulator capable of regulating outputs from 0.6V to 5.5V with up to 15A output current. The controlled on-time constant frequency valley current mode architecture allows for both fast transient response and constant frequency switching in steady-state operation, independent of VIN, VOUTand load. This also provides excellent current sharing capability.Differential output voltage sensing along with a precision internal reference combine to offer ±0.67% output regulation, even if the output ground reference deviates from local ground by 500mV. The switching frequency can be programmed from 200kHz to 1MHz with an external resistor. The switching frequency is also phase synchronizable to an external clock in applications where switching noise/EMI reduction is crucial.Very low tONand tOFFtimes allow for near 0% and near 100% duty cycles, respectively. Voltage tracking soft start-up is provided for tracking and sequencing applications. Safety features include output overvoltage protection, programmable current limit with foldback, and power good monitoring.ApplicationsDistributed Power SystemPoint-of-Load ConvertersServers |

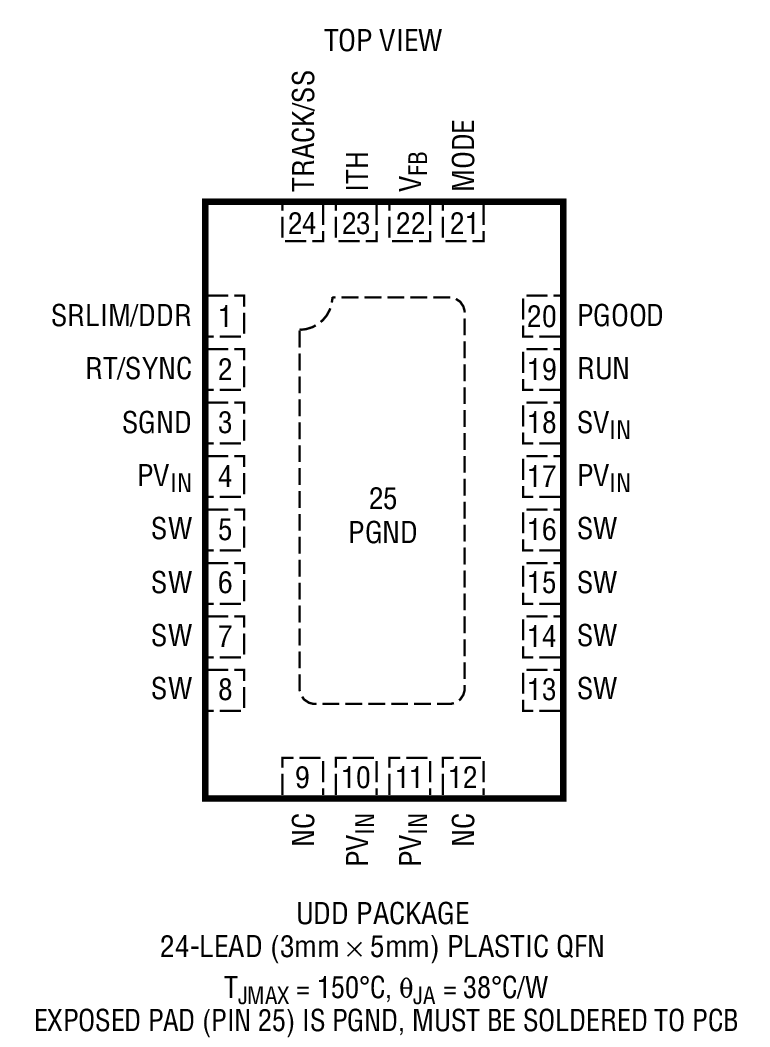

LTC36144A, 4MHz Monolithic Synchronous Step-Down DC/DC Converter | PMIC | 6 | Active | The LTC3614 is a low quiescent current monolithic synchronous buck regulator using a current mode, constant frequency architecture. The no-load DC supply current in sleep mode is only 75μA while maintaining the output voltage (Burst Mode operation) at no load, dropping to zero current in shutdown. The 2.25V to 5.5V input supply voltage range makes the LTC3614 ideally suited for single Li-Ion as well as fixed low voltage input applications. 100% duty cycle capability provides low dropout operation, extending the operating time in battery-powered systems.The operating frequency is externally programmable up to 4MHz, allowing the use of small surface mount inductors. For switching-noise-sensitive applications, the LTC3614 can be synchronized to an external clock at up to 4MHz.Forced continuous mode operation in the LTC3614 reduces noise and RF interference. Adjustable compensation allows the transient response to be optimized over a wide range of loads and output capacitors.The internal synchronous switch increases efficiency and eliminates the need for an external catch diode, saving external components and board space. The LTC3614 is offered in a leadless 24-pin 3mm × 5mm thermally enhanced QFN package.ApplicationsPoint-of-Load SuppliesDistributed Power SuppliesPortable Computer SystemsDDR Memory TerminationHandheld Devices |
LTC3615Dual 4MHz, 3A Synchronous Step-Down DC/DC Converter | Power Management (PMIC) | 23 | Active | The LTC3615/LTC3615-1 are dual 3A synchronous stepdown regulators using a current mode, constant-frequency architecture. The DC supply current is only 130μA (Burst Mode operation at no-load) while maintaining the output voltages, dropping to zero current in shutdown. The 2.25V to 5.5V input supply range makes the parts ideally suited for single Li-Ion applications. 100% duty cycle capability provides low dropout operation, which extends operating time in battery-operated systems.The operating frequency is externally programmable up to 4MHz, allowing the use of small surface mount inductors. 0°, 90°, or 180° (LTC3615) or 140°/180° (LTC3615-1) of phase shift between the two channels can be selected to minimize input current ripple and output voltage ripple in a dual 3A or single 6A output configuration. Programmable slew rate limiting reduces EMI, and external synchronization can be applied up to 4MHz.The internal synchronous switches increase efficiency and eliminate the need for external catch diodes, saving external components and board space.The LTC3615/LTC3615-1 are offered in leadless 24-pin 4mm × 4mm QFN and thermally enhanced 24-pin eTSSOP packages.ApplicationsPoint-of-Load SuppliesDistributed Power SuppliesPortable Computer SystemsDDR Memory TerminationHandheld Devices |
