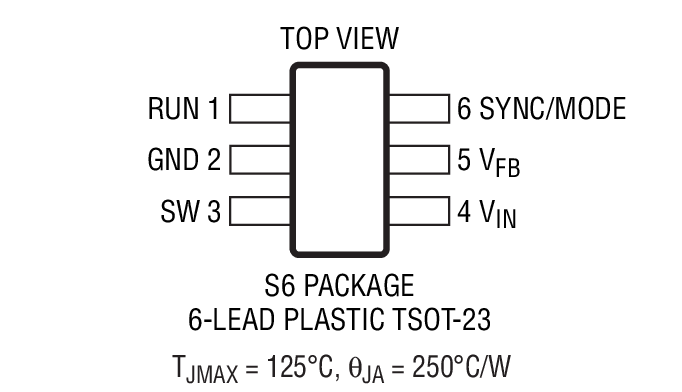

LTC35602.25MHz, 800mA Synchronous Step-Down Regulator in ThinSOT | PMIC | 2 | Active | The LTC3560 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current during operation is only 16µA, dropping to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3560 ideally suited for single Li-Ion/Li-Polymer battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.Switching frequency is internally set at 2.25MHz, allowing the use of small surface mount inductors and capacitors. For noise sensitive applications the LTC3560 can be externally synchronized from 1MHz to 3MHz. Burst Mode operation is inhibited during synchronization or when the SYNC/MODE pin is pulled high, preventing low frequency ripple from interfering with audio circuitry.The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.6V feedback reference voltage. The LTC3560 is available in a low profile (1mm) ThinSOT package.ApplicationsCellular TelephonesWireless and DSL ModemsDigital Still CamerasMedia PlayersPortable Instruments |

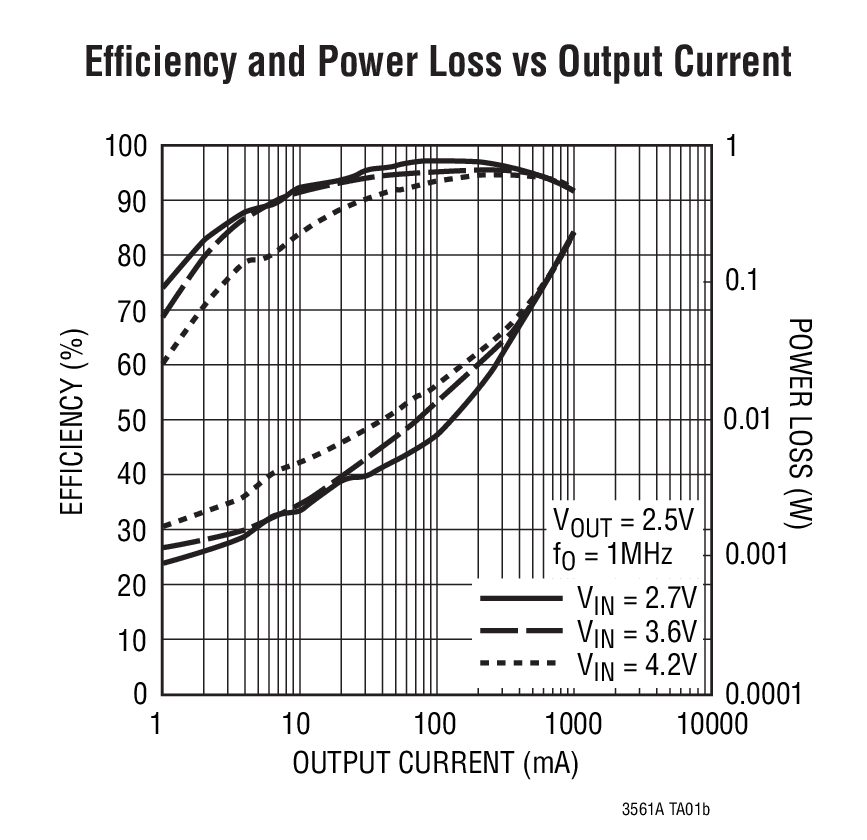

LTC3561A1A, 4MHz, Synchronous Step-Down DC/DC Converter | PMIC | 1 | Active | The LTC3561 is a constant-frequency, synchronous, step-down DC/DC converter. Intended for medium power applications, it operates from a 2.63V to 5.5V input voltage range and has a user configurable operating frequency up to 4MHz, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. The output voltage is adjustable from 0.8V to 5V. Internal synchronous 0.11Ω power switches with 1.4A peak current ratings provide high efficiency. The LTC3561’s current mode architecture and external compensation allow the transient response to be optimized over a wide range of loads and output capacitors.To further maximize battery life, the P-channel MOSFET is turned on continuously in dropout (100% duty cycle). The no-load quiescent current is only 240µA. In shutdown, the device draws <1µA.ApplicationsWireless LAN PowerNotebook ComputersDigital CamerasCellular PhonesBoard Mounted Power Supplies |

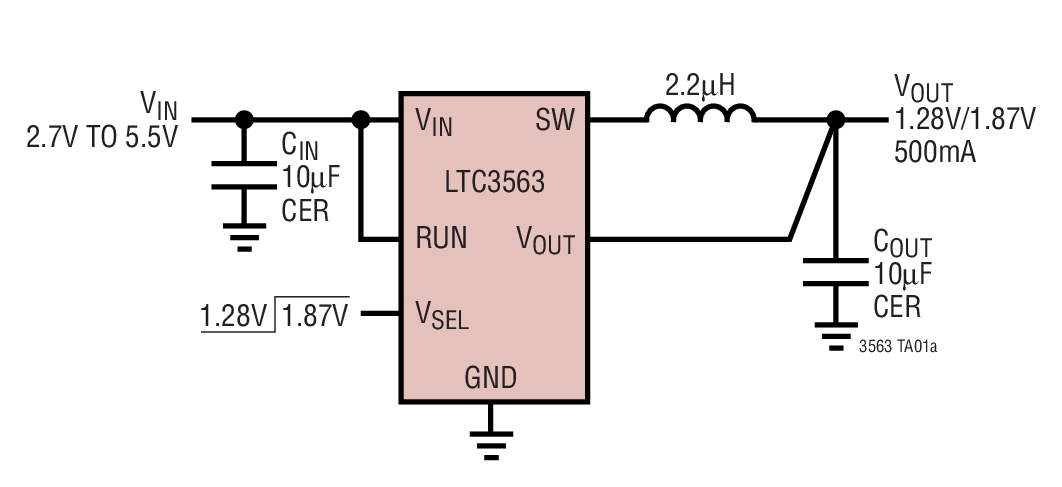

LTC3563500mA, Synchronous Step-Down DC/DC Converter with Selectable Output Voltage | Voltage Regulators - DC DC Switching Regulators | 2 | Active | The LTC3563 is a high efficiency monolithic synchronous buck converter using a constant frequency, current mode architecture. A voltage select input allows the user to program the output voltage to 1.28V or 1.87V. Supply current during operation is only 26µA, dropping to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3563 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. Internal power switches are optimized to provide high efficiency and eliminate the need for an external Schottky diode.The switching frequency is internally set at 2.25MHz, allowing the use of small surface mount inductors and capacitors. The LTC3563 is specifically designed to work well with ceramic output capacitors, achieving very low output voltage ripple and a small PCB footprint.The LTC3563 is configured for the power saving Burst Mode Operation.ApplicationsCellular TelephonesWireless and DSL ModemsDigital CamerasMP3 PlayersPDAs and Other Handheld Devices |

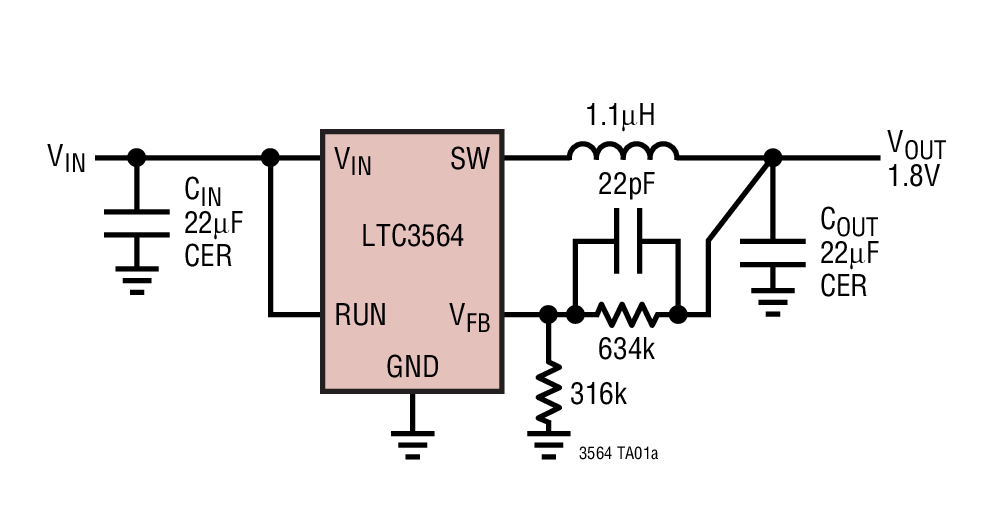

LTC35642.25MHz, 1.25A Synchronous Step-Down Regulator | Power Management (PMIC) | 6 | Active | The LTC3564 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current during operation is only 20μA, dropping to ≤1μA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3564 ideally suited for single Li-Ion battery-powered or 3.3V to 5V input voltage applications. 100% duty cycle provides low drop- out operation, extending battery life in portable systems. Automatic Burst Mode®operation increases efficiency at light loads, further extending battery runtime.Switching frequency is internally set at 2.25MHz, allowing the use of small surface mount inductors and capacitors.The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.6V feedback reference voltage. The LTC3564 is available in low profile (1mm) ThinSOT and 6-Lead (2mm × 3mm) DFN packages.ApplicationsCellular TelephonesWireless and DSL ModemsDigital Still CamerasMedia PlayersPortable InstrumentsPoint of Load Regulation |

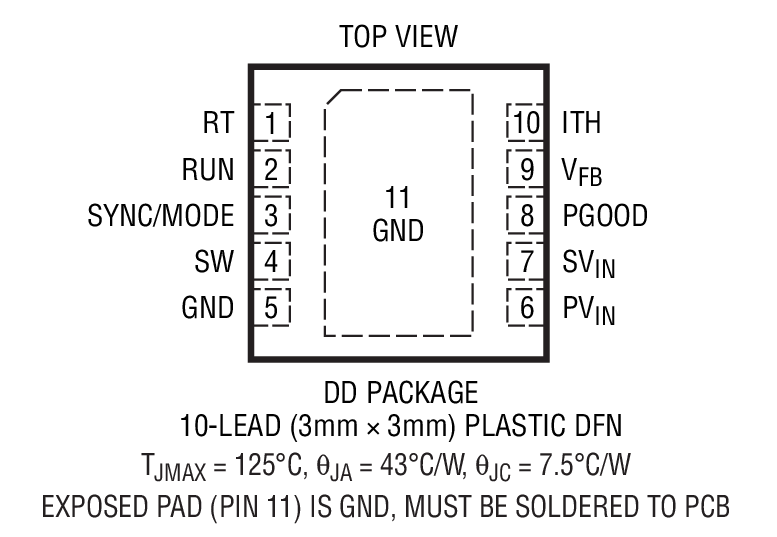

LTC35651.25A, 4MHz, Synchronous Step-Down DC/DC Converter | PMIC | 5 | Active | The LTC3565 is a constant frequency, synchronous step-down DC/DC converter. Intended for medium power applications, it operates from a 2.5V to 5.5V input voltage range and has a user-configurable operating frequency up to 4MHz, allowing the use of tiny, low cost capacitors and inductors 1mm or less in height. The output voltage is adjustable from 0.6V to 5.5V. Internal synchronous power switches provide high efficiency. The LTC3565’s current mode architecture and external compensation allow the transient response to be optimized over a wide range of loads and output capacitors.The LTC3565 can be configured for automatic power saving Burst Mode operation (IQ= 40μA) to reduce gate charge losses when the load current drops below the level required for continuous operation. For reduced noise and RF interference, the SYNC/MODE pin can be configured to skip pulses or provide forced continuous operation.To further maximize battery life, the P-channel MOSFET is turned on continuously in dropout (100% duty cycle). In shutdown, the device draws <1μA.ApplicationsNotebook ComputersDigital CamerasCellular PhonesHandheld InstrumentsBoard Mounted Power Supplies |

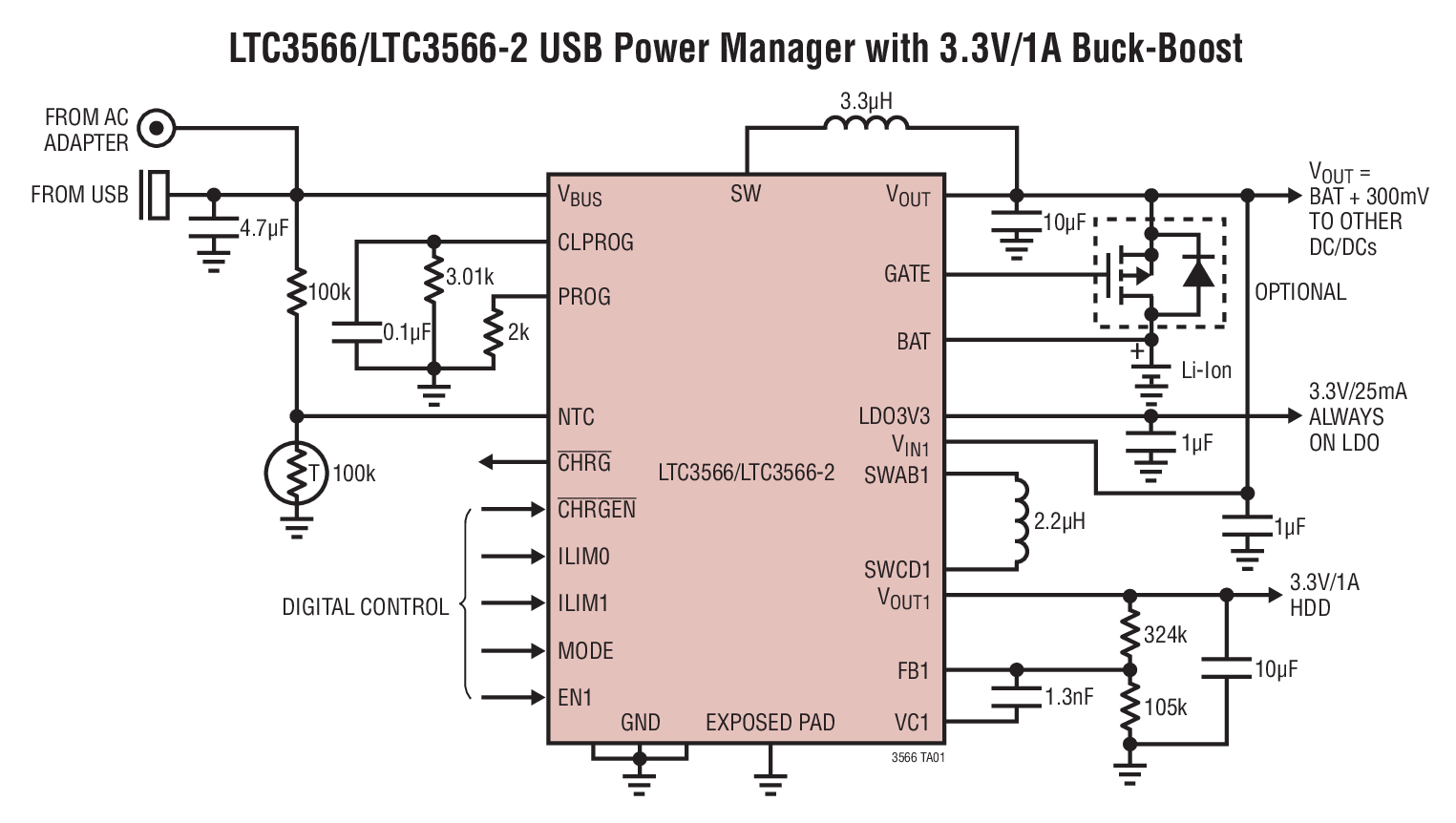

LTC3566High Efficiency USB Power Manager Plus 1A Buck-Boost Converter | Power Management (PMIC) | 1 | Active | The LTC3566 family are highly integrated power management and battery charger ICs for Li-Ion/Polymer battery applications. They include a high efficiency current limited switching PowerPath manager with automatic load prioritization, a battery charger, an ideal diode, and a high efficiency synchronous buck-boost switching regulator. Designed specifically for USB applications, the LTC3566 family’s switching power manager automatically limits input current to a maximum of either 100mA or 500mA for USB applications or 1A for adapter-powered applications.The LTC3566 family’s switching input stage transmits nearly all of the 2.5W available from the USB port to the system load with minimal power wasted as heat. This feature allows the LTC3566 family to provide more power to the application and eases the constraint of thermal budgeting in small spaces. The LTC3566-2 automatically reduces charge current to maintain a regulated 3.6V VOUTduring low battery conditions; the LTC3566 does not. The synchronous buck-boost DC/DC can provide up to 1A.The LTC3566 family is available in a low profile 24-lead 4mm × 4mm QFN surface mount package.ApplicationsHDD Based MP3 Players, PDA, GPS, PMP ProductsOther USB Based Handheld Products |

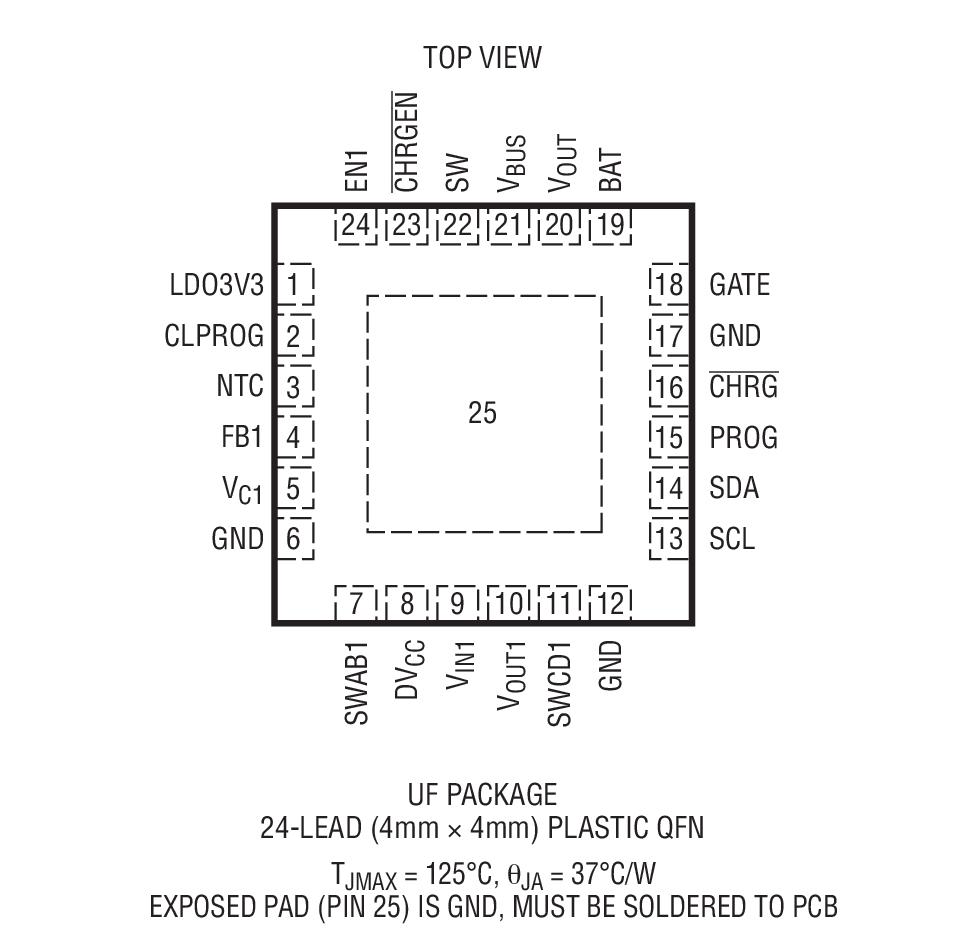

LTC3567High Efficiency USB Power Manager Plus 1A Buck-Boost Converter with I2C Control | Integrated Circuits (ICs) | 2 | Active | The LTC3567 is a highly integrated power management and battery charger IC for Li-Ion/Polymer battery applications. It includes a high efficiency current limited switching PowerPath manager with automatic load prioritization, a battery charger, an ideal diode, and a high efficiency synchronous buck-boost switching regulator. Designed specifically for USB applications, the LTC3567’s switching power manager automatically limits input current to a maximum of either 100mA or 500mA for USB or 1A for adapter-powered applications.The LTC3567’s switching input stage transmits nearly all of the 2.5W available from the USB port to the system load with minimal power wasted as heat. This feature allows the LTC3567 to provide more power to the application and eases thermal budgeting constraints in small spaces.The synchronous buck-boost DC/DC can provide up to 1A output current.The LTC3567 is available in a low profile 24-pin (4mm × 4mm × 0.75mm) QFN surface mount package.ApplicationsHDD Based MP3 Players, PDA, GPS, PMP ProductsOther USB Based Handheld Products |

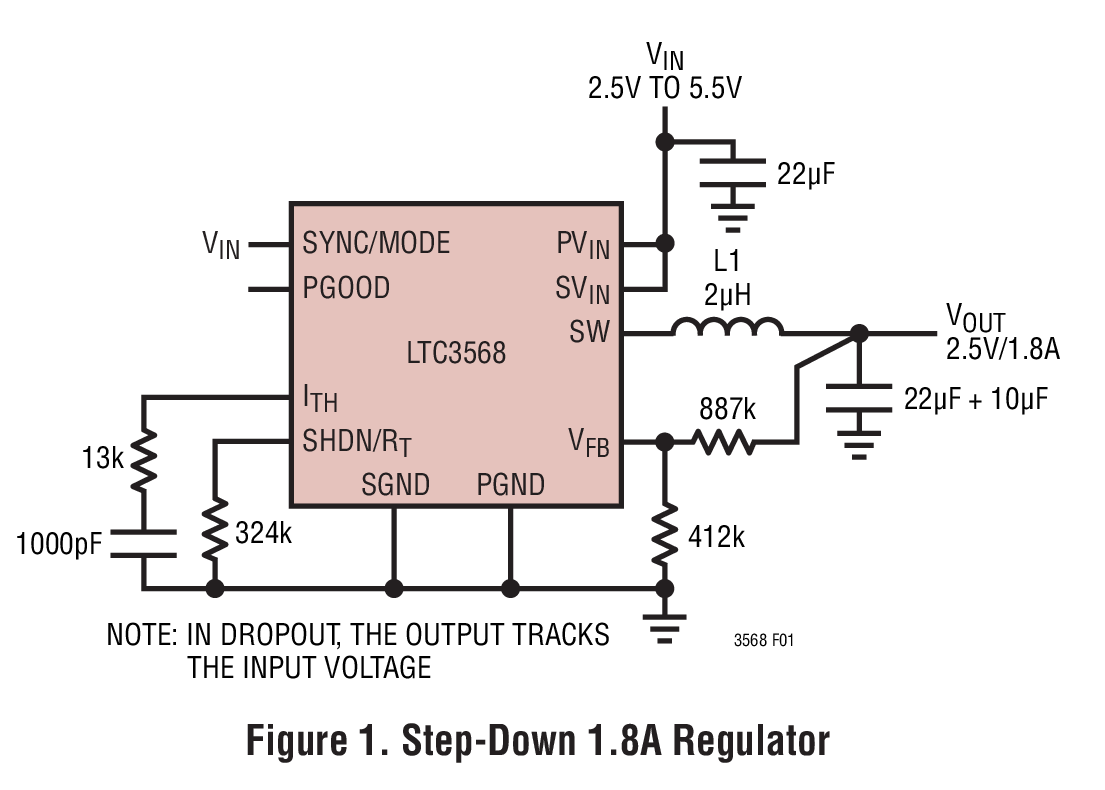

LTC35681.8A, 4MHz, Synchronous Step-Down DC/DC Converter | Power Management (PMIC) | 1 | Active | The LTC3568 is a constant frequency, synchronous step- down DC/DC converter. Intended for medium power applications, it operates from a 2.5V to 5.5V input voltage range and has a user configurable operating frequency up to 4MHz, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. The output voltage is adjustable from 0.8V to 5V. Internal sychronous 0.11Ω power switches with 2.4A peak current ratings provide high efficiency. The LTC3568’s current mode architecture and external compensation allow the transient response to be optimized over a wide range of loads and output capacitors.The LTC3568 can be configured for automatic power saving Burst Mode operation to reduce gate charge losses when the load current drops below the level required for continuous operation. For reduced noise and RF interference, the SYNC/MODE pin can be configured to skip pulses or provide forced continuous operation.To further maximize battery life, the P-channel MOSFET is turned on continuously in dropout (100% duty cycle) with a low quiescent current of 60μA. In shutdown, the device draws <1μA.ApplicationsNotebook ComputersDigital CamerasCellular PhonesHandheld InstrumentsBoard Mounted Power Supplies |

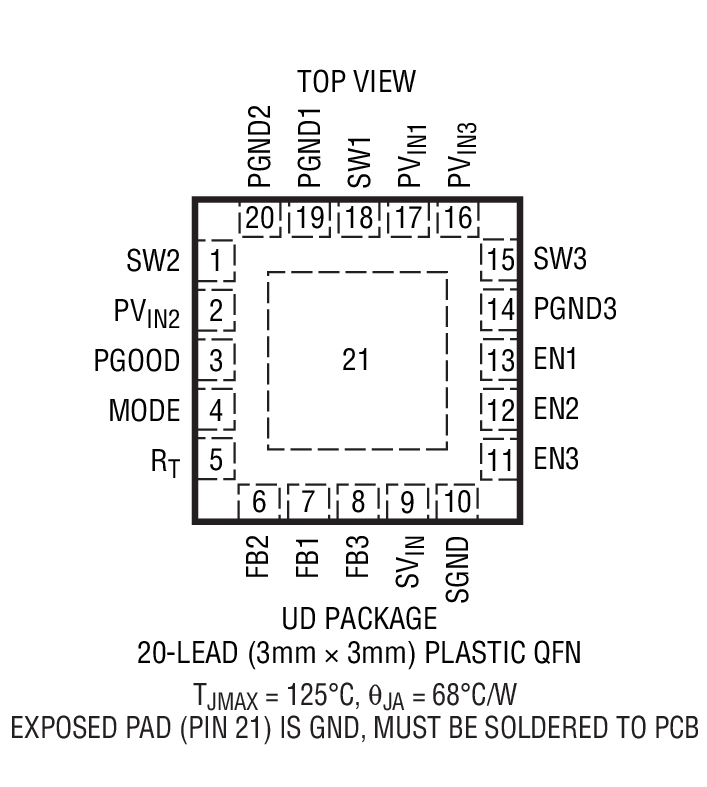

LTC3569Triple Buck Regulator with 1.2A and Two 600mA Outputs and Individual Programmable References | Power Management (PMIC) | 8 | Active | The LTC3569 contains three monolithic, synchronous step-down DC/DC converters. Intended for medium power applications, it operates over a 2.5V to 5.5V input voltage range. The operating frequency is adjustable from 1MHz to 3MHz, allowing the use of tiny, low cost capacitors and inductors. The three output voltages are independently programmable by toggling the EN pins up to 15 times, lowering the 800mV FB references by 25mV per cycle. The first buck regulator sources load currents up to 1200mA. The other two buck regulators each provide 600mA.The two 600mA buck regulators can also be configured to operate as slave power stages, running in parallel with another internal buck regulator to supply higher load currents. When operating as parallel, slave output stages, discrete external components are shared and available output currents sum together.ApplicationsPortable Applications with Multiple Supply RailsGeneral Purpose Step-Down DC/DCDynamic Voltage Scaling Applications |

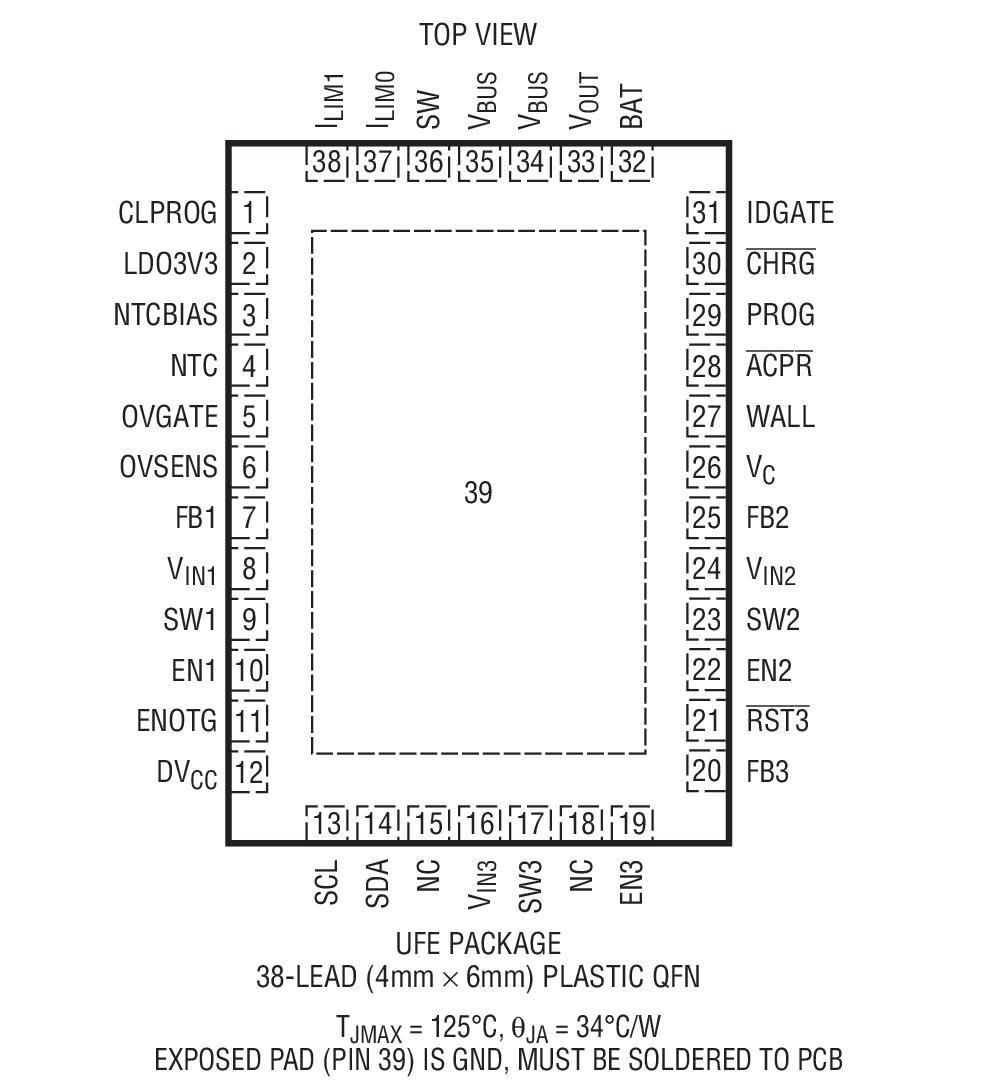

LTC3576LTC3576-1Switching Power Manager with USB On-the-Go + Triple Step-Down DC/DCs | Power Management (PMIC) | 4 | Active | The LTC3576/LTC3576-1 are highly integrated power management and battery charger ICs for Li-Ion/Polymer battery applications. They each include a high efficiency, bidirectional switching PowerPath™manager with automatic load prioritization, a battery charger, an ideal diode, a controller for an external high voltage switching regulator and three general purpose step-down switching regulators with I2C adjustable output voltages. The internal switching regulators automatically limit input current for USB compatibility and can also generate 5V at 500mA for USB on-the-go applications when powered from the battery. Both the USB and external switching regulator power paths feature Bat-Track optimized charging to provide maximum power to the application from supplies as high as 38V. An overvoltage circuit protects the LTC3576/LTC3576-1 from damage due to high voltage on the VBUSor WALL pins with just two external components. The LTC3576/LTC3576-1 are available in a low profile 38-pin (4mm × 6mm × 0.75mm) QFN package.ApplicationsHDD-Based Media PlayersGPS, PDAs, Digital Cameras, Smart PhonesAutomotive Compatible Portable Electronics |
