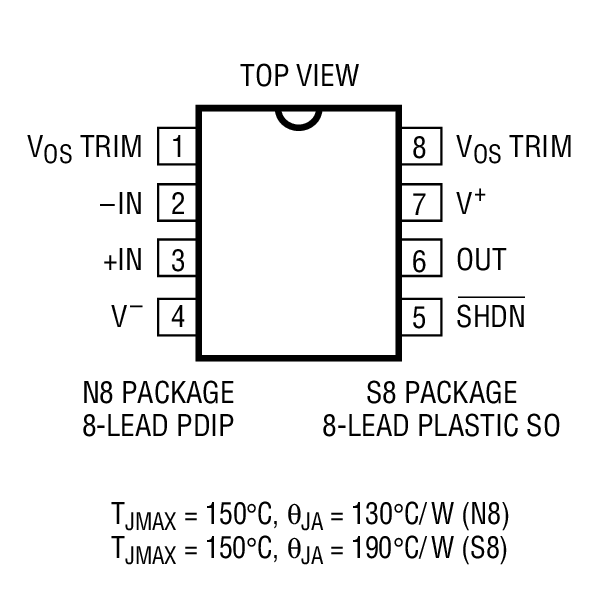

LT1218LPrecision Rail-to-Rail Input and Output Op Amps | Integrated Circuits (ICs) | 4 | Active | The LT1218/LT1219 are bipolar op amps which combine rail-to-rail input and output operation with precision specifications. Unlike other rail-to-rail amplifiers, the LT1218/LT1219’s input offset voltage is a low 90µV across the entire rail-to-rail input range, not just a portion of it. Using a patented technique, both input stages of the LT1218/LT1219 are trimmed: one at the negative supply and the other at the positive supply. The resulting common mode rejection of 97dB minimum is much better than other rail-to-rail input op amps. A minimum open-loop gain of 500V/mV into a 10k load virtually eliminates all gain error.The LT1218 has conventional compensation which assures stability for capacitive loads of 1000pF or less. The LT1219 has compensation that requires the use of a 0.1µF output capacitor, which improves the amplifier’s supply rejection and reduces output impedance at high frequencies. The output capacitor’s filtering action also reduces high frequency noise, which is beneficial when driving A/D converters.High and low voltage versions of the devices are offered. Operation is specified for 3V, 5V and ±5V supplies for the LT1218L/LT1219L and 3V, 5V and ±15V for the LT1218/LT1219.ApplicationsDriving A/D ConvertersTest Equipment AmplifiersMUX Amplifiers |

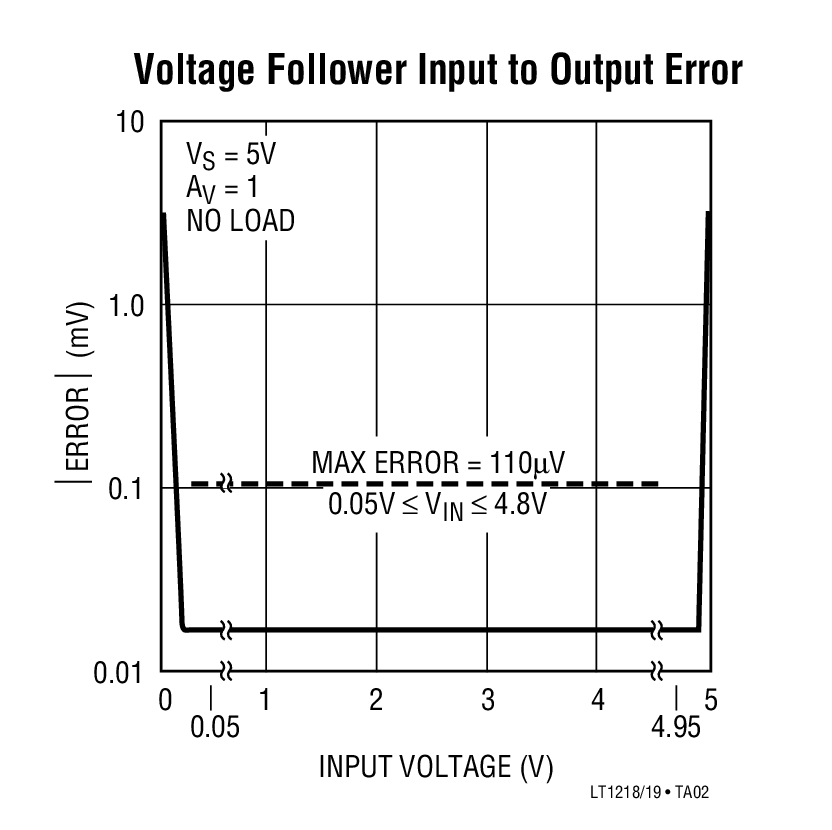

LT1219LPrecision Rail-to-Rail Input and Output Op Amps | Integrated Circuits (ICs) | 5 | Active | The LT1218/LT1219 are bipolar op amps which combine rail-to-rail input and output operation with precision specifications. Unlike other rail-to-rail amplifiers, the LT1218/LT1219’s input offset voltage is a low 90µV across the entire rail-to-rail input range, not just a portion of it. Using a patented technique, both input stages of the LT1218/LT1219 are trimmed: one at the negative supply and the other at the positive supply. The resulting common mode rejection of 97dB minimum is much better than other rail-to-rail input op amps. A minimum open-loop gain of 500V/mV into a 10k load virtually eliminates all gain error.The LT1218 has conventional compensation which assures stability for capacitive loads of 1000pF or less. The LT1219 has compensation that requires the use of a 0.1µF output capacitor, which improves the amplifier’s supply rejection and reduces output impedance at high frequencies. The output capacitor’s filtering action also reduces high frequency noise, which is beneficial when driving A/D converters.High and low voltage versions of the devices are offered. Operation is specified for 3V, 5V and ±5V supplies for the LT1218L/LT1219L and 3V, 5V and ±15V for the LT1218/LT1219.ApplicationsDriving A/D ConvertersTest Equipment AmplifiersMUX Amplifiers |

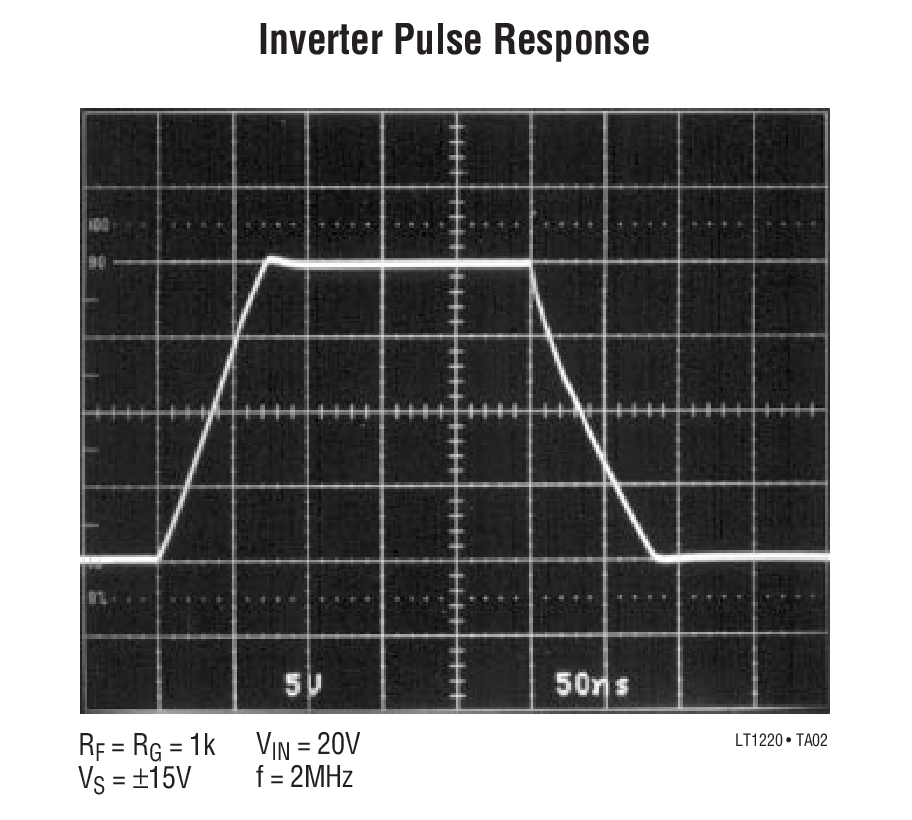

LT122045MHz, 250V/µs Operational Amplifier | Linear | 2 | Active | The LT1220 is a high speed operational amplifier with superior DC performance. The LT1220 features reduced input offset voltage, lower input bias currents and higher DC gain than devices with comparable bandwidth and slew rate. The circuit is a single gain stage that includes proprietary DC gain enhancement circuitry to obtain precision with high speed. The high gain and fast settling time make the circuit an ideal choice for data acquisition systems. The circuit is also capable of driving large capacitive loads which makes it useful in buffer or cable driver applications.The LT1220 is a member of a family of fast, high performance amplifiers that employ advanced complementary bipolar processing. For applications with gains of 4 or greater the LT1221 can be used, and for gains of 10 or greater the LT1222 can be used for increased bandwidth.ApplicationsWideband AmplifiersBuffersActive FiltersVideo and RF AmplificationCable Drivers8-, 10-, 12-Bit Data Acquisition Systems |

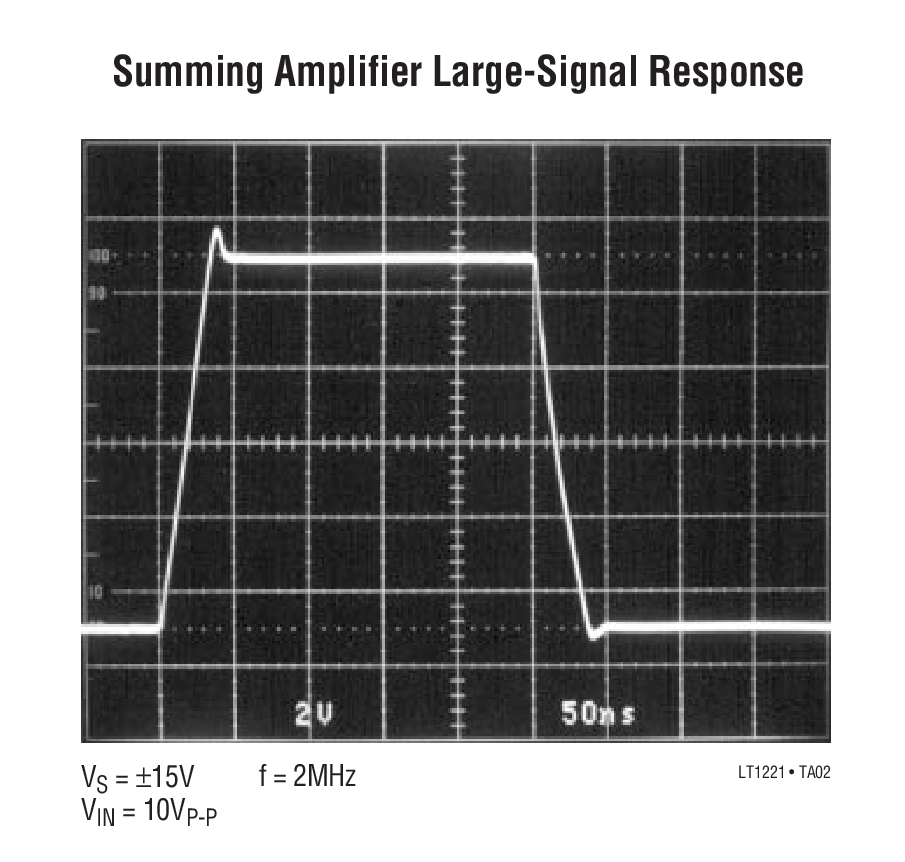

LT1221150MHz, 250V/µs, AV≥ 4 Operational Amplifier | Instrumentation, Op Amps, Buffer Amps | 1 | Active | The LT1221 is a very high speed operational amplifier with superior DC performance. The LT1221 is stable in a noise gain of 4 or greater. It features reduced input offset voltage, lower input bias currents and higher DC gain than devices with comparable bandwidth and slew rate. The circuit is a single gain stage that includes proprietary DC gain enhancement circuitry to obtain precision with high speed. The high gain and fast settling time make the circuit an ideal choice for data acquisition systems. The circuit is also capable of driving capacitive loads which makes it useful in buffer or cable driver applications.The LT1221 is a member of a family of fast, high performance amplifiers that employ advanced complementary bipolar processing. For unity-gain stable applications the LT1220 can be used, and for gains of 10 or greater the LT1222 can be used.ApplicationsWideband AmplifiersBuffersActive FiltersVideo and RF AmplificationCable Drivers8-, 10-, 12-Bit Data Acquisition Systems |

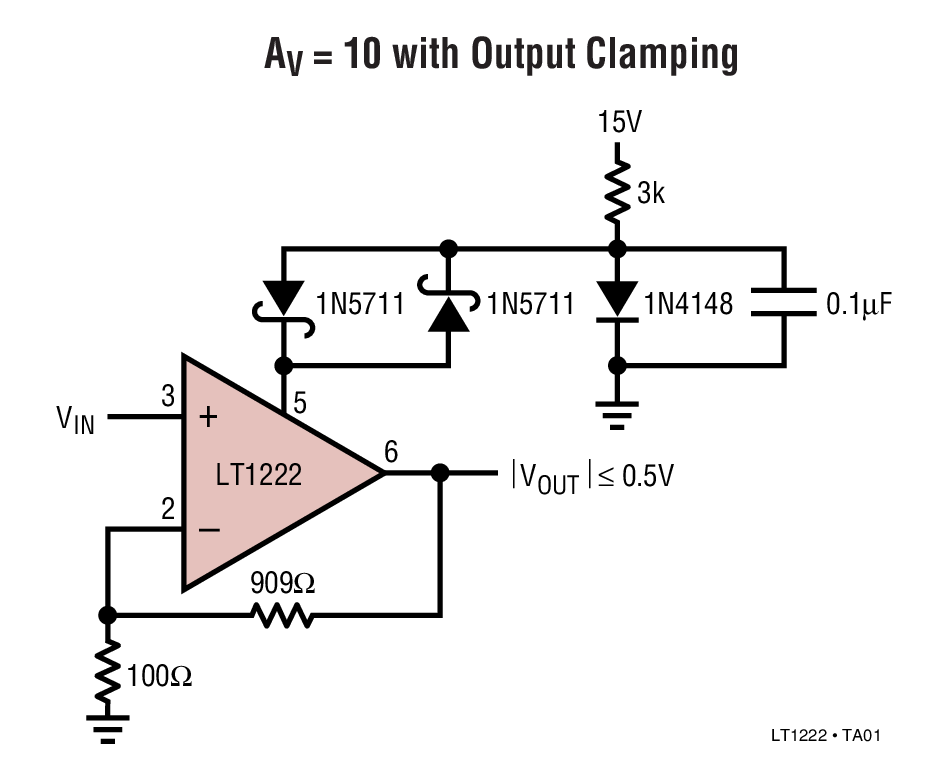

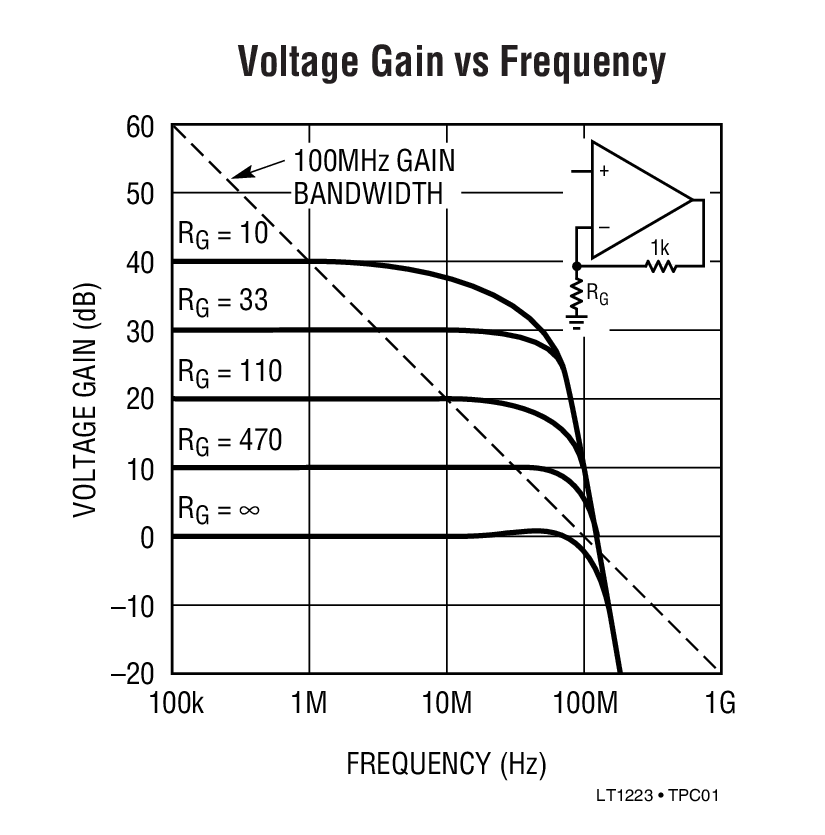

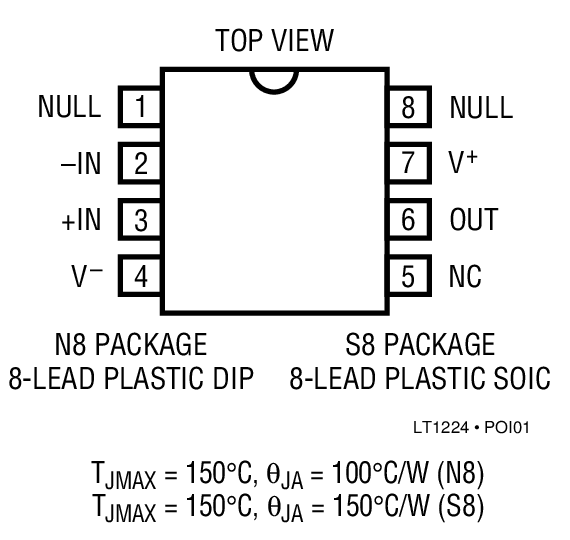

LT1222500MHz, 3nV/√Hz, AV≥ 10 Operational Amplifier | Instrumentation, OP Amps, Buffer Amps | 6 | Active | The LT1222 is a low noise, very high speed operational amplifier with superior DC performance. The LT1222 is stable in a noise gain of 10 or greater without compensation, or the part can be externally compensated for lower closed-loop gain at the expense of lower bandwidth and slew rate. It features reduced input offset voltage, lower input bias currents, lower noise and higher DC gain than devices with comparable bandwidth and slew rate. The circuit is a single gain stage that includes proprietary DC gain enhancement circuitry to obtain precision with high speed. The high gain and fast settling time make the circuit an ideal choice for data acquisition systems. The circuit is also capable of driving capacitive loads which makes it useful in buffer or cable driver applications. The compensation node can also be used to clamp the output swing.The LT1222 is a member of a family of fast, high performance amplifiers that employ our advanced complementary bipolar processing. For unity-gain stable applications the LT1220 can be used, and for gains of 4 or greater the LT1221 can be used.ApplicationsWideband AmplifiersBuffersActive FiltersVideo and RF AmplificationCable Drivers8-, 10-, 12-Bit Data Acquisition Systems |
| Instrumentation, Op Amps, Buffer Amps | 4 | Active | |
LT1224Very High Speed Operational Amplifier | Instrumentation, Op Amps, Buffer Amps | 1 | Active | The LT1224 is a very high speed operational amplifier with excellent DC performance. The LT1224 features reduced input offset voltage and higher DC gain than devices with comparable bandwidth and slew rate. The circuit is a single gain stage with outstanding settling characteristics. The fast settling time makes the circuit an ideal choice for data acquisition systems. The output is capable of driving a 500Ω load to ±12V with ±15V supplies and a 150Ω load to ±3V on ±5V supplies. The circuit is also capable of driving large capacitive loads which makes it useful in buffer or cable driver applications.The LT1224 is a member of a family of fast, high performance amplifiers that employ our advanced bipolar complementary processing.ApplicationsWideband AmplifiersBuffersActive FiltersVideo and RF AmplificationCable DriversData Acquisition Systems |
| Amplifiers | 2 | Obsolete | |

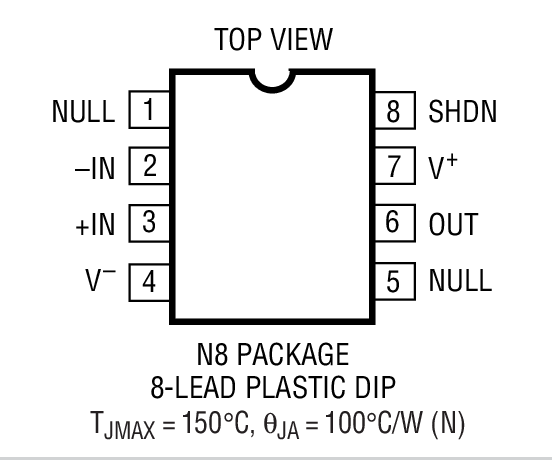

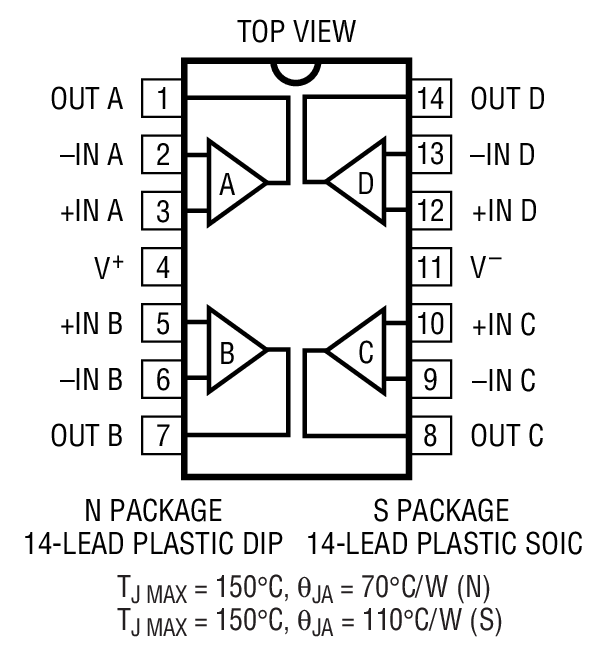

LT1227140MHz Video Current Feedback Amplifier | Video Amps and Modules | 3 | Active | The LT1227 is a current feedback amplifier with wide bandwidth and excellent video characteristics. The low differential gain and phase, wide bandwidth, and 30mA output drive current make the LT1227 well suited to drive cables in video systems.A shutdown feature switches the device into a high impedance, low current mode, allowing multiple devices to be connected in parallel and selected. Input to output isolation in shutdown is 70dB at 10MHz for input amplitudes up to 10VP-P.The shutdown pin interfaces to open collector or open drain logic and takes only 4mµ to enable or disable.The LT1227 comes in the industry standard pinout and can upgrade the performance of many older products. For a dual or quad version, see the LT1229/1230 data sheet.The LT1227 is manufactured on Linear Technology’s proprietary complementary bipolar process.ApplicationsVideo AmplifiersCable DriversRGB AmplifiersTest Equipment Amplifiers50 Ohms Buffers for Driving Mixers |
LT1229Dual 100MHz Current Feedback Amplifiers | Linear | 1 | Active | The LT1229/LT1230 dual and quad 100MHz current feedback amplifiers are designed for maximum performance in small packages. Using industry standard pinouts, the dual is available in the 8-pin miniDIP and the 8-pin SO package while the quad is in the 14-pin DIP and 14-pin SO. The amplifiers are designed to operate on almost any available supply voltage from 4V (±2V) to 30V (±15V).These current feedback amplifiers have very high input impedance and make excellent buffer amplifiers. They maintain their wide bandwidth for almost all closed-loop voltage gains. The amplifiers drive over 30mA of output current and are optimized to drive low impedance loads, such as cables, with excellent linearity at high frequencies.The LT1229/LT1230 are manufactured on a proprietary complementary bipolar process. For a single amplifier like these see the LT1227 and for better DC accuracy see the LT1223.ApplicationsVideo Instrumentation AmplifiersCable DriversRGB AmplifiersTest Equipment Amplifiers |
