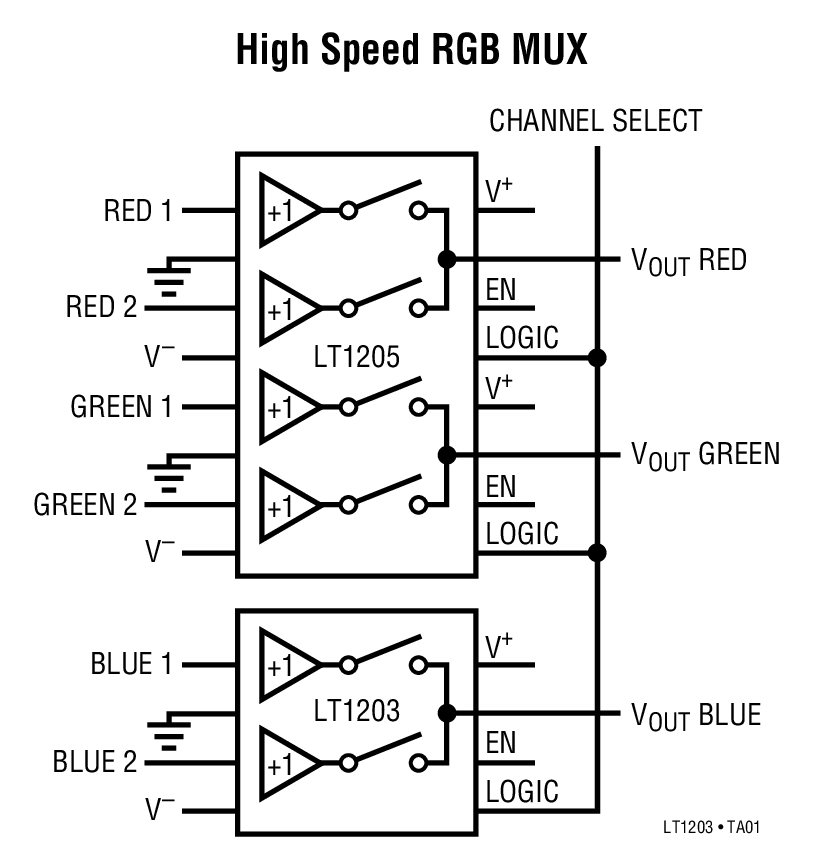

The LT1203 is a wideband 2-input video multiplexer designed for pixel switching and broadcast quality routing. The LT1205 is a dual version that is configured as a 4-input, 2-output multiplexer.These multiplexers act as SPDT video switches with 10ns transition times at toggle rates up to 30MHz. The −3dB bandwidth is 150MHz and 0.1dB gain flatness is 30MHz. Many parts can be tied together at their outputs by using the enable feature which reduces the power dissipation and raises the output impedance to 10MΩ. Output capacitance when disabled is only 3pF and the LT1203 peaks less than 3dB into a 50pF load. Channel crosstalk and disable isolation are greater than 90dB up to 10MHz. An on-chip buffer interfaces to fast TTL or CMOS logic. Switching transients are only 50mV with a 25ns duration. The LT1203 and LT1205 outputs are protected against shorts to ground.The LT1203/LT1205 are manufactured using a proprietary complementary bipolar process. The LT1203 is available in both the 8-lead PDIP and SO package while the LT1205 is available in the 16-lead narrow body SO package.ApplicationsBroadcast Quality Video MultiplexingPicture-in-Picture SwitchingComputer GraphicsTitle GenerationVideo Crosspoint MatricesVideo Routers

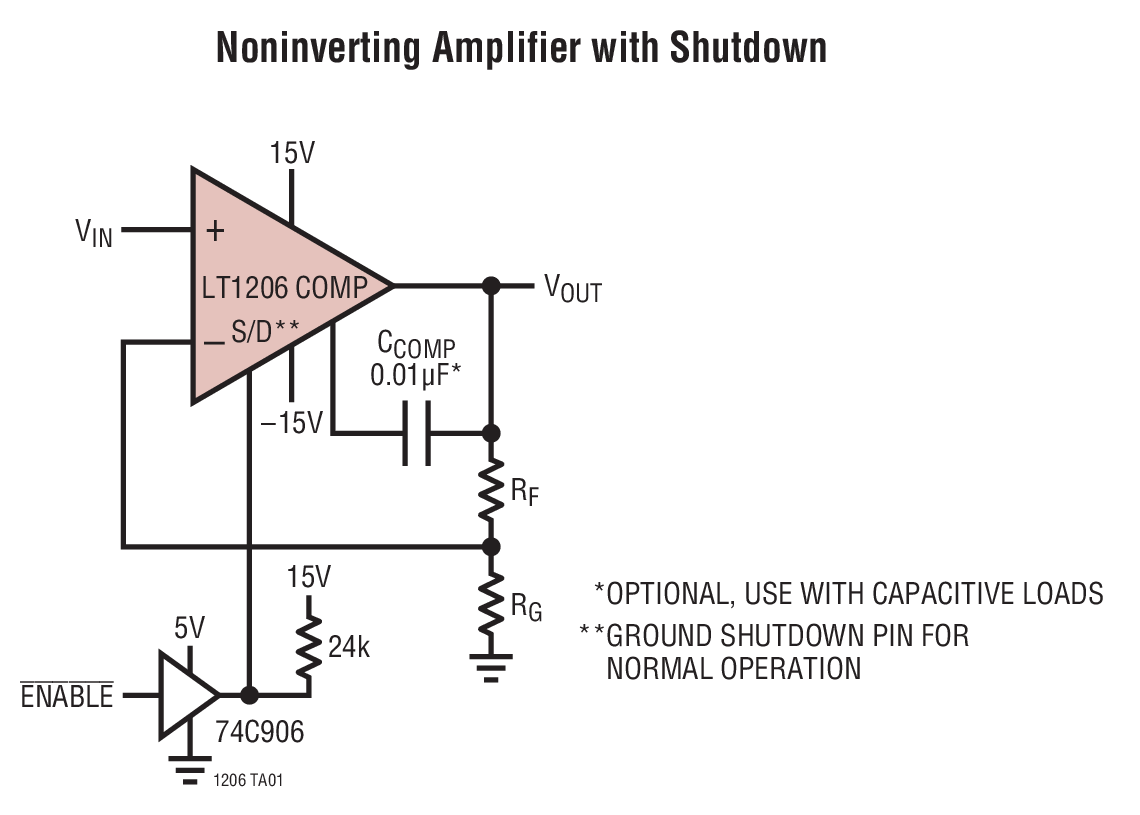

The LT1206 is a current feedback amplifier with high output current drive capability and excellent video characteristics. The LT1206 is stable with large capacitive loads, and can easily supply the large currents required by the capacitive loading. A shutdown feature switches the device into a high impedance, low current mode, reducing dissipation when the device is not in use. For lower bandwidth applications, the supply current can be reduced with a single external resistor. The low differential gain and phase, wide bandwidth, and the 250mA minimum output current drive make the LT1206 well suited to drive multiple cables in video systems.The LT1206 is manufactured on a proprietary complementary bipolar process.ApplicationsVideo AmplifiersCable DriversRGB AmplifiersTest Equipment AmplifiersBuffers

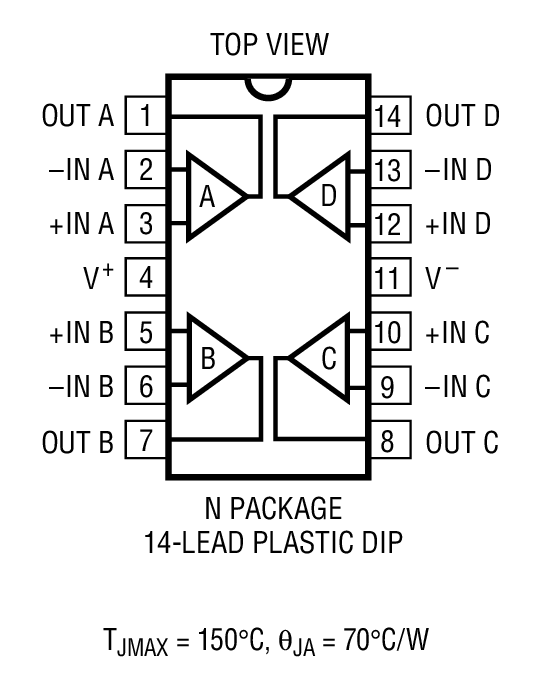

The LT1208/LT1209 are dual and quad very high speed operational amplifiers with excellent DC performance. The LT1208/LT1209 feature reduced input offset voltage and higher DC gain than devices with comparable bandwidth and slew rate. Each amplifier is a single gain stage with outstanding settling characteristics. The fast settling time makes the circuit an ideal choice for data acquisition systems. Each output is capable of driving a 500Ω load to ±12V with ±15V supplies and a 150Ω load to ±3V on ±5V supplies. The amplifiers are also capable of driving large capacitive loads which make them useful in buffer or cable driver applications.The LT1208/LT1209 are members of a family of fast, high performance amplifiers that employ advanced bipolar complementary processing.ApplicationsWideband AmplifiersBuffersActive FiltersVideo and RF AmplificationCable DriversData Acquisition Systems

The LT1210X is a current feedback amplifier with high output current and excellent large-signal characteristics. The combination of high slew rate, 1.0A output drive and ±15V operation enables the device to deliver significant power at frequencies in the 1MHz to 2MHz range. Shortcircuit protection ensures the device’s ruggedness. The LT1210X is stable with large capacitive loads, and can easily supply the large currents required by the capacitive loading. A shutdown feature switches the device into a high impedance and low supply current mode, reducing dissipation when the device is not in use. For lower bandwidth applications, the supply current can be reduced with a single external resistor.The LT1210X is a member of a growing series of high temperature qualified products offered by Analog Devices.The LT1210X is available in the thermally enhanced TSSOP16-E package for operation with supplies from ±5V up to ±15V. The LT1210X is also available as dice.ApplicationsDown-Hole Drilling and InstrumentationHeavy IndustrialAvionicsHigh Temperature EnvironmentsCable DriversBuffersTest Equipment AmplifiersVideo AmplifiersADSL Drivers

The LT1211 is a dual, single supply precision op amp with a 14MHz gain-bandwidth product and a 7V/µs slew rate. The LT1212 is a quad version of the same amplifier. The DC precision of the LT1211/LT1212 eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers.The LT1211/LT1212 will operate on any supply greater than 2.5V and less than 36V total. These amplifiers are specified on single 3.3V, single 5V and ±15V supplies, and only require 1.3mA of quiescent supply current per amplifier. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The minimum output drive is 20mA, ideal for driving low impedance loads.Note:For applications requiring higher slew rate, see the LT1213/LT1214 and LT1215/LT1216 data sheets.Applications2.5V Full-Scale 12-Bit Systems: VOS<0.45LSB10V Full-Scale 16-Bit Systems: VOS<1.8LSBActive FiltersPhoto Diode AmplifiersDAC Current-to-Voltage AmplifiersBattery-Powered Systems

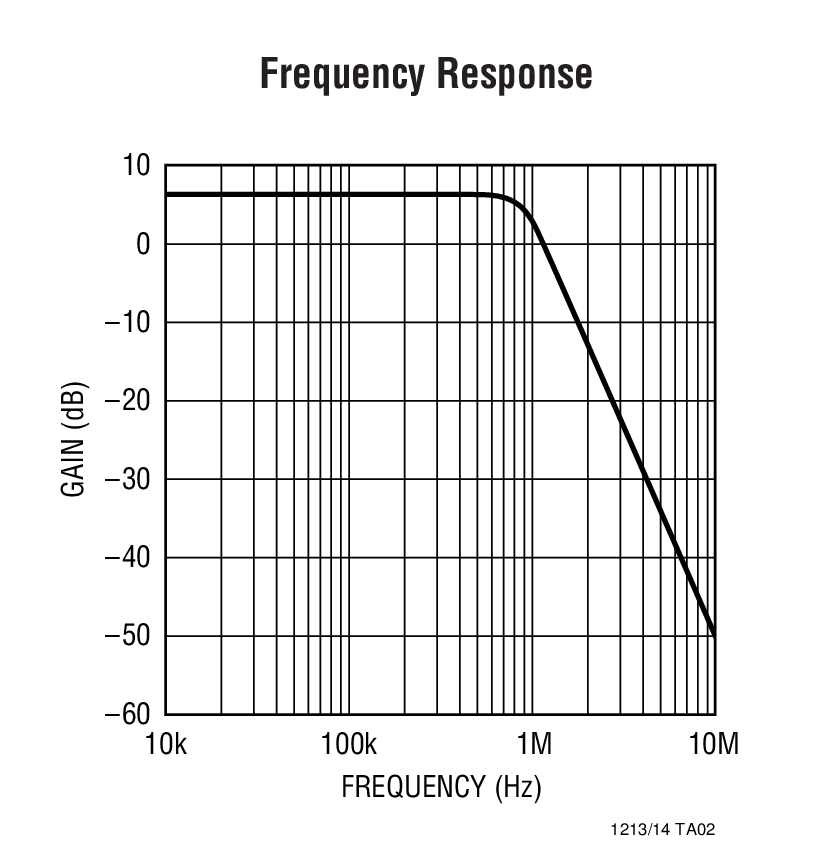

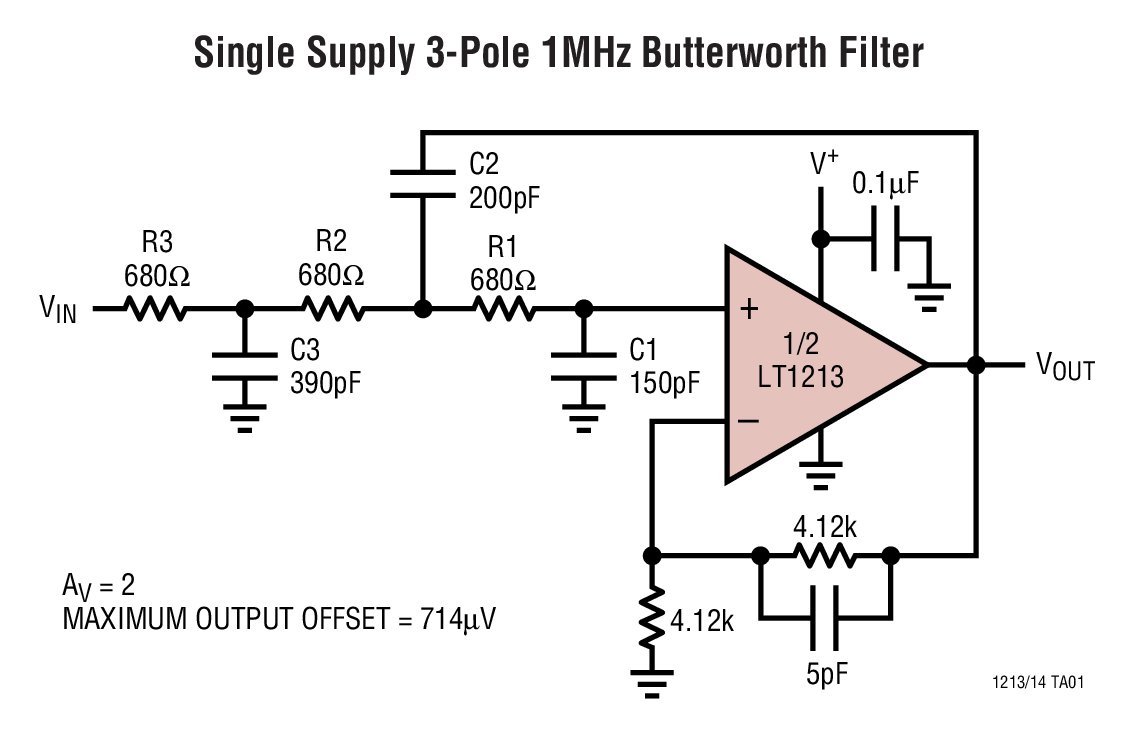

The LT1213 is a dual, single supply precision op amp with a 28MHz gain-bandwidth product and a 12V/µs slew rate. The LT1214 is a quad version of the same amplifier. The DC precision of the LT1213/LT1214 eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers.The LT1213/LT1214 will operate on any supply greater than 2.5V and less than 36V total. These amplifiers are specified at single 3.3V, single 5V and ±15V supplies, and only require 2.7mA of quiescent supply current per amplifier. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The minimum output drive is 30mA, ideal for driving low impedance loads.Note:For applications requiring higher slew rate, see the LT1215/LT1216 data sheet. For lower power and lower slew rate, see the LT1211/LT1212 data sheet.Applications2.5V Full-Scale 12-Bit Systems: VOS≤ 0.45LSB10V Full-Scale 16-Bit Systems: VOS≤ 1.8LSBActive FiltersPhoto Diode AmplifiersDAC Current-to-Voltage AmplifiersBattery-Powered Systems

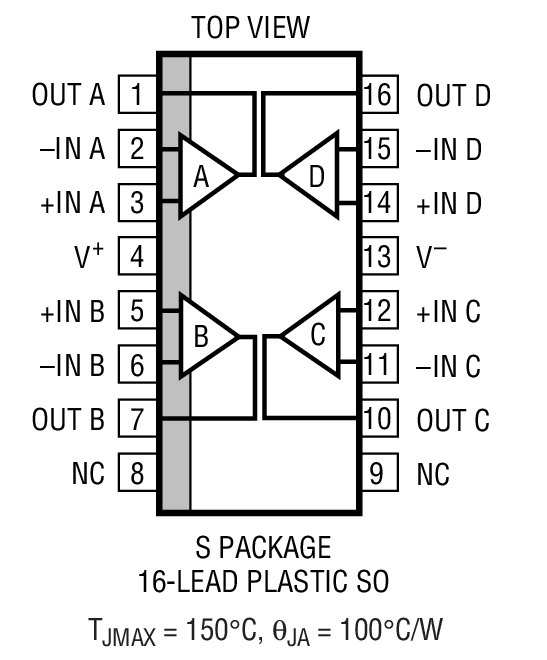

The LT1213 is a dual, single supply precision op amp with a 28MHz gain-bandwidth product and a 12V/µs slew rate. The LT1214 is a quad version of the same amplifier. The DC precision of the LT1213/LT1214 eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers.The LT1213/LT1214 will operate on any supply greater than 2.5V and less than 36V total. These amplifiers are specified at single 3.3V, single 5V and ±15V supplies, and only require 2.7mA of quiescent supply current per amplifier. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The minimum output drive is 30mA, ideal for driving low impedance loads.Note:For applications requiring higher slew rate, see the LT1215/LT1216 data sheet. For lower power and lower slew rate, see the LT1211/LT1212 data sheet.Applications2.5V Full-Scale 12-Bit Systems VOS<0.45LSB10V Full-Scale 16-Bit Systems VOS<1.8LSBActive FiltersPhotodiode AmplifiersDAC Current-to-Voltage AmplifiersBattery-Powered Systems
