LT1210X Series

High Temperature 1.0A, 35MHz Current Feedback Amplifier

Catalog

High Temperature 1.0A, 35MHz Current Feedback Amplifier

Part	Package / Case	Mounting Type	-3db Bandwidth	Amplifier Type	Supplier Device Package	Voltage - Supply Span (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Slew Rate	Current - Supply	Voltage - Input Offset	Voltage - Supply Span (Min) [Min]	Current - Output / Channel	Package / Case [custom]	Package / Case [custom]

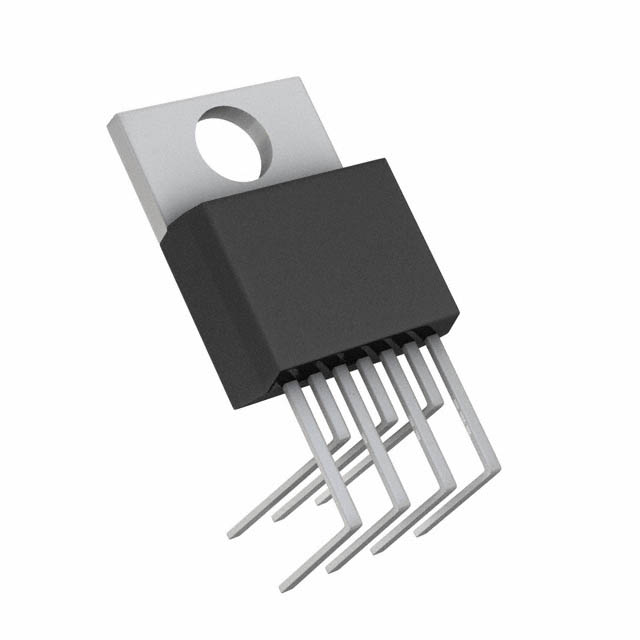

Analog Devices LT1210CT7#PBF	TO-220-7 Formed Leads	Through Hole	35 MHz	Current Feedback	TO-220-7	30 V	70 °C	0 °C	1	900 V/µs	35 mA	3 mV	10 V
Analog Devices LT1210XFE#PBF	16-TSSOP Exposed Pad	Surface Mount	35 MHz	Current Feedback	16-TSSOP-EP	30 V	347 °F	-40 °C	1	900 V/µs	35 mA	3 mV	10 V	2 A	0.173 "	4.4 mm
Analog Devices LT1210CT7#37PBF	TO-220-7 Formed Leads	Through Hole	35 MHz	Current Feedback	TO-220-7 Flow 37	30 V	85 °C	-40 °C	1	900 V/µs	35 mA	3 mV	10 V	2 A
Analog Devices LT1210IR#PBF	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	Surface Mount	35 MHz	Current Feedback	DDPAK-7	30 V	85 °C	-40 °C	1	900 V/µs	50 mA	3 mV	10 V	2 A
Analog Devices LT1210CT7#06PBF	TO-220-7	Through Hole	35 MHz	Current Feedback	TO-220-7 Flow 6	30 V	70 °C	0 °C	1	900 V/µs	35 mA	3 mV	10 V
Analog Devices LT1210IR#TRPBF	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	Surface Mount	35 MHz	Current Feedback	DDPAK-7	30 V	85 °C	-40 °C	1	900 V/µs	50 mA	3 mV	10 V	2 A
Analog Devices LT1210XFE#TRPBF	16-TSSOP Exposed Pad	Surface Mount	35 MHz	Current Feedback	16-TSSOP-EP	30 V	347 °F	-40 °C	1	900 V/µs	35 mA	3 mV	10 V	2 A	0.173 "	4.4 mm

Catalog

High Temperature 1.0A, 35MHz Current Feedback Amplifier

Key Features

• Extreme High Temperature Operation: –40°C to 175°C

• 1.0A Minimum Output Drive Current

• 35MHz Bandwidth, AV= 2, RL= 10Ω

• 900V/µs Slew Rate, AV= 2, RL= 10Ω

• High Input Impedance: 10MΩ

• Wide Supply Range: ±5V to ±15V

• Shutdown Mode: IS< 200µA

• Adjustable Supply Current

• Stable with CL= 10,000pF

• Available as Dice

• Available in 16-Lead Thermally Enhanced TSSOP

Description

The LT1210X is a current feedback amplifier with high output current and excellent large-signal characteristics. The combination of high slew rate, 1.0A output drive and ±15V operation enables the device to deliver significant power at frequencies in the 1MHz to 2MHz range. Shortcircuit protection ensures the device’s ruggedness. The LT1210X is stable with large capacitive loads, and can easily supply the large currents required by the capacitive loading. A shutdown feature switches the device into a high impedance and low supply current mode, reducing dissipation when the device is not in use. For lower bandwidth applications, the supply current can be reduced with a single external resistor.The LT1210X is a member of a growing series of high temperature qualified products offered by Analog Devices.The LT1210X is available in the thermally enhanced TSSOP16-E package for operation with supplies from ±5V up to ±15V. The LT1210X is also available as dice.ApplicationsDown-Hole Drilling and InstrumentationHeavy IndustrialAvionicsHigh Temperature EnvironmentsCable DriversBuffersTest Equipment AmplifiersVideo AmplifiersADSL Drivers
