The HMC6545 is a low power, high performance, fully programmable, dual-channel, asynchronous advanced linear equalizer that operates at data rates of up to 32 Gbps. The HMC6545 is protocol and data rate agnostic, and it can operate on the transmit path to predistort a transmitted signal to invert channel distortion or on the receiver path to equalize the distorted and attenuated received signal. The HMC6545 is effective in dealing with chromatic and polarization mode dispersion and intersymbol interference (ISI) caused by a wide variety of transmission media (backplane or fiber) and channel lengths.The HMC6545 consists of an automatic gain control (AGC); dc offset correction circuitry; a 9-tap, 18 ps spaced feedforward equalizer (FFE); a summing node; and a linear programmable output driver. The input AGC linearly attenuates or amplifies the distorted input signal to generate a constant voltage at the input of the FFE. The 9-tap FFE is programmed via 2-wire interface to generate wide range frequency responses that are precursor or postcursor in nature for compensating signal impairments. After FFE tap coefficients are summed at the summing node, the signal is received by a linear output driver. DC offset correction circuitry is controlled either automatically or manually via Forward Error Correction (FEC).All high speed differential inputs and outputs of the HMC6545 are current mode logic (CML) and terminated on chip with 50 Ω to the positive supply, 3.3 V, and can be dc-coupled or ac-coupled. The inputs and outputs of the HMC6545 can be operated either differentially or single-ended. The low power, high performance, and feature rich HMC6545 is packaged in a 5 mm × 5 mm, 32-lead LFCSP package. The device uses a single 3.3 V supply, eliminating external regulators. The HMC6545 operates over a −40°C to +95°C temperature range.Applications40 Gbps/100 Gbps DQPSK direct detection receiversShort and long reach CFP2 and QSFP+ modulesCEI-28G MR and CEI-25G LR 100 GE line cards16 Gbps and 32 Gbps Fibre ChannelInfiniband 14 Gbps FDR and 28 Gbps EDR ratesSignal conditioning for backplane and line cardsBroadband test and measurement equipment

The HMC652LP2E / 653LP2E / 654LP2E / 655LP2E are a line of wideband fixed value SMT 50 Ohm matched attenuators which offer attenuation levels of 2, 3, 4 and 6 dB respectively. These passive attenuators are ideal for military, test equipment, and other wideband applications where extremely flat attenuation, and excellent VSWR vs. frequency are required.These wideband attenuators handle up to +25 dBm of input power, and are compatible with high volume surface mount manufacturing techniques.APPLICATIONSFiber OpticsMicrowave RadioMilitary & SpaceTest & MeasurementScientific InstrumentsRF/Microwave Circuit Prototyping

The HMC656LP2E / 657LP2E / 658LP2E are a line of wideband fixed value SMT 50 Ohm matched attenuators which offer relative attenuation levels of 10, 15 and 20 dB respectively. These passive attenuators are ideal for military, test equipment, and other wideband applications where extremely flat attenuation, and excellent VSWR vs. frequency are required. These wideband attenuators handle up to +25 dBm of input power, and are compatible with high volume surface mount manufacturing techniques.APPLICATIONSFiber OpticsMicrowave RadioMilitary & SpaceTest & MeasurementScientific InstrumentsRF / Microwave Circuit Prototyping

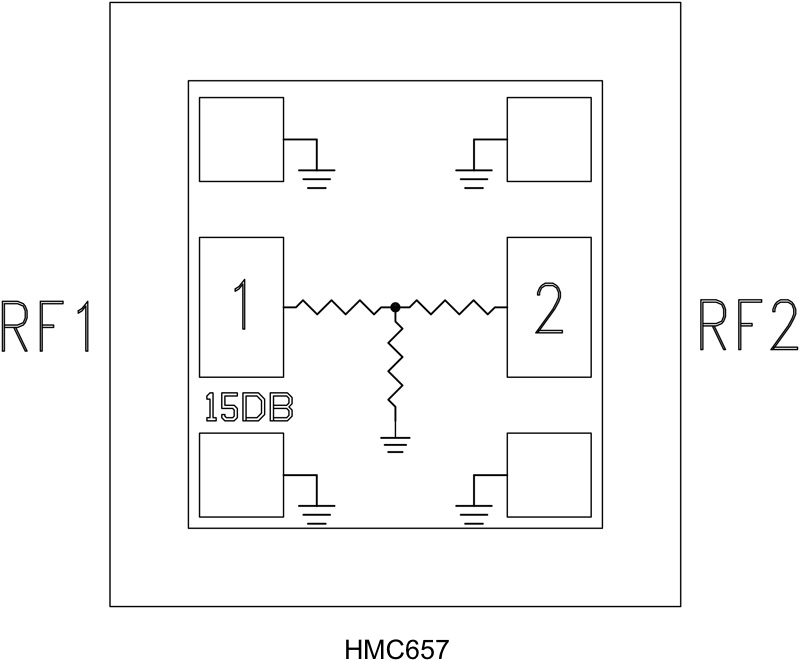

TheHMC650/HMC651/HMC652/HMC653/HMC654/HMC655/HMC656/HMC657/HMC658are a line of wideband fixed value 50 Ohm matched attenuator chips which offer relative attenuation levels of 0, 2, 3, 4, 6, 10, 15 and 20 dB. These passive thoughlines and attenuators are ideal for microstrip, hybrid, and multi-chip module applications where extremely flat attenuation, and excellent VSWR vs. frequency are required.These wideband attenuators feature low inductance on-chip vias, and require no additional ground connections. The HMC650 through HMC658 are backside metallized with gold, and are suitable for eutectic or epoxy die attach. Each of the 9 products can be purchased individually by their respective part number or in a set of 10 each in the HMC-DK006 Fixed Attenuator Chip Designer’s Kit.ApplicationsFiber OpticsMicrowave RadioMilitary & Space HybridsTest & MeasurementScientific InstrumentsRF/Microwave Circuit Prototyping

TheHMC650/HMC651/HMC652/HMC653/HMC654/HMC655/HMC656/HMC657/HMC658 are a line of wideband fixed value 50 Ohm matched attenuator chips which offer relative attenuation levels of 0, 2, 3, 4, 6, 10, 15 and 20 dB. These passive thoughlines and attenuators are ideal for microstrip, hybrid, and multi-chip module applications where extremely flat attenuation, and excellent VSWR vs. frequency are required.These wideband attenuators feature low inductance on-chip vias, and require no additional ground connections. The HMC650 through HMC658 are backside metallized with gold, and are suitable for eutectic or epoxy die attach. Each of the 9 products can be purchased individually by their respective part number or in a set of 10 each in the HMC-DK006 Fixed Attenuator Chip Designer’s Kit.ApplicationsFiber OpticsMicrowave RadioMilitary & Space HybridsTest & MeasurementScientific InstrumentsRF/Microwave Circuit Prototyping

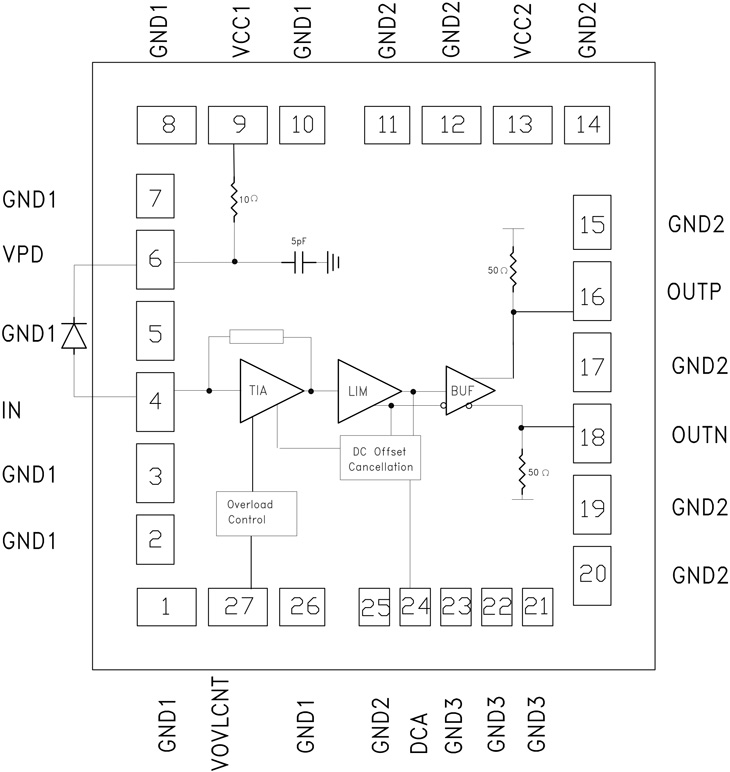

The HMC6590 is a high-speed, high gain, low-power limiting transimpedance amplifier (TIA) used in optical receivers with data rates up to 43Gbps. It features low input referred noise, 39 GHz bandwidth, 4kΩ differential small signal transimpedance and output cross point adjustment. HMC6590 exhibits an optical input dynamic range between -10dBm and +5dBm while maintaining 10e-12 BER at 43Gbps operation.The HMC6590 is available in die form, includes an on-chip VCC bypass capacitor. It requires only supply decoupling capacitor as external component.The HMC6590 requires a single 3.3V ±5% supply and it typically dissipates less than 300mW. The device is characterized for operation from –5°C to +85°C case (IC back side) temperature.Applications40 GbE-F440 GBps VSR/SFFShort, intermediate, and long-haul optical receivers

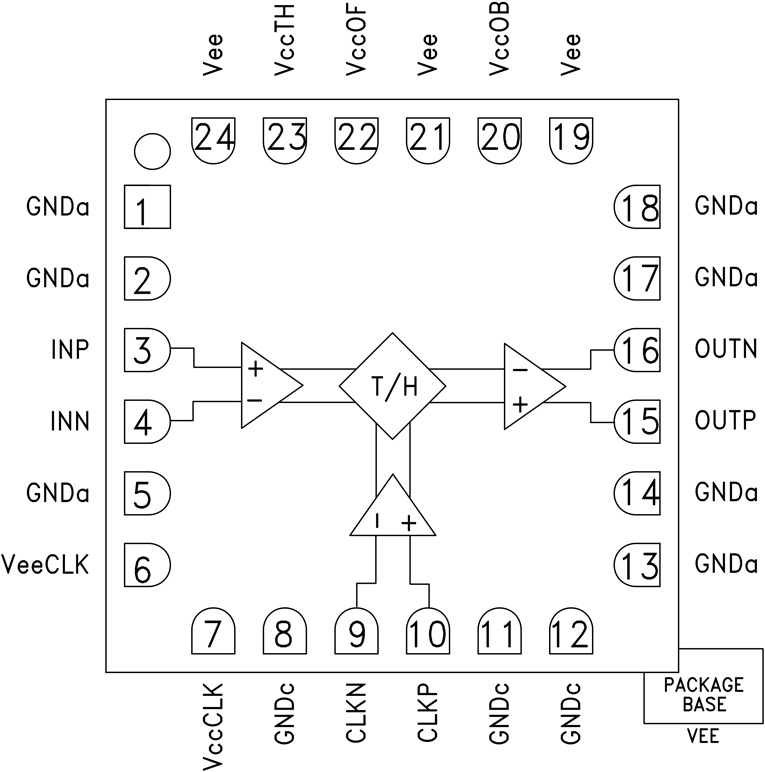

The HMC661LC4B is a SiGe monolithic, fully differential, single rank, track-and-hold (T/H) that provides unprecedented bandwidth and dynamic-range performance to wideband sampled signal systems. The T/H offers precision signal sampling over 18 GHz bandwidth, with 9-10-bit linearity from DC to beyond 5 GHz input frequency, 1.05 mV noise, and <70 fs random aperture jitter. The device can be clocked to 4 GS/s with minimal dynamic range loss. The T/H can be used to expand the bandwidth and/or high-frequency linearity of high-speed A/D conversion and signal acquisition systems.APPLICATIONSRF ATE ApplicationsDigital Sampling OscilloscopesRF Demodulation SystemsDigital Receiver SystemsHigh Speed Peak DetectorsSoftware Defined RadioRadar, ECM & ELINT SystemsHigh Speed DAC De-Glitching

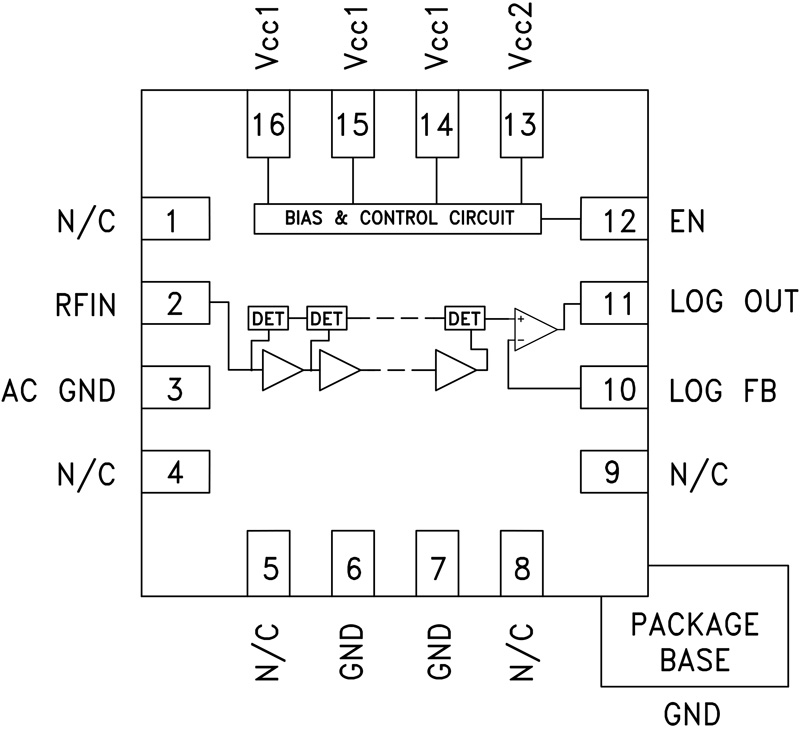

The HMC662LP3E Logarithmic Detector converts RF signals at its input, to a proportional DC voltage at its output. The HMC662LP3E employs successive compression topology which delivers high dynamic range over a wide input frequency range. As the input power is increased, successive amplifiers move into saturation one by one creating an approximation of the logarithm function.The output of a series of square law detectors is summed, converted into the voltage domain and buffered to drive the LOG OUT output. The HMC662LP3E provides a nominal logarithmic slope of +13 mV/dB and an intercept of -127 dBm at 18 GHz. Ideal as a log detector for high volume microwave radio and VSAT applications, the HMC662LP3E is housed in a compact 3x3 mm RoHS compliant SMT plastic package.ApplicationsPoint-to-Point Microwave RadioVSATWideband Power MonitoringReceiver Signal Strength Indication (RSSI)Test & Measurement

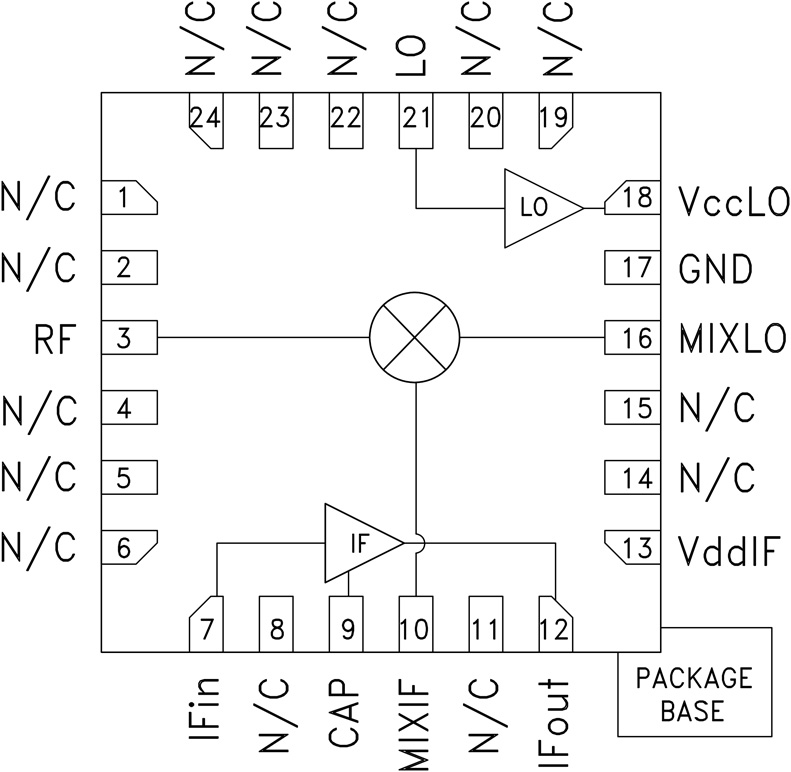

The HMC665LP4E is a highly integrated converter IC that operates from 0.7 to 1.2 GHz for both upconversion and downconversion applications. The HMC665LP4E incorporates a high dynamic range, passive double-balanced mixer core with integrated LO and IF amplifiers, making it ideal for compact transceiver applications in GSM, WCDMA, TD-SCDMA, WiBro and WiMAX.This versatile converter RFIC operates with a low LO input power level of only -3 dBm, provides up to 10 dB conversion gain, and exhibits +23 dBm Input IP3 in downconversion mode. This RFIC provides up to 11 dB conversion gain in upconverter mode. Specific evaluation boards are available for both upconverter and downconverter modes.ApplicationsCellular/3G & WiMAX/LTE/4G InfrastructureBase Stations & RepeatersBroadband & Fixed WirelessAccess PointsTest & Measurement Equipment
