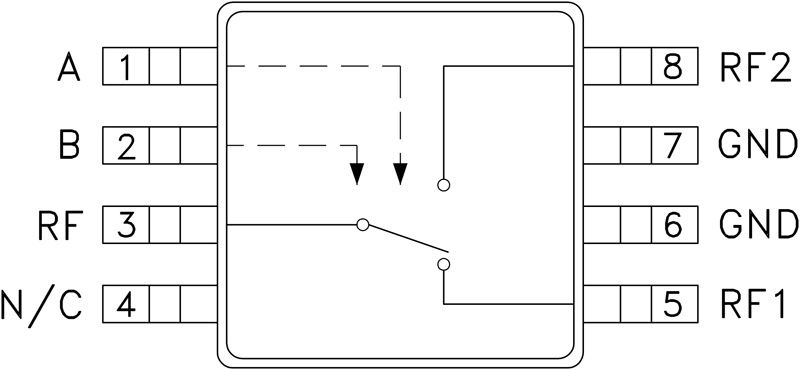

The HMC194AMS8E is a low-cost SPDT switch in an 8-lead MSOP packages for use in applications which require high isolation between two RF paths. The devices can control signals from DC to 3 GHz and have been optimized to provide extremely high isolation with minimal insertion loss in medium and low power applications. On chip circuitry allows positive voltage control operation at very low DC cur- rents with control inputs compatible with CMOS and most TTL logic families. RF1 and RF2 are reflective opens when "OFF".APPLICATIONSCellular/PCS Base StationsPortable WirelessMMDS & WirelessLAN

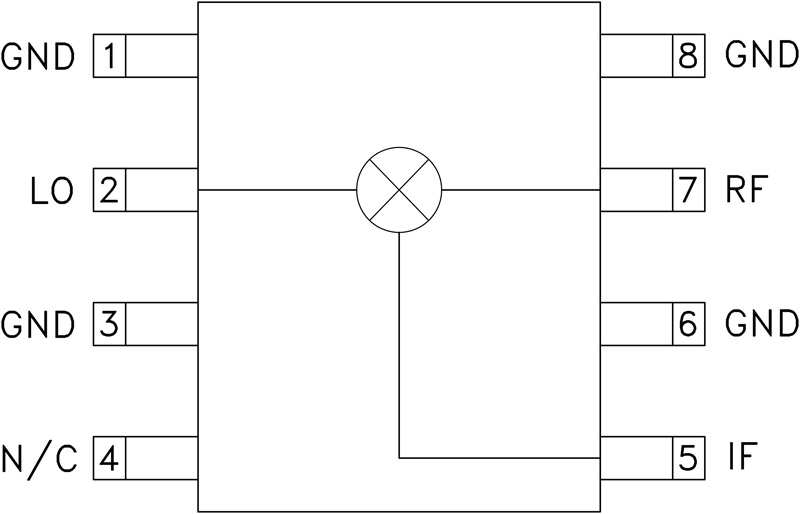

The HMC207AS8E is a miniature double- balanced mixer in an 8 lead plastic surface mount Small Outline IC (SOIC) package. This passive MMIC mixer is constructed of GaAs Schottky diodes and novel planar transformer baluns on the chip. The device can be used as an upconverter, downconverter, biphase modulator (de)modulator, or phase comparator. The consistent MMIC performance will improve system operation and assure regulatory compliance. The high LO suppression of 45 to 50 dB yields excellent carrier suppression for modulator applications.ApplicationsBase StationsCable ModemsPortable Wireless

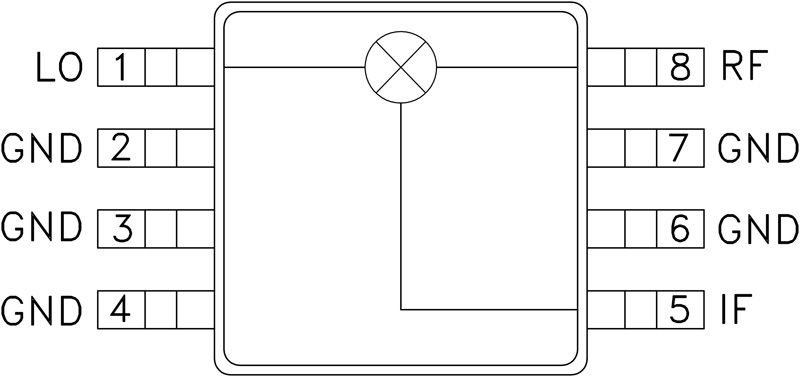

The HMC208AMS8(E) is a ultra miniature double-balanced mixer in 8 an lead plastic surface mount package (MSOP). This passive MMIC mixer is constructed of GaAs Schottky diodes and novel planar transformer baluns on the chip. The device can be used as an upconverter, downconverter, biphase (de)modulator, or phase comparator. The consistent MMIC performance will improve system operation and assure regulatory compliance.ApplicationsBase StationsPCMCIA TransceiversCable ModemsPortable Wireless

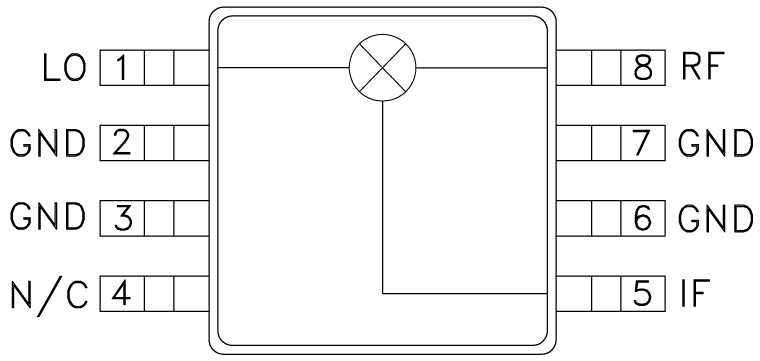

The HMC218BMS8GE is an ultra miniature double- balanced mixers in an 8 lead plastic surface mount packages (MSOP). This passive MMIC mixer is constructed of GaAs Schottky diodes and novel planar transformer baluns on the chip. The device can be used as an up-converter, down-converter, bi-phase modulator / demodulator, or phase comparator. This mixer performs well when used as a down-converter from 3.5 to 8 GHz and as an up-converter from 4.5 to 8 GHz. The low conversion loss, high isolation and wide IF bandwidth make this mixer ideal for a variety of Rx and Tx frequency plans.ApplicationsBase stations, Repeaters & Access PointsWiMAX, WiBro & Fixed WirelessPortables & SubscribersPLMR, Public Safety & Telematics

The HMC219AMS8(E) is an ultra miniature double-balanced mixers in an 8 lead plastic surface mount package (MSOP). This passive MMIC mixer is constructed of GaAs Schottky diodes and novel planar transformer baluns on the chip. The device can be used as an upconverter, downconverter, bi-phase (de)modulator, or phase comparator. The consistent MMIC performance will improve system operation and assure regulatory compliance.The HMC219AMS8(E) is a replacement for theHMC219MS8(E).ApplicationsUNII & HiperLANMicrowave RadiosISM

The HMC219B is an ultraminiature, general-purpose, double balanced mixer in an 8-lead plastic surface mini small outline package with exposed pad (MINI_SO_EP). This passive monolithic microwave integrated circuit (MMIC) mixer is fabricated in a gallium arsenide (GaAs) metal semiconductor field effect transistor (MESFET) process and requires no external components or matching circuitry. The device can be used as an upconverter, downconverter, biphase demodulator, or phase comparator from 2.5 GHz to 7.0 GHz.The HMC219B provides excellent local oscillator (LO) to radio frequency (RF) isolation and LO to intermediate frequency (IF) isolation due to optimized balun structures. The RoHS compliant HMC219B eliminates the need for wire bonding and is compatible with high volume surface-mount manufacturing techniques. The consistent MMIC performance improves system operation and assures regulatory compliance with HiperLAN, U-NII, and ISM.ApplicationsMicrowave radiosHigh performance radio local area network (HiperLAN) and unlicensed national information infrastructure (U-NII)Industrial, scientific, and medical (ISM)

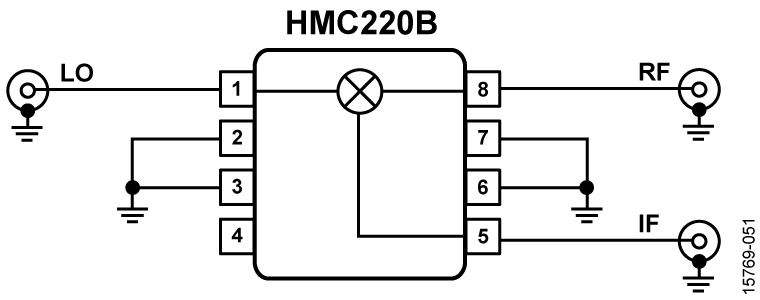

The HMC220B is an ultraminiature, double-balanced mixer in an 8-lead mini small outline package with exposed pad (MINI_SO_EP). This fundamental, monolithic microwave integrated circuit (MMIC) mixer is constructed of gallium arsenide (GaAs) Schottky diodes and planar transformer baluns on the chip.The device can be used as an upconverter, downconverter, biphase demodulator, or phase comparator from 5 GHz to 12 GHz. The HMC220B provides excellent local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) isolation due to optimized balun structures and operates as low as 7 dBm. The RoHS compliant HMC220B eliminates the need for wire bonding and is compatible with high volume surface-mount manufacturing techniques.ApplicationsVery small aperture terminals (VSAT) and mobile satellite communication terminalsMicrowave and military radioWireless backhaul equipmentAutomotive, dedicated short range communications (DSRC) and intelligent vehicle highway systems (IVHS)Military radar, electronic warfare (EW), and electronic counter measure (ECM) subsystems

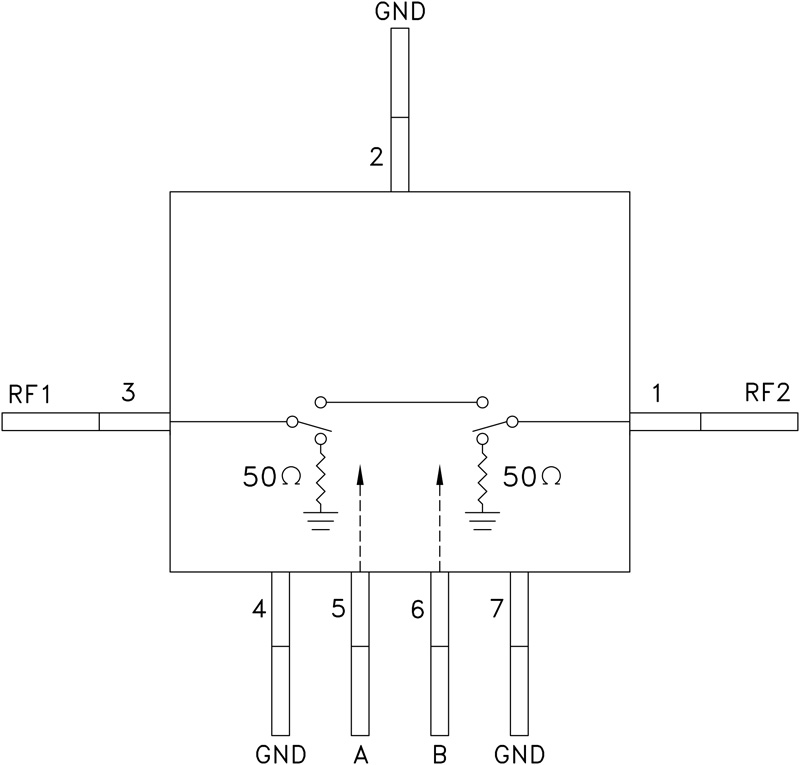

The HMC231G7 is a broadband high isolation non-reflective GaAs MESFET SPST switch in a hermetic surface mount package. Covering DC to 6 GHz, the switch features >55 dB isolation up to 2 GHz and >42 dB isolation up to 6 GHz. The switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply. When the "OFF" state is selected, both RF1 and RF2 ports are terminated in 50 Ohms.ApplicationsTelecom InfrastructureMicrowave Radio & VSATMilitary Radios, Radar & ECMSpace SystemsTest Instrumentation
