HMC194A Series

SPDT Hi Isolation Switch SMT, DC - 3 GHz

Catalog

SPDT Hi Isolation Switch SMT, DC - 3 GHz

Part	Supplied Contents	Frequency [Max]	Frequency [Min]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Isolation	IIP3	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [custom]	Package / Case	Mounting Type	RF Type	Insertion Loss	Impedance	Supplier Device Package	Frequency Range [Max]	Frequency Range [Min]	Circuit	Test Frequency	P1dB

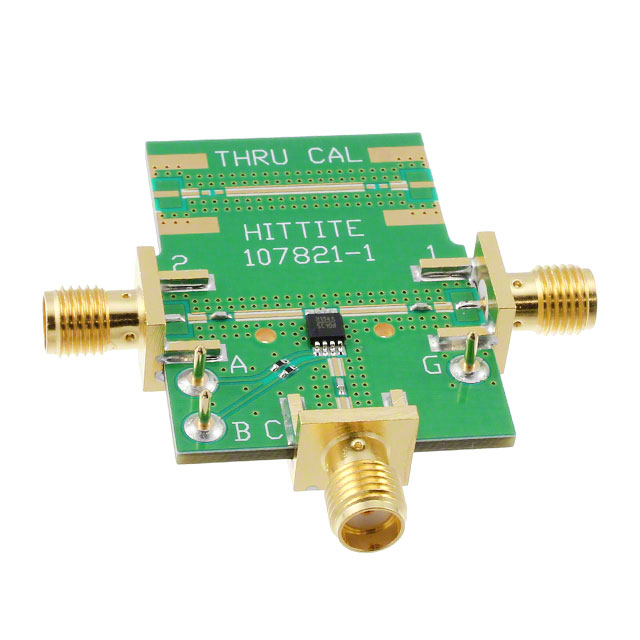

Analog Devices 105143-HMC194AMS8	Board(s)	3 GHz	0 Hz	Switch SPDT
Analog Devices HMC194AMS8ETR					3 V	7 V	38 dB	53 dBm	85 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	General Purpose	0.5 dB	50 Ohms	8-MSOP	3 GHz	0 Hz	SPDT	2.5 GHz	29 dBm
Analog Devices HMC194AMS8E					3 V	7 V	38 dB	53 dBm	85 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	General Purpose	0.5 dB	50 Ohms	8-MSOP	3 GHz	0 Hz	SPDT	2.5 GHz	29 dBm

Catalog

SPDT Hi Isolation Switch SMT, DC - 3 GHz

Key Features

• Ultra Small Package: MSOP8

• High Isolation: 50 dB

• Positive Control: 0/+3V to 0/+7V

Description

The HMC194AMS8E is a low-cost SPDT switch in an 8-lead MSOP packages for use in applications which require high isolation between two RF paths. The devices can control signals from DC to 3 GHz and have been optimized to provide extremely high isolation with minimal insertion loss in medium and low power applications. On chip circuitry allows positive voltage control operation at very low DC cur- rents with control inputs compatible with CMOS and most TTL logic families. RF1 and RF2 are reflective opens when "OFF".APPLICATIONSCellular/PCS Base StationsPortable WirelessMMDS & WirelessLAN
