High Isolation SPST Hermetic SMT Switch, DC - 6 GHz
Key Features
• Isolation: 55 dB @ 2 GHz42 dB @ 6 GHz
• Insertion Loss: 2 dB Typical @ 6 GHz
• Non-Reflective Input/Output
• Hermetic Surface Mount Package
Description
AI

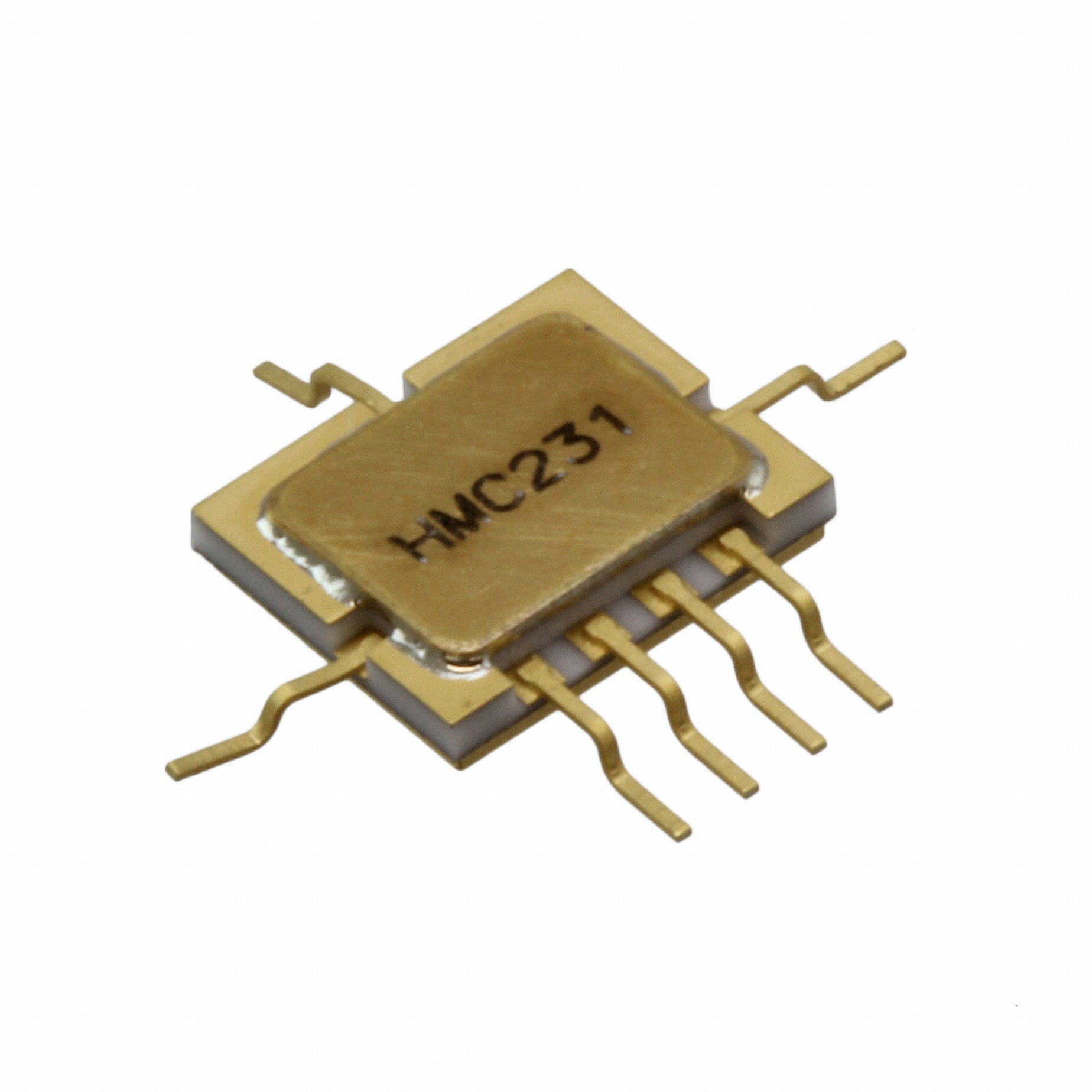

The HMC231G7 is a broadband high isolation non-reflective GaAs MESFET SPST switch in a hermetic surface mount package. Covering DC to 6 GHz, the switch features >55 dB isolation up to 2 GHz and >42 dB isolation up to 6 GHz. The switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply. When the "OFF" state is selected, both RF1 and RF2 ports are terminated in 50 Ohms.ApplicationsTelecom InfrastructureMicrowave Radio & VSATMilitary Radios, Radar & ECMSpace SystemsTest Instrumentation
