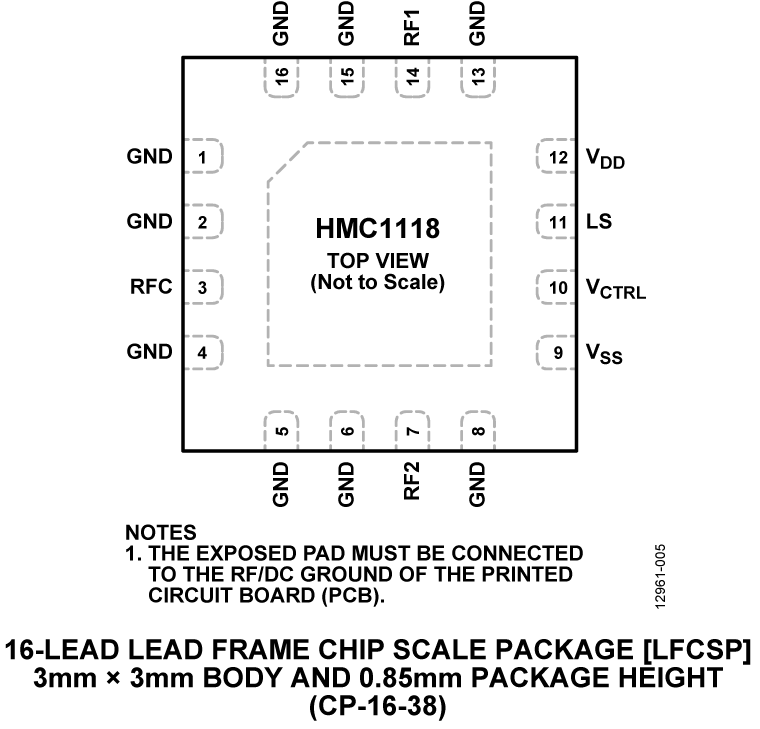

The HMC1118 is a general-purpose, broadband, nonreflective single-pole, double-throw (SPDT) switch in a LFCSP surface mount package. Covering the 9 kHz to 13.0 GHz range, the switch offers high isolation and low insertion loss. The switch features >48 dB isolation, 0.68 dB insertion loss up to 8.0 GHz, and a 7.5 μs settling time of 0.05 dB margin of final RFOUT. The switch operates using positive control voltage logic lines of +3.3 V and 0 V and requires +3.3 V and −2.5 V supplies. The HMC1118 can cover the same operating frequency range with a single positive supply voltage applied and the negative supply voltage (VSS) tied to ground and still maintaining good power handling performance. The HMC1118 is packaged in a 3 mm × 3 mm, surface mount LFCSP package.ApplicationsTest instrumentationMicrowave radios and very small aperture terminals (VSATs)Military radios, radars, and electronic counter measures (ECMs)Fiber optics and broadband telecommunications

The HMC1120 is an RMS power detector with an integrated high bandwidth envelope detector. The RMS output is a temperature compensated, monotonic, linear-in-dB representation of real RF signal power, measured over an input sensing range of 70 dB. The envelope detector provides an accurate voltage output which is linearly proportional to the amplitude envelope of the RF input signal for modulation bandwidths up to 150 MHz. The high bandwidth envelope detection of the HMC1120 makes it ideal for detecting broadband and high crest factor RF signals commonly used in GSM, WCDMA, and LTE systems. Additionally, the instantaneous envelope output can be used to create fast, excessive RF power protection, PA linearization, and efficiency enhancing envelope-tracking PA implementations.The HMC1120’s RMS detector integration bandwidth is digitally programmable via input pins SCI1-4 over a range of more than 4 decades. This allows the user to dynamically set the operation bandwidth and also permits the detection of different types of modulations on the same platform.The HMC1120 features an internal op-amp at the RMS output stage, which accommodates slope and intercept adjustments and supports a wide range of applications.ApplicationsLog –> Root-Mean-Square (RMS) ConversionTx/Rx Signal Strength Indication (TSSI / RSSI)RF Power Amplifier Efficiency ControlReceiver Automatic Gain ControlTransmitter Power ControlEnvelope TrackingPA Linearization

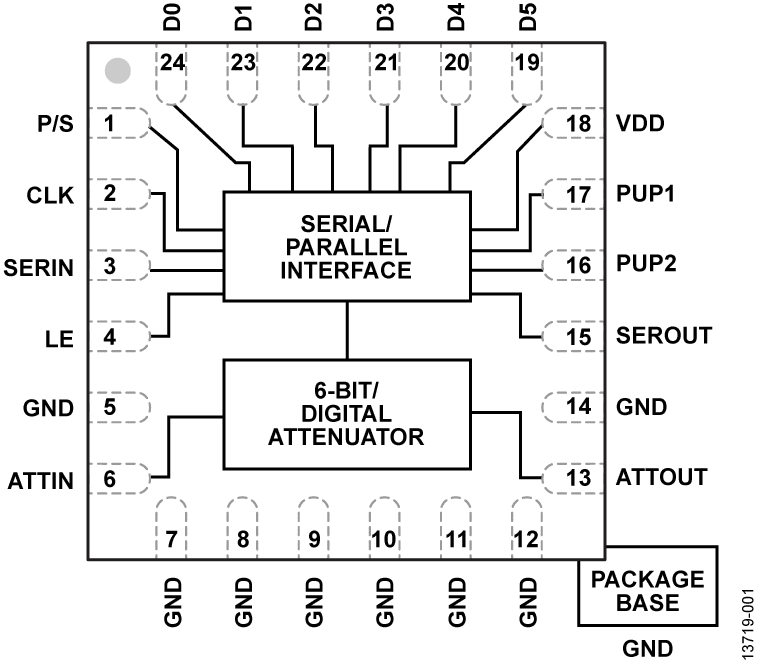

The HMC1122 is a 6-bit digital attenuator operating from 0.1 GHz to 6 GHz with a 31.5 dB attenuation control range in 0.5 dB steps.The HMC1122 is implemented in a silicon process, offering very fast settling time, low power consumption, and high ESD robustness. The device features safe state transitions and optimized for excellent step accuracy and high linearity over frequency and temperature range. The RF input and output are internally matched to 50 Ω and do not require any external matching components. The design is bidirectional; therefore, the RF input and output are interchangeable.The HMC1122 operates on a single supply ranging from 3.3 V to 5 V with no performance change due to an on-chip regulator.The device incorporates a driver that provides both serial and parallel control of the attenuator. The device also features a user-selectable power-up state and a serial output port for cascading other serial controlled components.The HMC1122 comes in a RoHS compliant, compact, 4 mm × 4 mm LFCSP package, and is pin compatible to the HMC624A.A fully populated evaluation board is available.ApplicationsCellular infrastructureMicrowave radios and very small aperture terminals (VSATs)Test equipment and sensorsIF and RF designs

The HMC1127 is a GaAs pHEMT MMIC Distributed Power Amplifier which operates between 2 and 50 GHz. The amplifier provides 14.5 dB of gain, 23 dBm output IP3 and 12.5 dBm of output power at 1 dB gain compression while requiring 80 mA from a +5V supply. The HMC1127 amplifier I/Os are internally matched to 50 Ω facilitating integration into Multi-Chip-Modules (MCMs). All data is taken with the chip connected via two 0.025 mm (1 mil) wire bonds of minimal length 0.31 mm (12 mils).APPLICATIONSTest InstrumentationMicrowave Radio & VSATMilitary & SpaceTelecom InfrastructureFiber Optics

The HMC1131 is a gallium arsenide (GaAs), pseudomorphic high electron mobility transfer(pHEMT), monolithic microwave integrated circuit (MMIC), driver amplifier that operates from 24 GHz to 35 GHz. The HMC1131 provides 22 dB of gain at the 24 GHz to 27 GHz range, 35 dBm output IP3, and 24 dBm of output power at 1 dB gain compression, while requiring 225 mA from a 5 V supply.The HMC1131 is capable of supplying 25 dBm of saturated output power and is housed in a compact, 4 mm × 4 mm ceramic leadless chip carrier (24-lead LCC). The HMC1131 is an ideal driver amplifier for a wide range of applications, including point-to-point radios, from 24 GHz to 35 GHz.ApplicationsPoint-to-point radiosPoint-to-multipoint radiosVSAT and SATCOM

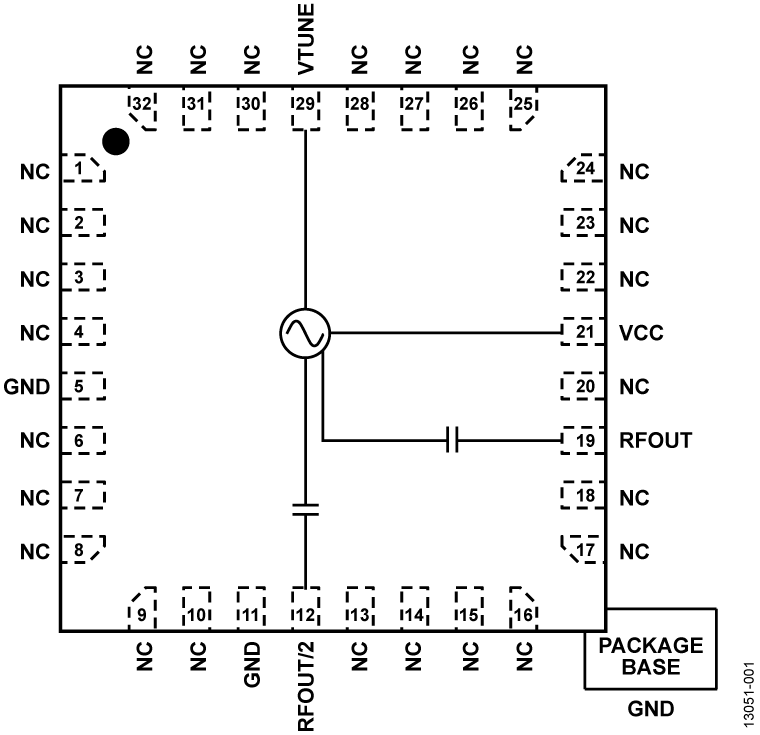

The HMC1160 is a MMIC voltage controlled oscillator that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.Because of the monolithic construction of the oscillator, output power and phase noise performance are excellent over temperature.Power output is 12 dBm typical from a 5 V supply voltage. The voltage controlled oscillator is housed in a RoHS compliant SMT package and requires no external matching components.APPLICATIONSPoint to point and multipoint radioTest equipment and industrial controlsVSAT

The HMC1162 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates the resonator, a negative resistance device, and varactor diodes, and features a half frequency output.Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature.The power output is 11 dBm typical from a 5 V supply voltage. The VCO is housed in a RoHS-compliant, 32-lead LFCSP and requires no external matching components.APPLICATIONSPoint to point and multipoint radiosTest equipment and industrial controlsVery small aperture terminals (VSATs)
