| Part | Category | Description |
|---|---|---|
 Analog Devices ADM6713RAKSZ-REELObsolete | Integrated Circuits (ICs) | IC SUPERVISOR 1 CHANNEL SC70-4 |
Analog Devices | RF and Wireless | RF AMP SINGLE GENERAL PURPOSE RF AMPLIFIER 20GHZ 3.6V 22-PIN DIE TRAY |
 Analog Devices | Integrated Circuits (ICs) | LOW NOISE, SWITCHED CAPACITOR REGULATED VOLTAGE INVERTERS |
 Analog Devices | Integrated Circuits (ICs) | QUAD 16-BIT/12-BIT ±10V VOUTSOFTSPAN DACS WITH 10PPM/°C MAX REFERENCE |
 Analog Devices | Integrated Circuits (ICs) | SERIAL 14-BIT, 3.5MSPS SAMPLING ADC WITH BIPOLAR INPUTS |
 Analog Devices | Integrated Circuits (ICs) | ISOSPI ISOLATED COMMUNICATIONS INTERFACE |
 Analog Devices | Integrated Circuits (ICs) | 4.5A, 500KHZ STEP-DOWN SWITCHING REGULATOR |
 Analog Devices | Integrated Circuits (ICs) | 300 MA, LOW QUIESCENT CURRENT, ADJUSTABLE OUTPUT, CMOS LINEAR REGULATOR |
 Analog Devices AD767KNObsolete | Integrated Circuits (ICs) | IC DAC 12BIT V-OUT 24DIP |
 Analog Devices | Integrated Circuits (ICs) | QUAD 12-/10-/8-BIT RAIL-TO-RAIL DACS WITH 10PPM/°C REFERENCE |
| Series | Category | # Parts | Status | Description |
|---|---|---|---|---|
| Integrated Circuits (ICs) | 1 | Obsolete | ||
| Data Acquisition | 3 | Obsolete | ||
| Data Acquisition | 1 | Obsolete | ||
| Integrated Circuits (ICs) | 2 | Active | ||

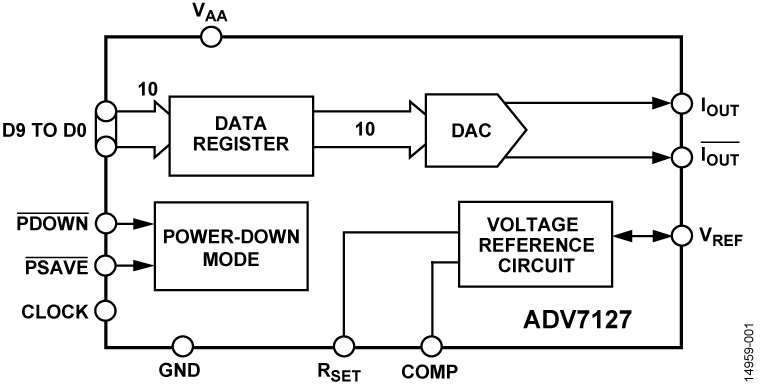

ADV7127CMOS, 240 MHz, 10-Bit, High Speed Video DAC | Digital to Analog Converters (DAC) | 3 | Obsolete | The ADV7127 is a high speed, DAC on a single monolithic chip. It consists of a 10-bit, video DAC with an on-board voltage reference, complementary outputs, a standard TTL input interface, and high impedance analog output current sources.The ADV7127 has a 10-bit wide input port. A single 5 V or 3.3 V power supply and clock are all that are required to make the device functional.The ADV7127 is fabricated in a complementary metal-oxide semiconductor (CMOS) process. Its monolithic CMOS construction ensures greater functionality with low power dissipation. The ADV7127 is available in a 24-lead TSSOP package which includes a power-down mode and an on-board voltage reference circuit.Product Highlights240 MSPS throughput.Guaranteed monotonic to 10 bits.Compatible with a wide variety of high resolution color graphics systems including RS-343A and RS-170.ApplicationsDigital video systems (1600 × 1200 at 100 Hz)High resolution color graphicsDigital radio modulationImage processingInstrumentationVideo signal reconstructionDirect digital synthesis (DDS)Wireless local area networks (LANs) |
| Data Acquisition | 5 | Obsolete | ||
| Video Processing | 1 | Obsolete | ||

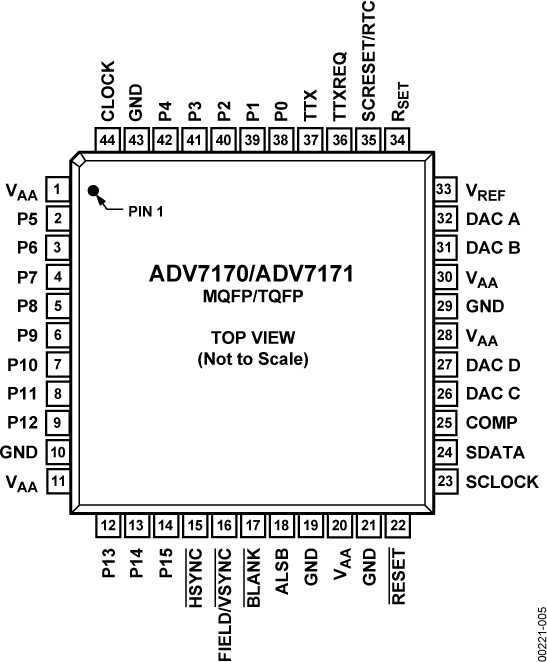

ADV7171Digital PAL/NTSC Video Encoder with 10-Bit SSAF™ and Advanced Power Management | Interface | 2 | Obsolete | TheADV7170/ ADV7171 is an integrated digital video encoder that converts Digital CCIR-601 4:2:2 8 or 16-bit component video data into a standard analog baseband television signal compatible with worldwide standards.APPLICATIONSHigh performance DVD playback systems, portable video equipment including digital still cameras and laptop PCs, video games, PC video/multimedia and digital satellite/cable systems (set-top boxes/IRD) |
ADV7174Chip Scale NTSC/PAL Video Encoder with Macrovision® Copy Protection | Interface | 1 | Active | The ADV7174 is suitable for a wide range of video applications such as portable DVD player systems or video recorders where package space is as a premium.The ADV7174 comes in a compact chip-scale package, measuring just 6mm by 6mm square, with options for CCIR656 standard video input, with or without embedded timing information.Video performance is not compromised. Advanced filtering (SSAF filters) and professional-level video SNR up to -80dB provides for excellent display quality in a compact format.For more information, download the datasheet today using the links on the left.APPLICATIONSPortable video applicationsMobile phonesDigital still cameras |
| Integrated Circuits (ICs) | 1 | Obsolete | ||
