ADV7174 Series
Chip Scale NTSC/PAL Video Encoder with Macrovision® Copy Protection
Manufacturer: Analog Devices
Catalog
Chip Scale NTSC/PAL Video Encoder with Macrovision® Copy Protection
Key Features
• 3 x 10-bit DACs for High Performance Video Output

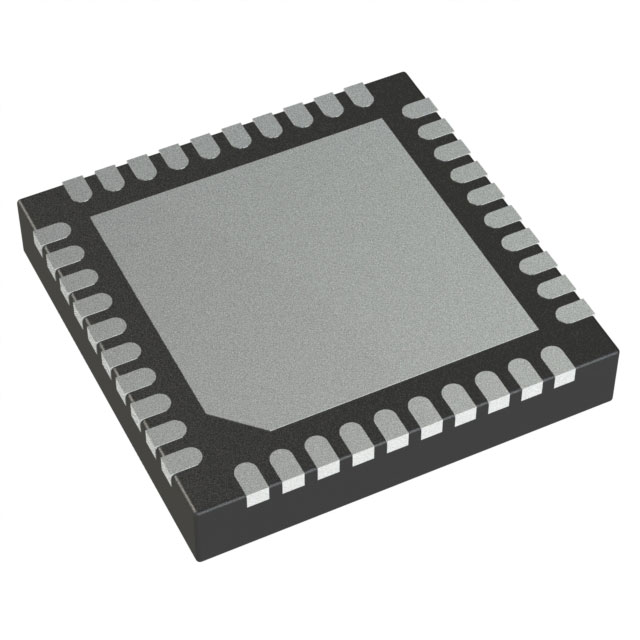

• Compact 6mm x 6mm 40-lead Package Using CSP Technology
• Advanced Power Management for Power-Sensitive Applications
• 8-bit CCIR-656 Input Port for Digital Video Data
• Programmable Output Options for Composite, S-Video & Component Video Formats
• Industrial Temperature Range
• Available (ADV7174BCP)
Description
AI
The ADV7174 is suitable for a wide range of video applications such as portable DVD player systems or video recorders where package space is as a premium.The ADV7174 comes in a compact chip-scale package, measuring just 6mm by 6mm square, with options for CCIR656 standard video input, with or without embedded timing information.Video performance is not compromised. Advanced filtering (SSAF filters) and professional-level video SNR up to -80dB provides for excellent display quality in a compact format.For more information, download the datasheet today using the links on the left.APPLICATIONSPortable video applicationsMobile phonesDigital still cameras
