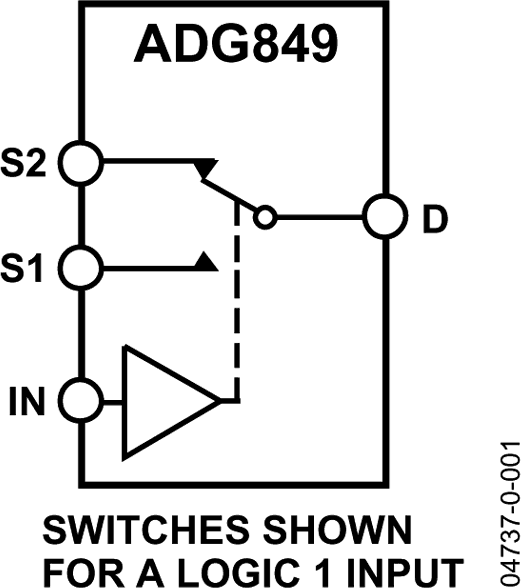

The ADG849 is a monolithic, CMOS SPDT (single pole, double throw) switch that operates with a supply range of +1.8V to 5.5V. It is designed to offer ultra-low Ron resistance values of typically 0.5 Ω. This design makes the ADG849 an ideal solution for applications that require minimal distortion through the switch. The ADG849 also has the capability of carrying large amounts of current, typically 600mA at 5V operation.Each switch of the ADG849 conducts equally well in both directions when on. The device exhibits break-before-make switching action, thus preventing momentary shorting when switching channels.The ADG849 is available in a tiny 6-lead SC70 package, thus making it the ideal candidate for space-constrained applications.

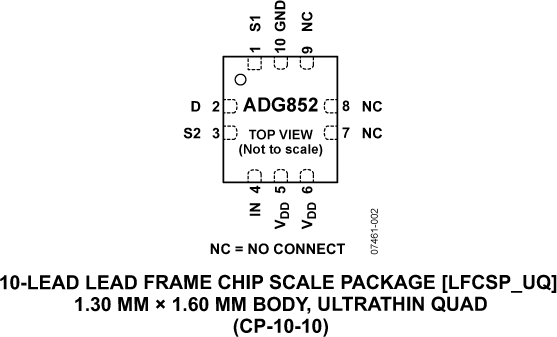

The ADG852 is a low voltage CMOS single-pole, double-throw (SPDT) switch. This device offers ultralow on resistance of less than 1 Ω over the full temperature range. The ADG852 is fully specified for 5.5 V and 3.3 V supply operation.Each switch conducts equally well in both directions when on, and has an input signal range that extends to the supplies. The ADG852 exhibits break-before-make switching action.The ADG852 is available in a 1.30 mm × 1.60 mm 10-lead mini LFCSP.PRODUCT HIGHLIGHTS<1 Ω over full temperature range of −40°C to +85°C.Single 1.8 V to 5.5 V operation.Compatible with 1.8 V CMOS logic.High current handling capability (300 mA continuous current per channel).Low THD + N: 0.08% typical.1.30 mm × 1.60 mm, 10-lead mini LFCSP.APPLICATIONSCellular phonesPDAsMP3 playersPower routingBattery-powered systemsPCMCIA cardsModemAudio and video signal routingCommunication systems

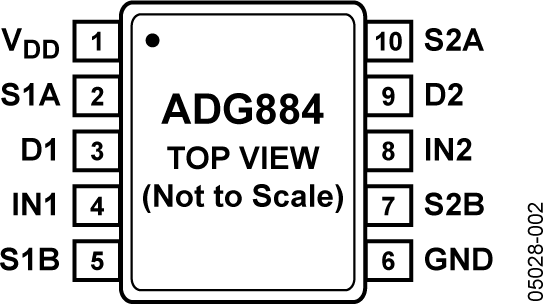

The ADG884 is a low voltage CMOS device containing two independently selectable single-pole, double-throw (SPDT) switches. This device offers ultralow on resistance of 0.41 Ω over the full temperature range, making the part an ideal solution for applications that require minimal distortion through the switch. The ADG884 also has the capability of carrying large amounts of current, typically 600 mA at 5 V operation.The ADG884 is available in a 10-ball, 2 mm × 1.5 mm WLCSP package, a 10-lead LFCSP_WD package, and a 10-lead MSOP package. These tiny packages make the ADG884 the ideal solution for space-constrained applications.When on, each switch conducts equally well in both directions and has an input signal range that extends to the supplies. The ADG884 exhibits break-before-make switching action.Product HighlightsSingle 1.8 V to 5.5 V operation.High current handling capability (400 mA continuous current).1.8 V logic compatible.Low THD + N (0.01% typical).Tiny 2 mm × 1.5 mm WLCSP, 3 mm × 3 mm 10-lead LFCSP_WD, and 10-lead MSOP packages.ApplicationsCellular phonesPDAsMP3 playersPower routingBattery-powered systemsPCMCIA cardsModemsAudio and video signal routingCommunications systemsData Sheet, Rev. C, 6/08

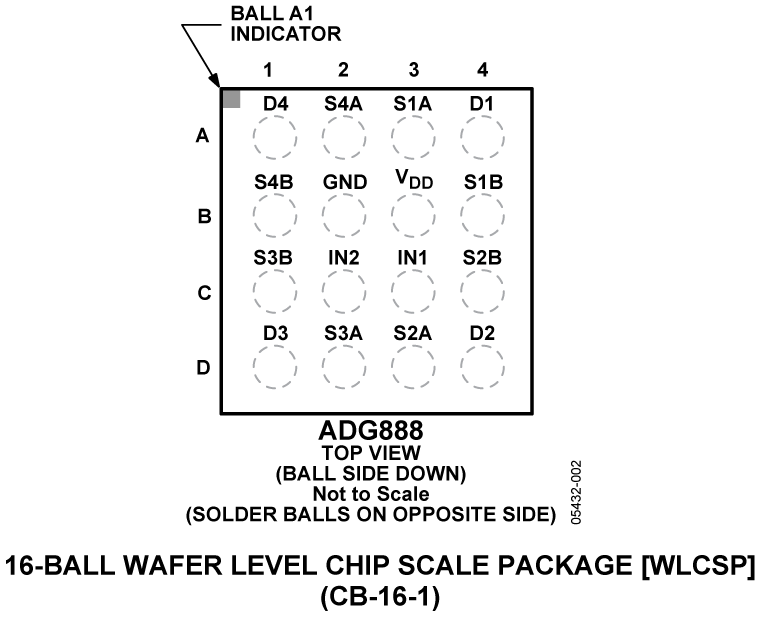

The ADG888 is a low voltage, dual DPDT (double-pole, double-throw) CMOS device optimized for high performance audio switching. With its low power and small physical size, it is ideal for portable devices.This device offers ultralow on resistance of less than 0.8 Ω over the full temperature range, making it an ideal solution for applications requiring minimal distortion through the switch. The ADG888 also has the capability of carrying large amounts of current, typically 400 mA at 5 V operation.When on, each switch conducts equally well in both directions and has an input signal range that extends to the supplies. The ADG888 exhibits break-before-make switching action.The ADG888 is available in a 16-ball WLCSP, 16-lead LFCSP, and a 16-lead TSSOP. These packages make the ADG888 the ideal solution for space-constrained applications.Product Highlights<0.6 Ω over full temperature range of −40°C to +125°C.High current handling capability (400 mA continuous current at 5 V).Low THD + N (0.008% typical).Tiny 16-ball WLCSP, 16-lead LFCSP, and 16-lead TSSOP.ApplicationsCellular phonesPDAsMP3 playersPower routingBattery-powered systemsPCMCIA cardsModemsAudio and video signal routingCommunication systemsData switching

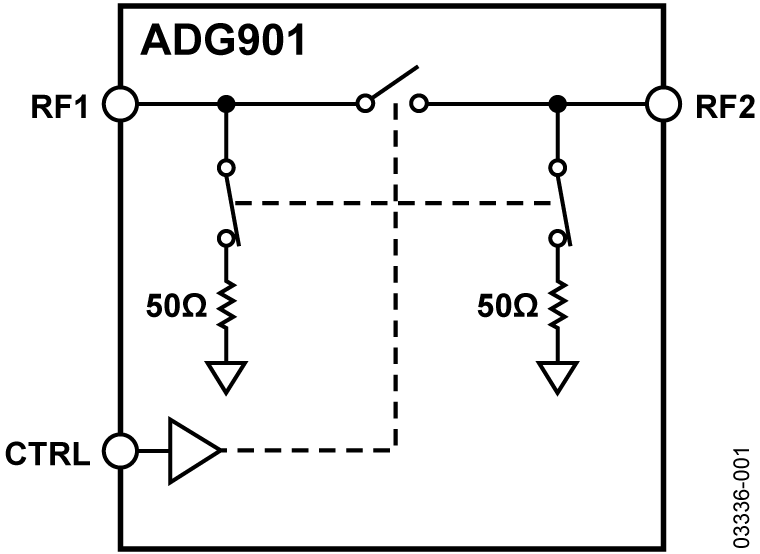

The ADG901/ADG902are wideband switches that use a complementary metal-oxide semiconductor (CMOS) process to provide high isolation and low insertion loss to 1 GHz. The ADG901 is an absorptive (matched) switch with 50 Ω terminated shunt legs, while the ADG902 is a reflective switch. These devices are designed such that the isolation is high over the dc to 1 GHz frequency range. These switches enable the user to pass dc signals up to 0.5 V without the use of a dc blocking capacitor. They have on-board CMOS control logic, thus eliminating the need for external controlling circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these CMOS devices makes them ideally suited to wireless applications and general-purpose high frequency switching.Product Highlights40 dB Off Isolation at 1 GHz0.8 dB Insertion Loss at 1 GHz17 dBm P1dB at 1 GHzApplicationsWireless communicationsGeneral purpose RF switchingDual-band applicationsHigh speed filter selectionDigital transceiver front-end switchIF switchingTuner modulesAntenna diversity switching list

The ADG904 and ADG904-R are wideband analog 4:1 multiplexers that use a CMOS process to provide high isolation and low insertion loss to 1 GHz. The ADG904 is an absorptive/matched mux with 50 Ω terminated shunt legs; the ADG904-R is a reflective mux. These devices are designed such that the isolation is high over the dc to 1 GHz frequency range.The ADG904 and ADG904-R switch one of four inputs to a common output, RFC, as determined by the 3-bit binary address lines A0, A1, andEN. A Logic 1 on theENpin disables the device.The parts have on-board CMOS control logic, which eliminates the need for external control circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these devices makes them ideally suited for wireless applications and general-purpose high frequency switching.Product Highlights−37 dB off isolation at 1 GHz1.1 dB insertion loss at 1 GHz20-lead TSSOP/LFCSP packagesApplicationsWireless communicationsGeneral-purpose RF switchingDual-band applicationsHigh speed filter selectionDigital transceiver front end switchIF switchingTuner modulesAntenna diversity switching

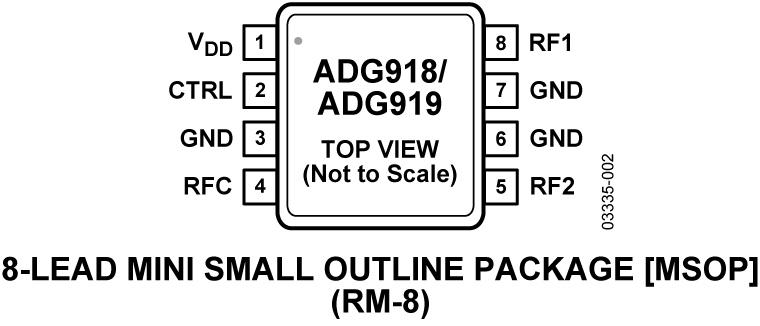

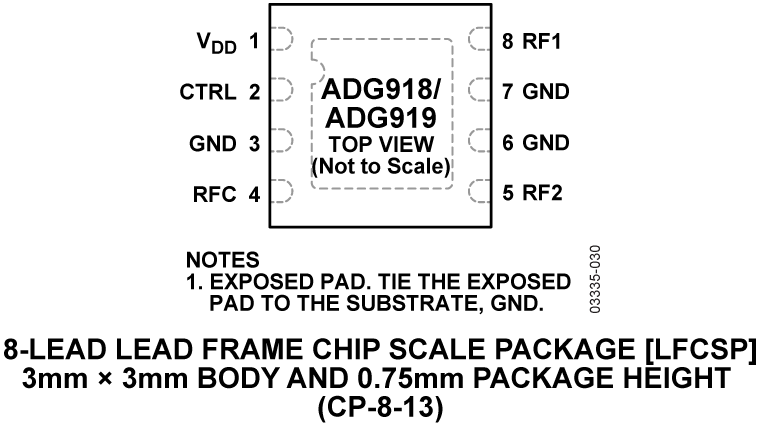

The ADG918/ADG919are wideband switches using a CMOS process to provide high isolation and low insertion loss to 1 GHz. The ADG918 is an absorptive (matched) switch having 50 Ω terminated shunt legs, whereas the ADG919 is a reflective switch. These devices are designed such that the isolation is high over the dc to 1 GHz frequency range. They have on-board CMOS control logic, thus eliminating the need for external controlling circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these CMOS devices makes them ideally suited to wireless and general-purpose high frequency switching applications.Product Highlights−43 dB off isolation at 1 GHz.0.8 dB insertion loss at 1 GHz.Tiny 8-lead MSOP/LFCSP.ApplicationsWireless communicationsGeneral-purpose RF switchingDual-band applicationsHigh speed filter selectionDigital transceiver front end switchIF switchingTuner modulesAntenna diversity switching

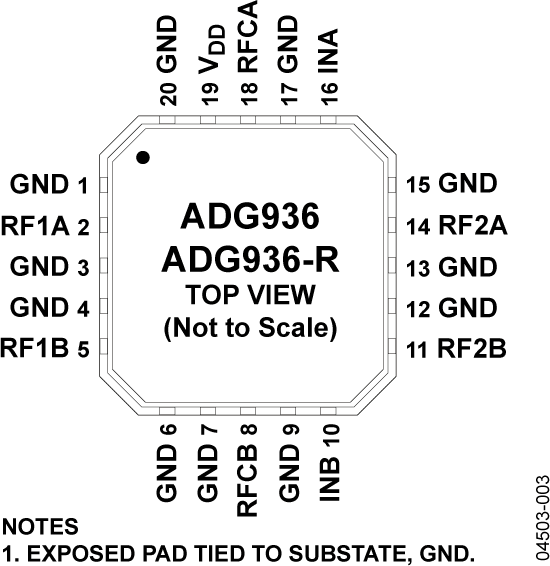

The ADG936 / ADG936-R are wideband analog switches that comprise two independently selectable SPDT switches using a CMOS process to provide high isolation and low insertion loss to 1 GHz. The ADG936 is an absorptive/matched dual SPDT with 50 Ω terminated shunt legs; the ADG936-R is a reflective dual SPDT. These devices are designed such that the isolation is high over the dc to 1 GHz frequency range. They have on-board CMOS control logic, eliminating the need for external controlling circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these CMOS devices makes them ideally suited for wireless applications and general-purpose high frequency switching.
