ADG888 Series

0.4 Ω CMOS, Dual DPDT Switch in WLCSP/LFCSP/TSSOP

Catalog

0.4 Ω CMOS, Dual DPDT Switch in WLCSP/LFCSP/TSSOP

Part	On-State Resistance (Max) [Max]	Crosstalk	Switch Circuit	Package / Case	Supplier Device Package	Channel-to-Channel Matching (ΔRon)	Number of Circuits	Current - Leakage (IS(off)) (Max)	-3db Bandwidth	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Multiplexer/Demultiplexer Circuit	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Charge Injection	Mounting Type	Package / Case [x]	Package / Case [y]

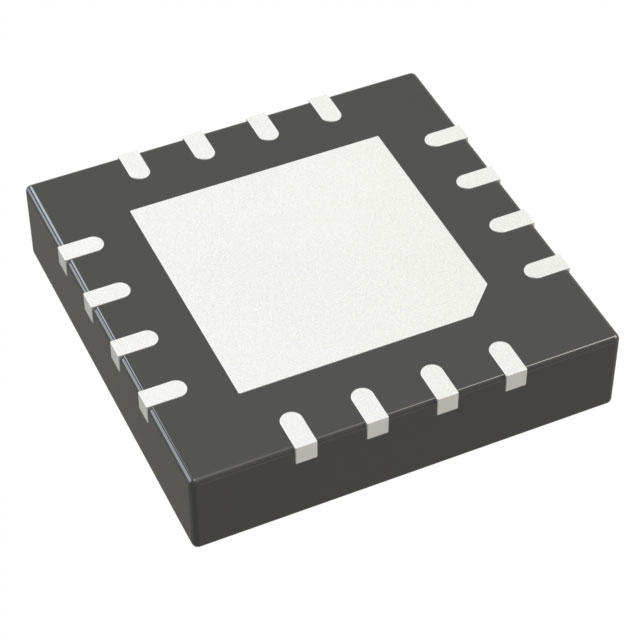

Analog Devices ADG888YCPZ-REEL	480 mOhm	-99 dB	DPDT	16-VQFN Exposed Pad CSP	16-LFCSP-VQ (4x4)	40 mOhm	2	200 pA	29 MHz	58 pF	58 pF	4:2	30 ns	17 ns	1.8 V	5.5 V	-40 °C	125 °C	70 pC	Surface Mount
Analog Devices ADG888YRUZ-REEL7	480 mOhm	-99 dB	DPDT	16-TSSOP	16-TSSOP	40 mOhm	2	200 pA	29 MHz	58 pF	58 pF	4:2	30 ns	17 ns	1.8 V	5.5 V	-40 °C	125 °C	70 pC	Surface Mount	0.173 in	4.4 mm
Analog Devices ADG888YRUZ-REEL	480 mOhm	-99 dB	DPDT	16-TSSOP	16-TSSOP	40 mOhm	2	200 pA	29 MHz	58 pF	58 pF	4:2	30 ns	17 ns	1.8 V	5.5 V	-40 °C	125 °C	70 pC	Surface Mount	0.173 in	4.4 mm
Analog Devices ADG888YRUZ	480 mOhm	-99 dB	DPDT	16-TSSOP	16-TSSOP	40 mOhm	2	200 pA	29 MHz	58 pF	58 pF	4:2	30 ns	17 ns	1.8 V	5.5 V	-40 °C	125 °C	70 pC	Surface Mount	0.173 in	4.4 mm

Catalog

0.4 Ω CMOS, Dual DPDT Switch in WLCSP/LFCSP/TSSOP

Key Features

• 1.8 V to 5.5 V operation

• Ultralow on resistance0.4 Ω typical0.6 Ω maximum at 5 V supply

• 0.4 Ω typical

• 0.6 Ω maximum at 5 V supply

• Excellent audio performance, ultralow distortion0.07 Ω typical0.14 Ω maximum RONflatness

• 0.07 Ω typical

• 0.14 Ω maximum RONflatness

• High current carrying capability400 mA continuous

• 400 mA continuous

• 600 mA peak current at 5 V

• Automotive temperature range: −40°C to +125°C

• Rail-to-rail switching operation

• Typical power consumption (<0.1 μW)

Description

The ADG888 is a low voltage, dual DPDT (double-pole, double-throw) CMOS device optimized for high performance audio switching. With its low power and small physical size, it is ideal for portable devices.This device offers ultralow on resistance of less than 0.8 Ω over the full temperature range, making it an ideal solution for applications requiring minimal distortion through the switch. The ADG888 also has the capability of carrying large amounts of current, typically 400 mA at 5 V operation.When on, each switch conducts equally well in both directions and has an input signal range that extends to the supplies. The ADG888 exhibits break-before-make switching action.The ADG888 is available in a 16-ball WLCSP, 16-lead LFCSP, and a 16-lead TSSOP. These packages make the ADG888 the ideal solution for space-constrained applications.Product Highlights<0.6 Ω over full temperature range of −40°C to +125°C.High current handling capability (400 mA continuous current at 5 V).Low THD + N (0.008% typical).Tiny 16-ball WLCSP, 16-lead LFCSP, and 16-lead TSSOP.ApplicationsCellular phonesPDAsMP3 playersPower routingBattery-powered systemsPCMCIA cardsModemsAudio and video signal routingCommunication systemsData switching
