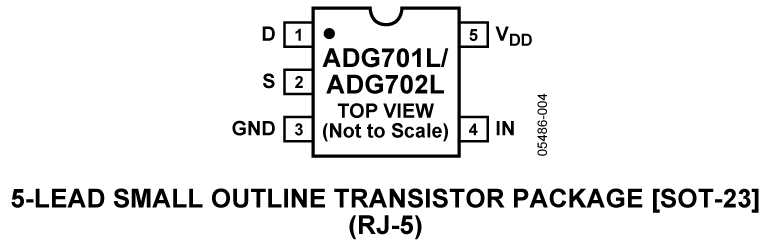

The ADG701L/ADG702Lare monolithic CMOS SPST switches. These switches are designed using an advanced submicron process that provides low power dissipation yet also offers high switching speed, low on resistance, and low leakage currents. In addition, −3 dB bandwidths greater than 200 MHz can be achieved.The ADG701L/ADG702L can operate from a single 1.8 V to 5.5 V supply, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc.Figure 1 and Figure 2 show that with a logic input of 1, the switch of the ADG701L is closed while the switch of the ADG702L is open. Each switch conducts equally well in both directions when on.The ADG701L/ADG702L are packaged as 5-lead SOT-23, 6-lead SOT-23, and 8-lead MSOP.Product Highlights1.8 V to 5.5 V Single-Supply Operation. The ADG701L/ADG702L offer high performance, including low on resistance and fast switching times. The ADG701L/ADG702L are fully specified and guaranteed with 3 V and 5 V supply rails.Very Low RON(3 Ω Maximum at 5 V, 5 Ω Maximum at 3 V). At 1.8 V operation, on resistance (RON) is typically 40 Ω over the temperature range.On Resistance Flatness, RFLAT(ON)(1 Ω Maximum).−3 dB Bandwidth > 200 MHz.Low Power Dissipation. CMOS construction ensures low power dissipation.Fast tON/tOFF.ApplicationBattery-powered systemsCommunication systemsSample-and-hold systemsAudio signal routingVideo switchingMechanical reed relay replacement

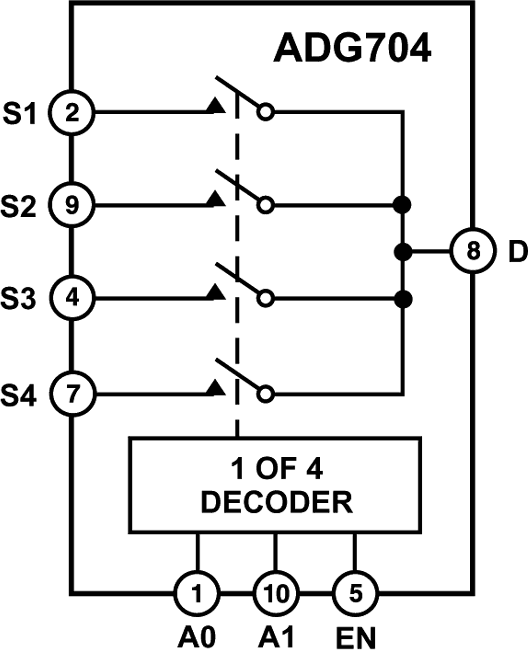

The ADG704 is a CMOS analog multiplexer, comprising four single channels. This multiplexer is designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and high bandwidths.The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed also makes the part suitable for video signal switching.The ADG704 can operate from a single supply range of +1.8 V to +5.5 V, making it ideal for use in battery powered instruments and with the new generation of DACs and ADCs from Analog Devices.The ADG704 switches one of four inputs to a common output, D, as determined by the 3-bit binary address lines, A0, A1 and EN. A Logic "0" on the EN pin disables the device.Each switch of the ADG704 conducts equally well in both directions when ON. The ADG704 exhibits break-before-make switching action.The ADG704 is available in 10-lead µSOIC package.PRODUCT HIGHLIGHTS+1.8 V to +5.5 V Single Supply Operation. The ADG704 offers high performance and is fully specified and guaranteed with +3 V and +5 V supply rails.Very Low RON (4.5 Ω Max at 5 V, 8 Ω Max at 3 V). At supply voltage of +1.8 V, RON is typically 35 Ω over the temperature range.Low On-Resistance Flatness.–3 dB Bandwidth Greater than 200 MHz. 5. Low Power Dissipation. CMOS construction ensures low power dissipation.Fast tON/tOFF.Break-Before-Make Switching Action. 8. 10-Lead µSOIC Package.

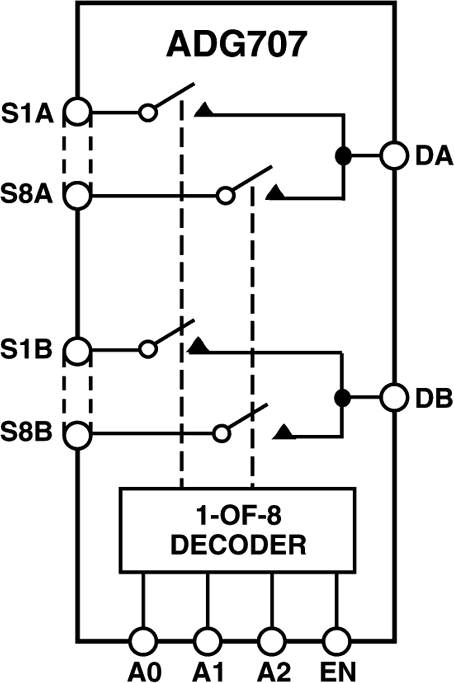

The ADG706 andADG707are low-voltage, CMOS analog multiplexers comprising 16 single channels and eight differential channels, respectively. The ADG706 switches one of 16 inputs (S1–S16) to a common output, D, as determined by the 4-bit binary address lines A0, A1, A2, and A3. The ADG707 switches one of eight differential inputs to a common differential output as determined by the 3-bit binary address lines A0, A1, and A2. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched OFF.Low-power consumption and operating supply range of 1.8 V to 5.5 V make the ADG706 and ADG707 ideal for battery-powered, portable instruments. All channels exhibit break-before-make switching action preventing momentary shorting when switching channels. These devices are also designed to operate from a dual supply of ±2.5 V.These multiplexers are designed on an enhanced submicron process that provides low-power dissipation yet gives high switching speed, very low ON resistance, and leakage currents. ON resistance is in the region of a few ohms and is closely matched between switches and very flat over the full signal range. These parts can operate equally well as either multiplexers or demultiplexers and have an input signal range that extends to the supplies.The ADG706 and ADG707 are available in small 28-lead TSSOP packages.Product HighlightsSingle-/dual-supply operation. The ADG706 and ADG707 are fully specified and guaranteed with 3 V and 5 V single-supply and ±2.5 V dual-supply rails.Low ON resistance (2.5 Ω typical)Low-power consumption (<0.01 µW)Guaranteed break-before-make switching actionSmall 28-lead TSSOP packageApplicationsData acquisition systemsCommunication systemsRelay replacementAudio and video switchingBattery-powered systems

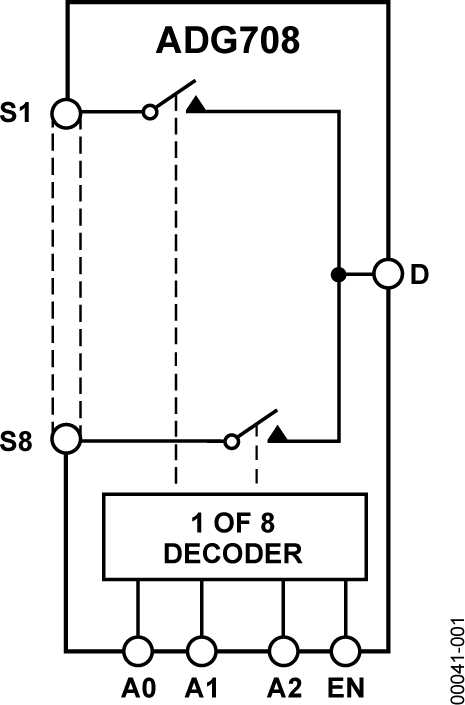

The ADG708 is a low voltage, CMOS analog multiplexers comprising eight single channels. The ADG708 switches one of eight inputs (S1-S8) to a common output, D, as determined by the 3-bit binary address lines A0, A1, and A2. An EN input is used to enable or disable the device. When disabled, all channels are switched OFF.Low power consumption and operating supply range of 1.8 V to 5.5 V make the ADG708 ideal for battery-powered, portable instruments. All channels exhibit break-before-make switching action preventing momentary shorting when switching channels.The ADG708 is available in a 16-lead TSSOP package. The ADG709 is a 4 Channel Differential Multiplexer.APPLICATIONSData acquisition systemsCommunication systemsRelay replacement Audio and video switchingBattery-powered systemsPRODUCT HIGHLIGHTSSingle-/dual-supply operation. The ADG708/ADG709 are fully specified and guaranteed with 3 V and 5 V single-supply and ±2.5 V dual-supply rails.Low RON (3 Ω typical).Low power consumption (<0.01 μW).Guaranteed break-before-make switching action.Small 16-lead TSSOP package.

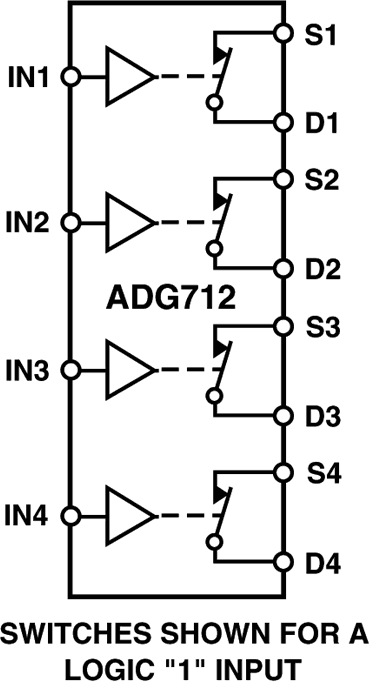

The ADG712 is a monolithic CMOS device containing four independently selectable switches. It is designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and high bandwidth.The ADG712 operates from a single +1.8 V to +5.5 V supply, making it ideal for use in battery powered instruments and with the new generation of DACs and ADCs from Analog Devices. Fast switching times and high bandwidth make the part suitable for video signal switching.Each switch conducts equally well in both directions when ON. The ADG712 is available in 16-lead TSSOP and 16-lead SOIC packages.

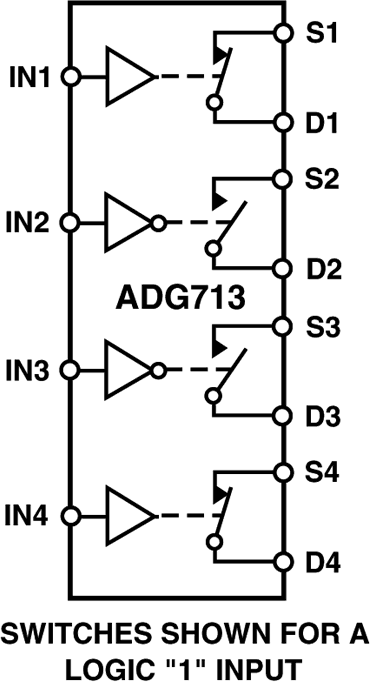

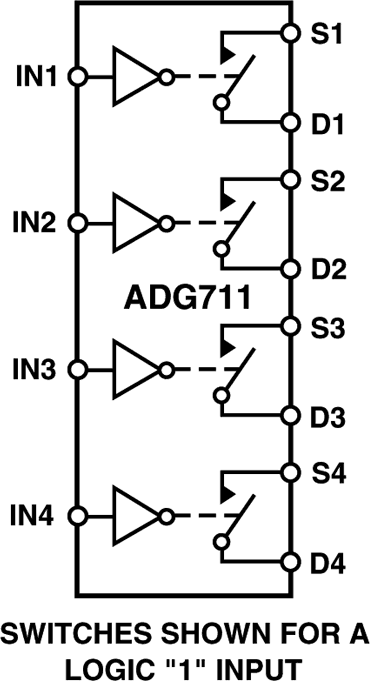

TheADG713is a monolithic CMOS device containing four independently selectable switches. It is designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and high bandwidth.The ADG713 operates from a single +1.8 V to +5.5 V supply, making it ideal for use in battery powered instruments and with the new generation of DACs and ADCs from Analog Devices. Fast switching times and high bandwidth make the part suitable for video signal switching.The ADG713 contains two switches whose digital control logic is similar to theADG711, while the logic is inverted on the other two switches. Each switch conducts equally well in both directions when ON. The ADG713 exhibits break-before-make switching action.The ADG713 is available in 16-lead TSSOP and 16-lead SOIC packages.
