ADG5234High Voltage Latch-Up Proof, Quad SPDT Switches | Interface | 3 | Active | The ADG5233 and ADG5234 are monolithic industrial CMOS analog switches comprising three independently selectable single-pole, double throw (SPDT) switches and four independently selectable SPDT switches, respectively.All channels exhibit break-before-make switching action that prevents momentary shorting when switching channels. AnENinput on the ADG5233 (LFCSP and TSSOP packages) is used to enable or disable the device. When disabled, all channels are switched off.The ultralow capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed coupled with high signal bandwidth make these devices suitable for video signal switching.APPLICATIONSAutomatic test equipmentData acquisitionInstrumentationAvionicsAudio and video switchingCommunication systemsPRODUCT HIGHLIGHTSTrench Isolation Guards Against Latch-Up. A dielectric trench separates the P and N channel transistors thereby preventing latch-up even under severe overvoltage conditions.Ultralow Capacitance and −0.6 pC Charge Injection.Dual-Supply Operation. For applications where the analog signal is bipolar, the ADG5233/ADG5234 can be operated from dual supplies up to ±22 V.Single-Supply Operation. For applications where the analog signal is unipolar, the ADG5233/ADG5234 can be operated from a single-rail power supply up to 40 V.3 V Logic-Compatible Digital Inputs. VINH= 2.0 V, VINL= 0.8 V.No VLLogic Power Supply Required. |
ADG5236High Voltage Latch-Up Proof, Dual SPDT Switches | Interface | 3 | Active | TheADG5236is a monolithic CMOS device containing two independently selectable single-pole/double throw (SPDT) switches. An EN input on the LFCSP package enables or disables the device. When disabled, all channels switch off. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. Both switches exhibit break-before-make switching action for use in multiplexer applications.The ultralow capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed together with high signal bandwidth make the device suitable for video signal switching.APPLICATIONSAutomatic test equipmentData acquisitionInstrumentationAvionicsAudio and video switchingCommunication systemsPRODUCT HIGHLIGHTSTrench Isolation Guards Against Latch-Up. A dielectric trench separates the P and N channel transistors thereby preventing latch-up even under severe overvoltage conditions.Ultralow capacitance and < 1 pC charge injection.Dual-Supply Operation. For applications where the analog signal is bipolar, theADG5236can be operated from dual supplies up to ±22 V.Single-Supply Operation. For applications where the analog signal is unipolar, the ADG5236 can be operated from a single rail power supply up to 40 V.3 V Logic Compatible Digital Inputs. VINH= 2.0 V, VINL= 0.8 V.No VLLogic Power Supply Required. |
ADG5243FUser Defined Fault Protection and Detection, 0.8 pC QINJ, Triple SPDT | Development Boards, Kits, Programmers | 2 | Active | The ADG5243F comprises three independently selectable, singlepole/double-throw (SPDT) switches. All channels exhibit break-before-make switching action that prevents momentary shorting when switching channels. AnENinput enables or disables the device. When disabled, all channels are switched off. Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the supplies. The primary supply voltages define the on-resistance profile, whereas the secondary supply voltages define the voltage level at which the overvoltage protection engages.When no power supplies are present, the channel remains in the off condition, and the switch inputs are high impedance. Under normal operating conditions, if the analog input signal levels on any Sx pin exceed the positive fault voltage (POSFV) or the negative fault voltage (NEGFV) by a threshold voltage (VT), the channel turns off and that Sx pin becomes high impedance. If the switch is selected to be on, then the drain pin is pulled to the secondary supply voltage that was exceeded. Input signal levels up to −55 V or +55 V relative to ground are blocked, in both the powered and unpowered conditions.The low capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-andhold applications, where low glitch switching and fast settling times are required.Note that, throughout this data sheet, multifunction pins, such as IN1/F1, are referred to either by the entire pin name or by a single function of the pin, for example, IN1, when only that function is relevant.PRODUCT HIGHLIGHTSThe source pins are protected against voltages greater than the secondary supply rails, up to −55 V and +55 V.The source pins are protected against voltages between −55 V and +55 V in an unpowered state.Overvoltage detection with the digital output indicates the operating state of the switches.Trench isolation guards against latch-up.Optimized for low charge injection and on-capacitance.The ADG5243F can be operated from a dual supply of ±5 V to ±22 V or a single power supply of 8 V to 44 V.APPLICATIONSAnalog input/output modulesProcess control/distributed control systemsData acquisitionInstrumentationAvionicsAutomatic test equipmentCommunication systemsRelay replacement |

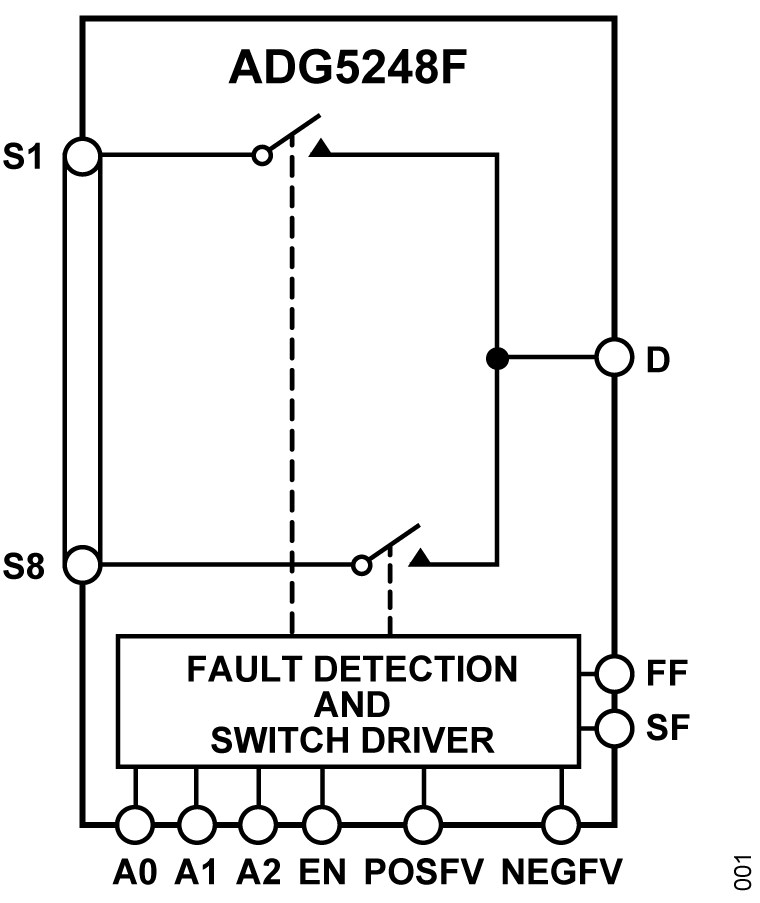

ADG5248FUser Defined Fault Protection and Detection, 0.8 pC QINJ, 8:1 Multiplexer | Analog Switches, Multiplexers, Demultiplexers | 2 | Active | The ADG5248F andADG5249Fare 8:1 and dual 4:1 analog multiplexers. The ADG5248F switches one of eight inputs to a common output and the ADG5249F switches one of four differential inputs to a common differential output. Each channel conducts equally well in both directions when on, and each channel has an input signal range that extends to the supplies. The primary supply voltages define the on-resistance profile, whereas the secondary supply voltages define the voltage level at which the overvoltage protection engages.When no power supplies are present, the channel remains in the off condition, and the switch inputs are high impedance. Under normal operating conditions, if the analog input signal levels on any Sx pin exceed positive fault voltage (POSFV) or negative fault voltage (NEGFV) by a threshold voltage (VT), the channel turns off and that Sx pin becomes high impedance. If the switch is selected to be on, then the drain pin is pulled to the secondary supply voltage that was exceeded. Input signal levels up to +55 V or −55 V relative to ground are blocked, in both the powered and unpowered condition.The low capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch switching and fast settling times are required.Note that, throughout this data sheet, multifunction pins, such as A0/F2, are referred to either by the entire pin name or by a single function of the pin, for example, A0, when only that function is relevant.APPLICATIONSAnalog input/output modulesProcess control/distributed control systemsData acquisitionInstrumentationAvionicsAutomatic test equipmentCommunication systemsRelay replacement |
ADG5249FUser Defined Fault Protection and Detection, 0.8 pC QINJ, Dual 4:1 Multiplexers | Interface | 3 | Active | TheADG5248Fand ADG5249F are 8:1 and dual 4:1 analog multiplexers. The ADG5248F switches one of eight inputs to a common output and the ADG5249F switches one of four differential inputs to a common differential output. Each channel conducts equally well in both directions when on, and each channel has an input signal range that extends to the supplies. The primary supply voltages define the on-resistance profile, whereas the secondary supply voltages define the voltage level at which the overvoltage protection engages.When no power supplies are present, the channel remains in the off condition, and the switch inputs are high impedance. Under normal operating conditions, if the analog input signal levels on any Sx pin exceed positive fault voltage (POSFV) or negative fault voltage (NEGFV) by a threshold voltage (VT), the channel turns off and that Sx pin becomes high impedance. If the switch is selected to be on, then the drain pin is pulled to the secondary supply voltage that was exceeded. Input signal levels up to +55 V or −55 V relative to ground are blocked, in both the powered and unpowered condition.The low capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch switching and fast settling times are required.Note that, throughout this data sheet, multifunction pins, such as A0/F2, are referred to either by the entire pin name or by a single function of the pin, for example, A0, when only that function is relevant.APPLICATIONSAnalog input/output modulesProcess control/distributed control systemsData acquisitionInstrumentationAvionicsAutomatic test equipmentCommunication systemsRelay replacement |
ADG526ACMOS Latched ± 15 V 16 Channel Analog Multiplexer | Analog Switches, Multiplexers, Demultiplexers | 8 | Active | The ADG526A andADG527Aare CMOS monolithic analog multiplexers with 16 single channels and dual 8 channels, respectively. On-chip latches facilitate microprocessor interfacing.The ADG526A switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. The ADG527A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs.The ADG526A and ADG527A are designed on an enhanced LC2MOS process that gives an increased signal capability of VSSto VDDand enables operation over a wide range of supply voltages. The devices can comfortably operate anywhere in the 10.8 V to 16.5 V single- or dual-supply range. These multiplexers also feature high switching speeds and low RON.PRODUCT HIGHLIGHTSSingle- or Dual-Supply Specifications with a Wide Tolerance. The devices are specified in the 10.8 V to 16.5 V range for both single and dual supplies.Easily Interfaced. The ADG526A and ADG527A can be easily interfaced with microprocessors. TheWRsignal latches the state of the address control lines and the enable line. TheRSsignal clears both the address and enable data in the latches, resulting in no output (all switches off).RScan be tied to the microprocessor reset pin.Extended Signal Range. The enhanced LC2MOS processing results in a high breakdown and an increased analog signal range from VSSto VDD.Break-Before-Make Switching. Switches are guaranteed break-before-make so that input signals are protected against momentary shorting.Low Leakage. Leakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits.APPLICATIONSData acquisition systemsCommunication systemsAutomatic test equipmentMicroprocessor controlled systems |

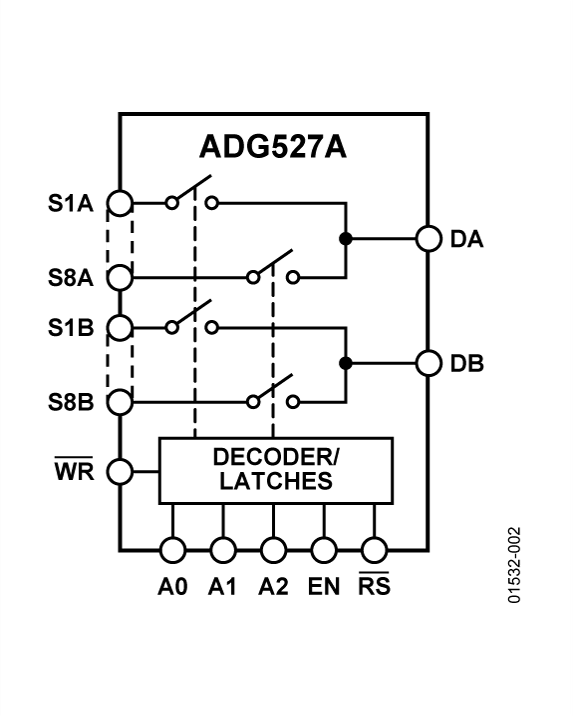

ADG527ALatchable Differential 8 Channel Multiplexer (Latched ADG507A) | Interface | 2 | Active | TheADG526Aand ADG527A are CMOS monolithic analog multiplexers with 16 single channels and dual 8 channels, respectively. On-chip latches facilitate microprocessor interfacing. The ADG526A switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. The ADG527A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs.The ADG526A and ADG527A are designed on an enhanced LC2MOS process that gives an increased signal capability of VSSto VDDand enables operation over a wide range of supply voltages. The devices can comfortably operate anywhere in the 10.8 V to 16.5 V single- or dual-supply range. These multiplexers also feature high switching speeds and low RON.APPLICATIONSData acquisition systemsCommunication systemsAutomatic test equipmentMicroprocessor controlled systemsPRODUCT HIGHLIGHTSSingle- or Dual-Supply Specifications with a Wide Tolerance. The devices are specified in the 10.8 V to 16.5 V range for both single and dual supplies.Easily Interfaced. The ADG526A and ADG527A can be easily interfaced with microprocessors. The WR signal latches the state of the address control lines and the enable line. The RS signal clears both the address and enable data in the latches, resulting in no output (all switches off). RS can be tied to the microprocessor reset pin.Extended Signal Range. The enhanced LC2 MOS processing results in a high breakdown and an increased analog signal range from VSS to VDD.Break-Before-Make Switching. Switches are guaranteed break-before-make so that input signals are protected against momentary shorting.Low Leakage. Leakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits. |

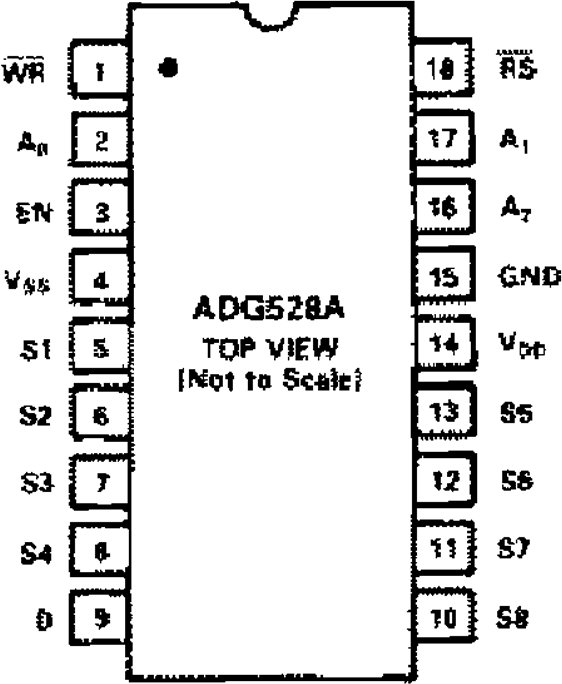

ADG528ACMOS Latched 8-Channel Analog Multiplexer | Analog Switches, Multiplexers, Demultiplexers | 4 | Active | The ADG528A andADG529Aare CMOS monolithic analog multiplexers with eight channels and four dual channels, respectively. On-chip latches facilitate microprocessor interfacing. The ADG528A switches one of eight inputs to a common output, depending on the state of three binary addresses and an enable input. The ADG529A switches one of four differential inputs to a common differential output, depending on the state of two binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs.The ADG528A and ADG529A are designed on an enhanced LC2MOS process, which gives an increased signal capability of VSSto VDDand enables operation over a wide range of supply voltages. The devices can comfortably operate anywhere in the 10.8 V to 16.5 V single- or dual-supply range. These multiplex-ers also feature high switching and low RON.The ADG529A is no longer available.Product HighlightsSingle-/dual-supply specifications with a wide tolerance.The devices are specified in the 10.8 V to 16.5 V range for both single- and dual-supplies.Easily InterfacedThe ADG528A and ADG529A can be easily interfaced with microprocessors. TheWRsignal latches the state of the address control lines and the enable line. TheRSsignal clears both the address and enable data in the latches resulting in no output (all switches off).RScan be tied to the microprocessor reset pin.Extended Signal RangeThe enhanced LC2MOS processing results in a high breakdown and an increased analog signal range of VSSto VDD.Break-Before-Make SwitchingSwitches are guaranteed break-before-make so that input signals are protected against momentary shorting.Low LeakageLeakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits. |
| Interface | 1 | Obsolete | ||

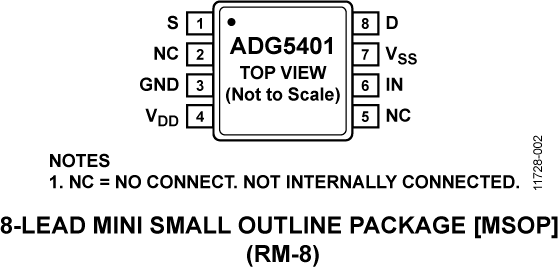

ADG5401High Voltage Latch-Up Proof, Single SPST Switch | Analog Switches, Multiplexers, Demultiplexers | 2 | Active | The ADG5401 is a monolithic industrial CMOS analog switch containing a latch-up immune single-pole/single-throw (SPST) switch. The switch conducts equally well in both directions when on, and has an input signal range that extends to the power supplies. In the off condition, signal levels up to the supplies are blocked.The ultralow on resistance and on-resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications, where low distortion is critical. The latch-up immune construction, and high ESD rating, makes these switches more robust in harsh environments.PRODUCT HIGHLIGHTSTrench isolation guards against latch-up. A dielectric trench separates the P and N channel transistors thereby preventing latch-up even under severe overvoltage conditions.Low RON.Dual-supply operation. For applications where the analog signal is bipolar, the ADG5401 can be operated from dual supplies up to ±22 V.Single-supply operation. For applications where the analog signal is unipolar, the ADG5401 can be operated from a single-rail power supply up to 40 V.3 V logic compatible digital inputs: VINH= 2.0 V, VINL= 0.8 V.No VLlogic power supply required.Available in 8-lead MSOP package.APPLICATIONSHigh voltage signal routingAutomatic test equipmentAnalog front-end circuitsPrecision data acquisitionAmplifier gain selectIndustrial InstrumentationRelay replacement |
| Part | Category | Description |
|---|---|---|
Analog Devices ADM6713RAKSZ-REELObsolete | Integrated Circuits (ICs) | IC SUPERVISOR 1 CHANNEL SC70-4 |
Analog Devices | RF and Wireless | RF AMP SINGLE GENERAL PURPOSE RF AMPLIFIER 20GHZ 3.6V 22-PIN DIE TRAY |
Analog Devices | Integrated Circuits (ICs) | LOW NOISE, SWITCHED CAPACITOR REGULATED VOLTAGE INVERTERS |
Analog Devices | Integrated Circuits (ICs) | QUAD 16-BIT/12-BIT ±10V VOUTSOFTSPAN DACS WITH 10PPM/°C MAX REFERENCE |
Analog Devices | Integrated Circuits (ICs) | SERIAL 14-BIT, 3.5MSPS SAMPLING ADC WITH BIPOLAR INPUTS |
Analog Devices | Integrated Circuits (ICs) | ISOSPI ISOLATED COMMUNICATIONS INTERFACE |
Analog Devices | Integrated Circuits (ICs) | 4.5A, 500KHZ STEP-DOWN SWITCHING REGULATOR |
Analog Devices | Integrated Circuits (ICs) | 300 MA, LOW QUIESCENT CURRENT, ADJUSTABLE OUTPUT, CMOS LINEAR REGULATOR |
Analog Devices AD767KNObsolete | Integrated Circuits (ICs) | IC DAC 12BIT V-OUT 24DIP |
Analog Devices | Integrated Circuits (ICs) | QUAD 12-/10-/8-BIT RAIL-TO-RAIL DACS WITH 10PPM/°C REFERENCE |
