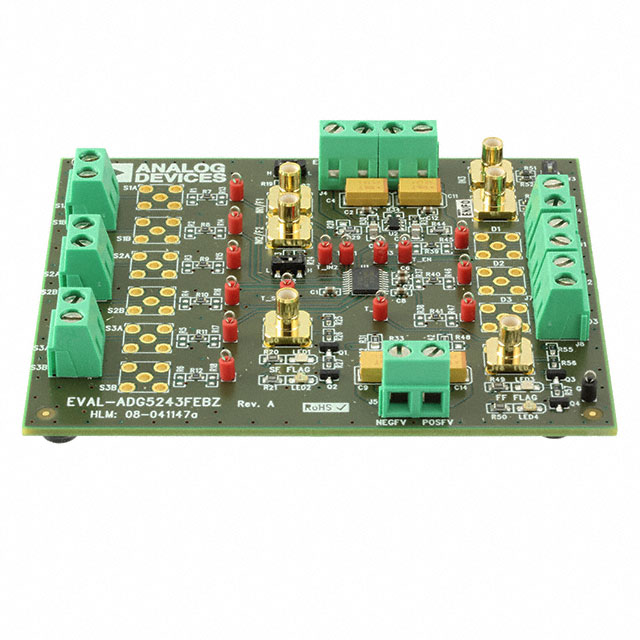

ADG5243F Series
User Defined Fault Protection and Detection, 0.8 pC QINJ, Triple SPDT
Manufacturer: Analog Devices
Catalog
User Defined Fault Protection and Detection, 0.8 pC QINJ, Triple SPDT
Key Features
• User defined supplies set overvoltage levelOvervoltage protection up to −55 V and +55 VPower-off protection up to −55 V and +55 VOvervoltage detection on source pinsMinimum secondary supply level: 4.5 V single-supplyInterrupt flags indicate fault status
• Overvoltage protection up to −55 V and +55 V
• Power-off protection up to −55 V and +55 V
• Overvoltage detection on source pins
• Minimum secondary supply level: 4.5 V single-supply
• Interrupt flags indicate fault status
• Low charge injection (QINJ): 0.8 pC
• Low drain/source on capacitance: 10 pF
• Latch-up immune under any circumstance
• Known state without digital inputs present
• VSSto VDDanalog signal range±5 V to ±22 V dual supply operation8 V to 44 V single-supply operationFully specified at ±15 V, ±20 V, +12 V, and +36 V
• ±5 V to ±22 V dual supply operation
• 8 V to 44 V single-supply operation
• Fully specified at ±15 V, ±20 V, +12 V, and +36 V
Description
AI
