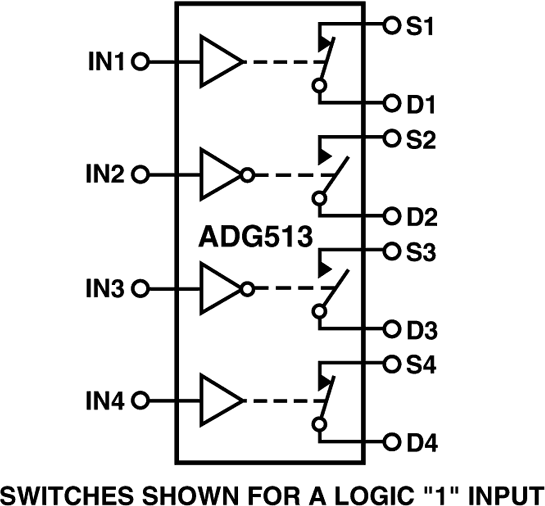

TheADG511, ADG512 andADG513are monolithic CMOS ICs containing four independently selectable analog switches. These switches feature low, well-controlled on resistance and wide analog signal range, making them ideal for precision analog signal switching.These switch arrays are fabricated using Analog Devices’ advanced linear compatible CMOS (LC2MOS) process which offers the additional benefits of low leakage currents, ultralow power dissipation and low capacitance for fast switching speeds with minimum charge injection. These features make the ADG511, ADG512 and ADG513 the optimum choice for a wide variety of signal switching tasks in precision analog signal processing and data acquisition systems.The ability to operate from single +3 V, +5 V or ±5 V bipolar supplies make the ADG511, ADG512 and ADG513 perfect for use in battery-operated instruments, 4–20 mA loop systems and with the new generation of DACs and ADCs from Analog Devices. The use of 5 V supplies and reduced operating currents give much lower power dissipation than devices operating from ±15 V supplies.The ADG511, ADG512 and ADG513 contain four independent SPST switches. The ADG511 and ADG512 differ only in that the digital control logic is inverted. The ADG511 switch is turned on with a logic low on the appropriate control input, while a logic high is required for the ADG512. The ADG513 contains two switches whose digital control logic is similar to that of the ADG511 while the logic is inverted in the remaining two switches.PRODUCT HIGHLIGHTS5 Volt Single Supply OperationThe ADG511 / ADG512 / ADG513 offers high performance, including low on resistance and wide signal range, fully specified and guaranteed with +3 V, ±5 V as well as +5 V supply rails.Ultralow Power DissipationCMOS construction ensures ultralow power dissipation.Low RONBreak-Before-Make SwitchingSwitches are guaranteed to have break-before-make operation. This allows multiple outputs to be tied together for multiplexer applications without the possibility of momentary shorting between channels.APPLICATIONSBattery-Powered InstrumentsSingle Supply SystemsRemote Powered Equipment5 V Supply SystemsComputer Peripherals such as Disk DrivesPrecision InstrumentationAudio and Video SwitchingAutomatic Test EquipmentPrecision Data AcquisitionSample Hold SystemsCommunication SystemsCompatible with ±5 V Supply DACs and ADCs such asAD7840/AD7848,AD7870/AD7871/AD7872/AD7874/AD7875/AD7876/AD7878

TheADG511,ADG512and ADG513 are monolithic CMOS ICs containing four independently selectable analog switches. These switches feature low, well-controlled on resistance and wide analog signal range, making them ideal for precision analog signal switching.These switch arrays are fabricated using Analog Devices’ advanced linear compatible CMOS (LC2MOS) process which offers the additional benefits of low leakage currents, ultralow power dissipation and low capacitance for fast switching speeds with minimum charge injection. These features make the ADG511, ADG512 and ADG513 the optimum choice for a wide variety of signal switching tasks in precision analog signal processing and data acquisition systems.The ability to operate from single +3 V, +5 V or ±5 V bipolar supplies make the ADG511, ADG512 and ADG513 perfect for use in battery-operated instruments, 4–20 mA loop systems and with the new generation of DACs and ADCs from Analog Devices. The use of 5 V supplies and reduced operating currents give much lower power dissipation than devices operating from ±15 V supplies.The ADG511, ADG512 and ADG513 contain four independent SPST switches. The ADG511 and ADG512 differ only in that the digital control logic is inverted. The ADG511 switch is turned on with a logic low on the appropriate control input, while a logic high is required for the ADG512. The ADG513 contains two switches whose digital control logic is similar to that of the ADG511 while the logic is inverted in the remaining two switches.PRODUCT HIGHLIGHTS5 Volt Single Supply OperationThe ADG511 / ADG512 / ADG513 offers high performance, including low on resistance and wide signal range, fully specified and guaranteed with +3 V, ±5 V as well as +5 V supply rails.Ultralow Power DissipationCMOS construction ensures ultralow power dissipation.Low RONBreak-Before-Make SwitchingSwitches are guaranteed to have break-before-make operation. This allows multiple outputs to be tied together for multiplexer applications without the possibility of momentary shorting between channels.

The ADG5204 is a complementary metal oxide semiconductor (CMOS) analog multiplexer, comprising four single channels.The ultralow capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed together with high signal bandwidth make the ADG5204 suitable for video signal switching.The ADG5204 is designed on a trench process, which guards against latch-up. A dielectric trench separates the P and N channel transistors, thereby preventing latch-up even under severe overvoltage conditions. The ADG5204 switches one of four inputs to a common output, D, as determined by the 3-bit binary address lines, A0, A1, and EN. Logic 0 on the EN pin disables the device. Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. All switches exhibit break-before-make switching action.APPLICATIONSAutomatic test equipmentData acquisitionInstrumentationAvionicsAudio and video switchingCommunication systemsPRODUCT HIGHLIGHTSTrench Isolation Guards Against Latch-Up. A dielectric trench separates the P and N channel transistors, thereby preventing latch-up even under severe overvoltage conditions.Ultralow capacitance and < 1 pC charge injection.Dual-Supply Operation. For applications where the analog signal is bipolar, the ADG5204 can be operated from dual supplies up to ±22 V.Single-Supply Operation. For applications where the analog signal is unipolar, the ADG5204 can be operated from a single rail power supply up to 40 V.3 V Logic Compatible Digital Inputs.VINH= 2.0 V, VINL= 0.8 V.No VLLogic Power Supply Required.

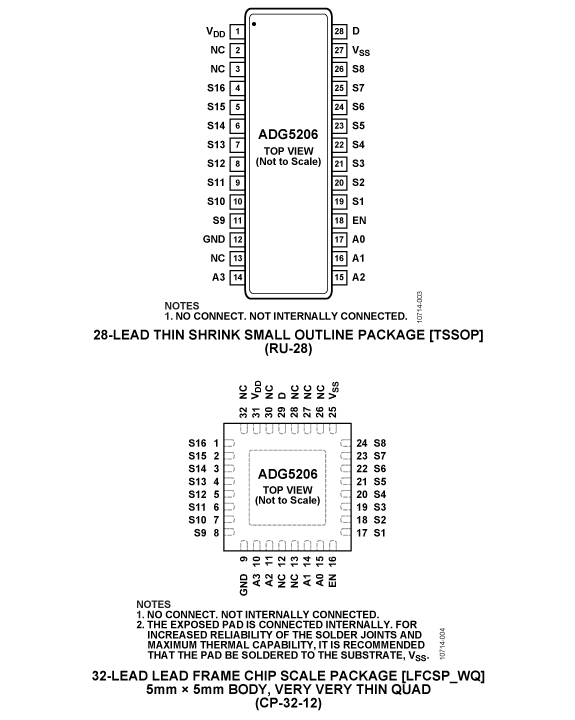

The ADG5206 is a monolithic CMOS analog multiplexer comprising sixteen single channels. The ADG5206 switches one of sixteen inputs to a common output, as determined by the 4-bit binary address lines, A0, A1, A2, and A3.An EN input enables or disables the device. When EN is low, the device is disabled, and all channels switch off. The ultralow capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed coupled with high signal bandwidth make these devices suitable for video signal switching.Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the power supplies. In the off condition, signal levels up to the supplies are blocked.The ADG5206 does not have a VLpin; instead, the logic power supply is generated internally by an on-chip voltage generator.APPLICATIONSAutomatic test equipmentData acquisitionInstrumentationAvionicsBattery MonitoringCommunication systemsPRODUCT HIGHLIGHTSTrench Isolation Guards Against Latch-Up. A dielectric trench separates the P and N channel transistors to prevent latch-up even under severe overvoltage conditions.Optimal switch design for low charge injection, low switch capacitance and low leakage currentsThe ADG5206 achieves 8 kV HBM ESD specification on all external pinsDual-Supply Operation. For applications where the analog signal is bipolar, the ADG5206 can be operated from dual supplies of up to ±22 V.Single-Supply Operation. For applications where the analog signal is unipolar, the ADG5206 can be operated from a single rail power supply of up to 40 V.

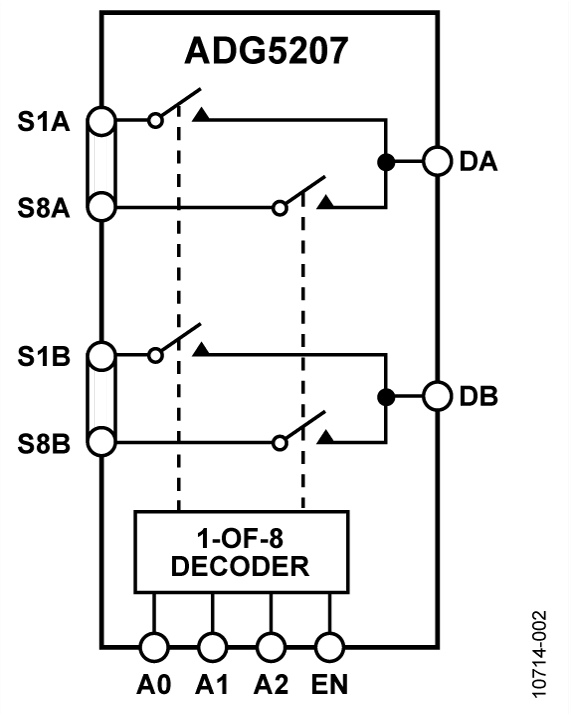

The ADG5207 is a monolithic CMOS analog multiplexer comprising eight differential channels. The ADG5207 switches one of eight differential inputs to a common differential output, as determined by the 3-bit binary address lines, A0, A1, and A2.An EN input enables or disables the device. When EN is low, the device is disabled, and all channels switch off. The ultralow capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed coupled with high signal bandwidth make these devices suitable for video signal switching.Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the power supplies. In the off condition, signal levels up to the supplies are blocked.The ADG5207 does not have a VLpin; instead, the logic power supply is generated internally by an on-chip voltage generator.APPLICATIONSAutomatic test equipmentData acquisitionInstrumentationAvionicsBattery MonitoringCommunication systemsPRODUCT HIGHLIGHTSTrench Isolation Guards Against Latch-Up. A dielectric trench separates the P and N channel transistors to prevent latch-up even under severe overvoltage conditions.Optimal switch design for low charge injection, low switch capacitance and low leakage currentsthe ADG5207 achieves 8 kV on the I/O port to supply pins, 2 kV on the I/O port to I/O port pins, and 8 kV on all other pins.Dual-Supply Operation. For applications where the analog signal is bipolar, the ADG5207 can be operated from dual supplies of up to ±22 V.Single-Supply Operation. For applications where the analog signal is unipolar, the ADG5207 can be operated from a single rail power supply of up to 40 V.

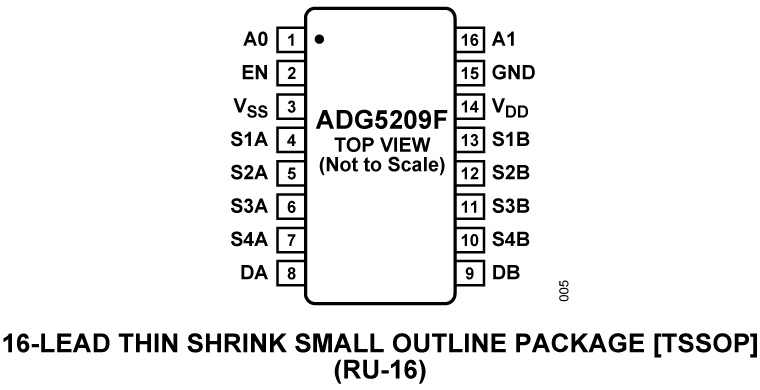

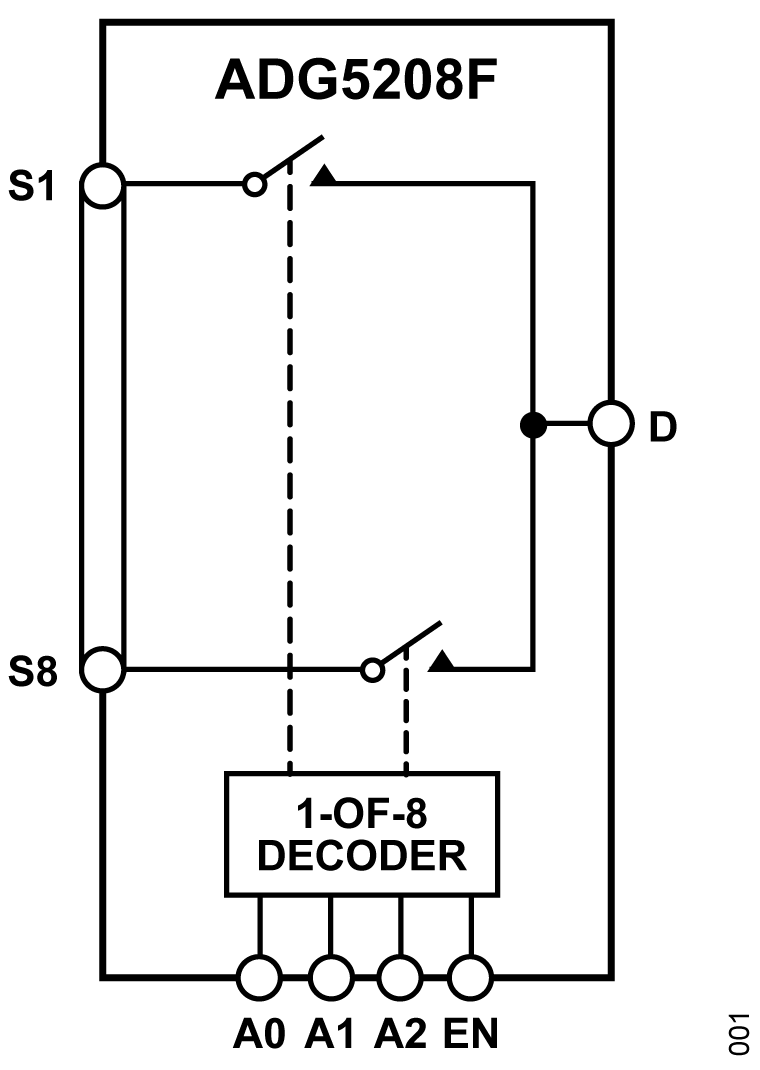

The ADG5208F andADG5209Fare 8:1 and dual 4:1 analog multiplexers. The ADG5208F switches one of eight inputs to a common output, and the ADG5209F switches one of four differential inputs to a common differential output. An EN input on both devices enables or disables the device. Each channel conducts equally well in both directions when on, and each channel has an input signal range that extends to the supplies. The digital inputs are compatible with 3 V logic inputs over the full operating supply range.When no power supplies are present, the channelremains in the off condition, and the switch inputs are high impedance. Under normal operating conditions, if the analog input signal levels on any Sx pin exceed positive fault voltage (VDD) or negative fault voltage (VSS) by a threshold voltage (VT), the channel turns off and that Sx pin becomes high impedance. If the fault channel is selected, the drain pin is pulled to the secondary supply voltage that was exceeded. Input signal levels of up to −55 V or +55 V relative to ground are blocked, in both the powered and unpowered conditions.The low capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch switching and fast settling times are required.Product HighlightsThe source pins are protected against voltages greater than the supply rails, up to −55 V and +55 V.The source pins are protected against voltages between −55 V and +55 V in an unpowered state.Trench isolation guards against latch-up.Optimized for low charge injection and on capacitance.The ADG5208F/ADG5209F can be operated from a dual supply of ±5 V up to ±22 V or a single power supply of 8 V up to 44 V.ApplicationsAnalog input/output modulesProcess control/distributed control systemsData acquisitionInstrumentationAvionicsAutomatic test equipmentCommunication systemsRelay replacement

TheADG5208Fand ADG5209F are 8:1 and dual 4:1 analog multiplexers. The ADG5208F switches one of eight inputs to a common output, and the ADG5209F switches one of four differential inputs to a common differential output. An EN input on both devices enables or disables the device. Each channel conducts equally well in both directions when on, and each channel has an input signal range that extends to the supplies. The digital inputs are compatible with 3 V logic inputs over the full operating supply range.When no power supplies are present, the channelremains in the off condition, and the switch inputs are high impedance. Under normal operating conditions, if the analog input signal levels on any Sx pin exceed positive fault voltage (VDD) or negative fault voltage (VSS) by a threshold voltage (VT), the channel turns off and that Sx pin becomes high impedance. If the fault channel is selected, the drain pin is pulled to the secondary supply voltage that was exceeded. Input signal levels of up to −55 V or +55 V relative to ground are blocked, in both the powered and unpowered conditions.The low capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch switching and fast settling times are required.Product HighlightsThe source pins are protected against voltages greater than the supply rails, up to −55 V and +55 V.The source pins are protected against voltages between −55 V and +55 V in an unpowered state.Trench isolation guards against latch-up.Optimized for low charge injection and on capacitance.The ADG5208F/ADG5209F can be operated from a dual supply of ±5 V up to ±22 V or a single power supply of 8 V up to 44 V.ApplicationsAnalog input/output modulesProcess control/distributed control systemsData acquisitionInstrumentationAvionicsAutomatic test equipmentCommunication systemsRelay replacement

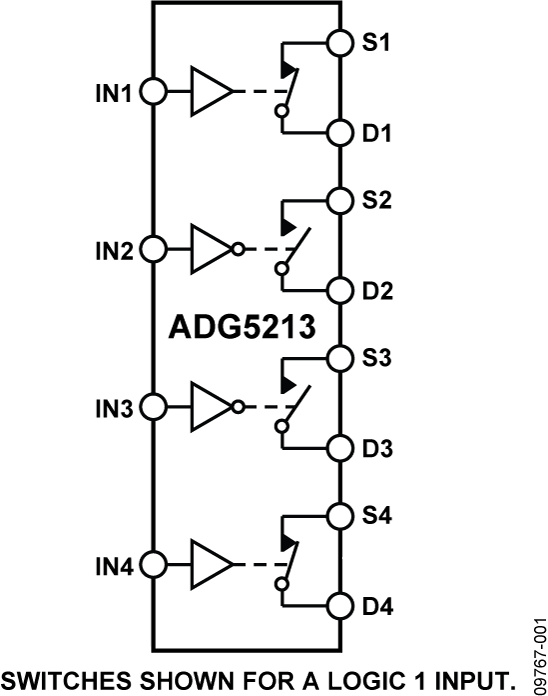

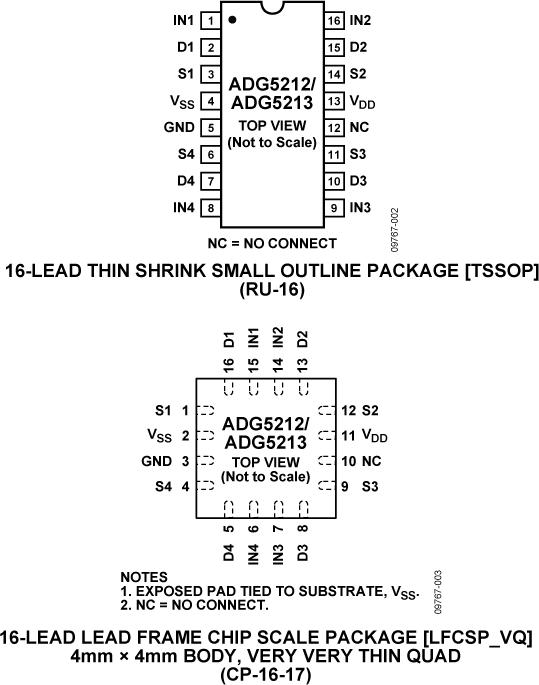

The ADG5212 / ADG5213 contain four independent single-pole/single-throw (SPST) switches. The ADG5212 switches turn on with Logic 1. The ADG5213 has two switches with digital control logic similar to that of the ADG5212; however, the logic is inverted on the other two switches. Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.The ADG5212 and ADG5213 do not have a VLpin. The digital inputs are compatible with 3 V logic inputs over the full operating supply range.The ultralow capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed together with high signal bandwidth make the parts suitable for video signal switching.APPLICATIONSAutomatic test equipmentData acquisitionInstrumentationAvionicsAudio and video switchingCommunication systemsPRODUCT HIGHLIGHTSTrench Isolation Guards Against Latch-Up. A dielectric trench separates the P and N channel transistors thereby preventing latch-up even under severe overvoltage conditions.Ultralow capacitance and < 1 pC charge injection.Dual-Supply Operation. For applications where the analog signal is bipolar, the ADG5212 / ADG5213 can be operated from dual supplies up to ±22 V.Single-Supply Operation. For applications where the analog signal is unipolar, the ADG5212 / ADG5213 can be operated from a single rail power supply up to 40 V.3 V Logic Compatible Digital Inputs. VINH= 2.0 V, VINL= 0.8 V.No VLLogic Power Supply Required.

The ADG5212 / ADG5213 contain four independent single-pole/single-throw (SPST) switches. The ADG5212 switches turn on with Logic 1. The ADG5213 has two switches with digital control logic similar to that of the ADG5212; however, the logic is inverted on the other two switches. Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.The ADG5212 and ADG5213 do not have a VLpin. The digital inputs are compatible with 3 V logic inputs over the full operating supply range.The ultralow capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed together with high signal bandwidth make the parts suitable for video signal switching.APPLICATIONSAutomatic test equipmentData acquisitionInstrumentationAvionicsAudio and video switchingCommunication systemsPRODUCT HIGLIGHHTSTrench Isolation Guards Against Latch-Up. A dielectric trench separates the P and N channel transistors thereby preventing latch-up even under severe overvoltage conditions.Ultralow capacitance and < 1 pC charge injection.Dual-Supply Operation. For applications where the analog signal is bipolar, the ADG5212 / ADG5213 can be operated from dual supplies up to ±22V.Single-Supply Operation. For applications where the analog signal is unipolar, the ADG5212 / ADG5213 can be operated from a single rail power supply up to 40 V.3 V Logic Compatible Digital Inputs. VINH= 2.0 V, VINL= 0.8 V.No VLLogic Power Supply Required.

The ADG5233 and ADG5234 are monolithic industrial CMOS analog switches comprising three independently selectable single-pole, double throw (SPDT) switches and four independently selectable SPDT switches, respectively.All channels exhibit break-before-make switching action that prevents momentary shorting when switching channels. AnENinput on the ADG5233 (LFCSP and TSSOP packages) is used to enable or disable the device. When disabled, all channels are switched off.The ultralow capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed coupled with high signal bandwidth make these devices suitable for video signal switching.APPLICATIONSAutomatic test equipmentData acquisitionInstrumentationAvionicsAudio and video switchingCommunication systemsPRODUCT HIGHLIGHTSTrench Isolation Guards Against Latch-Up. A dielectric trench separates the P and N channel transistors thereby preventing latch-up even under severe overvoltage conditions.Ultralow Capacitance and −0.6 pC Charge Injection.Dual-Supply Operation. For applications where the analog signal is bipolar, the ADG5233/ADG5234 can be operated from dual supplies up to ±22 V.Single-Supply Operation. For applications where the analog signal is unipolar, the ADG5233/ADG5234 can be operated from a single-rail power supply up to 40 V.3 V Logic-Compatible Digital Inputs. VINH= 2.0 V, VINL= 0.8 V.No VLLogic Power Supply Required.
