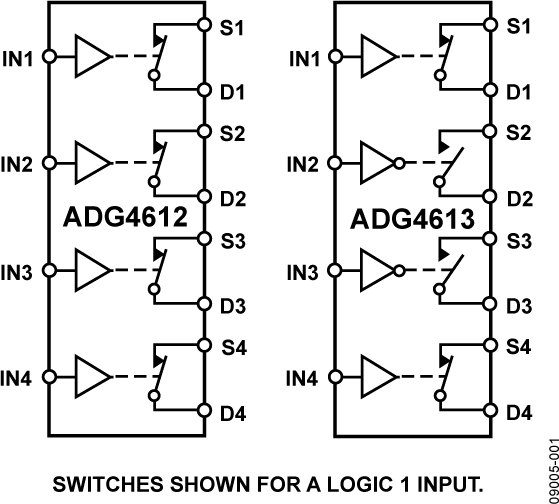

The ADG4612 &ADG4613contain four independent single-pole/ single-throw (SPST) switches. The ADG4612 switches are turned on with Logic 1 on the appropriate control input. The ADG4613 has two switches with digital control logic similar to that of the ADG4612; the logic is inverted on the other two switches. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. The ADG4613 exhibits break-before-make switching action for use in multiplexer applications.When no power supplies are present the switch remains in the OFF condition and the switch inputs are high impedance inputs. This ensures that no current flows that may damage the switch. This is very useful in application where analog signals may be present at the switch inputs before power or where the user has no control over the Power Supply Sequence.In the off condition, signal levels up to 16V are blocked. Also, if the analog input signal levels exceed VDDby VTthen the switch will turn off.The ultralow on resistance of these switches make them ideal solutions for data acquisition and gain switching applications where low on resistance and distortion is critical. The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals.APPLICATIONSHot swap applicationsData acquisition systemsBattery-powered systemsAutomatic test equipmentCommunication systemsRelay ReplacementPRODUCT HIGHLIGHTSPower-Off Protection On Both S and D Pins.PSS Robustness.Overvoltage Protection up to 16 V.5.2 Ω On Resistance.16-Lead TSSOP and 3 mm × 3 mm LFCSP Packages.

TheADG4612& ADG4613 contain four independent single-pole/ single-throw (SPST) switches. The ADG4612 switches are turned on with Logic 1 on the appropriate control input. The ADG4613 has two switches with digital control logic similar to that of the ADG4612; the logic is inverted on the other two switches. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. The ADG4613 exhibits break-before-make switching action for use in multiplexer applications.When no power supplies are present the switch remains in the OFF condition and the switch inputs are high impedance inputs. This ensures that no current flows that may damage the switch. This is very useful in application where analog signals may be present at the switch inputs before power or where the user has no control over the Power Supply Sequence.In the off condition, signal levels up to 16V are blocked. Also, if the analog input signal levels exceed VDDby VTthen the switch will turn off.The ultralow on resistance of these switches make them ideal solutions for data acquisition and gain switching applications where low on resistance and distortion is critical. The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals.APPLICATIONSHot swap applicationsData acquisition systemsBattery-powered systemsAutomatic test equipmentCommunication systemsRelay ReplacementPRODUCT HIGHLIGHTSPower-Off Protection On Both S and D Pins.PSS Robustness.Overvoltage Protection up to 16 V.5.2 Ω On Resistance.16-Lead TSSOP and 3 mm × 3 mm LFCSP Packages.

The ADG467 is an octal channel protector. The channel protector is placed in series with the signal path. The channel protector protects sensitive components from voltage transience in the signal path regardless if the power supplies are present or not. For this reason, the channel protectors are ideal for use in applications where correct power sequencing cannot always be guaranteed (for example, hot insertion rack systems) to protect analog inputs.Each channel protector has an independent operation and consists of an N-channel MOSFET, a P-channel MOSFET, and an N-channel MOSFET, connected in series. The channel protector behaves just like a series resistor during normal operation, that is, (VSS+ 1.5 V) < VIN< (VDD− 1.5 V). When a channel’s analog input exceeds the power supplies (including VDDand VSS= 0 V), one of the MOSFETs switches off, clamping the output to either VSS+ 1.5 V or VDD− 1.5 V. Circuitry and signal source protection is provided in the event of an overvoltage or power loss. The channel protectors can withstand overvoltage inputs from −40 V to +40 V.The ADG467 can operate off both bipolar and unipolar supplies. The channels are normally on when power is connected and open circuit when power is disconnected. With power supplies of ±15 V, the on resistance of the ADG467 is 62 Ω typical with a leakage current of ±1 nA maximum. When power is disconnected, the input leakage current is approximately ±0.5 nA typical.The ADG467 is available in an 18-lead SOIC package and a 20-lead SSOP package.PRODUCT HIGHLIGHTSFault Protection.The ADG467 can withstand continuous voltage inputs from −40 V to +40 V. When a fault occurs due to the power supplies being turned off or due to an overvoltage being applied to the ADG467, the output is clamped. When power is turned off, current is limited to the microampere level.Low Power Dissipation.Low RON. 62 Ω typical.Trench Isolation Latch-Up Proof Construction.A dielectric trench separates the p- and n-channel MOSFETs thereby preventing latch-up.APPLICATIONSATE equipmentSensitive measurement equipmentHot insertion rack systems

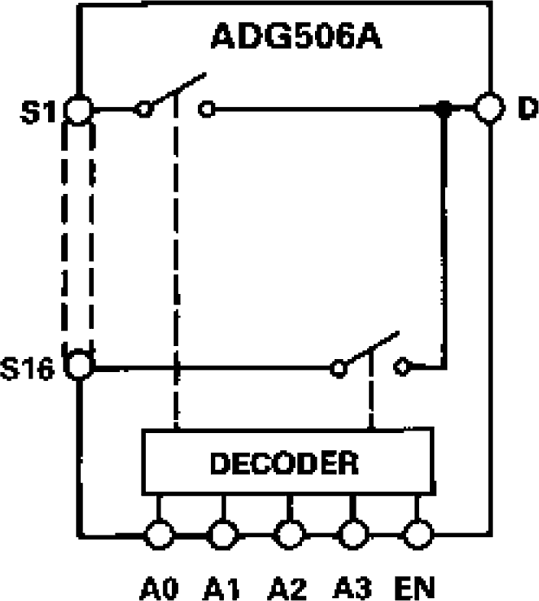

The ADG506A is a CMOS monolithic analog multiplexer with 16 channels. The ADG506A switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. It has TTL and 5 V CMOS logic compatible digital inputs.The ADG506A is designed on an enhanced LC2MOS process, which gives an increased signal capability of VSSto VDDand enables operation over a wide range of supply voltages. The devices can operate comfortably anywhere in the 10.8 V to 16.5 V single or dual supply range. This multiplexer also features high switching speeds and low RON.PRODUCT HIGHLIGHTSSingle/Dual Supply Specifications with a Wide ToleranceThe devices are specified in the 10.8 V to 16.5 V range for both single and dual supplies.Extended Signal RangeThe enhanced LC2MOS processing results in a high breakdown and an increased analog signal range of VSSto VDD.Break-Before-Make SwitchingSwitches are guaranteed break-before-make so input signals are protected against momentary shorting.Low LeakageLeakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits.

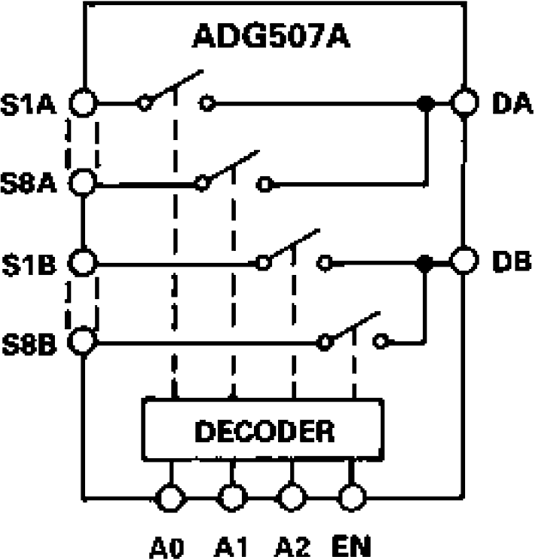

The ADG507A is a CMOS monolithic analog multiplexer with dual 8 channels. The ADG507A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. It has TTL and 5 V CMOS logic compatible digital inputs.The ADG507A is designed on an enhanced LC2MOS process, which gives an increased signal capability of VSSto VDDand enables operation over a wide range of supply voltages. The devices can operate comfortably anywhere in the 10.8 V to 16.5 V single or dual supply range. This multiplexer also features high switching speeds and low RON.PRODUCT HIGHLIGHTSSingle/Dual Supply Specifications with a Wide ToleranceThe devices are specified in the 10.8 V to 16.5 V range for both single and dual supplies.Extended Signal RangeThe enhanced LC2MOS processing results in a high breakdown and an increased analog signal range of VSSto VDD.Break-Before-Make SwitchingSwitches are guaranteed break-before-make so input signals are protected against momentary shorting.Low LeakageLeakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits.

The ADG508A andADG509Aare CMOS monolithic analog multiplexers with eight channels and dual four channels, respectively. The ADG508A switches one of eight inputs to a common output, depending on the state of three binary addresses and an enable input. The ADG509A switches one of four differential inputs to a common differential output, depending on the state of two binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs.The ADG508A and ADG509A are designed on an enhanced LC2MOS process that gives an increased signal capability of VSSto VDDand enables operation over a wide range of supply voltages. The devices can comfortably operate anywhere in the 10.8 V to 16.5 V single- or dual-supply range. These multiplexers also feature high switching speeds and low RON.PRODUCT HIGHLIGHTSSingle-/Dual-Supply Specifications with a Wide Tolerance. The devices are specified in the 10.8 V to 16.5 V range for both single and dual supplies.Extended Signal Range. The enhanced LC2MOS processing results in a high breakdown and an increased analog signal range of VSSto VDD.Break-Before-Make Switching. Switches are guaranteed break-before-make so that input signals are protected against momentary shorting.Low Leakage. Leakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits.

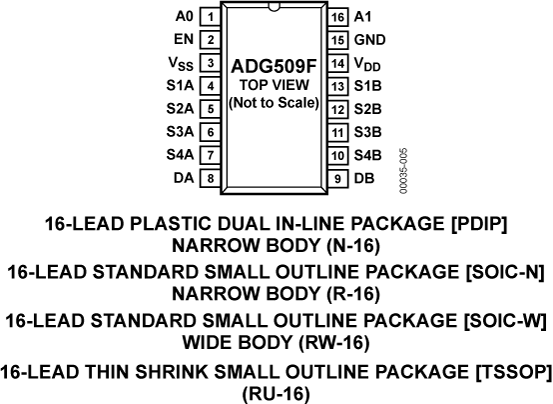

The ADG508F andADG509Fare CMOS analog multiplexers, with the ADG508F comprising eight single channels and the ADG509F comprising four differential channels. These multiplexer provides fault protection. Using a series n-channel, p-channel, n-channel MOSFET structure, both device and signal source protection is provided in the event of an overvoltage or power loss. The multiplexer can withstand continuous overvoltage inputs from -40 V to +55 V. During fault conditions with power supplies off, the multiplexer input (or output) appears as an open circuit and only a few nanoamperes of leakage current will flow. This protects not only the multiplexer and the circuitry driven by the multiplexer, but also protects the sensors or signal sources that drive the multiplexer.The ADG508F switches one of eight inputs to a common output as determined by the 3-bit binary address lines A0, A1 and A2. The ADG509F switches one of four differential inputs to a common differential output as determined by the 2-bit binary address lines A0 and A1. An EN input on each device is used to enable or disable the device. When disabled, all channels are switched OFF.PRODUCT HIGHLIGHTSFault protection. The ADG508F/ADG509F can withstand continuous voltage inputs from −40 V to +55 V. When a fault occurs due to the power supplies being turned off, all the channels are turned off and only a leakage current of a few nanoamperes flows.On channel saturates while fault exists.Low RON.Fast switching times.Break-before-make switching. Switches are guaranteed break-before-make so that input signals are protected against momentary shorting.Trench isolation eliminates latch-up. A dielectric trench separates the p and n-channel MOSFETs thereby preventing latch-up.APPLICATIONSExisting multiplexer applications (both fault-protected and nonfault-protected)New designs requiring multiplexer functions

TheADG508Fand ADG509F are CMOS analog multiplexers, with the ADG508F comprising eight single channels and the ADG509F comprising four differential channels. These multiplexer provides fault protection. Using a series n-channel, p-channel, n-channel MOSFET structure, both device and signal source protection is provided in the event of an overvoltage or power loss. The multiplexer can withstand continuous overvoltage inputs from -40 V to +55 V. During fault conditions with power supplies off, the multiplexer input (or output) appears as an open circuit and only a few nanoamperes of leakage current will flow. This protects not only the multiplexer and the circuitry driven by the multiplexer, but also protects the sensors or signal sources that drive the multiplexer.The ADG508F switches one of eight inputs to a common output as determined by the 3-bit binary address lines A0, A1 and A2. The ADG509F switches one of four differential inputs to a common differential output as determined by the 2-bit binary address lines A0 and A1. An EN input on each device is used to enable or disable the device. When disabled, all channels are switched OFF.PRODUCT HIGHLIGHTSFault protection. The ADG508F / ADG509F can withstand continuous voltage inputs from −40 V to +55 V. When a fault occurs due to the power supplies being turned off, all the channels are turned off and only a leakage current of a few nanoamperes flows.On channel saturates while fault exists.Low RON.Fast switching times.Break-before-make switching. Switches are guaranteed break-before-make so that input signals are protected against momentary shorting.Trench isolation eliminates latch-up. A dielectric trench separates the p and n-channel MOSFETs thereby preventing latch-up.APPLICATIONSExisting multiplexer applications (both fault-protected and nonfault-protected)New designs requiring multiplexer functions
