ADG507A Series

CMOS ± 15 V 8 Channel Analog Multiplexer

Catalog

CMOS ± 15 V 8 Channel Analog Multiplexer

Part	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Number of Circuits	On-State Resistance (Max) [Max]	Voltage - Supply, Dual (V±) [Min]	Voltage - Supply, Dual (V±) [Max]	Mounting Type	Multiplexer/Demultiplexer Circuit	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	Current - Leakage (IS(off)) (Max)	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Channel-to-Channel Matching (ΔRon)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Package / Case [y]	Package / Case	Package / Case	Package / Case
Analog Devices ADG507ATE	5 pF	22 pF	2	300 Ohm	-10.8 V	16.5 V	Surface Mount	8:1	300 ns	300 ns	125 °C	-55 °C	28-LCC	11.43x11.43 28-LCC	1 nA	16.5 V	10.8 V	15 Ohm
Analog Devices ADG507AKRZ-REEL	5 pF	22 pF	2	300 Ohm	-10.8 V	16.5 V	Surface Mount	8:1	300 ns	300 ns			28-SOIC	28-SOIC	1 nA	16.5 V	10.8 V	15 Ohm	85 °C	-40 °C	0.295 in	7.5 mm

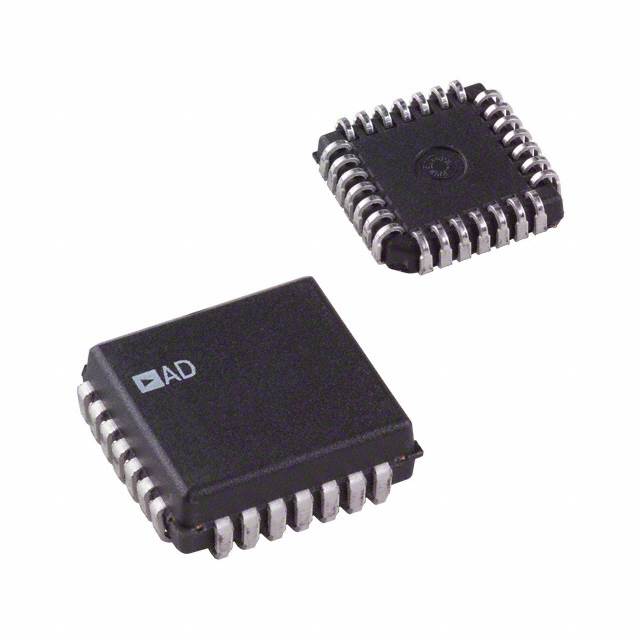

Analog Devices ADG507AKP	5 pF	22 pF	2	300 Ohm	-10.8 V	16.5 V	Surface Mount	8:1	300 ns	300 ns			28-LCC (J-Lead)	28-PLCC (11.51x11.51)	1 nA	16.5 V	10.8 V	15 Ohm	85 °C	-40 °C

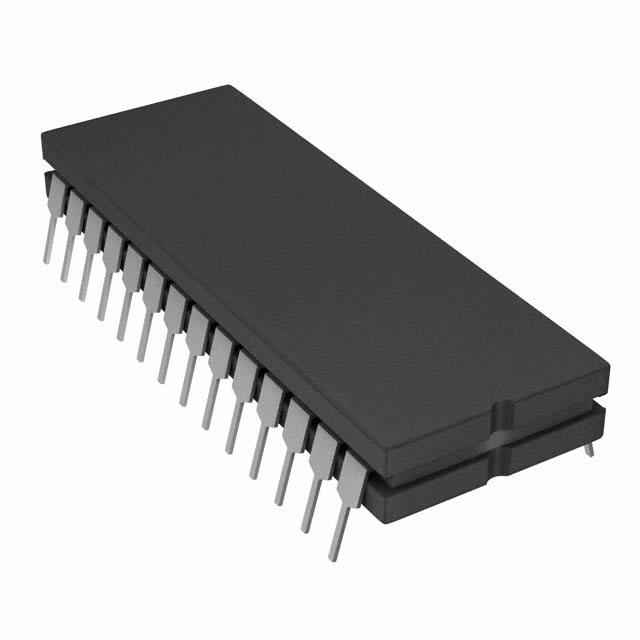

Analog Devices ADG507ATQ	5 pF	22 pF	2	300 Ohm	-10.8 V	16.5 V	Through Hole	8:1	300 ns	300 ns	125 °C	-55 °C	28-CDIP	28-CDIP	1 nA	16.5 V	10.8 V	15 Ohm					15.24 mm	0.6 in
Analog Devices ADG507AKRUZ-REEL7	5 pF	22 pF	2	300 Ohm	-10.8 V	16.5 V	Surface Mount	8:1	300 ns	300 ns			28-TSSOP	28-TSSOP	1 nA	16.5 V	10.8 V	15 Ohm	85 °C	-40 °C		4.4 mm			0.173 in
Analog Devices ADG507AKN	5 pF	22 pF	2	300 Ohm	-10.8 V	16.5 V	Through Hole	8:1	300 ns	300 ns			28-DIP	28-PDIP	1 nA	16.5 V	10.8 V	15 Ohm	85 °C	-40 °C				15.24 mm	0.6 in
Analog Devices ADG507AKR	5 pF	22 pF	2	300 Ohm	-10.8 V	16.5 V	Surface Mount	8:1	300 ns	300 ns			28-SOIC	28-SOIC	1 nA	16.5 V	10.8 V	15 Ohm	85 °C	-40 °C	0.295 in	7.5 mm
Analog Devices ADG507ABQ	5 pF	44 pF	2	300 Ohm	-10.8 V	16.5 V	Through Hole	8:1	300 ns	300 ns			28-CDIP	28-CDIP	1 nA	16.5 V	10.8 V	15 Ohm	85 °C	-40 °C			15.24 mm	0.6 in
Analog Devices ADG507AKR-REEL7	5 pF	22 pF	2	300 Ohm	-10.8 V	16.5 V	Surface Mount	8:1	300 ns	300 ns			28-SOIC	28-SOIC	1 nA	16.5 V	10.8 V	15 Ohm	85 °C	-40 °C	0.295 in	7.5 mm
Analog Devices ADG507AKRUZ-REEL	5 pF	22 pF	2	300 Ohm	-10.8 V	16.5 V	Surface Mount	8:1	300 ns	300 ns			28-TSSOP	28-TSSOP	1 nA	16.5 V	10.8 V	15 Ohm	85 °C	-40 °C		4.4 mm			0.173 in

Catalog

CMOS ± 15 V 8 Channel Analog Multiplexer

Key Features

• 44 V Supply Maximum Ratings

• VSSto VDDAnalog Signal Range

• Single/Dual Supply Specifications

• Wide Supply Range (10.8 V to 16.5 V)

• Extended Plastic Temperature Range: -40°C to +85°C

• Low Power Dissipation (28 µW max)

• See datasheet for additional features

Description

The ADG507A is a CMOS monolithic analog multiplexer with dual 8 channels. The ADG507A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. It has TTL and 5 V CMOS logic compatible digital inputs.The ADG507A is designed on an enhanced LC2MOS process, which gives an increased signal capability of VSSto VDDand enables operation over a wide range of supply voltages. The devices can operate comfortably anywhere in the 10.8 V to 16.5 V single or dual supply range. This multiplexer also features high switching speeds and low RON.PRODUCT HIGHLIGHTSSingle/Dual Supply Specifications with a Wide ToleranceThe devices are specified in the 10.8 V to 16.5 V range for both single and dual supplies.Extended Signal RangeThe enhanced LC2MOS processing results in a high breakdown and an increased analog signal range of VSSto VDD.Break-Before-Make SwitchingSwitches are guaranteed break-before-make so input signals are protected against momentary shorting.Low LeakageLeakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits.
