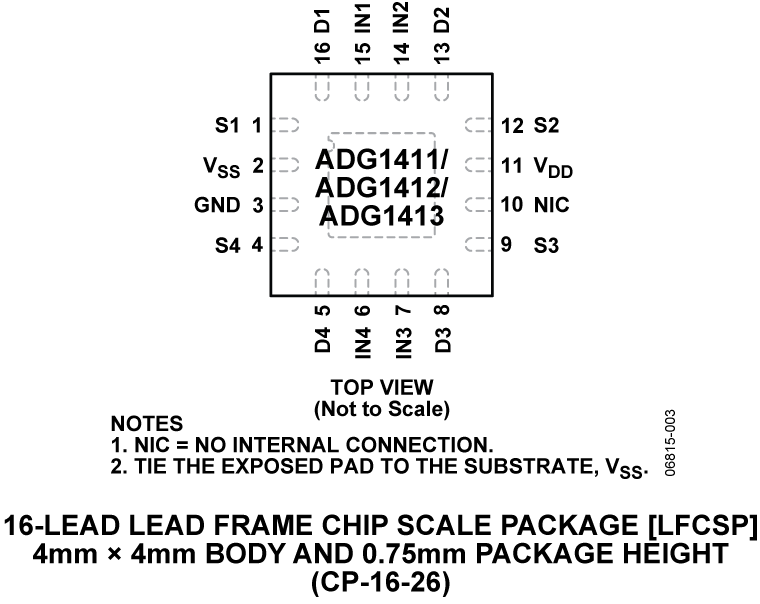

ADG14131.5 Ω On Resistance, ±15 V/+12 V/±5 V,iCMOS®, Quad SPST Switch | Interface | 2 | Active | TheADG1411/ADG1412/ADG1413 are monolithic complementary metal-oxide semiconductor (CMOS) devices containing four independently selectable switches designed on aniCMOS®process.iCMOS (industrial CMOS) is a modular manufacturing process combining high voltage CMOS and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage devices has been able to achieve. Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The on-resistance profile is very flat over the full analog input range, ensuring excellent linearity and low distortion when switching signals.iCMOS construction ensures ultralow power dissipation, making the devices ideally suited for portable and battery-powered instruments.The ADG1411/ADG1412/ADG1413 contain four independent single-pole/single-throw (SPST) switches. The ADG1411 and ADG1412 differ only in that the digital control logic is inverted. The ADG1411 switches are turned on with Logic 0 on the appropriate control input, whereas the ADG1412 switches are turned on with Logic 1. The ADG1413 has two switches with digital control logic similar to that of the ADG1411; the logic is inverted on the other two switches. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.The ADG1413 exhibits break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection, which results in minimum transients when the digital inputs are switchedProduct Highlights2.6 Ω maximum on resistance over temperatureMinimum distortionUltralow power dissipation: <0.03 μW16-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSPApplicationsAutomated test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsAudio signal routingVideo signal routingCommunications systemsRelay replacement |

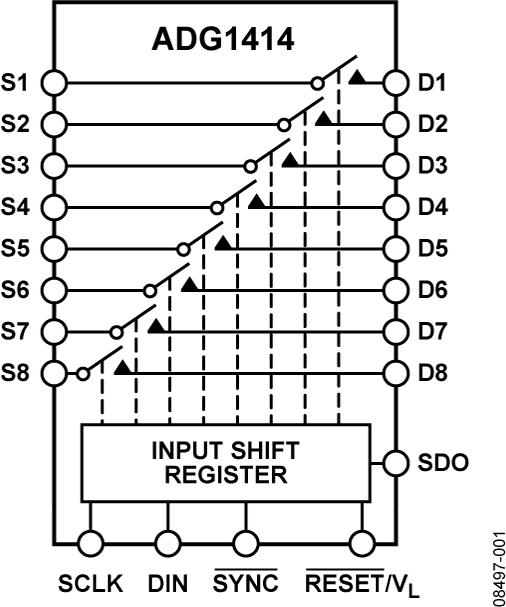

ADG14149.5 Ω RON±15 V/+12 V/±5 ViCMOS Serially-Controlled Octal SPST Switches | Interface | 2 | Active | The ADG1414 is a monolithic complementary metal oxide semiconductor (CMOS) device containing eight independently selectable switches designed on an industrial CMOS (iCMOS®) process.iCMOS is a modular manufacturing process combining high voltage CMOS and bipolar technologies.iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduce the package size.The ADG1414 is a set of octal SPST (single-pole, single-throw) switches controlled via a 3-wire serial interface. On resistance is closely matched between switches and is very flat over the full signal range. Each switch conducts equally well in both directions and the input signal range extends to the supplies.Data is written to these devices in the form of eight bits; each bit corresponds to one channel.The ADG1414 utilizes a versatile 3-wire serial interface that operates at clock rates of up to 50 MHz and is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards. The output of the shift register, SDO, enables a number of these parts to be daisy chained. On power-up, all switches are in the off condition, and the internal registers contain all zeros.PRODUCT HIGHLIGHTS50 MHz serial interface.9.5 Ω on resistance.1.6 Ω on-resistance flatness.24-lead TSSOP and 4 mm × 4 mm LFCSP packages.APPLICATIONSAutomatic test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsAudio signal routingVideo signal routingCommunication systems |
ADG14192.1 Ω On Resistance, ±15 V/+12 V/±5 V,iCMOS SPDT Switch | Integrated Circuits (ICs) | 2 | Active | The ADG1419 is a monolithiciCMOS®device containing a single-pole/double-throw (SPDT) switch. An EN input on the LFCSP is used to enable or disable the device. When disabled, all channels are switched off.The industrial CMOS (iCMOS) modular manufacturing process combines high voltage, complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage parts has achieved. Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The on-resistance profile is very flat over the full analog input range, ensuring excellent linearity and low distortion when switching audio signals. TheiCMOS construction ensures ultralow power dissipation, making the part ideally suited for portable and battery-powered instruments.Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. The ADG1419 exhibits break-before-make switching action for use in multiplexer applications.Product Highlights2.4 Ω maximum on resistance at 25°C.Minimum distortion.3 V logic-compatible digital inputs: VINH= 2.0 V, VINL= 0.8 V.No VLlogic power supply required.8-lead MSOP and 8-lead, 3 mm × 2 mm LFCSP.ApplicationsAutomatic test equipmentData acquisition systemsBattery-powered systemsRelay replacementsSample-and-hold systemsAudio signal routingVideo signal routingCommunication systems |

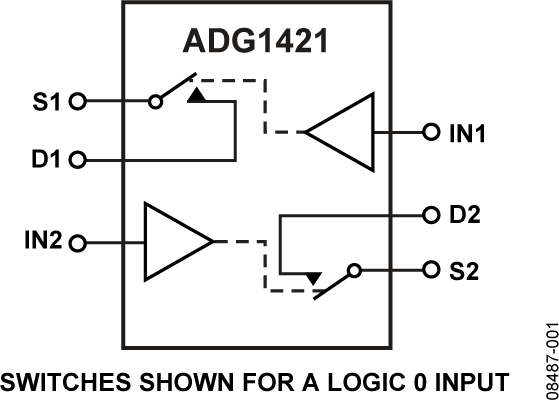

ADG14212.1 Ω Maximum On Resistance, ±15 V/+12/±5 ViCMOS Dual SPST Switches | Analog Switches, Multiplexers, Demultiplexers | 2 | Active | The ADG1421 /ADG1422/ADG1423contain two independent single-pole/single-throw (SPST) switches. The ADG1421 and ADG1422 differ only in that the digital control logic is inverted. The ADG1421 switches are turned on with Logic 1 on the appropriate control input, and Logic 0 is required for the ADG1422. The ADG1423 has one switch with digital control logic similar to that of the ADG1421; the logic is inverted on the other switch. The ADG1423 exhibits break-before-make switching action for use in multiplexer applications. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.The iCMOS®(industrial CMOS) modular manufacturing process combines high voltage, complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage parts has achieved. Unlike analog ICs using conventional CMOS processes, iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals. The iCMOS construction ensures ultralow power dissipation, making the part ideally suited for portable and battery-powered instruments.PRODUCT HIGHLIGHTS2.4 Ω maximum on resistance at 25°C.Minimum distortion.3 V logic-compatible digital inputs: VIH= 2.0 V, VIL= 0.8 V.No VLlogic power supply required.10-lead MSOP and 10-lead, 3 mm × 3 mm LFCSP packages.APPLICATIONSAutomatic test equipmentData acquisition systemsRelay replacementsBattery-powered systemsSample-and-hold systemsAudio signal routingVideo signal routingCommunication systems |

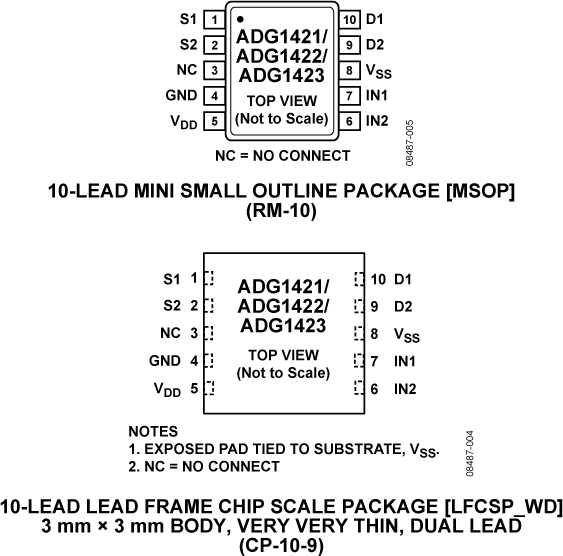

ADG14222.1 Ω Maximum On Resistance, ±15 V/+12/±5 ViCMOS Dual SPST Switches | Analog Switches, Multiplexers, Demultiplexers | 2 | Active | TheADG1421/ ADG1422 /ADG1423contain two independent single-pole/single-throw (SPST) switches. The ADG1421 and ADG1422 differ only in that the digital control logic is inverted. The ADG1421 switches are turned on with Logic 1 on the appropriate control input, and Logic 0 is required for the ADG1422. The ADG1423 has one switch with digital control logic similar to that of the ADG1421; the logic is inverted on the other switch. The ADG1423 exhibits break-before-make switching action for use in multiplexer applications. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.TheiCMOS®(industrial CMOS) modular manufacturing process combines high voltage, complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage parts has achieved. Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals. TheiCMOS construction ensures ultralow power dissipation, making the part ideally suited for portable and battery-powered instruments.PRODUCT HIGHLIGHTS2.4 Ω maximum on resistance at 25°C.Minimum distortion.3 V logic-compatible digital inputs: VINH= 2.0 V, VINL= 0.8 V.No VLlogic power supply required.10-lead MSOP and 10-lead, 3 mm × 3 mm LFCSP packages.APPLICATIONSAutomatic test equipmentData acquisition systemsRelay replacementsBattery-powered systemsSample-and-hold systemsAudio signal routingVideo signal routingCommunication systems |
ADG14232.1 Ω Maximum On Resistance, ±15 V/+12/±5 ViCMOS Dual SPST Switches | Integrated Circuits (ICs) | 1 | Active | TheADG1421/ADG1422/ ADG1423 contain two independent single-pole/single-throw (SPST) switches. The ADG1421 and ADG1422 differ only in that the digital control logic is inverted. The ADG1421 switches are turned on with Logic 1 on the appropriate control input, and Logic 0 is required for the ADG1422. The ADG1423 has one switch with digital control logic similar to that of the ADG1421; the logic is inverted on the other switch. The ADG1423 exhibits break-before-make switching action for use in multiplexer applications. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.TheiCMOS®(industrial CMOS) modular manufacturing process combines high voltage, complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage parts has achieved. Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals. TheiCMOS construction ensures ultralow power dissipation, making the part ideally suited for portable and battery-powered instruments.PRODUCT HIGHLIGHTS2.4 Ω maximum on resistance at 25°C.Minimum distortion.3 V logic-compatible digital inputs: VINH= 2.0 V, VINL= 0.8 V.No VLlogic power supply required.10-lead MSOP and 10-lead, 3 mm × 3 mm LFCSP packages.APPLICATIONSAutomatic test equipmentData acquisition systemsRelay replacementsBattery-powered systemsSample-and-hold systemsAudio signal routingVideo signal routingCommunication systems |

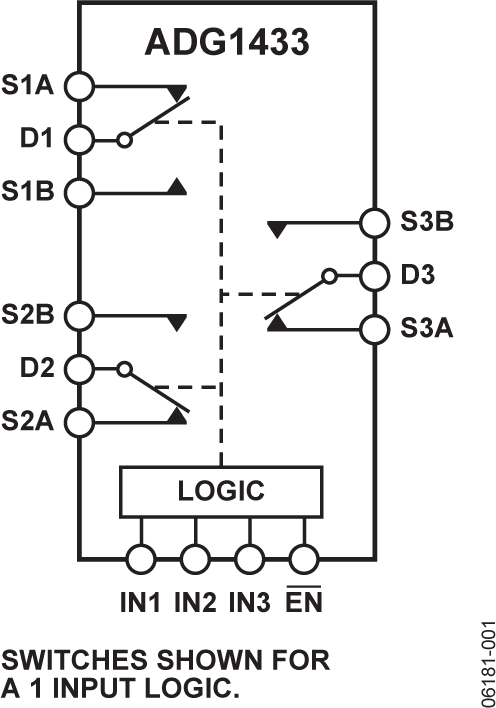

ADG14334 Ω RON, Triple SPDT ±15 V/+12 V/±5 ViCMOS™ Switch | Interface | 3 | Active | The ADG1433 andADG1434are monolithic industrial CMOS (iCMOS®) analog switches comprising three independently selectable single-pole, double-throw (SPDT) switches and four independently selectable SPDT switches, respectively.All channels exhibit break-before-make switching action that prevents momentary shorting when switching channels. AnENinput on the ADG1433 (LFCSP and TSSOP) and ADG1434 (LFCSP only) is used to enable or disable the device. When disabled, all channels are switched off.TheiCMOS modular manufacturing process combines high voltage, complementary metal-oxide semiconductor (CMOS), and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage devices has been able to achieve. Unlike analog ICs using a conventional CMOS process,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The ultralow on resistance and on resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications, where low distortion is critical.iCMOS construction ensures ultralow power dissipation, making the devices ideally suited for portable and battery-powered instruments.ApplicationsRelay replacementAudio and video routingAutomatic test equipmentData acquisition systemsTemperature measurement systemsAvionicsBattery-powered systemsCommunication systemsMedical equipment |
ADG14344 Ω RON, Quad SPDT ±15 V/+12 V/±5 V iCMOS™ Switch | Interface | 3 | Active | TheADG1433and ADG1434 are monolithic industrial CMOS (iCMOS®) analog switches comprising three independently selectable single-pole, double-throw (SPDT) switches and four independently selectable SPDT switches, respectively.All channels exhibit break-before-make switching action that prevents momentary shorting when switching channels. AnENinput on the ADG1433 (LFCSP and TSSOP) and ADG1434 (LFCSP only) is used to enable or disable the device. When disabled, all channels are switched off.TheiCMOS modular manufacturing process combines high voltage, complementary metal-oxide semiconductor (CMOS), and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage devices has been able to achieve. Unlike analog ICs using a conventional CMOS process,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The ultralow on resistance and on resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications, where low distortion is critical.iCMOS construction ensures ultralow power dissipation, making the devices ideally suited for portable and battery-powered instruments.ApplicationsRelay replacementAudio and video routingAutomatic test equipmentData acquisition systemsTemperature measurement systemsAvionicsBattery-powered systemsCommunication systemsMedical equipment |

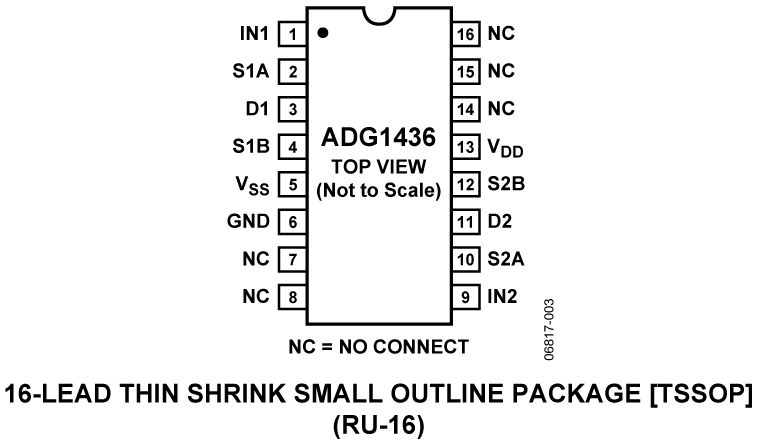

ADG14361.5 Ω On Resistance, ±15 V/12 V/±5 V,iCMOS®, Dual SPDT Switch | Analog Switches, Multiplexers, Demultiplexers | 4 | Active | The ADG1436 is a monolithic CMOS device containing two independently selectable SPDT switches. An EN input on the LFCSP package enables or disable the device. When disabled, all channels are switched off. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. Both switches exhibit break-before-make switching action for use in multiplexer applications.The ADG1436 is designed on aniCMOS®process.iCMOS (industrial-CMOS) is a modular manufacturing process combining high voltage CMOS (complementary metal-oxide semiconductor) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage parts has been able to achieve. Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The on-resistance profile is very flat over the full analog input range, ensuring excellent linearity and low distortion when switching audio signals.iCMOS construction ensures ultralow power dissipation, making the part ideally suited for portable and battery-powered instruments.PRODUCT HIGHLIGHTS2.6 Ω maximum on resistance over temperature.Minimum distortion.Ultralow power dissipation: <0.03 μW.16-lead TSSOP and 16-lead 4 mm × 4 mm LFCSP packages.APPLICATIONSAutomatic test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsAudio signal routingCommunication systemsRelay replacement |
ADG1438±15 V/+12 V/±5 V, Single 8 to 1 Multiplexer, Serially Controlled Matrix Switch | Analog Switches, Multiplexers, Demultiplexers | 2 | Active | The ADG1438 andADG1439are CMOS analog matrix switches with a serially controlled 3-wire interface. The ADG1438 is an 8-channel matrix switch, and the ADG1439 is a dual 4-channel matrix switch.The ADG1438/ADG1439 use a versatile 3-wire serial interface that operates at clock rates of up to 50 MHz and is compatible with standard SPI, QSPI™, MICROWIRE™, and DSP interface standards. The output of the shift register, SDO, enables a number of the ADG1438/ADG1439 devices to be daisy-chained. On power-up, the internal shift register contains all zeros, and all switches are in the off state.Each switch conducts equally well in both directions when on, making these devices suitable for both multiplexing and demultiplexing applications. Because each switch is turned on or off by a separate bit, these devices can also be configured as a type of switch array, where any, all, or none of the eight switches can be closed at any time. The input signal range extends to the supply rails. All channels exhibit break-before-make switching action, preventing momentary shorting when switching channels.The ultralow on resistance and on-resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications where low distortion is critical.iCMOS®construction ensures ultralow power dissipation, making the parts ideally suited for portable and battery-powered instruments.Product Highlights50 MHz serial interface.9.5 Ω on resistance.1.6 Ω on-resistance flatness.3 V logic-compatible digital input, VINH = 2.0 V, VINL = 0.8 V.ApplicationsRelay replacementAudio and video routingAutomatic test equipmentData acquisition systemsTemperature measurement systemsAvionicsBattery-powered systemsCommunication systemsMedical equipment |
