The ADG1401 /ADG1402contain a single-pole/single-throw (SPST) switch. Figure 1 shows that with a logic input of 1, the switch of the ADG1401 is closed and that of the ADG1402 is open. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.TheiCMOS®(industrial CMOS) modular manufacturing process combines high voltage, complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage parts has achieved. Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and a reduced package size.The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals. TheiCMOS construction ensures ultralow power dissipation, making the part ideally suited for portable and battery-powered instruments.PRODUCT HIGHLIGHTS1.3 Ω maximum on resistance at 25°C.Minimum distortion.3 V logic-compatible digital inputs: VIH= 2.0 V, VIL= 0.8 V.No VLlogic power supply required.8-lead MSOP and 8-lead, 3 mm × 2 mm LFCSP packages.APPLICATIONSAutomatic test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsAudio signal routingVideo signal routingCommunication systemsRelay replacements

TheADG1401/ ADG1402 contain a single-pole/single-throw (SPST) switch. Figure 1 shows that with a logic input of 1, the switch of the ADG1401 is closed and that of the ADG1402 is open. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.TheiCMOS®(industrial CMOS) modular manufacturing process combines high voltage, complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage parts has achieved. Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and a reduced package size.The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals. TheiCMOS construction ensures ultralow power dissipation, making the part ideally suited for portable and battery-powered instruments.PRODUCT HIGHLIGHTS1.3 Ω maximum on resistance at 25°C.Minimum distortion.3 V logic-compatible digital inputs: VIH= 2.0 V, VIL= 0.8 V.No VLlogic power supply required.8-lead MSOP and 8-lead, 3 mm × 2 mm LFCSP packages.APPLICATIONAutomatic test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsAudio signal routingVideo signal routingCommunication systemsRelay replacements

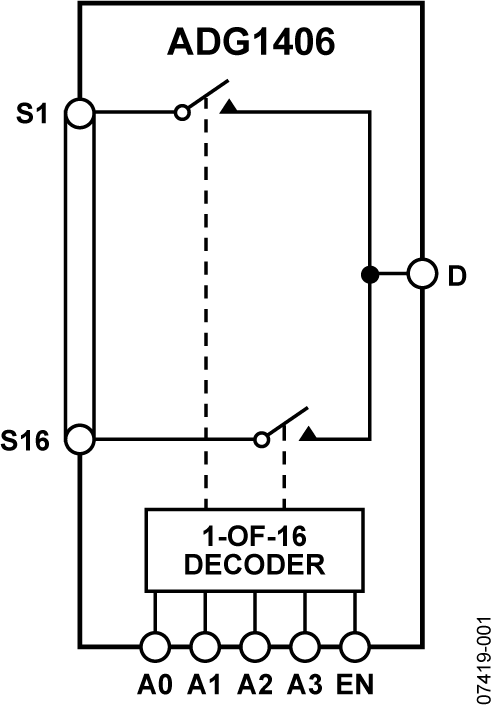

The ADG1406 andADG1407are monolithiciCMOS®analog multiplexers comprising 16 single channels and eight differential channels, respectively. The ADG1406 switches one of 16 inputs to a common output, as determined by the 4-bit binary address lines (A0, A1, A2, and A3). The ADG1407 switches one of eight differential inputs to a common differential output, as determined by the 3-bit binary address lines (A0, A1, and A2). An EN input on both devices enables or disables the device. When disabled, all channels switch off. When on, each channel conducts equally well in both directions and has an input signal range that extends to the supplies.TheiCMOS (industrial CMOS) modular manufacturing process combines high voltage CMOS (complementary metaloxide semiconductor) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage parts has been able to achieve. Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The ultralow on resistance and on-resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications where low distortion is critical.iCMOS construction ensures ultralow power dissipation, making the parts ideally suited for portable and battery-powered instruments.ApplicationsMedical equipmentAudio and video routingAutomatic test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsCommunication systems

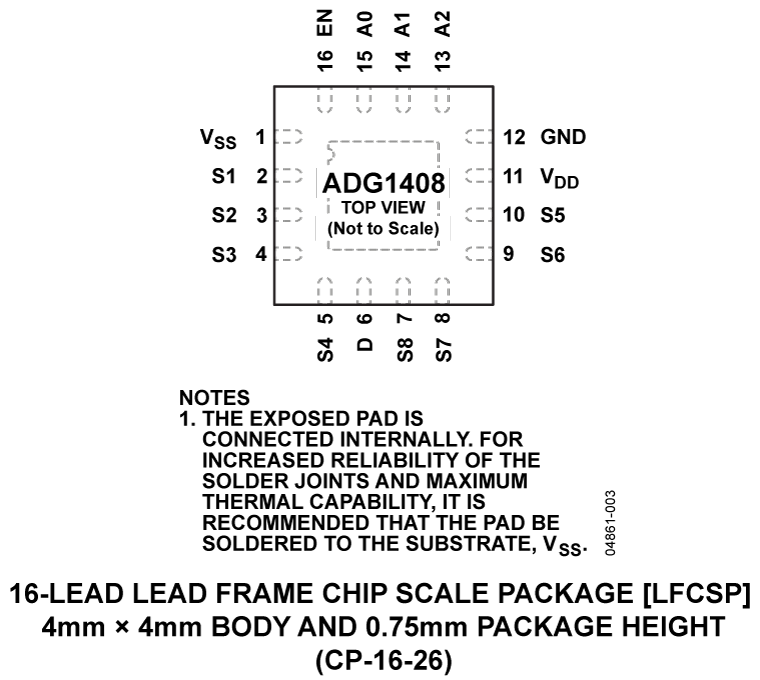

The ADG1408/ADG1409are monolithiciCMOS®analog multiplexers comprising eight single channels and four differential channels, respectively. The ADG1408 switches one of eight inputs to a common output, as determined by the 3-bit binary address lines, A0, A1, and A2. The ADG1409 switches one of four differential inputs to a common differential output, as determined by the 2-bit binary address lines, A0 and A1. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched off.The industrial CMOS (iCMOS) modular manufacturing process combines high voltage complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage parts has been able to achieve. Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The ultralow on resistance and on resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications where low distortion is critical.iCMOS construction ensures ultralow power dissipation, making the parts ideally suited for portable and battery-powered instruments.Product Highlights4 Ω on resistance.0.5 Ω on-resistance flatness.3 V logic compatible digital input, VIH = 2.0 V, VIL = 0.8 V.16-lead TSSOP and 4 mm × 4 mm LFCSP.ApplicationsRelay replacementAudio and video routingAutomatic test equipmentData acquisition systemsTemperature measurement systemsAvionicsBattery-powered systemsCommunication systemsMedical equipment

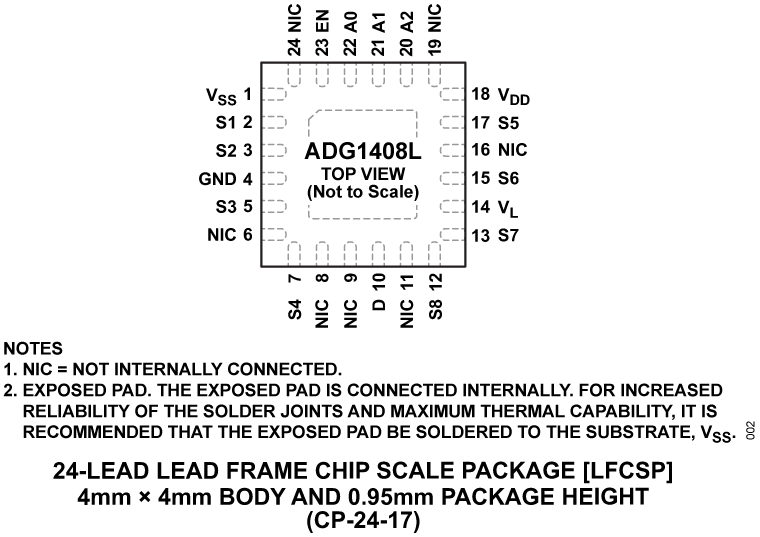

The ADG1408L is a monolithic iCMOS®eight channel analog multiplexer. The ADG1408L switches one of eight inputs to a common output, as determined by the 3-bit binary address lines, A0, A1, and A2. An EN input is used to enable or disable the device. When disabled, all channels are switched off. When on, each channel conducts equally well in both directions and has an input signal range that extends to the supplies.An external low voltage VLsupply provides flexibility for lower logic control. The ADG1408L is both 1.2 V and 1.8 V JEDEC standard compliant.PRODUCT HIGHLIGHTS4 Ω typical on resistance at 25°C and at ±15 V dual supply.0.5 Ω typical on-resistance flatness at 25°C and at ±15 V dual supply.VLsupply for low-logic level compatibility.JEDEC standard compliant for both 1.2 V and 1.8 V logic levels.Guaranteed switch off when digital inputs are floating.24-lead, 4 mm × 4 mm LFCSP.APPLICATIONSFPGA and microcontroller systemsRelay replacementAudio and video routingAutomatic test equipmentData acquisition systemsCommunication systems

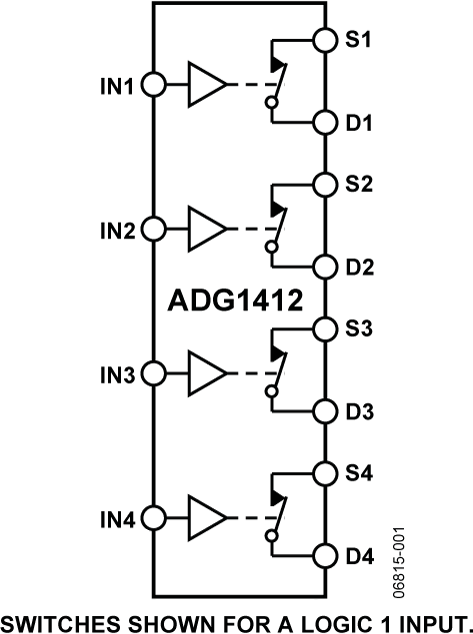

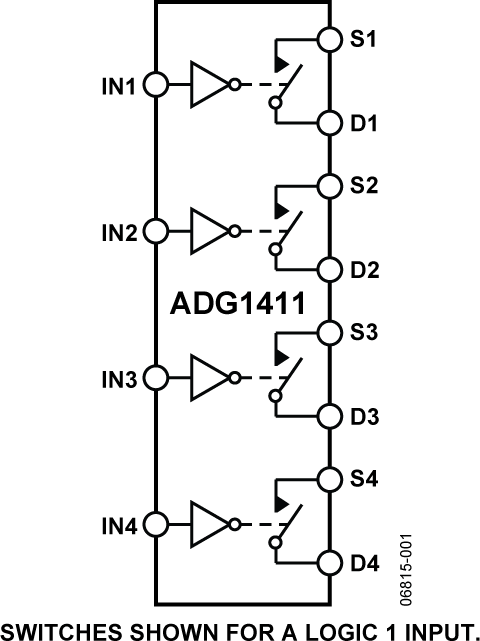

The ADG1411/ADG1412/ADG1413are monolithic complementary metal-oxide semiconductor (CMOS) devices containing four independently selectable switches designed on aniCMOS®process.iCMOS (industrial CMOS) is a modular manufacturing process combining high voltage CMOS and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage devices has been able to achieve. Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The on-resistance profile is very flat over the full analog input range, ensuring excellent linearity and low distortion when switching signals.iCMOS construction ensures ultralow power dissipation, making the devices ideally suited for portable and battery-powered instruments.The ADG1411/ADG1412/ADG1413 contain four independent single-pole/single-throw (SPST) switches. The ADG1411 and ADG1412 differ only in that the digital control logic is inverted. The ADG1411 switches are turned on with Logic 0 on the appropriate control input, whereas the ADG1412 switches are turned on with Logic 1. The ADG1413 has two switches with digital control logic similar to that of the ADG1411; the logic is inverted on the other two switches. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.The ADG1413 exhibits break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection, which results in minimum transients when the digital inputs are switchedProduct Highlights2.6 Ω maximum on resistance over temperatureMinimum distortionUltralow power dissipation: <0.03 μW16-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSPApplicationsAutomated test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsAudio signal routingVideo signal routingCommunications systemsRelay replacement

TheADG1411/ADG1412/ADG1413are monolithic complementary metal-oxide semiconductor (CMOS) devices containing four independently selectable switches designed on aniCMOS®process.iCMOS (industrial CMOS) is a modular manufacturing process combining high voltage CMOS and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage devices has been able to achieve. Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The on-resistance profile is very flat over the full analog input range, ensuring excellent linearity and low distortion when switching signals.iCMOS construction ensures ultralow power dissipation, making the devices ideally suited for portable and battery-powered instruments.The ADG1411/ADG1412/ADG1413 contain four independent single-pole/single-throw (SPST) switches. The ADG1411 and ADG1412 differ only in that the digital control logic is inverted. The ADG1411 switches are turned on with Logic 0 on the appropriate control input, whereas the ADG1412 switches are turned on with Logic 1. The ADG1413 has two switches with digital control logic similar to that of the ADG1411; the logic is inverted on the other two switches. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.The ADG1413 exhibits break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection, which results in minimum transients when the digital inputs are switchedProduct Highlights2.6 Ω maximum on resistance over temperatureMinimum distortionUltralow power dissipation: <0.03 μW16-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSPApplicationsAutomated test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsAudio signal routingVideo signal routingCommunications systemsRelay replacement

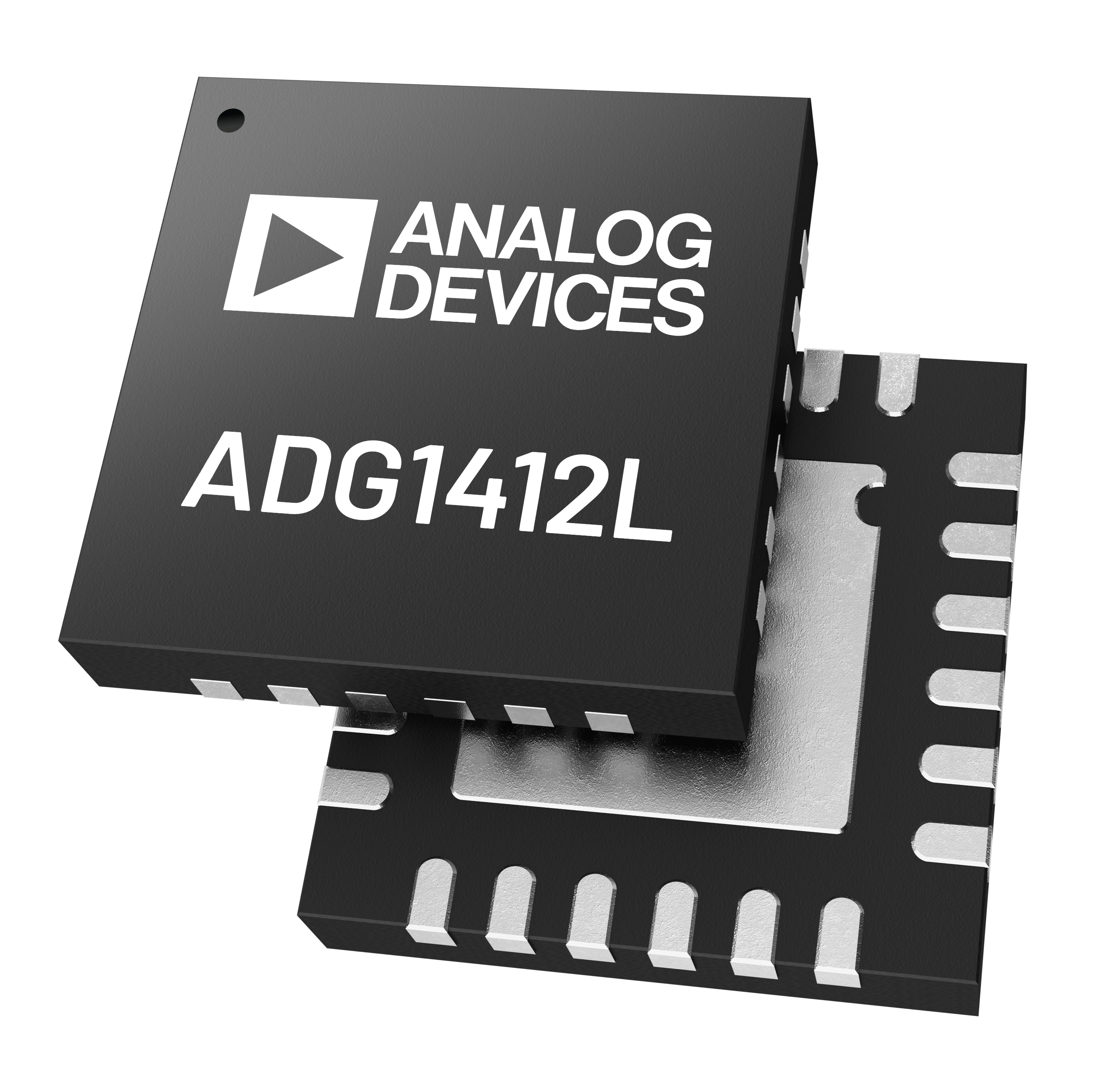

The ADG1412L is a monolithic complementary metal-oxide semiconductor (CMOS) device containing four independently selectable switches designed on an iCMOS®process. Industrial CMOS (iCMOS) is a modular manufacturing process combining high voltage CMOS and bipolar technologies.The on-resistance profile is flat over the full analog input range, ensuring excellent linearity and low distortion (1.5 Ω typical) when switching signals.The ADG1412L contains four independent SPST switches, and these switches are turned on with Logic 1. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.An external VLsupply provides flexibility for lower logic control. The ADG1412L is both 1.2 V and 1.8 V JEDEC standard compliant.PRODUCT HIGHLIGHTS2.6 Ω maximum on resistance over temperature.Minimum distortion.VLsupply for low logic-level compatibility.JEDEC standard compliant for both 1.2 V and 1.8 V logic levels.Guaranteed switch off when digital inputs are floating.24-lead, 4 mm × 4 mm LFCSP.APPLICATIONSAutomated test equipmentData-acquisition systemsBattery-powered systemsSample-and-hold systemsFPGA and microcontroller systemsAudio signal routingVideo signal routingCommunications systemsRelay replacement
