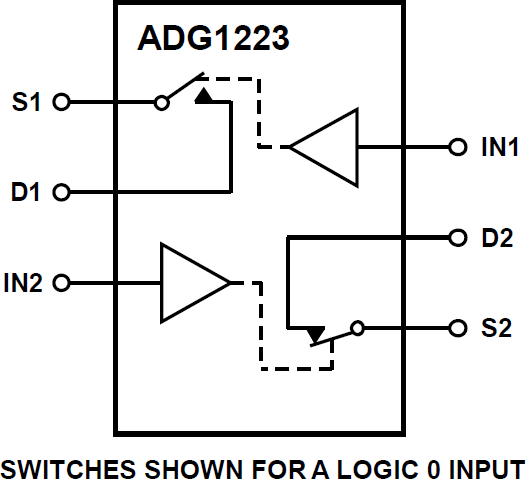

The ADG1221/ADG1222/ADG1223 are monolithic, complementary metal-oxide semiconductor (CMOS) devices containing four independently selectable switches designed on aniCMOS (industrial CMOS) process.iCMOS is a modular manufacturing process combining high voltage CMOS and bipolar technologies. It enables the development of a wide range of high performance analog ICs, capable of 33 V operation, in a footprint that no previous generation of high voltage parts has been able to achieve. Unlike analog ICs using conventional CMOS processes, iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The ultralow capacitance and exceptionally low charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Figure 2 shows that there is minimum charge injection over the full signal range of the device.The ADG1221/ADG1222/ADG1223 contain two independent single-pole/single-throw (SPST) switches. The ADG1221 and ADG1222 differ only in that the digital control logic is inverted. The ADG1221 switches are turned on with Logic 1 on the appropriate control input, and Logic 0 is required for the ADG1222. The ADG1223 has one switch with digital control logic similar to that of the ADG1221; the logic is inverted on the other switch. The ADG1223 exhibits break-before-make switching action for use in multiplexer applications. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.ApplicationsAutomatic test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsAudio signal routingVideo signal routingCommunication systems

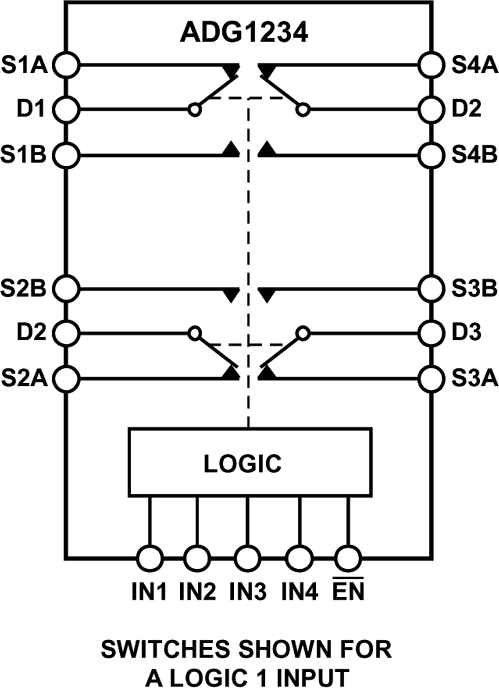

The ADG1233 andADG1234are monolithiciCMOS®analog switches comprising three independently selectable single-pole, double throw SPDT switches and four independently selectable SPDT switches, respectively.All channels exhibit break-before-make switching action preventing momentary shorting when switching channels. AnENinput on the ADG1233 and ADG1234 enables or disables the device. When disabled, all channels are switched off.TheiCMOS (industrial-CMOS) modular manufacturing process combines a high voltage complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage devices has been able to achieve.Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lowered power consumption, and reduced package size.The ultralow capacitance and charge injection of these multiplexers make them ideal solutions for data acquisition and sample-andhold applications, where low glitch and fast settling are required.Fast switching speed coupled with high signal bandwidth make the devices suitable for video signal switching.iCMOS construction ensures ultralow power dissipation, making the devices ideally suited for portable and battery-powered instruments.Product Highlights1.5 pF off capacitance (±15 V supply).0.5 pC charge injection.3 V logic-compatible digital input, VIH = 2.0 V, VIL = 0.8 V.16-lead TSSOP, 20-lead TSSOP, and 4 mm × 4 mm LFCSP.ApplicationsAudio and video routingAutomatic test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsCommunication systems

TheADG1233and ADG1234 are monolithiciCMOS®analog switches comprising three independently selectable single-pole, double throw SPDT switches and four independently selectable SPDT switches, respectively.All channels exhibit break-before-make switching action preventing momentary shorting when switching channels. AnENinput on the ADG1233 and ADG1234 enables or disables the device. When disabled, all channels are switched off.TheiCMOS (industrial-CMOS) modular manufacturing process combines a high voltage complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage devices has been able to achieve.Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lowered power consumption, and reduced package size.The ultralow capacitance and charge injection of these multiplexers make them ideal solutions for data acquisition and sample-andhold applications, where low glitch and fast settling are required.Fast switching speed coupled with high signal bandwidth make the devices suitable for video signal switching.iCMOS construction ensures ultralow power dissipation, making the devices ideally suited for portable and battery-powered instruments.Product Highlights1.5 pF off capacitance (±15 V supply).0.5 pC charge injection.3 V logic-compatible digital input, VIH = 2.0 V, VIL = 0.8 V.16-lead TSSOP, 20-lead TSSOP, and 4 mm × 4 mm LFCSP.ApplicationsAudio and video routingAutomatic test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsCommunication systems

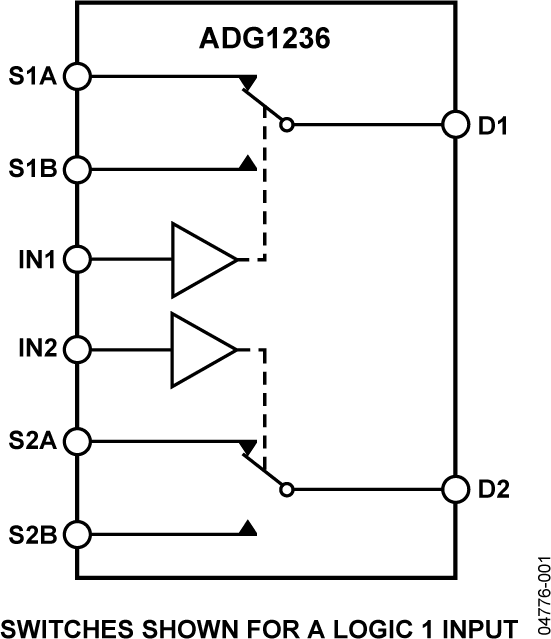

The ADG1236 is a monolithic CMOS device containing two independently selectable SPDT switches. It is designed on aniCMOS®process.iCMOS (industrial CMOS) is a modular manufacturing process combining high voltage complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage devices has been able to achieve. Unlike analog ICs using conventional CMOS processes,iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.The ultralow capacitance and charge injection of the device make it an ideal solution for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed coupled with high signal bandwidth makes the device suitable for video signal switching.iCMOS construction ensures ultralow power dissipation, making the device ideally suited for portable and battery-powered instruments.Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. Both switches exhibit break-before-make switching action for use in multiplexer applications.Product Highlights3 pF off capacitance (±15 V supply).1 pC charge injection.3 V logic-compatible digital inputs: VIH = 2.0 V, VIL = 0.8 V.No VLlogic power supply required.Ultralow power dissipation: <0.03 µW.16-lead TSSOP and 12-lead 3 mm × 3 mm LFCSP packages.ApplicationsAutomatic test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsAudio/video signal routingCommunication systems

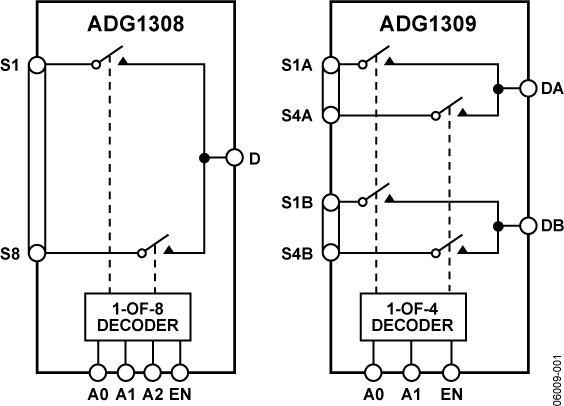

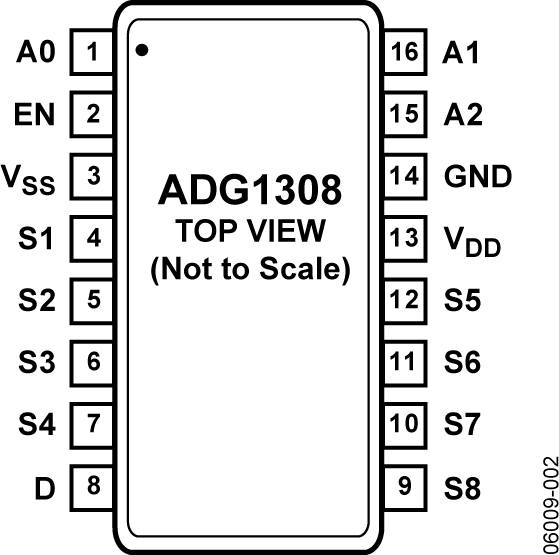

TheADG1308and ADG1309 are monolithic analog multiplexers consisting of eight single channels and four differential channels, respectively. The ADG1308 switches one of eight inputs to a common output as determined by the 3-bit binary address lines A0, A1, and A2. The ADG1309 switches one of four differential inputs to a common differential output as determined by the 2-bit binary address lines A0 and A1. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched off.When the switches are on, each switch conducts equally well in both directions and has an input signal range that extends to the power supplies. In the off condition, signal levels up to the supplies are blocked. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is the low charge injection for minimum transients when switching the digital inputs.Fast switching speed coupled with high signal bandwidth makes the parts suitable for video signal switching. CMOS construction ensures ultra low power dissipation, making the parts ideally suited for portable and battery-powered instruments.APPLICATIONSAudio and Video RoutingTest EquipmentData Acquisition SystemsBattery-powered SystemsCommunication SystemsSignal Routing

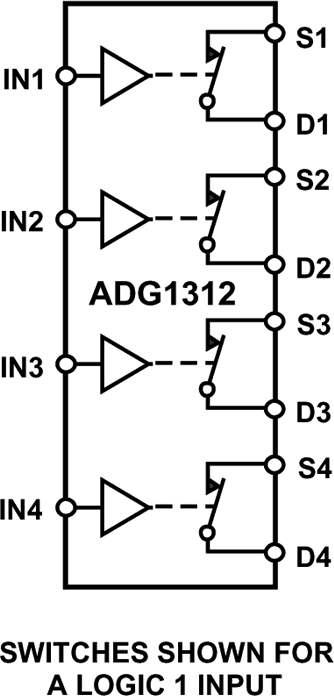

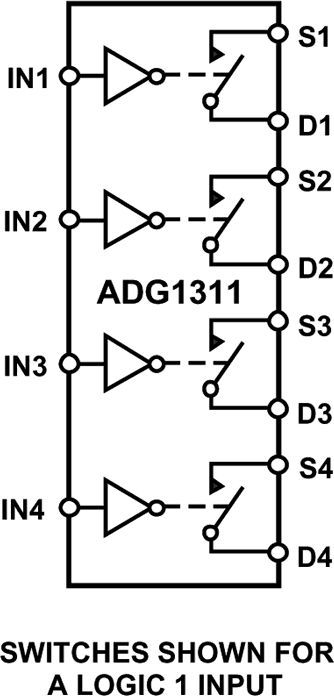

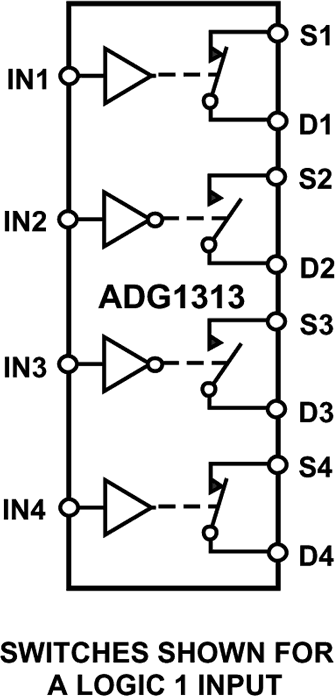

The ADG1311 /ADG1312/ADG1313are monolithic CMOS devices containing four independently selectable switches designed on a CMOS process.The ADG1311 / ADG1312 / ADG1313 contain four independent single-pole/single-throw (SPST) switches. The ADG1311 and ADG1312 differ only in that the digital control logic is inverted. The ADG1311 switches are turned on with Logic 0 on the appropriate control input, while Logic 1 is required for the ADG1312. The ADG1313 has two switches with digital control logic similar to the ADG1311; the logic is inverted on the other two switches. The ADG1313 exhibits break-before-make switching action for use in multiplexer applications.Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.APPLICATIONSSignal SwitchingBattery-powered SystemsCommunication Systems

TheADG1311/ ADG1312 /ADG1313are monolithic CMOS devices containing four independently selectable switches designed on a CMOS process.The ADG1311 / ADG1312 / ADG1313 contain four independent single-pole/single-throw (SPST) switches. The ADG1311 and ADG1312 differ only in that the digital control logic is inverted. The ADG1311 switches are turned on with Logic 0 on the appropriate control input, while Logic 1 is required for the ADG1312. The ADG1313 has two switches with digital control logic similar to the ADG1311; the logic is inverted on the other two switches. The ADG1313 exhibits break-before-make switching action for use in multiplexer applications.Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.PRODUCT HIGHLIGHTS3 V logic-compatible digital inputs: VIH= 2.0 V, VIL= 0.8 V.No VLlogic power supply required.16-lead TSSOP and SOIC packages.APPLICATIONSSignal SwitchingBattery-powered SystemsCommunication SystemsAudio/video signal routing

TheADG1311/ADG1312/ ADG1313 are monolithic CMOS devices containing four independently selectable switches designed on a CMOS process.The ADG1311 / ADG1312 / ADG1313 contain four independent single-pole/single-throw (SPST) switches. The ADG1311 and ADG1312 differ only in that the digital control logic is inverted. The ADG1311 switches are turned on with Logic 0 on the appropriate control input, while Logic 1 is required for the ADG1312. The ADG1313 has two switches with digital control logic similar to the ADG1311; the logic is inverted on the other two switches. The ADG1313 exhibits break-before-make switching action for use in multiplexer applications.Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.APPLICATIONSSignal SwitchingBattery-powered SystemsCommunication Systems

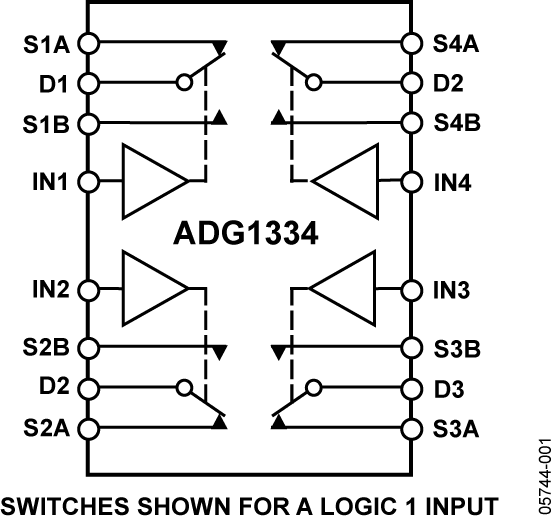

The ADG1334 is a monolithic CMOS device comprising of four independently selectable SPDT switches designed on a CMOS process.When the switches are on, each switch conducts equally well in both directions and has an input signal range that extends to the power supplies. In the off condition, signal levels up to the supplies are blocked. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is the low charge injection for minimum transients when switching the digital inputs.Fast switching speed coupled with high signal bandwidth makes the part suitable for video signal switching. CMOS construction ensures ultralow power dissipation, making the part ideally suited for portable and battery-powered instruments.PRODUCT HIGLIGHTS3 V logic compatible digital input VIH= 2.0 V, VIL= 0.8 V. 2.No VLlogic power supply required.Low power consumption.20-lead SSOPAPPLICATIONSAudio and Video RoutingBattery-powered SystemsSignal Routing
