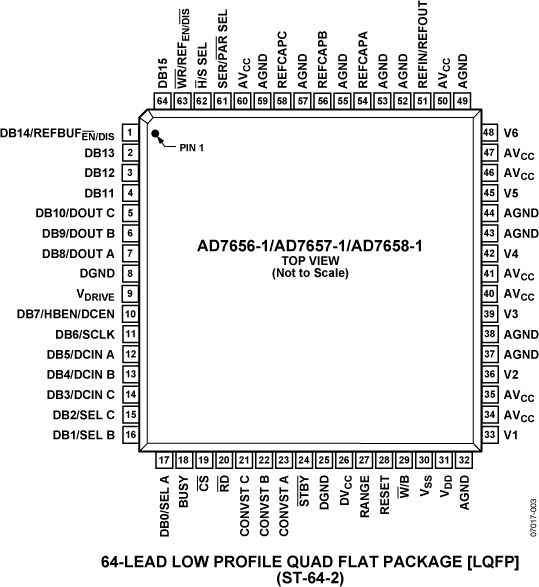

AD7657-1250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar 14-Bit ADC | Integrated Circuits (ICs) | 2 | Active | The AD7656-1/AD7657-1/AD7658-1 are reduced decoupling pin- and software-compatible versions of AD7656/AD7657/AD7658. The AD7656-1/AD7657-1/AD7658-1 devices contain six 16-/14-/12-bit, fast, low power successive approximation ADCs in a package designed on theiCMOS®process (industrial CMOS).iCMOS is a process combining high voltage silicon with submicron CMOS and complementary bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage parts could achieve. Unlike analog ICs using conventional CMOS processes,iCMOS components can accept bipolar input signals while providing increased performance, which dramatically reduces power consumption and package size.The AD7656-1/AD7657-1/AD7658-1 feature throughput rates of up to 250 kSPS. The parts contain low noise, wide bandwidth track-and-hold amplifiers that can handle input frequencies up to 4.5 MHz.The conversion process and data acquisition are controlled using the CONVST signals and an internal oscillator. Three CONVST pins (CONVST A, CONVST B, and CONVST C) allow independent, simultaneous sampling of the three ADC pairs. The AD7656-1/AD7657-1/AD7658-1 have a high speed parallel and serial interface, allowing the devices to interface with microprocessors or DSPs. When the serial interface is selected, each part has a daisy-chain feature that allows multiple ADCs to connect to a single serial interface. The AD7656-1/AD7657-1/AD7658-1 can accommodate true bipolar input signals in the ±4 × VREFand ±2 × VREFranges. Each AD7656-1/AD7657-1/AD7658-1 also contains an on-chip 2.5 V reference.Product HighlightsSix 16-/14-/12-bit, 250 kSPS ADCs on board.Six true bipolar, high impedance analog inputs.High speed parallel and serial interfaces.Reduced decoupling requirements and reduced bill of materials cost compared with the AD7656/AD7657/ AD7658 devices.ApplicationsPower line monitoring and measuring systemsInstrumentation and control systemsMultiaxis positioning systems |
AD7658250 kSPS, 6-Channel,SimultaneousSampling, Bipolar 12-Bit A/D Converter | Evaluation Boards | 7 | Active | TheAD7656-1/AD7657-1/ AD7658-1 are reduced decoupling pin- and software-compatible versions ofAD7656/AD7657/AD7658. The AD7656-1 / AD7657-1 / AD7658-1 devices contain six 16-/14-/12-bit, fast, low power successive approximation ADCs in a package designed on theiCMOS®process (industrial CMOS).iCMOS is a process combining high voltage silicon with submicron CMOS and complementary bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage parts could achieve. Unlike analog ICs using conventional CMOS processes,iCMOS components can accept bipolar input signals while providing increased performance, which dramatically reduces power consumption and package size.The AD7656-1 / AD7657-1 / AD7658-1 feature throughput rates of up to 250 kSPS. The parts contain low noise, wide bandwidth track-and-hold amplifiers that can handle input frequencies up to 4.5 MHz.The conversion process and data acquisition are controlled using the CONVST signals and an internal oscillator. Three CONVST pins (CONVST A, CONVST B, and CONVST C) allow independent, simultaneous sampling of the three ADC pairs. The AD7656-1 / AD7657-1 / AD7658-1 have a high speed parallel and serial interface, allowing the devices to interface with microprocessors or DSPs. When the serial interface is selected, each part has a daisy-chain feature that allows multiple ADCs to connect to a single serial interface. The AD7656-1 / AD7657-1 / AD7658-1 can accommodate true bipolar input signals in the ±4 × VREFand ±2 × VREFranges. Each AD7656-1 / AD7657-1 / AD7658-1 also contains an on-chip 2.5 V reference.PRODUCT HIGHLIGHTSSix 16-/14-/12-bit, 250 kSPS ADCs on board.Six true bipolar, high impedance analog inputs.High speed parallel and serial interfaces.Reduced decoupling requirements and reduced bill of materials cost compared with the AD7656 / AD7657 / AD7658 devices.APPLICATIONSPower line monitoring and measuring systemsInstrumentation and control systemsMultiaxis positioning systems |
AD7658-1250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar 12-Bit ADC | Integrated Circuits (ICs) | 2 | Active | TheAD7656-1/AD7657-1/ AD7658-1 are reduced decoupling pin- and software-compatible versions ofAD7656/AD7657/AD7658. The AD7656-1 / AD7657-1 / AD7658-1 devices contain six 16-/14-/12-bit, fast, low power successive approximation ADCs in a package designed on theiCMOS®process (industrial CMOS).iCMOS is a process combining high voltage silicon with submicron CMOS and complementary bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage parts could achieve. Unlike analog ICs using conventional CMOS processes,iCMOS components can accept bipolar input signals while providing increased performance, which dramatically reduces power consumption and package size.The AD7656-1 / AD7657-1 / AD7658-1 feature throughput rates of up to 250 kSPS. The parts contain low noise, wide bandwidth track-and-hold amplifiers that can handle input frequencies up to 4.5 MHz.The conversion process and data acquisition are controlled using the CONVST signals and an internal oscillator. Three CONVST pins (CONVST A, CONVST B, and CONVST C) allow independent, simultaneous sampling of the three ADC pairs. The AD7656-1 / AD7657-1 / AD7658-1 have a high speed parallel and serial interface, allowing the devices to interface with microprocessors or DSPs. When the serial interface is selected, each part has a daisy-chain feature that allows multiple ADCs to connect to a single serial interface. The AD7656-1 / AD7657-1 / AD7658-1 can accommodate true bipolar input signals in the ±4 × VREFand ±2 × VREFranges. Each AD7656-1 / AD7657-1 / AD7658-1 also contains an on-chip 2.5 V reference.PRODUCT HIGHLIGHTSSix 16-/14-/12-bit, 250 kSPS ADCs on board.Six true bipolar, high impedance analog inputs.High speed parallel and serial interfaces.Reduced decoupling requirements and reduced bill of materials cost compared with the AD7656 / AD7657 / AD7658 devices.APPLICATIONSPower line monitoring and measuring systemsInstrumentation and control systemsMultiaxis positioning systems |
AD76616-Bit Current-Steering DAC with Voltage Reference | Data Acquisition | 6 | Active | The AD766 16-bit DSP DACPORT provides a direct, three-wire interface to the serial ports of popular DSP processors, including the ADSP-2101, TMS320CXX, and DSP56001. No additional "glue logic" is required. The AD766 is also complete, offering on-chip serial-to-parallel input format conversion, a 16-bit current-steering DAC, voltage reference, and a voltage output op amp. The AD766 is fabricated in Analog Devices' BiMOS II mixed-signal process which provides bipolar transistors, MOS transistors, and thin-film resistors for precision analog circuits in addition to CMOS devices for logic.The design and layout of the AD766 have been optimized for ac performance and are responsible for its guaranteed and tested 94 dB signal-to-noise ratio to 20 kHz and 79 dB SNR to 250 kHz. Laser-trimming the AD766's silicon chromium thin-film resistors reduces total harmonic distortion below −81 dB (at 1 kHz), a specification also production tested. An optional linearity trim pin allows elimination of midscale differential linearity error for even lower THD with small signals.The AD766's output amplifier provides a ±3 V signal with a high slew rate, small glitch, and fast settling. The output amplifier is short circuit protected and can withstand indefinite shorts to ground.The serial interface consists of bit clock, data, and latch enable inputs. The twos-complement data word is clocked MSB first on falling clock edges into the serial-to-parallel converter, consistent with the serial protocols of popular DSP processors. The input clock can support data transfers up to 12.5 MHz. The falling edge of latch enable updates the internal DAC input register at the sample rate with the sixteen bits most recently clocked into the serial input register.The AD766 operates over a ±5 V to ±12 V power supply range. The digital supplies, +VLand −VL, can be separated from the analog signal supplies, +VSand −VS, for reduced digital crosstalk. Separate analog and digital ground pins are also provided. An internal bandgap reference provides a precision voltage source to the output amp that is stable over temperature and time.Power dissipation is typically 120 mW with ±5 V supplies and 300 mW with ±12 V. The AD766 is available in commercial (0°C to +70°C), industrial (−40°C to +85°C), and military (−55°C to +125°C) grades. Commercial and industrial grade parts are available in a 16-pin plastic DIP; military parts processed to MIL-STD-883B are packaged in a 16-pin ceramic DIP. See Analog Devices' Military Products Databook or current military data sheet for specifications for the military version.APPLICATIONSDigital Signal ProcessingNoise CancellationRadar JammingAutomatic Test EquipmentPrecision Industrial EquipmentWaveform Generation |
| Data Acquisition | 3 | Active | |
| Data Acquisition | 5 | Active | |
| Analog to Digital Converters (ADC) | 4 | Active | |

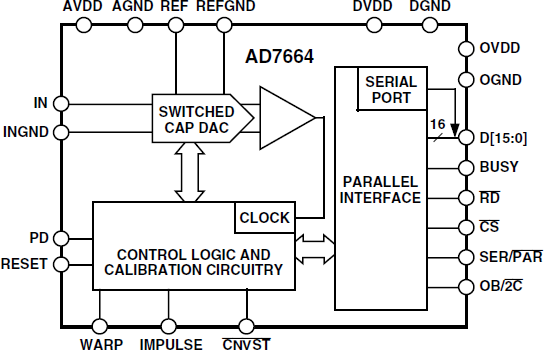

AD766416-Bit 570 kSPS CMOS Successive Approximation PulSAR® ADC with No Missing Codes | Integrated Circuits (ICs) | 3 | Active | The AD7664 is a 16-bit, 570 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains a high speed 16-bit sampling ADC, an internal conversion clock, error correction circuits, and both serial and parallel system interface ports.The AD7664 is hardware factory-calibrated and is comprehensively tested to ensure such ac parameters as signal-to-noise ratio (SNR) and total harmonic distortion (THD), in addition to the more traditional dc parameters of gain, offset, and linearity.It features a very high sampling rate mode (Warp), a fast mode (Normal) for asynchronous conversion rate applications, and for low power applications, a reduced power mode (Impulse) where the power is scaled with the throughput.It is fabricated using Analog Devices’ high performance, 0.6 micron CMOS process, with correspondingly low cost and is available in a 48-lead LQFP and a tiny 48-lead LFCSP with operation specified from –40°C to +85°C.PRODUCT HIGHLIGHTSFast ThroughputThe AD7664 is a 570 kSPS, charge redistribution, 16-bit SAR ADC with internal error correction circuitry.Superior INLThe AD7664 has a maximum integral nonlinearity of 2.5 LSBs with no missing 16-bit code.Single-Supply OperationThe AD7664 operates from a single 5 V supply and dissipates only a maximum of 115 mW. In Impulse Mode, its power dissipation decreases with the throughput to, for instance, only 21 µW at a 100 SPS throughput. It consumes 7 µW maximum when in power-down.Serial or Parallel InterfaceVersatile parallel or 2-wire serial interface arrangement compatible with both 3 V or 5 V logic.APPLICATIONSData acquisitionInstrumentationDigital signal processingSpectrum analysisMedical instrumentsBattery-powered systemsProcess control |
AD766516-Bit 570 kSPS Bipolar PulSAR®ADC | Data Acquisition | 4 | Active | The AD7665 is a 16-bit, 570 kSPS, charge redistribution SAR, Analog-to-Digital Converter that operates from a single 5 V power supply. It contains a high-speed 16-Bit sampling ADC, a resistor input scalar, which allows various input ranges, an internal conversion clock, error correction circuits, and both serial and parallel system interface ports.The AD7665 is hardware factory calibrated and is comprehensively tested to ensure such ac parameters as signal-to-noise ratio (SNR) and total harmonic distortion (THD), in addition to the more traditional dc parameters of gain, offset, and linearity.It features a very high sampling rate mode (Warp) and, for asynchronous conversion rate applications, a fast mode (Nor-mal) and, for low power applications, a reduced power mode (Impulse) where the power is scaled with the throughput. It is fabricated using Analog Devices’ high-performance, 0.6 micron CMOS process and is available in a 48-lead LQFP with operation specified from -40°C to +85°C.PRODUCT HIGHLIGHTSFast ThroughputThe AD7665 is a very high speed (570 kSPS in Warp Mode and 500 kSPS in Normal Mode), charge redistribution, 16-bit SAR ADC.Single-Supply OperationThe AD7665 operates from a single 5 V supply, dissipates only 64 mW typical, even lower when a reduced throughput is used with the reduced power mode (Impulse) and a power-down mode.Superior INLThe AD7665 has a maximum integral nonlinearity of 2.5 LSB with no missing 16-bit code.Serial or Parallel InterfaceVersatile parallel (8 bits or 16 bits) or 2-wire serial interface arrangement compatible with both 3 V or 5 V logic.APPLICATIONSData AcquisitionCommunicationInstrumentationSpectrum AnalysisMedical InstrumentsProcess Control |
AD766616-Bit, 500 kSPS PulSAR®Unipolar ADC with Ref | Data Acquisition | 4 | Active | The AD7666 is a 16-bit, 500 kSPS, charge redistribution SAR analog-to-digital converter that operates from a single 5 V power supply. The part contains a high speed, 16-bit sampling ADC, an internal conversion clock, internal reference, error correction circuits, and both serial and parallel system interface ports. The AD7666 is hardware factory-calibrated and comprehensively tested to ensure ac parameters such as signal-to-noise ratio (SNR) and total harmonic distortion (THD), in addition to the more traditional dc parameters of gain, offset, and linearity.The AD7666 is available in a 48-lead LQFP and a tiny 48-lead LFCSP, with operation specified from –40°C to +85°C.PRODUCT HIGHLIGHTSFast Throughput.The AD7666 is a 500 kSPS, charge redistribution, 16-bit SAR ADC with internal error correction circuitry.Superior INL.The AD7666 has a maximum integral nonlinearity of 2.0 LSB with no missing 16-bit codes.Internal Reference.The AD7666 has an internal reference with a typical temperature drift of 3 ppm/°C.Single-Supply Operation.The AD7666 operates from a single 5 V supply. Its power dissipation decreases with throughput.Serial or Parallel Interface.Versatile parallel or 2-wire serial interface arrangement is compatible with both 3 V and 5 V logic.APPLICATIONSData acquisitionMedical instrumentsDigital signal processingSpectrum analysisInstrumentationBattery-powered systemsProcess control |
