AD765016-Bit, 570 kSPS, Unipolar CMOS Successive Approximation ADC | Development Boards, Kits, Programmers | 5 | Active | The AD7650 is a low cost, 16-bit, 570 kSPS, unipolar CMOS Successive Approximation ADC featuring 15-bits No Missing Codes. This model was developed to compete against ADCs with similar performance but at a higher sampling frequency. The AD7650 is an excellent, low cost complement to our previously introduced, high-performance 16-bit ADCs (AD7664 and AD7665).Typical AC specifications are 86 dB SINAD and -98 THD @ 45 kHz. DC performance is ±6 LSB INL and 15-bits of no missing codes. Maximum power dissipation is 115 mW @500 kSPS and typically 21 µW @100 SPS. The AD7650 features differential inputs with a 0 V to 2.5 V input range. This model is available in the 48-lead LQFP or, for applications where board space is critical, the chip scale 48-lead LFCSP. The AD7650 is the first PulSAR ADC to feature this new package.APPLICATIONSData AcquisitionInstrumentationDigital Signal ProcessingSpectrum AnalysisMedical InstrumentsBattery-Powered SystemsProcess Control |
AD765116-Bit 100 kSPS PulSAR®Unipolar ADC with Reference | Data Acquisition | 4 | Active | The AD7651 is a 16-bit, 100 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains a high-speed 16-bit sampling ADC, an internal conversion clock, internal reference, error correction circuits, and both serial and parallel system interface ports.It is fabricated using Analog Devices' high-performance, 0.6 micron CMOS process, with correspondingly low cost and is available in a 48-lead LQFP and a tiny 48-lead LFCSP with operation specified from -40°C to +85°C.APPLICATIONSData acquisitionInstrumentationDigital signal processingSpectrum analysisMedical instrumentsBattery-powered systemsProcess control |
| Development Boards, Kits, Programmers | 5 | Active | |

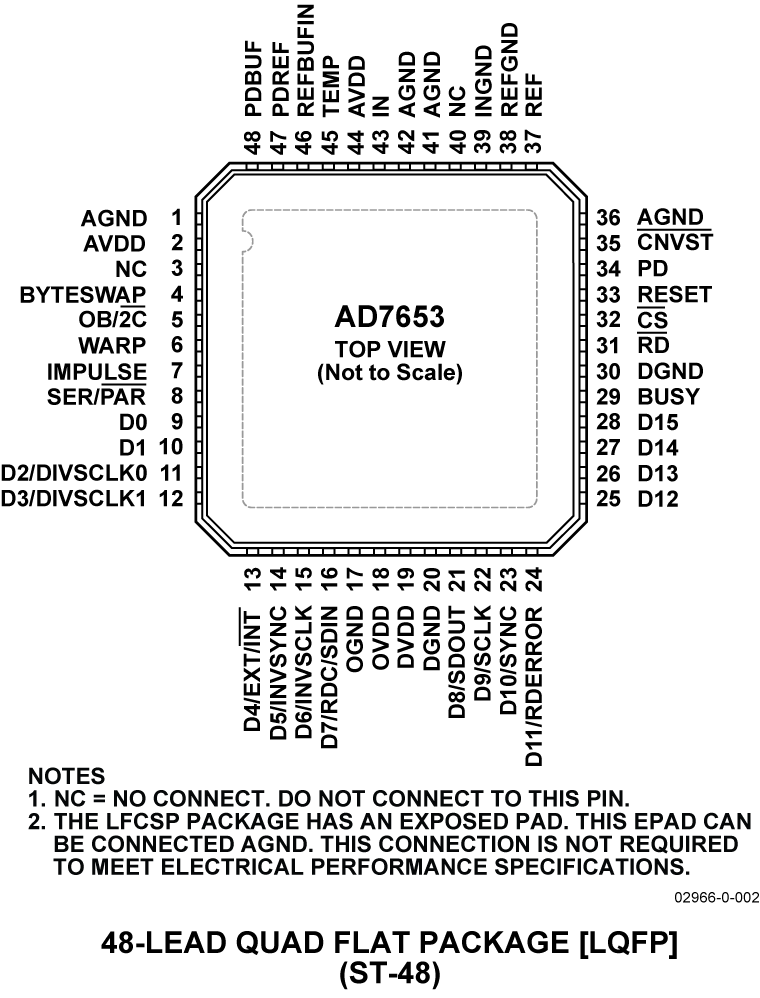

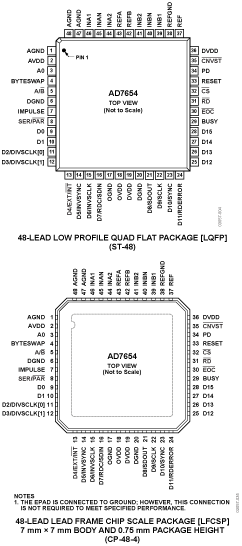

AD765316-Bit 1 MSPS PulSAR®Unipolar ADC with Ref | Integrated Circuits (ICs) | 4 | Active | The AD7653 is a 16-bit, 1 MSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains a high-speed, 16-bit sampling ADC, an internal conversion clock, internal reference, error correction circuits, and both serial and parallel system inter-face ports.It features a very high sampling rate mode (Warp) and, for asynchronous conversion rate applications, a fast mode (Normal) and, for low power applications, a reduced power mode (Impulse) where the power is scaled with the throughput.It is fabricated using Analog Devices' high-performance, 0.6 micron CMOS process, with correspondingly low cost and is available in a 48-lead LQFP and a tiny 48-lead LFCSP with operation specified from -40°C to +85°C.APPLICATIONSData acquisitionInstrumentationDigital signal processingSpectrum analysisMedical instrumentsBattery-powered systemsProcess control |
| Development Boards, Kits, Programmers | 4 | Active | |
AD7655Low Cost, 4-Channel, 16-Bit, 500 kSPS PulSAR ADC | Analog to Digital Converters (ADCs) Evaluation Boards | 8 | Active | The AD7655 is a low cost, simultaneous sampling, dual-channel, 16-bit, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. It contains two low noise, wide bandwidth, track-and-hold amplifiers that allow simultaneous sampling, a high speed 16-bit sampling ADC, an internal conversion clock, error correction circuits, and both serial and parallel system interface ports. Each track-and-hold has a multiplexer in front to provide a 4-channel input ADC. The A0 multiplexer control input allows the choice of simultaneously sampling input pairs INA1/INB1 (A0 = low) or INA2/INB2 (A0 = high). The part features a very high sampling rate mode (normal) and, for low power applications, a reduced power mode (impulse) where the power is scaled with the throughput. Operation is specified from −40°C to +85°C.PRODUCT HIGHLIGHTSMultichannel ADC.The AD7655 features 4-channel inputs with two sample-and-hold circuits that allow simultaneous sampling.Fast Throughput.The AD7655 is a 500 kSPS, charge redistribution, 16-bit SAR ADC with internal error correction circuitry.Single-Supply Operation.The AD7655 operates from a single 5 V supply. In impulse mode, its power dissipation decreases with throughput.Serial or Parallel Interface.Versatile parallel or 2-wire serial interface arrangements are compatible with both 3 V and 5 V logic.APPLICATIONSAC motor control3-phase power control4-channel data acquisitionUninterrupted power suppliesCommunications |
AD7656250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar 16-Bit ADC | Analog to Digital Converters (ADCs) Evaluation Boards | 12 | Active | The AD7656-1 /AD7657-1/AD7658-1are reduced decoupling pin- and software-compatible versions ofAD7656/AD7657/AD7658. The AD7656-1 / AD7657-1 / AD7658-1 devices contain six 16-/ 14-/12-bit, fast, low power successive approximation ADCs in a package designed on the iCMOS®process (industrial CMOS). iCMOS is a process combining high voltage silicon with submicron CMOS and complementary bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage parts could achieve. Unlike analog ICs using conventional CMOS processes, iCMOS components can accept bipolar input signals while providing increased performance, which dramatically reduces power consumption and package size.The AD7656-1 / AD7657-1 / AD7658-1 feature throughput rates of up to 250 kSPS. The parts contain low noise, wide bandwidth track-and-hold amplifiers that can handle input frequencies up to 4.5 MHz.The conversion process and data acquisition are controlled using the CONVST signals and an internal oscillator. Three CONVST pins (CONVST A, CONVST B, and CONVST C) allow independent, simultaneous sampling of the three ADC pairs. The AD7656-1 / AD7657-1 / AD7658-1 have a high speed parallel and serial interface, allowing the devices to interface with microprocessors or DSPs. When the serial interface is selected, each part has a daisy-chain feature that allows multiple ADCs to connect to a single serial interface. The AD7656-1 / AD7657-1 / AD7658-1 can accommodate true bipolar input signals in the ±4 × VREFand ±2 × VREFranges. Each AD7656-1 / AD7657-1 / AD7658-1 also contains an on-chip 2.5 V reference.Please visit next generation productAD7606. Recommended for new designs is theAD7656A-1pin for pin compatible device with improved PSS robustness.PRODUCT HIGHLIGHTSSix 16-/14-/12-bit, 250 kSPS ADCs on board.Six true bipolar, high impedance analog inputs.High speed parallel and serial interfaces.Reduced decoupling requirements and reduced bill of materials cost compared with the AD7656 / AD7657 / AD7658 devices.APPLICATIONSPower line monitoring and measuring systemsInstrumentation and control systemsMultiaxis positioning systems |
AD7656-1250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar 16-Bit ADC | Integrated Circuits (ICs) | 1 | Active | The AD7656-1 /AD7657-1/AD7658-1are reduced decoupling pin- and software-compatible versions ofAD7656/AD7657/AD7658. The AD7656-1 / AD7657-1 / AD7658-1 devices contain six 16-/ 14-/12-bit, fast, low power successive approximation ADCs in a package designed on the iCMOS®process (industrial CMOS). iCMOS is a process combining high voltage silicon with submicron CMOS and complementary bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage parts could achieve. Unlike analog ICs using conventional CMOS processes, iCMOS components can accept bipolar input signals while providing increased performance, which dramatically reduces power consumption and package size.The AD7656-1 / AD7657-1 / AD7658-1 feature throughput rates of up to 250 kSPS. The parts contain low noise, wide bandwidth track-and-hold amplifiers that can handle input frequencies up to 4.5 MHz.The conversion process and data acquisition are controlled using the CONVST signals and an internal oscillator. Three CONVST pins (CONVST A, CONVST B, and CONVST C) allow independent, simultaneous sampling of the three ADC pairs. The AD7656-1 / AD7657-1 / AD7658-1 have a high speed parallel and serial interface, allowing the devices to interface with microprocessors or DSPs. When the serial interface is selected, each part has a daisy-chain feature that allows multiple ADCs to connect to a single serial interface. The AD7656-1 / AD7657-1 / AD7658-1 can accommodate true bipolar input signals in the ±4 × VREFand ±2 × VREFranges. Each AD7656-1 / AD7657-1 / AD7658-1 also contains an on-chip 2.5 V reference.Please visit next generation productAD7606. Recommended for new designs is theAD7656A-1pin for pin compatible device with improved PSS robustness.PRODUCT HIGHLIGHTSSix 16-/14-/12-bit, 250 kSPS ADCs on board.Six true bipolar, high impedance analog inputs.High speed parallel and serial interfaces.Reduced decoupling requirements and reduced bill of materials cost compared with the AD7656 / AD7657 / AD7658 devices.APPLICATIONSPower line monitoring and measuring systemsInstrumentation and control systemsMultiaxis positioning systems |
AD7656A250kSPS, 6-Channel, Simultaneous Sampling, Bipolar 16-Bit ADC | Analog to Digital Converters (ADC) | 1 | Active | The AD7656A contains six 16-bit, fast, low power, successive approximation analog-to-digital converters (ADCs) all in the one package that is designed on theiCMOS®process (industrial CMOS).iCMOS is a process combining high voltage silicon with submicron CMOS and complementary bipolar technologies. It enables the development of a wide range of high performance analog ICs, capable of 33 V operation in a footprint that no previous generation of high voltage devices could achieve. Unlike analog ICs using conventional CMOS processes,iCMOS components can accept bipolar input signals while providing increased performance, which dramatically reduces power consumption and package size.The AD7656A features throughput rates of up to 250 kSPS. It contains wide bandwidth (12 MHz), track-and-hold amplifiers that can handle input frequencies up to 12 MHz.The conversion process and data acquisition are controlled using CONVST x signals and an internal oscillator. Three CONVST x pins (CONVST A, CONVST B, and CONVST C) allow independent, simultaneous sampling of the three ADC pairs. The AD7656A has a high speed parallel and serial interface, allowing the device to interface with microprocessors or digital signal processors (DSPs). In serial interface mode, the AD7656A has a daisy-chain feature that allows multiple ADCs to connect to a single serial interface. The AD7656A can accommodate true bipolar input signals in the ±4 × VREFrange and ±2 × VREFrange. The AD7656A also contains an on-chip 2.5 V reference.Multifunction pin names may be referenced by their relevant function only.Please visit next generation productAD7606. For reduced decoupling requirements visit theAD7656A-1product page.PRODUCT HIGHLIGHTSSix 16-bit, 250 kSPS ADCs on board.Six true bipolar, high impedance analog inputs.Parallel and high speed serial interfaces.APPLICATIONSPower line monitoring systemsInstrumentation and control systemsMulti-axis positioning systems |
AD7657250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar, 14-Bit A/D Converter | Analog to Digital Converters (ADCs) Evaluation Boards | 7 | Active | The AD7656-1/AD7657-1/AD7658-1 are reduced decoupling pin- and software-compatible versions of AD7656/AD7657/AD7658. The AD7656-1/AD7657-1/AD7658-1 devices contain six 16-/14-/12-bit, fast, low power successive approximation ADCs in a package designed on theiCMOS®process (industrial CMOS).iCMOS is a process combining high voltage silicon with submicron CMOS and complementary bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage parts could achieve. Unlike analog ICs using conventional CMOS processes,iCMOS components can accept bipolar input signals while providing increased performance, which dramatically reduces power consumption and package size.The AD7656-1/AD7657-1/AD7658-1 feature throughput rates of up to 250 kSPS. The parts contain low noise, wide bandwidth track-and-hold amplifiers that can handle input frequencies up to 4.5 MHz.The conversion process and data acquisition are controlled using the CONVST signals and an internal oscillator. Three CONVST pins (CONVST A, CONVST B, and CONVST C) allow independent, simultaneous sampling of the three ADC pairs. The AD7656-1/AD7657-1/AD7658-1 have a high speed parallel and serial interface, allowing the devices to interface with microprocessors or DSPs. When the serial interface is selected, each part has a daisy-chain feature that allows multiple ADCs to connect to a single serial interface. The AD7656-1/AD7657-1/AD7658-1 can accommodate true bipolar input signals in the ±4 × VREFand ±2 × VREFranges. Each AD7656-1/AD7657-1/AD7658-1 also contains an on-chip 2.5 V reference.Product HighlightsSix 16-/14-/12-bit, 250 kSPS ADCs on board.Six true bipolar, high impedance analog inputs.High speed parallel and serial interfaces.Reduced decoupling requirements and reduced bill of materials cost compared with the AD7656/AD7657/ AD7658 devices.ApplicationsPower line monitoring and measuring systemsInstrumentation and control systemsMultiaxis positioning systems |
